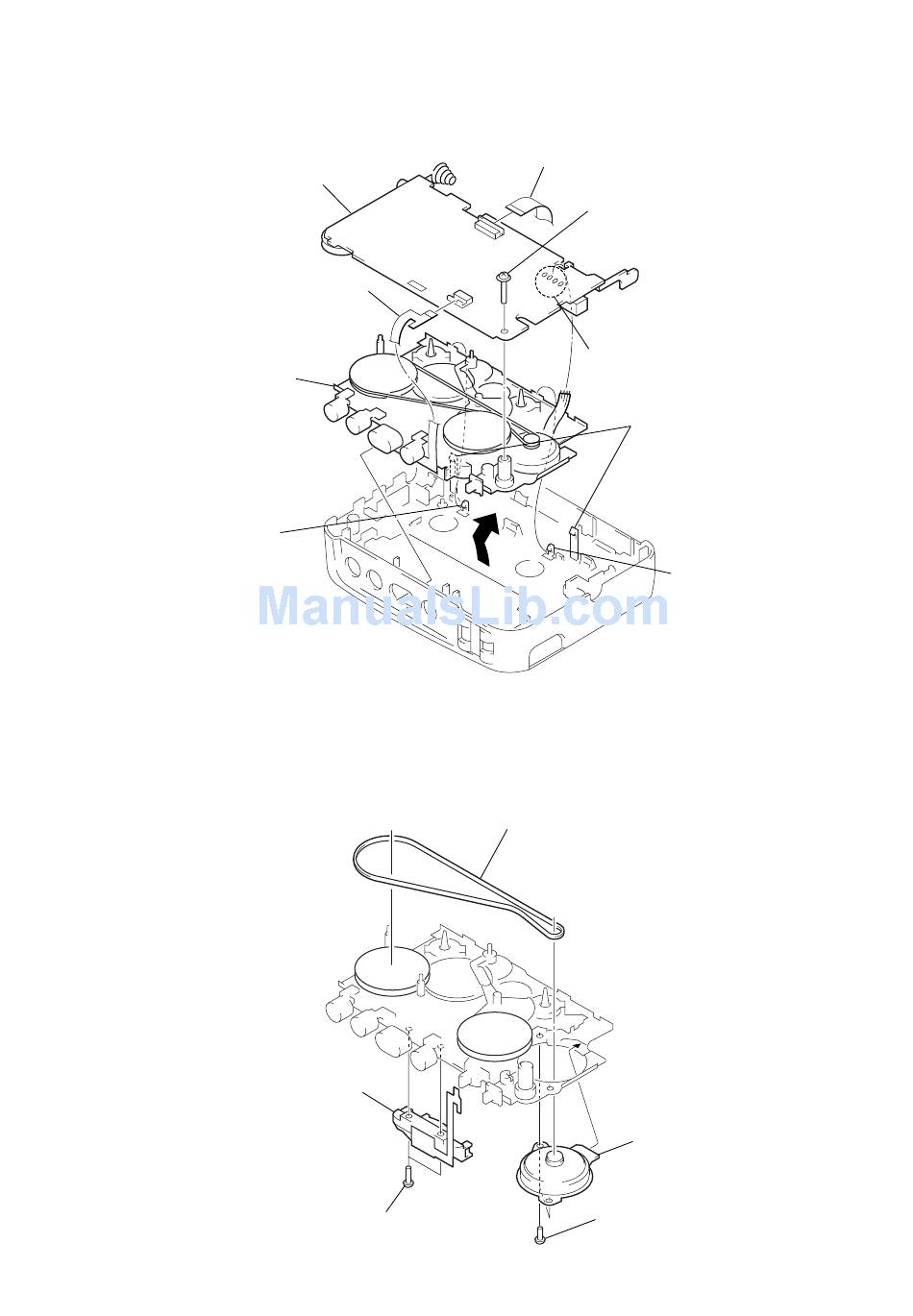

MAIN BOARD, MECHANISM DECK (MT-WMEX372-114)
3 head flexible board
(CN301)
8 Remove the mechanism
deck (MT-WMEX372-114)
to direction of the arrow.
7 claw
BELT, MOTOR (M901), MAGNETIC HEAD (HP901)
5 magnetic head
6 main board
(HP901)
4 two screws
2 flexible board (CN302)
4 toothed lock (WH) screw
(M1.4)
1 Remove four solders of
motor lead (M901).
5 two claws
1 belt
3 motor (M901)
2 two special head screws
(M1.4)
– 5 –
7 claw
