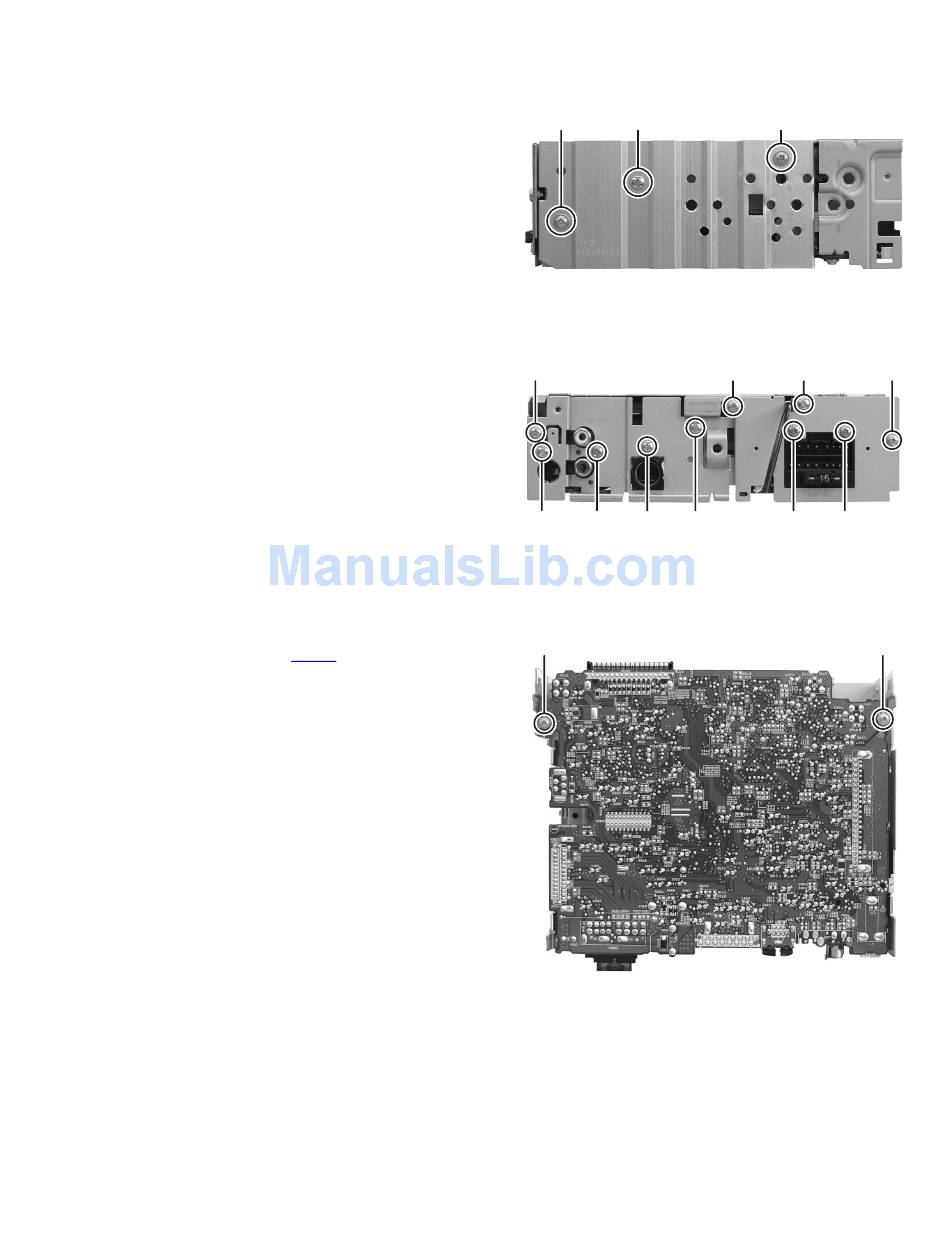

3.1.3 Removing the Heat sink

(See Fig.4)

(1) Remove the two screws C and one screw D attaching the
Heat sink.
3.1.4 Removing the Rear bracket
(See Fig.5)
(1) Remove the one screw E attaching the Antenna jack.
(2) Remove the one screw F attaching the LINE OUT jack.
(3) Remove the one screw G attaching the CD-CH jack.
(4) Remove the one screw H attaching the IC bracket.
(5) Remove the one screw J attaching the Remote cable. (only
for KD-AR480 and KD-G531)
(6) Remove the two screws K attaching the 16pin connector
jack.
(7) Remove the three screws L attaching the Rear bracket.
3.1.5 Removing the Main board assembly
(See Fig.6)
(1) Remove the two screws M attaching the Main board as-
sembly.
(2) Disconnect the connector
board assembly and CD board assembly.
CN501
connected the Main
C
D
Fig.4
L
E
F
G
H
Fig.5
M
Fig.6
C
L
J
L
K
K
M
(No.MA293)1-11
