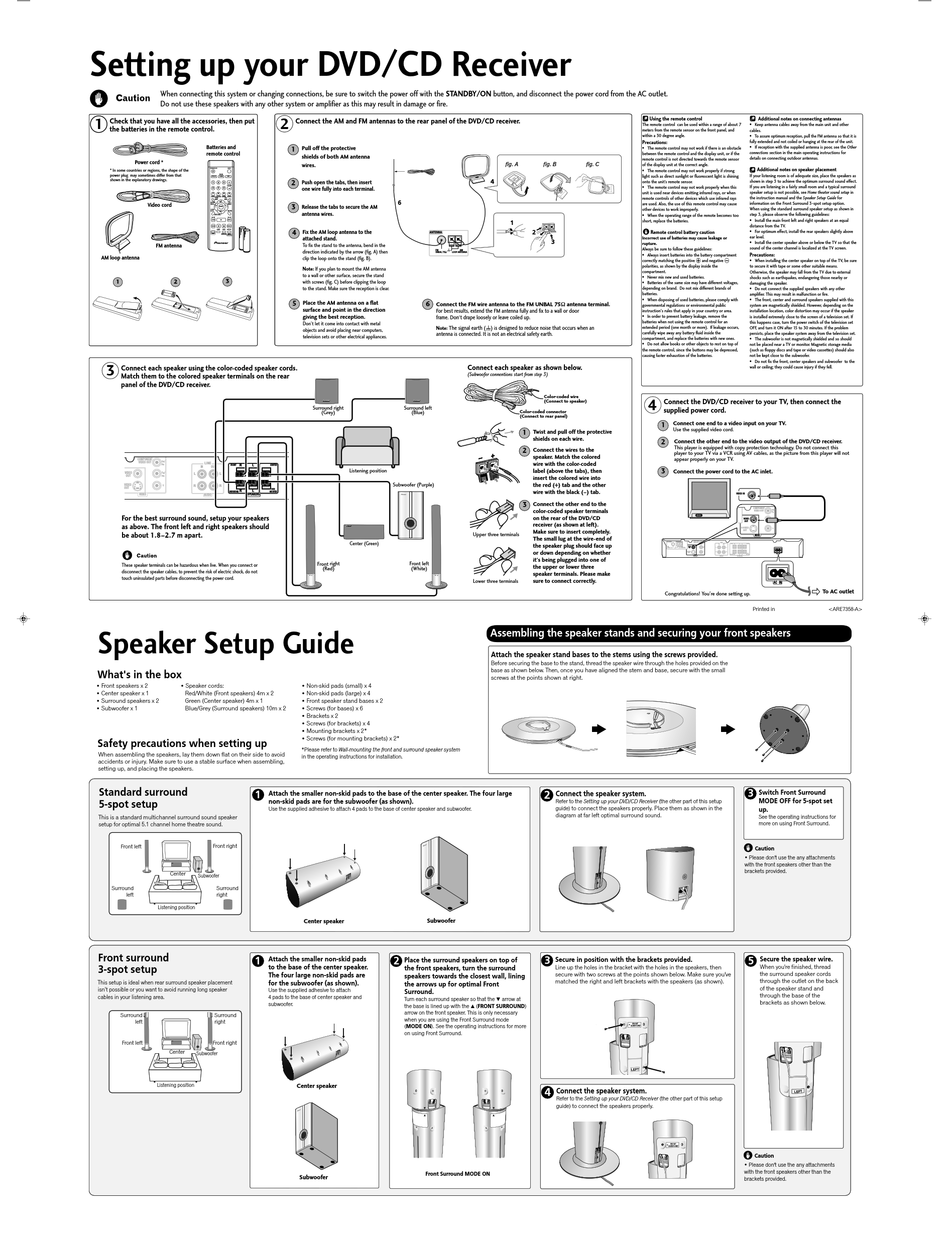

Pioneer HTZ232DVD Setup Manual

Setting up your DVD/CD Receiver
When connecting this system or changing connections, be sure to switch the power off with the STANDBY/ON button, and disconnect the power cord from the AC outlet.
Do not use these speakers with any other system or amplifier as this may result in damage or fire.
Check that you have all the accessories, then put
1
the batteries in the remote control.
Batteries and
remote control
Power cord *
STANDBY/ON MUTE
* In some countries or regions, the shape of the
power plug may sometimes differ from that FM/AM
DVD/CD TUNER LINE
shown in the explanatory drawings.
1 2 3
VOLUME
4 5 6
7 8 9 0
AUDIO SUBTITLE ANGLE ZOOM
HOME DVD
MENU MENU
SYSTEM TUNE TOP
Video cord
SETUP MENU
ST ST
ENTER
SOUND
MODE RETURN
TUNE
TEST TONE
CLEAR SLEEP DISPLAY
SHIFT SURROUND FRONT
SURROUND
FM antenna
AM loop antenna
1 2 3
3 Connect each speaker using the color-coded speaker cords.
Match them to the colored speaker terminals on the rear
panel of the DVD/CD receiver.
COMPONENT
C /
VIDEO OUT B
LINE
P B R
FRONT
IN OUT
VIDEO C R / L L
OUT P
R
VIDEO R R
Y
OUT
R
SURROUND
VIDEO AUDIO
For the best surround sound, setup your speakers
as above. The front left and right speakers should
be about 1.8–2.7 m apart.
These speaker terminals can be hazardous when live. When you connect or
disconnect the speaker cables, to prevent the risk of electric shock, do not
touch uninsulated parts before disconnecting the power cord.

Speaker Setup Guide

What's in the box
• Front speakers x 2 • Speaker cords:
• Center speaker x 1 Red/White (Front speakers) 4m x 2
• Surround speakers x 2 Green (Center speaker) 4m x 1
• Subwoofer x 1 Blue/Grey (Surround speakers) 10m x 2

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid
accidents or injury. Make sure to use a stable surface when assembling,
setting up, and placing the speakers.
Standard surround
5-spot setup
This is a standard multichannel surround sound speaker
setup for optimal 5.1 channel home theatre sound.
Front left Front right
Center
Subwoofer
Surround Surround
left right
Listening position
Front surround
3-spot setup
This setup is ideal when rear surround speaker placement
isn't possible or you want to avoid running long speaker
cables in your listening area.
Surround Surround
left right
Front left Front right
Center
Subwoofer
Listening position
2
Connect the AM and FM antennas to the rear panel of the DVD/CD receiver.
1 Pull off the protective
shields of both AM antenna
wires.
2 Push open the tabs, then insert
one wire fully into each terminal.
6
3 Release the tabs to secure the AM
antenna wires.
4 Fix the AM loop antenna to the
attached stand.
To fix the stand to the antenna, bend in the
direction indicated by the arrow (fig. A) then
clip the loop onto the stand (fig. B).
Note: If you plan to mount the AM antenna
to a wall or other surface, secure the stand
with screws (fig. C) before clipping the loop
to the stand. Make sure the reception is clear.
5 Place the AM antenna on a flat
surface and point in the direction
giving the best reception.
Don't let it come into contact with metal
objects and avoid placing near computers,
television sets or other electrical appliances.
Surround right
(Grey)
L
CENTER
Listening position
Subwoofer (Purple)
SUB
L
WOOFER
SPEAKERS
Center (Green)
• Non-skid pads (small) x 4
• Non-skid pads (large) x 4
• Front speaker stand bases x 2
• Screws (for bases) x 6
• Brackets x 2
• Screws (for brackets) x 4
• Mounting brackets x 2*
• Screws (for mounting brackets) x 2*
*Please refer to Wall-mounting the front and surround speaker system
in the operating instructions for installation.
1 Attach the smaller non-skid pads to the base of the center speaker. The four large
non-skid pads are for the subwoofer (as shown).
Use the supplied adhesive to attach 4 pads to the base of center speaker and subwoofer.
Center speaker
1 Attach the smaller non-skid pads 2
to the base of the center speaker.
The four large non-skid pads are
for the subwoofer (as shown).
Use the supplied adhesive to attach
4 pads to the base of center speaker and
subwoofer.
Center speaker
Subwoofer
fig. A fig. B
4
1
2
ANTENNA
3
FM AM
UNBAL 75Ω LOOP ANTENNA
6
Connect the FM wire antenna to the FM UNBAL 75Ω antenna terminal.
For best results, extend the FM antenna fully and fix to a wall or door
frame. Don't drape loosely or leave coiled up.
Note: The signal earth (H) is designed to reduce noise that occurs when an
antenna is connected. It is not an electrical safety earth.
Connect each speaker as shown below.
(Subwoofer connentions start from step 3)
Color-coded wire
(Connect to speaker)
Surround left
Color-coded connector
(Blue)
(Connect to rear panel)
Twist and pull off the protective
1
shields on each wire.
2 Connect the wires to the
speaker. Match the colored
wire with the color-coded
label (above the tabs), then
insert the colored wire into
the red (+) tab and the other
wire with the black (–) tab.
3 Connect the other end to the
color-coded speaker terminals
on the rear of the DVD/CD
receiver (as shown at left).
Make sure to insert completely.
Upper three terminals
The small lug at the wire-end of
the speaker plug should face up
or down depending on whether
it's being plugged into one of
Front left
the upper or lower three
(White)
speaker terminals. Please make
Lower three terminals sure to connect correctly.
Assembling the speaker stands and securing your front speakers
Attach the speaker stand bases to the stems using the screws provided.
Before securing the base to the stand, thread the speaker wire through the holes provided on the
base as shown below. Then, once you have aligned the stem and base, secure with the small
screws at the points shown at right.
2 Connect the speaker system.
Refer to the Setting up your DVD/CD Receiver (the other part of this setup
guide)
diagram at far left optimal surround sound.
Subwoofer
3
Secure in position with the brackets provided.
Place the surround speakers on top of
the front speakers, turn the surround Line up the holes in the bracket with the holes in the speakers, then
secure with two screws at the points shown below. Make sure you've
speakers towards the closest wall, lining
matched the right and left brackets with the speakers (as shown).
the arrows up for optimal Front
Surround.
Turn each surround speaker so that the arrow at
the base is lined up with the (FRONT SURROUND)
arrow on the front speaker. This is only necessary
when you are using the Front Surround mode
(MODE ON). See the operating instructions for more
on using Front Surround.
4
Front Surround MODE ON
Using the remote control
The remote control can be used within a range of about 7
meters from the remote sensor on the front panel, and
within a 30 degree angle.
Precautions:
• The remote control may not work if there is an obstacle
between the remote control and the display unit, or if the
remote control is not directed towards the remote sensor
fig. C
of the display unit at the correct angle.
• The remote control may not work properly if strong
light such as direct sunlight or fluorescent light is shining
onto the unit's remote sensor.
• The remote control may not work properly when this
unit is used near devices emitting infrared rays, or when
remote controls of other devices which use infrared rays
are used. Also, the use of this remote control may cause
other devices to work improperly.
• When the operating range of the remote becomes too
short, replace the batteries.
Remote control battery caution
Incorrect use of batteries may cause leakage or
rupture.
Always be sure to follow these guidelines:
• Always insert batteries into the battery compartment
correctly matching the positive ª and negative ·
polarities, as shown by the display inside the
compartment.
• Never mix new and used batteries.
• Batteries of the same size may have different voltages,
depending on brand. Do not mix different brands of
batteries.
• When disposing of used batteries, please comply with
governmental regulations or environmental public
instruction's rules that apply in your country or area.
• In order to prevent battery leakage, remove the
batteries when not using the remote control for an
extended period (one month or more). If leakage occurs,
carefully wipe away any battery fluid inside the
compartment, and replace the batteries with new ones.
• Do not allow books or other objects to rest on top of
the remote control, since the buttons may be depressed,
causing faster exhaustion of the batteries.
4 Connect the DVD/CD receiver to your TV, then connect the
supplied power cord.
Connect one end to a video input on your TV.
1
Use the supplied video cord.
2 Connect the other end to the video output of the DVD/CD receiver.
This player is equipped with copy protection technology. Do not connect this
player to your TV via a VCR using AV cables, as the picture from this player will not
appear properly on your TV.
3
Connect the power cord to the AC inlet.
ANTENNA COMPONENT
C B /
VIDEO OUT
P B
FM AM
VIDEO C / R
UNBAL 75Ω LOOP ANTENNA OUT P R
S-VIDEO
Y
OUT
VIDEO
Congratulations! You're done setting up.
to connect the speakers properly. Place them as shown in the
Connect the speaker system.
Refer to the Setting up your DVD/CD Receiver (the other part of this setup
to connect the speakers properly.
guide)
Additional notes on connecting antennas
• Keep antenna cables away from the main unit and other
cables.
• To assure optimum reception, pull the FM antenna so that it is
fully extended and not coiled or hanging at the rear of the unit.
• If reception with the supplied antenna is poor, see the Other
connections section in the main operating instructions for
details on connecting outdoor antennas.
Additional notes on speaker placement
If your listening room is of adequate size, place the speakers as
shown in step 3 to achieve the optimum surround sound effect.
If you are listening in a fairly small room and a typical surround
speaker setup is not possible, see Home theater sound setup in
the instruction manual and the Speaker Setup Guide for
information on the Front Surround 3-spot setup option.
When using the standard surround speaker setup as shown in
step 3, please observe the following guidelines:
• Install the main front left and right speakers at an equal
distance from the TV.
• For optimum effect, install the rear speakers slightly above
ear level.
• Install the center speaker above or below the TV so that the
sound of the center channel is localized at the TV screen.
Precautions:
• When installing the center speaker on top of the TV, be sure
to secure it with tape or some other suitable means.
Otherwise, the speaker may fall from the TV due to external
shocks such as earthquakes, endangering those nearby or
damaging the speaker.
• Do not connect the supplied speakers with any other
amplifier. This may result in malfunction or fire.
• The front, center and surround speakers supplied with this
system are magnetically shielded. However, depending on the
installation location, color distortion may occur if the speaker
is installed extremely close to the screen of a television set. If
this happens case, turn the power switch of the television set
OFF, and turn it ON after 15 to 30 minutes. If the problem
persists, place the speaker system away from the television set.
• The subwoofer is not magnetically shielded and so should
not be placed near a TV or monitor. Magnetic storage media
(such as floppy discs and tape or video cassettes) should also
not be kept close to the subwoofer.
• Do not fix the front, center speakers and subwoofer to the
wall or ceiling; they could cause injury if they fell.
VIDEO IN
COMPONENT
VIDEO OUT C B /
P
B
VIDEO C R /
A
OUT P R
S-VIDEO Y
OUT
VIDEO
LINE
FRONT R L CENTER
IN OUT
L L
R R
AC IN
R L SUB
SURROUND WOOFER
AUDIO SPEAKERS
AC IN
To AC outlet
Printed in <ARE7358-A>
3
Switch Front Surround
MODE OFF for 5-spot set
up.
See the operating instructions for
more on using Front Surround.
Caution
• Please don't use the any attachments
with the front speakers other than the
brackets provided.
5
Secure the speaker wire.
When you're finished, thread
the surround speaker cords
through the outlet on the back
of the speaker stand and
through the base of the
brackets as shown below.
Caution
• Please don't use the any attachments
with the front speakers other than the
brackets provided.
