PORTABLE DVD PLAYER

PDV-LC20
(built-in screen)
PDV-20

Operating Instructions

(This mark applies
only to US and
Canadian models)

Advertisement

Table of Contents

   Also See for Pioneer PDV-20

   Related Manuals for Pioneer PDV-20

   Summary of Contents for Pioneer PDV-20

  • Page 1: Portable Dvd Player

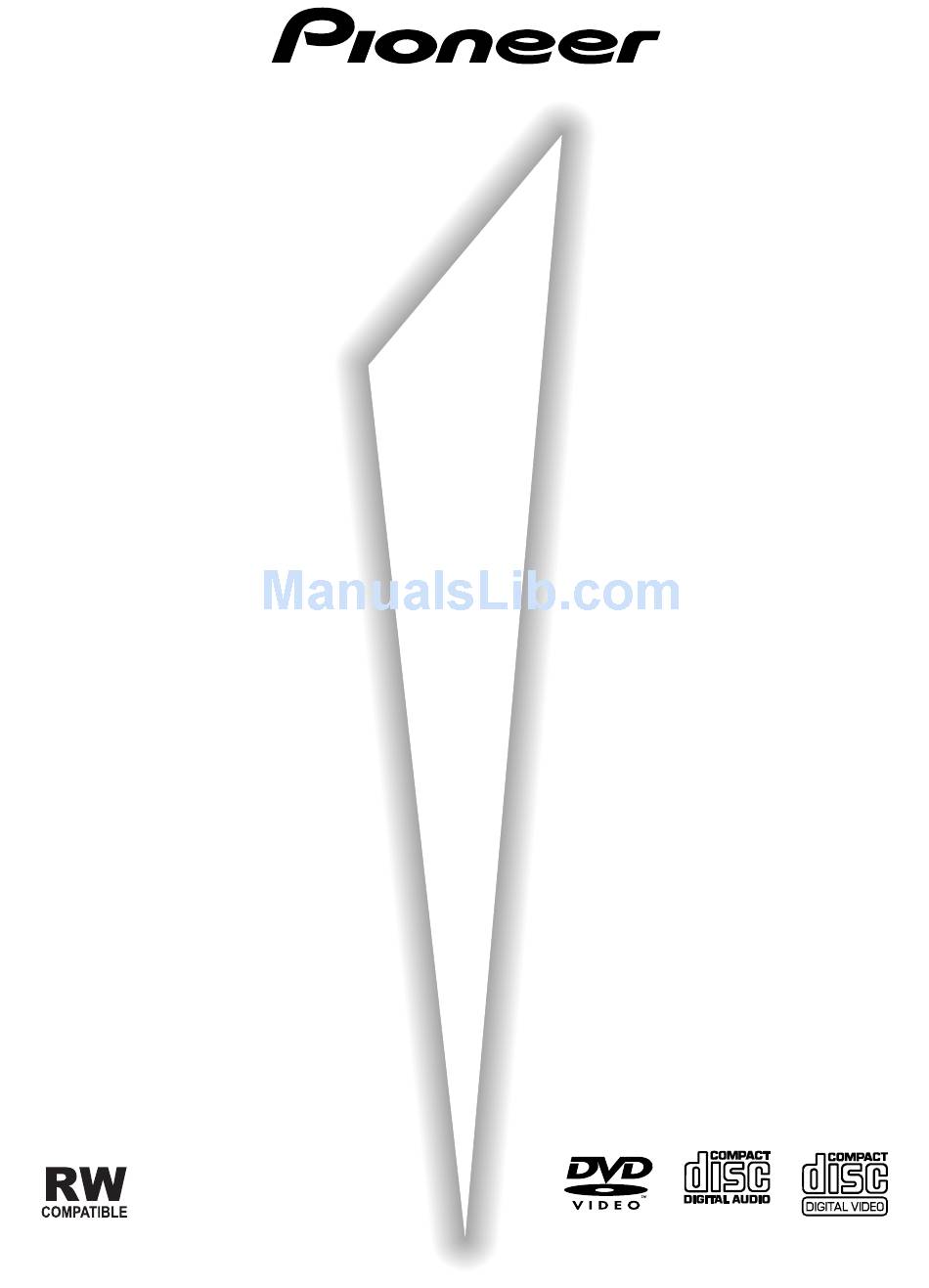

    PORTABLE DVD PLAYER PDV-LC20 (built-in screen) PDV-20 Operating Instructions (This mark applies only to US and Canadian models)
  • Page 2: Important Safety Instructions

    IMPORTANT The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 3 OUTDOOR ANTENNA GROUNDING SERVICING — Do not attempt to service — If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
  • Page 4 CONGRATULATIONS OF THIS FINE PIONEER PRODUCT. Pioneer is on the leading edge of DVD research for consumer products and this unit incorporates the latest technological developments. We are sure you will be fully satisfied with the DVD player. Thank you for your support.
  • Page 5 On the bottom of the player VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. CAUTION : AVOID EXPOSURE TO BEAM. SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN VORSICHT : ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN! SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ ADVARSEL : UDSÆTTELSE FOR STRÀLING.
  • Page 6: 01 Before You Start

    CD-R and CD-RW compatibility (page 9) Play audio discs recorded on CD-R/RW recorder. • Compact design The PDV-LC20/PDV-20 measures just 190mm x 142mm. Attach the optional battery pack for a truly use-anywhere, portable DVD player. • 7" widescreen LCD screen (PDV- LC20) •...
  • Page 7: Table Of Contents

    Top panel controls ... 56 Player (front) ... 57 Player (rear) ... 57 Player (right side) ... 58 Display (PDV-20 only) ... 59 LCD screen (PDV-LC20 only) ... 60 Remote control (Replacing the battery) ... 61 07 Additional Information Taking care of your player ... 63 Taking care of your discs ...
  • Page 8: Checking What's In The Box

    01 Before You Start Checking what's in the Thank you for buying this Pioneer product. Before starting to set up and use your new portable DVD player, please check that you have received the following supplied accessories. • AC adapter •...
  • Page 9: Disc Types

    Disc types Any disc carrying one of the following logos (either on the disc or its packaging) should play in this player. Other types of disc, including DVD-ROM, DVD-Audio and CD-ROM, cannot be played. DVD video DVD-RW (rewriteable) * Video CD CD (audio) CD-R (recordable)** CD-RW (rewriteable)**...
  • Page 10: Dvd Disc Features

    01 Before You Start DVD disc features Look on the box of a DVD disc to find out what features are available. Some discs feature multiple audio and subtitle languages, multiple camera angles and widescreen video. You may come across the following marks on disc boxes: Number of audio languages Number of subtitle...
  • Page 11: Preparation For Use

    01 Before You Start Preparation for use Before using for the first time, remove the battery protector from the remote control. • Pull out the film from the back of the remote control unit. Film Use the remote control within the operating range shown below.
  • Page 12: Connecting Up To Your Tv

    Connecting up to your TV Use the supplied AV cable to connect this DVD player to your TV. This cable feeds both audio and video to your TV. Before connecting, make sure that both this player and your TV are switched off and disconnected from the wall outlet.
  • Page 13: 02 Getting Started

    Check the power cord once in a while. When you find it damaged, ask your nearest Pioneer authorized service center or your dealer for a replacement. 02 Getting Started Connect the power cord to the AC adapter.
  • Page 14: Playing Discs

    02 Getting Started Playing discs AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE STEP/SLOW RANDOM REPEAT LAST MEM. COND.MEM. SHIFT DVD/AV-IN SETUP MENU RETURN TOP MENU ¡ ¢ SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR ¡ STOP PROGRAM SEARCH MODE Î...
  • Page 15 To pause playback, press 8. • On a DVD, DVD-RW or Video CD, the picture should be paused. • To restart playback, press 3 or 8. To skip back/forward a chapter or track, press 4·1 or ¡·¢. • On the remote, use the 4 and ¢ buttons.
  • Page 16: Navigating Disc Menus

    02 Getting Started Navigating disc menus AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE RANDOM REPEAT LAST MEM. COND.MEM. SHIFT DVD/AV-IN SETUP MENU RETURN TOP MENU ¡ ¢ SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR ¡ STEP/SLOW STOP PROGRAM SEARCH MODE Î...
  • Page 17 (US and Canadian models only) Original Play List Title Page 1 / 2 5/28 Sun 21:19 12ch 5/31 Wed 08:34 8ch 6/20 Tue 17:43 6ch 6/20 Tue 22:00 6ch 7/19 Wed 10:54 3ch Move EXIT MENU Use the cursor (2 and 3) buttons to toggle between Original and Play List.
  • Page 18: Still-frame And Frame Review/advance

    02 Getting Started Still-frame and frame review/advance AUDIO SUBTITLE DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE STEP/SLOW RANDOM REPEAT LAST MEM. COND.MEM. SHIFT DVD/AV-IN SETUP MENU RETURN TOP MENU ¡ ¢ ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR ¡ STOP PROGRAM SEARCH MODE...
  • Page 19: Playing Slow-motion Video

    Playing slow-motion video AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR ¡ STEP/SLOW PAUSE STEP/SLOW STOP + 1 0 RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î DVD/AV-IN ENTER SETUP MENU RETURN TOP MENU ∞...
  • Page 20: Taking Out The Disc, Switching Off And Nplugging

    02 Getting Started Taking out the disc, switching off and unplugging AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE STEP/SLOW RANDOM REPEAT LAST MEM. COND.MEM. SHIFT DVD/AV-IN SETUP MENU RETURN TOP MENU ¡ ¢ SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢...
  • Page 21: Using The Setup Navigator

    AV amplifier and/or TV to your player. Make sure that the player is switched on. • If you’re using the PDV-20, also turn on your TV and make sure that it is set to the correct video input. • If a disc that’s already loaded starts to play, press 7 to stop it.
  • Page 22 02 Getting Started Select Start. Audio1 Video Language General Other Setup Navigator Setup Navigator Start Auto Start Off Setup using the Setup Navigator Move ENTER Select SETUP Exit Remember: Press option. • If you decide you don’t want to use the Setup Navigator, select Auto Start Off here instead.
  • Page 23 Select Save Changes to make the settings. Audio1 Video Language General Other Setup Navigator Save Changes Exit Setup Navigator Delete Changes Start Again Changes are saved Move ENTER Select SETUP Exit Press SETUP to exit. Congratulations, set up is complete! If you want to use the Setup Navigator again at any time, it is available from the General menu.
  • Page 24: 03 Advanced Features

    03 Advanced Features Finding what you want on a disc AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE RANDOM REPEAT LAST MEM. COND.MEM. SHIFT SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR STEP/SLOW STOP PROGRAM SEARCH MODE Î You can directly access any point on a disc using one of the search modes.
  • Page 25: Direct Search

    AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR STEP/SLOW PAUSE STEP/SLOW STOP RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î 03 Advanced Features Direct search You can use the number buttons on the remote to jump directly to the part of a disc you want.
  • Page 26: Switching Camera Angles

    03 Advanced Features Switching camera angles AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE STEP/SLOW RANDOM REPEAT LAST MEM. COND.MEM. SHIFT SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR ¡ STOP PROGRAM SEARCH MODE Î Some DVD discs feature scenes shot from two or more angles—...
  • Page 27: Switching Subtitles And Audio Languages

    Switching subtitles and audio languages AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR ¡ STEP/SLOW PAUSE STEP/SLOW STOP + 1 0 RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î 03 Advanced Features Switching subtitles Many DVD discs have subtitles in one or more languages—the disc box will usually...
  • Page 28: Switching Audio Channels

    03 Advanced Features Switching audio channels AUDIO SUBTITLE DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE STEP/SLOW RANDOM REPEAT LAST MEM. COND.MEM. SHIFT ANGLE MENU TOP MENU SETUP • NEXT RETURN ¢ CLEAR ¡ STOP PROGRAM SEARCH MODE Î On Video CDs and CDs you can switch between stereo, just the left channel or just the right channel.
  • Page 29: Using Repeat And Looped Playback

    Using repeat and looped playback AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR ¡ STEP/SLOW PAUSE STEP/SLOW STOP + 1 0 RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î 03 Advanced Features You can set the player to repeat individual tracks on CDs or Video-CDs, chapters or titles on DVD and DVD-RW discs, or the...
  • Page 30: Looping A Section Of A Disc

    03 Advanced Features AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE RANDOM REPEAT LAST MEM. COND.MEM. SHIFT SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR ¡ STEP/SLOW STOP PROGRAM SEARCH MODE Î Looping a section of a disc Press A-B once at the start of the section you want to repeat, then again at the end.
  • Page 31: Making Program Lists

    Making program lists AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR STEP/SLOW PAUSE STEP/SLOW STOP + 1 0 RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î 03 Advanced Features Making a program list means telling the player which titles/chapters/tracks you want played, and the order to play them in.
  • Page 32 03 Advanced Features If you want to save the program list, move the cursor down (∞) to Program Memory and set it to On. If you do this, the program list is auto- matically recalled when you next load the disc.
  • Page 33: Programming Tips

    Programming tips • To view the program list press PROGRAM. • To delete a step in the program list, position the cursor on the title/chapter/track and press CLEAR. • To insert a step into the pro- gram list, position the cursor where you want the new step to appear, then enter the title/ chapter/track number.
  • Page 34: Using Random Play

    03 Advanced Features Using random play AUDIO DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE RANDOM REPEAT LAST MEM. COND.MEM. SHIFT SUBTITLE ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ • CLEAR ¡ STEP/SLOW STOP • PROGRAM SEARCH MODE Î Use the random play function to play titles/ chapters/tracks in a random order.
  • Page 35: Bookmarking A Place On A Disc

    Bookmarking a place on a disc AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR ¡ STEP/SLOW PAUSE STEP/SLOW STOP + 1 0 RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î 03 Advanced Features If you watch only part of a DVD disc with the intention of picking up later where you left off, you can bookmark the place then...
  • Page 36: Memorizing Disc Settings1

    03 Advanced Features Memorizing disc settings AUDIO SUBTITLE DISPLAY ENTER PREV PLAY STEP/SLOW PAUSE STEP/SLOW RANDOM REPEAT LAST MEM. COND.MEM. SHIFT ANGLE MENU TOP MENU SETUP NEXT RETURN ¢ CLEAR ¡ STOP + 1 0 PROGRAM SEARCH MODE Î If you have a particular set of preferences for a disc, you can memorize them using the Condition Memory function.
  • Page 37: Displaying Disc Information

    Displaying disc information AUDIO SUBTITLE ANGLE DISPLAY MENU TOP MENU SETUP ENTER PREV NEXT RETURN ¢ PLAY CLEAR ¡ STEP/SLOW PAUSE STEP/SLOW STOP + 1 0 RANDOM REPEAT PROGRAM LAST MEM. COND.MEM. SEARCH MODE SHIFT Î 03 Advanced Features Various track, chapter and title informa- tion, as well as the video transmission rate for DVD discs, can be displayed on-screen while a disc is playing, or while it’s stopped.
  • Page 38 03 Advanced Features Displays when playing current title/chapter number elapsed time of current title Play 3–29 Title –51.06 / remaining time of current title current title/chapter number elapsed time of current title Play 3–32 Chapter 0.21 / elapsed time of current chapter current title/chapter number elapsed time of current title Play 3–32...
  • Page 39 current title/chapter number elapsed time of current title Play ORG 1–1 0.58 Title –51.06 / 101.04 remaining time of current title remaining total time of current title « current title/chapter number elapsed time of current title Play ORG 1–1 0.58 Tr.
  • Page 40: Using The Setup Menu

    04 The Setup Menu Using the Setup menu The DVD Setup menu gives you access to all the system’s DVD settings. Press to display/leave the menu and the cursor (2 5 ∞ 3) and navigate and select options. In some screens you can press leave the screen without making any changes.
  • Page 41: Video Settings

    On Screen Display • Default setting: Position – Normal Audio1 Video Language General Other TV Screen – 16:9 (Wide) Picture Quality – Standard S-Video Out – Still Picture – Auto On Screnn Display Position-Wide Angle Indicator – Position-Normal Move Exit SETUP When watching DVD discs recorded in 4:3 format (‘regular’...
  • Page 42: Picture Quality

    04 The Setup Menu Picture Quality • Default setting: Standard Audio1 Video Language General TV Screen – 16:9 (Wide) Picture Quality Cinema Animation Standard i Adjust picture quality Move This player offers three preset color/ contrast settings; Animation (bright colors), Cinema (high contrast), and Standard.
  • Page 43: Audio Settings

    Audio settings Dolby Digital Out • Set in Setup Navigator (Default: Dolby Digital) Audio1 Video Language General Other Dolby Digital Out Dolby Digital Dolby Digital 3 PCM DTS Out – 96kHz 3 48kHz 96kHz PCM Out – MPEG 3 PCM MPEG Out –...
  • Page 44: Mpeg Out

    04 The Setup Menu MPEG Out • Set in Setup Navigator (Default: MPEG 3 PCM) Audio1 Video Language General Dolby Digital Out – Dolby Digital DTS Out – 96kHz 3 48kHz 96kHz PCM Out – MPEG Out MPEG MPEG 3 PCM Changes MPEG audio output mode Move You only need to make this setting if you...
  • Page 45: Language Settings

    Language settings Audio Language • Default Setting: English Audio1 Video Language General Other OSD Language – English Audio Language French Subtitle Language – German Auto Language – Italian Spanish Other i Setup audio language Move Exit SETUP This setting is your preferred audio language for DVD discs.
  • Page 46: Auto Language

    04 The Setup Menu Auto Language • Default Setting: On Audio1 Video Language General OSD Language – English Audio Language – English Subtitle Language – English Auto Language i Play dialog, etc. in original language Subtitle ON with foreign audio Move When set to On, the system always selects the default audio language on a DVD disc...
  • Page 47: Subtitle Display

    Subtitle Display • Default Setting: On Audio1 Video Language General Other OSD Language – English Audio Language – English Subtitle Language – English Auto Language – DVD Language – Subtitle Display Subtitle Off – Assist Subtitle Move Exit SETUP Set to On, the player displays subtitles according to the Subtitle Language and Auto Language settings above.
  • Page 48: Miscellaneous Settings

    04 The Setup Menu Miscellaneous settings Parental Lock • Default level: 8 • Default password: none Audio1 Video Language General Setup Menu Mode – Basic Setup Navigator – Standard Parental Lock Level Change Password Change i Setup viewing restrictions Move You can restrict access to certain discs using this feature.
  • Page 49: Changing Your Password

    Changing your password Select Password Change. Audio1 Video Language General Other Setup Menu Mode – Basic Setup Navigator – Standard Parental Lock Level Change Password Change i Setup viewing restrictions Move Select Exit ENTER SETUP Input your existing password, then press ENTER. Audio1 Video Language...
  • Page 50: Other Settings

    04 The Setup Menu Other settings Change OSD • Default setting: Off Audio1 Video Language General Change OSD Title Time Change Audio – Chapter Time Change Subtitle – Chapter Remain Change Angle – Transfer Rate Title Search – 2(/3) Chapter Search – 1(/23) Move Select...
  • Page 51: Title Search

    Title Search • Default setting: not applicable Audio1 Video Language General Other Change OSD – Change Audio – 1: English Change Subtitle – 1: English Change Angle – Title Search Chapter Search – Move + / – Select Exit ENTER SETUP This setting lets you jump to another title on a DVD disc directly without using the...
  • Page 52: Resetting All The Player Settings

    04 The Setup Menu Resetting all the player settings DVD/AV-IN MENU SETUP RETURN TOP MENU ¡ ¢ This returns the player to its factory settings. All saved settings, such as Last Memory, Program Memory, Condition Memory, Parental Lock password and so on, are erased when you do this.
  • Page 53: 05 Connections

    Listening through an external AV amplifier In order to enjoy surround sound from DVD discs, you'll need to connect this unit to an AV amplifier using an optical (TOSLINK) fiber cable (supplied with PDV-LC20 European model). After connecting up, make sure that you set up the audio output correctly from the setup menu—see pages 43, 44.
  • Page 54: Connecting To A Tv Using The S-video Cable

    05 Connections Connecting to a TV using the S-Video cable If your TV has an S-Video input, you can use the supplied S-Video cable to connect it to this player. This may give a better picture than using the supplied AV cable. DC IN 9.8V –...
  • Page 55: Watching An External Video Source

    Watching an external video source You can set the AV IN/OUT jack to function as either an output (to watch discs to an external TV/monitor) or an input (to watch other video sources on this player's built in screen). After connecting up, press the you do this, the player’s controls become inoperative.
  • Page 56: Top Panel Controls

    06 Controls & Displays Top panel controls PDV-LC20 DVD/AV-IN SETUP RETURN TOP MENU PDV-20 ¡ ¢ This mark, indicating compatibility with DVD-RW discs recorded on a DVD recorder, only appears on the US and Canadian models. RETURN (p.17) SETUP (p.21) DVD/AV-IN (p.55)
  • Page 57: Player (front)

    Illustration shows the PDV-LC20. DISC COVER 2 OPEN Slide to open the disc cover Player (rear) Illustration shows the PDV-LC20. The PDV-20 has audio and video outputs only. Analog audio input/output, and optical digital output DC IN 9.8V AUDIO –...
  • Page 58: Player (right Side)

    06 Controls & Displays Player (right side) Illustration shows the PDV-LC20. PHONES 1 VOLUME Rotary volume control Headphone jacks...
  • Page 59: Display (pdv-20 Only)

    Display (PDV-20 only) TITLE 96 kHz 12 1 1 TITLE Indicates that the number on the left in the display is showing a DVD title number. Indicates repeat play (pages 29, 30). Indicates single (title/chapter/track) repeat play (pages 29, 30).
  • Page 60: Lcd Screen (pdv-lc20 Only)

    06 Controls & Displays LCD screen Speakers COLOR Adjusts the color depth. BRIGHT Adjusts the screen brightness. MONITOR Press to change the picture size: • Normal – picture is shown in its original aspect ratio. • Full – 4:3 material is stretched to 16:9 •...
  • Page 61: Remote Control (replacing The Battery)

    Remote control (pages 13, 20) DISPLAY (page 37) Cursor control and ENTER (pages 21, 40) 4 PREV and NEXT ¢ (pages 15, 17) 1 REV and FWD ¡ (page 15) e/E STEP/SLOW and 8 PAUSE (page 15, 18, 19) RANDOM (page 34) LAST MEM.
  • Page 62: Replacing The Battery

    06 Controls & Displays Replacing the battery Pull out the battery holder as shown below. Pinch B inward while pulling the battery holder out from A. Remove the old battery, then insert the new battery into the battery holder. Make sure that the ª side is facing upwards.
  • Page 63: 07 Additional Information

    Taking care of your player Cleaning the player Before cleaning the player, switch off and disconnect the AC adapter. To clean, wipe with a soft, dry cloth. For stubborn dirt, then wet a soft cloth with a mild detergent solution made by diluting one part detergent to 5 or 6 parts water, wring well, then wipe off the dirt.
  • Page 64 07 Additional Information Location We want you to enjoy using your player for years to come, so please bear in mind the following points when using it: Do... Use in a well-ventilated room. Place on a solid, flat, level surface, such as a table, shelf or stereo rack.
  • Page 65: Taking Care Of Your Discs

    This player is designed for use with conventional, fully circular discs only. Use of shaped discs is not recommended. Pioneer disclaims all liability arising in connection with the use of shaped discs.
  • Page 66: Glossary

    07 Additional Information Glossary Analog audio An electrical signal that directly represents sound. Compare this to digital audio, which can also be an electrical signal, but is an indirect representation of sound. See also Digital audio. Aspect ratio The width of a TV screen relative to its height.
  • Page 67: Optical Digital Output

    Optical digital output A jack that outputs digital audio in the form of light pulses. Connect components with optical digital jacks using a special optical cord, available from good audio dealers. PCM (Pulse Code Modulation) The most common system of encoding digital audio, found on CDs and DAT.
  • Page 68: Troubleshooting

    07 Additional Information Troubleshooting If there is a problem that persists after checking the points below, contact the store where you bought the player. Power does not turn on \AC adapter not connected properly (page 13) \Battery is not charged (page 71). Disc will not play \Disc is damaged or dirty (page 65).
  • Page 69 In this case, unplugging the power cord then plugging it back in will usually resolve the problem. If not, consult your nearest Pioneer service center. LCD screen (PDV-LC20 only) With LCD screens, a few picture elements may be black or shine a particular color.
  • Page 70: Screen Sizes And Disc Formats

    07 Additional Information Screen sizes and disc formats The table below shows the effect of various TV Screen settings on the different kinds of disc available. When viewing a standard size TV or monitor Screen format of disc 16:9 When viewing a wide screen TV or monitor Screen format of disc 16:9 Setting...
  • Page 71: Using The Player With A Battery Pack

    Using the player with a battery pack This player can be used with either the PDV-BT20 battery pack (supplied with PDV- LC20), or the PDV-BT25 high-capacity battery pack (optional). Please read the operating instructions that come with your battery pack. Attaching the battery pack Line up the back of the player with the back of the battery...
  • Page 72: Detaching The Battery Pack

    PDV-20. The PDV-BT25 gives about 6.5 hours continuous playback with the PDV-LC20 and about 12 hours with the PDV-20. The actual battery life depends on how the player is used. • When battery power is almost exhausted, the power indicator on the front of the player starts to blink.
  • Page 73: Language Code List

    Language code list Language Code Japanese (ja) 1001 English (en) 0514 French (fr) 0618 German (de) 0405 Italian (it) 0920 Spanish (es) 0519 Chinese (zh) 2608 Dutch (nl) 1412 Portuguese (pt) 1620 Swedish (sv) 1922 Russian (ru) 1821 Korean (ko) 1 1 15 Greek (el) 0512...
  • Page 74: Specifications

    PDV-20 ... 300 g / 0 lb. 11 oz. External dimensions (not including protruding parts) PDV-LC20 ... 190 (W) x 142 (D) x 25.9 (H) mm PDV-20 ... 190 (W) x 142 (D) x 15.9 (H) mm Operating temperature ... +5°C to +35°C (+36°F to +96°F) Operating humidity ...
  • Page 75 07 Additional Information...
  • Page 76 Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [03] 9586-6300 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. San Lorenzo 1009 3er Piso Desp. 302 Col. Del Valle Mexico D.F. C.P. 03100 TEL: 5-688-52-90 <TPTZF/00I00001>...
