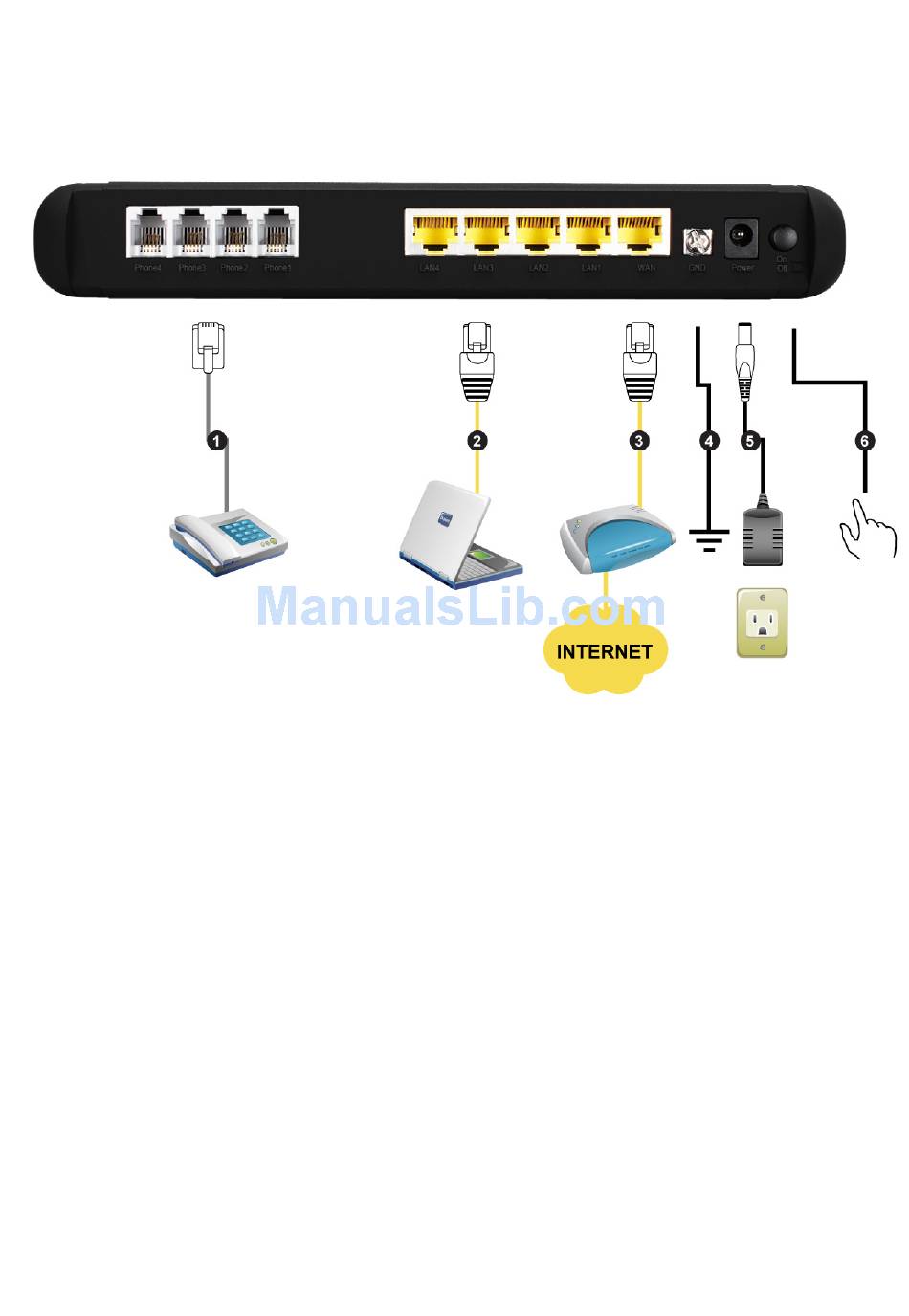

Rear Panel

1. Phone Port (1-4): Connect to your phones using standard phone
cabling (RJ-11).
2. LAN: Connect to your Ethernet enabled computers using Ethernet
cabling.
3. WAN: Connect to your broadband modem using an Ethernet cable.
4. Ground: A conducting connection with the earth. Connect with the
ground so as to make the earth a part of an electrical circuit using
metal wire.
5. Power Receptor: Receptor for the provided power adapter.
6. Power Switch: Press it down to turn on DVG.
3
