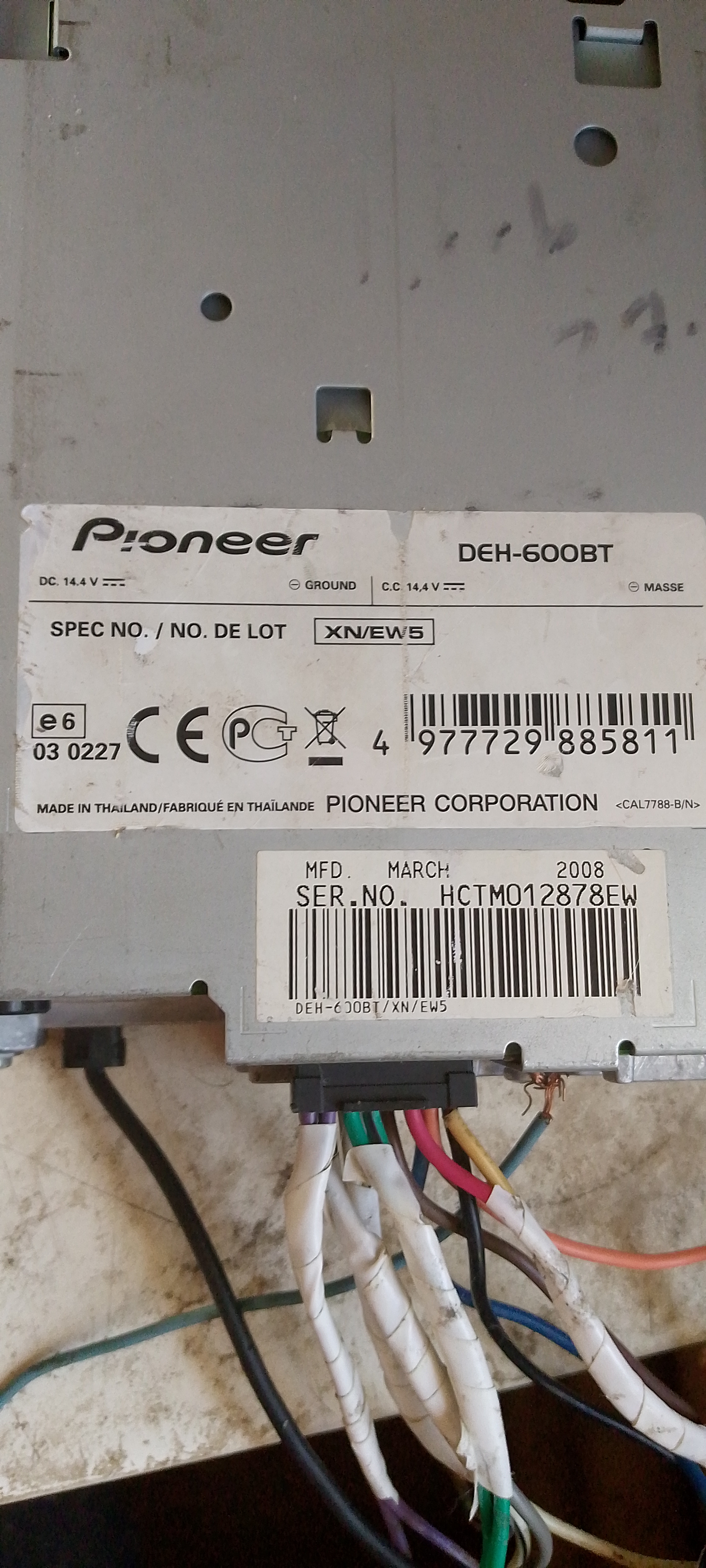

Contents Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this man- ual in a safe place for future reference.
Page 4
Contents – Transferring entries to the phone book 33 – Setting the automatic connection 33 – Setting automatic answering 33 – Echo canceling and noise reduction 33 – Switching the ring tone 34 – Making a call by entering phone number 34 –...
Refer all ser- vicing to qualified personnel. ! The Pioneer CarStereo-Pass is for use only in Germany. ! Keep this manual handy as a reference for op- erating procedures and precautions.
2 000 companies worldwide. ! The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under license. Other trademarks and trade names are those of their respective owners.
Before You Start Protecting your unit from theft The front panel can be detached to deter theft. ! If the front panel is not detached from the head unit within five seconds of turning off the ignition, a warning tone sounds. ! You can turn off the warning tone.
Section Operating this unit What’s What Head unit 1 SRC/OFF button This unit is turned on by selecting a source. Press to cycle through all the available sources. 2 DISP/SCROLL button Press to select different displays. 3 OPEN button Press to open the front panel. 4 LIST button Press to display the track title list, folder list, file list, preset channel list or phone number...
Band and frequency are displayed. ! RDS Program service name, PTY information and other literal information are dis- played. ! Built-in CD Player Elapsed playback time and literal infor- mation are displayed. 2 LOC indicator Appears when local seek tuning is on.
Selecting a source You can select a source you want to listen to. To switch to the built-in CD player, load a disc in the unit (refer to page 16). % Press SRC repeatedly to switch be- tween the following sources.
Operating this unit Adjusting the volume % Turn MULTI-CONTROL to adjust the sound level. Tuner Basic Operations % Select a band Press BAND/ESC. # Band can be selected from among FM1, FM2, FM3 or MW/LW. % Manual tuning (step by step) Push MULTI-CONTROL left or right.
Section Operating this unit Use MULTI-CONTROL to select the de- sired station. Turn to change the station. Press to select. # You can also change the station by pushing MULTI-CONTROL up or down. # To return to the ordinary display, press BAND/ESC or LIST.
Operating this unit Press MULTI-CONTROL to turn local seek tuning on. # To turn local seek tuning off, press MULTI-CONTROL again. Push MULTI-CONTROL left or right to set the sensitivity. FM: LEVEL 1—LEVEL 2—LEVEL 3—LEVEL 4 MW/LW: LEVEL 1—LEVEL 2 The LEVEL 4 setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations.
Section Operating this unit Receiving traffic announcements TA (traffic announcement standby) lets you re- ceive traffic announcements automatically, no matter what source you are listening to. TA can be activated for both a TP station (a sta- tion that broadcasts traffic information) or an enhanced other network’s TP station (a station carrying information which cross-references TP stations).
Operating this unit # A news program can be canceled by pressing NEWS. Note You can also turn on or off news programs in the menu that appears by using MULTI-CONTROL. PTY list General Specific Type of program NEWS/INFO NEWS News AFFAIRS Current affairs...
CD-DA, playback starts at the first track on the disc. Notes ! The built-in CD player can play back audio CD and compressed audio recorded on a CD- ROM. (Refer to page 48 for files that can be played back.)
Operating this unit ! Audio CD that contains certain information such as text and/or number is CD TEXT. ! If specific information is not recorded on a disc, title or name is not displayed. ! Depending on the version of iTunes write MP3 files onto a disc, comment informa- tion may not be correctly displayed.
Section Operating this unit Turn MULTI-CONTROL to select the function. REPEAT (repeat play)—RANDOM (random play)—SCAN (scan play)—PAUSE (pause)— COMP/BMX (compression and BMX)— TITLE INPUT (disc title input) Notes ! To return to the ordinary display, press BAND/ESC. ! If you do not operate functions except for TITLE INPUT within about 30 seconds, the dis- play automatically returns to the ordinary dis- play.
Operating this unit Using compression and BMX Using the COMP (compression) and BMX functions let you adjust the sound playback quality of this unit. % Press COMP/BMX repeatedly to select the desired setting. COMP/BMX OFF—COMP 1—COMP 2— COMP/BMX OFF—BMX 1—BMX 2 Note You can also perform this operation in the menu that appears by using MULTI-CONTROL.
Section Operating this unit Bluetooth Audio Important ! Depending on the Bluetooth audio player con- nected to this unit, the operations available with this unit are limited to the following two levels: — Lower level: Only playing back songs on your audio player is possible.
Operating this unit Connecting a paired Bluetooth audio player Press MULTI-CONTROL to display the main menu. Use MULTI-CONTROL to select CONNECTION. Turn to change the menu option. Press to se- lect. Turn MULTI-CONTROL to select PAIRED DEVICE. Paired device name will be displayed. # Push MULTI-CONTROL left or right to switch the device name, BD address, group name and group ID.
Section Operating this unit ! If a Bluetooth audio player is not connected to this unit yet, AUTO CONNECT and DEVICE INFO appear in the function menu and other functions are not available. ! If a Bluetooth audio player is connected via A2DP (Advanced Audio Distribution Profile), only AUTO CONNECT and DEVICE INFO ap- pear in the function menu.
Operating this unit Bluetooth Telephone Important ! Since this unit is on standby to connect with your cellular phone via Bluetooth wireless technology, using this unit without running the engine can result in battery drainage. ! Advanced operations that require your atten- tion such as dialing numbers on the monitor, using phone book, etc., are prohibited while you are driving.
! DISCONNECT PHONE (disconnect phone) ! DELETE PHONE (delete phone) Notes ! The device name is set to PIONEER FLAP BT as default. You can change the device name in the initial setting. Refer to Editing device name on page 43.
Page 25
Operating this unit Using this unit to initiate a connection Display the connection menu. Refer to Introduction of connection and regis- tration on page 23. Use MULTI-CONTROL to select BT HANDS FREE. Use MULTI-CONTROL to select a group. Push MULTI-CONTROL up or down to select a group.
Page 26
Section Operating this unit After connected, this unit automatically changes to PH. BOOK DL (phone book down- load confirmation) display. # If the connection fails, ERROR is displayed. In this case, check the cellular phone and try again. Use MULTI-CONTROL to decide to download the phone book from your cellu- lar phone or not.
Operating this unit Making a phone call Dial a number The most basic way to make a call is to simply dial the number. Refer to Making a call by entering phone num- ber on page 34 for detailed instructions. Calling a number in the Phone Book or the Call History Refer to Calling a number in the phone book on...
Section Operating this unit Using the phone number list Important Be sure to park your vehicle and apply the park- ing brake when operating the list. % Press LIST to display the list. Press LIST repeatedly to switch between the following lists: RECENT CALLS (call history)—ABC SEARCH (phone book)—DIAL PRESET (preset number...
Page 29
Operating this unit # You can scroll literal information by pressing and holding DISP. Press MULTI-CONTROL to display the phone number list of the selected entry. # You can also display the phone number list of the selected entry by pushing MULTI-CONTROL right.
Section Operating this unit Clearing a phone book entry Display the phone number list of your desired phone book entry. See step 1 to 5 on Calling a number in the phone book on page 28 for how to do this. Press and hold MULTI-CONTROL to dis- play the edit screen.
Operating this unit # You can scroll literal information by pressing and holding DISP. # If you want to go back and select another entry, push MULTI-CONTROL left. 10 Press MULTI-CONTROL to store the phone number in the preset list. Deleting preset numbers Press LIST to display DIAL PRESET (pre- set number list).
Section Operating this unit Turn MULTI-CONTROL to select the function. PH BOOK DOWNLOAD (phone book down- load)—PH BOOK TRANSFER (phone book transfer)—AUTO CONNECT (automatic con- nection setting)—AUTO ANSWER (automatic answer setting)—ECHO CANCEL (echo can- cel)—RING TONE (ring tone select)— NUMBER DIAL (call by entering number)— CLR MEMO (clear memory)—ADD+ (interna- tional call prefix setting)—PH.
Operating this unit Push MULTI-CONTROL left or right to move the cursor to the previous or next character position. Press MULTI-CONTROL to determine the ID and the password. After entering the ID and password, use your cellular phone to continue the procedure.
Section Operating this unit # This function can be performed even while talking on the phone. In this case, press MULTI-CONTROL to switch to ECHO CANCEL. Switching the ring tone Display the function menu. Refer to Introduction to advanced operations on page 31.
Operating this unit Changing the phone book display order Display the function menu. Refer to Introduction to advanced operations on page 31. Use MULTI-CONTROL to select PH. B. NAME VIEW. INVERT NAME YES is displayed. Press MULTI-CONTROL to change the name view order.
Section Audio Adjustments Introduction of audio adjustments Press MULTI-CONTROL to display the main menu. Use MULTI-CONTROL to select AUDIO. Turn to change the menu option. Press to se- lect. The audio menu is displayed. Turn MULTI-CONTROL to select the audio function. Turn MULTI-CONTROL to switch between the audio functions in the following order.
Audio Adjustments VOCAL Vocal CUSTOM Custom FLAT Flat SUPER BASS Super bass ! CUSTOM is an adjusted equalizer curve that you create. If you make adjustments to an equalizer curve, the equalizer curve set- ting is memorized in CUSTOM. ! When FLAT is selected, no supplement or correction is made to the sound.
Section Audio Adjustments Push MULTI-CONTROL left or right to select a desired level. Each time MULTI-CONTROL is pushed left or right, level is selected in the following order: LOW (low)—MID (mid)—HIGH (high) Using subwoofer output This unit is equipped with a subwoofer output which can be turned on or off.
Audio Adjustments Boosting the bass Bass boost function boosts the bass level of sound. Display the audio menu. Refer to Introduction of audio adjustments on page 36. Use MULTI-CONTROL to select BASS BOOST. Push MULTI-CONTROL up or down to select a desired level. 0 to +6 is displayed as the level is increased or decreased.
Section Initial Settings Adjusting initial settings Press SRC and hold until the unit turns off. Press MULTI-CONTROL and hold until the initial setting menu appears in the dis- play. Turn MULTI-CONTROL to select one of the initial settings. CLNDR (calendar)—CLOCK (clock)— OFF CLOCK (off clock)—FM STEP (FM tuning step)—AUTO PI (auto PI seek)—WARNING (warning tone)—AUX (auxiliary input)—...
Initial Settings Press MULTI-CONTROL to turn the off clock display on. # To turn the off clock display off, press MULTI-CONTROL again. Setting the FM tuning step Normally the FM tuning step employed by seek tuning is 50 kHz. When AF or TA is on, the tuning step automatically changes to 100 kHz.
Section Initial Settings Initially, the unit is set for rear full-range speak- er connection (FULL). When rear output is connected to full range speakers (when FULL is selected), you can connect other full range speakers (PREOUT :REAR) or a subwoofer (PREOUT :SUB W) to the RCA rear output.
PIN code. Editing device name You can edit the device name. The device name is set to PIONEER FLAP BT as default. Display the initial setting menu. Refer to Adjusting initial settings on page 40.
Section Initial Settings # If an invalid character has been entered, sub- sequent characters are not displayed. # If an invalid character has been entered in the beginning, device name cannot be stored in memory. Displaying system version for repair Should this unit fails to operate properly and you consult your dealer for repair, you may be asked to indicate the system versions of this...
After you have selected AUX as the source, use MULTI-CONTROL and select FUNCTION to display TITLE INPUT. Enter a title in the same way as the built-in CD player. For details concerning operation, refer to En- tering disc titles on page 19. Section...
Error messages When you contact your dealer or your nearest Pioneer Service Center, be sure to have the error message recorded. Built-in CD Player Message Cause ERROR-11, 12, Dirty disc...
Additional Information ! Do not insert anything other than a CD into the CD loading slot. ! Do not use cracked, chipped, warped, or otherwise damaged discs as they may da- mage the player. ! Unfinalized CD-R/CD-RW disc playback is not possible.
Appendix Additional Information Compressed audio files on the disc ! Depending on the version of Windows Media Player used to encode WMA files, album names and other text information may not be correctly displayed. ! There may be a slight delay when starting playback of WMA files encoded with image data.
Page 49
Additional Information А Б В Д Е, Ё Ж И, Й К Л Н О П С Т У Х Ц Ч Ъ Ы Ь Ю Я Г З М Р Ф Ш, Щ Э Appendix...
Gain ... +6 dB to –24 dB Phase ... Normal/Reverse Bass boost: Gain ... +12 dB to 0 dB CD player System ... Compact disc audio system Usable discs ... Compact disc Signal-to-noise ratio ... 94 dB (1 kHz) (IEC-A net- work) Number of channels ...
