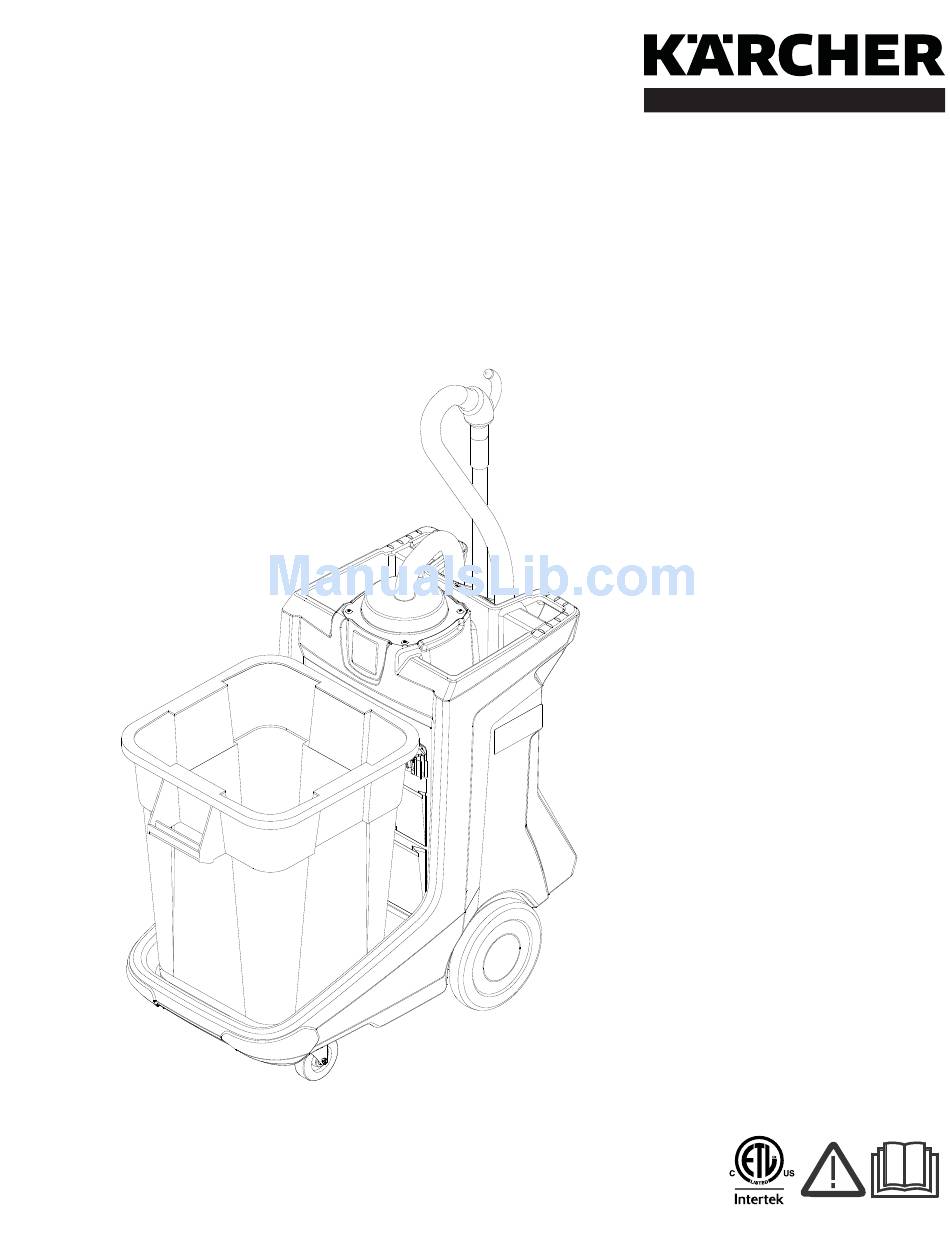

Kärcher 1.013-100.0 Operating Instructions Manual

Cleaning cart with vacuum.
Hide thumbs

Advertisement

ECO! T11 Bp LINER
Cleaning Cart with Vacuum
Operating Instructions (ENG)
MODELS:
86405760-F
1.013-100.0
1.013-101.0
1.013-103.0
04/19/17

Advertisement

Table of Contents

   Summary of Contents for Kärcher 1.013-100.0

  • Page 1 ECO! T11 Bp LINER Cleaning Cart with Vacuum Operating Instructions (ENG) MODELS: 1.013-100.0 1.013-101.0 1.013-103.0 86405760-F 04/19/17...
  • Page 2: Machine Data Label

    Machine Data Label Overview The ECO! T11 Bp Liner is a multi-functional cleaning machine intended for commercial use. Warranty Registration Thank you for purchasing a Kärcher North America product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to : http://warranty.karcherna.com/ For customer assistance:...
  • Page 3: Table Of Contents

    Table of Contents Machine Data Label ......2 Overview ........2 Table of Contents .
  • Page 4: How To Use This Manual

    How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •...
  • Page 5: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: • Connect to a properly grounded outlet. See Grounding Instructions. •...
  • Page 6 Safety CONSIGNES DE SÉCURITÉ IMPORTANTES Lors de l'utilisation de cette machine, des précautions de base doivent toujours être prises, y compris les précautions suivantes : LIRE TOUTES LES INSTRUCTIONS AVANT D'UTILISER CETTE MACHINE. Pour réduire le risque d'incendie, d'électrocution ou de blessure : •...
  • Page 7: Hazard Intensity Level

    Safety HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
  • Page 8 Safety Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions : DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante: AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner la mort.
  • Page 9: Safety Labels

    Safety Safety Labels NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé...
  • Page 10: Grounding Instructions

    Safety Electrical In the USA this machine operates on a standard 15 amp 115 volt A.C. power circuit. The amp, hertz, and Grounding Pin voltage are listed on the data label found on each GROUNDING CONNECTION machine. Using voltages above or below those USING AN ADAPTOR indicated on the data label will cause serious damage Grounded...
  • Page 11 Notes 86405760 ECO! T11 Bp LINER...
  • Page 12: Operations

    Operations Technical Specifications ITEM DIMENSION/CAPACITY Electrical 115 VAC, Internally Powered with 36 VDC (3 - 12V Batteries) Electric Vacuum Motor 36 VDC, 500W Water Lift 65 Inches Vacuum Bag Capacity 10 Qt Air Flow 85 CFM Power Cable 20ft (7.62m) 18 gauge Wheels Front (2) 5in Dia.
  • Page 13 Operations ITEM MEASURE 180 lbs (82kg) for 1.013-100.0 194 lbs (88 kg) for 1.013-101.0 Weight 46 in (1168mm) Length 43 in (1092mm Height 25in (635mm) Width Width Height Length This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 14: How The Machine Works

    Operations How the Machine Works The ECO! T11 Bp Liner is a multi-functional cleaning machine intended for commercial use. It can be used as a mobile station that can be placed in a convenient area to provide vacuum cleaning of floors and surfaces with a variety of cleaning attachments.
  • Page 15: Components/controls

    Operations Components/Controls 1. Control Panel 7. On/Off Switch 2. Vacuum Chamber Lid 8. Battery Charger Cord 3. Trash Container 9. Battery Status Indicator LED 4. Vacuum Floor Tool 10. Bag Full Indicator LED 5. Telescoping Wand 11. Supply Storage (Optional) 6.
  • Page 16: Control Panel

    Operations Control Panel The on/off switch is located on the upper right side of the control panel There are two indicator lights on the control panel: 1. Bag Full Indicator LED: Vacuum Motor Solid Green Bag Almost Full Solid red. Machine shuts down, stays Bag Full solid red for 10 seconds.
  • Page 17: Equipment Set Up

    Operations Equipment Set Up Vacuum Bags FOR SAFETY: Turn off vacuum before changing Charging the Machine filter bags. Ensure that the machine has a fully charged battery For easy vacuum bag replacement and optimum pack. Pull the coiled extension cord from its storage vacuum system performance disposable paper vacuum box, plug the cord termination into a grounded wall bags and a re-usable cloth bag liner are provided.
  • Page 18: Maintenance

    Maintenance Periodically inspect all hoses, electrical cables and Daily Maintenance connections on your machine. Frayed or cracked hoses should be repaired or replaced to eliminate vacuum pressure loss. The electrical cable must be well insulated. If the cable insulation is broken or frayed, repair or replace immediately.
  • Page 19 Maintenance Troubleshooting Battery Indicator LED Error Codes Blink Code Error Condition Vacuum Over Current Vacuum > 15A Vacuum Under Current Vacuum < 8A Charger Over Current, Vacuum On Charger > 19A Charger Over Current, Vacuum Off Charger > 8A Charger Under Current, Vacuum On Charger <...
  • Page 20: Service Schedule

    Maintenance Service Schedule MAINTENANCE DAILY WEEKLY MONTHLY QUARTERLY ANNUALLY Check bag and replace if necessary Check hoses for wear, blockages, or damage Check major gaskets for leakage Check brush-should be clean with no lint or strings attached Store cord in pocket Check hoses for cracks or holes Check all cords and handles for damage or cracks;...
  • Page 21: Vacuum Motor Replacement

    Maintenance Vacuum Motor Replacement Vacuum Motor Carbon Brushes Replacement End Cap Carbon WARNING: Brushes The ground wire Only qualified maintenance personnel are to must be attached perform the following repairs. for safe operation. See wiring diagram. If armature commutator is grooved, extremely pitted or not Seul le personnel d'entretien qualifié...
  • Page 22: Battery Maintenance

    Maintenance Battery Maintenance Use AGM or Gel Batteries Only. Use of other batteries may result in operator injury. Only qualified maintenance personnel are to perform the following repairs. Utilisez uniquement des batteries AGM ou Gel. L’utilisation d’autres batteries peut blesser l’opéra- Seul le personnel d'entretien qualifié...
  • Page 23 Maintenance Use AGM or Gel Batteries Only. Use of other batteries may result in operator injury. Utilisez uniquement des batteries AGM ou Gel. L’utilisation d’autres batteries peut blesser l’opéra- teur. Wear eye protection and protective clothing when working with batteries. Portez des lunettes de protection et des vêtements de protection lorsque vous travaillez avec des batteries.
  • Page 24: Charging Batteries

    Maintenance Charging Batteries When servicing machine, avoid contact with battery acid. Use AGM or Gel Batteries Only. Use of other batteries may result in operator injury. Lors de l'entretien de la machine, évitez tout contact avec l'acide de batterie. Utilisez uniquement des batteries AGM ou Gel. L’utilisation d’autres batteries peut blesser l’opéra- teur.
  • Page 25 Maintenance Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep covers open when charging. Les batteries émettent du gaz hydrogène. Une explosion ou un incendie peut en résulter. Maintenez les étincelles et les flammes nues à l’écart.
  • Page 26 Maintenance Batteries Use AGM or Gel Batteries Only. Use of other batteries may result in operator injury. Utilisez uniquement des batteries AGM ou Gel. L’utilisation d’autres batteries peut blesser l’opérateur. Only qualified maintenance personnel are to perform the following repairs. Seul le personnel d'entretien qualifié...
  • Page 27: Changing Batteries

    Maintenance FOR SAFETY: Before leaving or servicing the Delta Q IC650 Charger Maintenance machine; stop on level surface and turn off Instructions machine. 1. Do not expose charger to oil, dirt, mud or direct heavy water spray when cleaning the vehicle or Changing Batteries machine.
  • Page 28: Delta Q Ic650 Charger Operating Instructions

    Maintenance Delta Q IC650 Charger Operating Instructions Only qualified maintenance personnel are to perform the following repairs. Seul le personnel d'entretien qualifié peut effectuer des réparations - The charger may become hot during charging. Use hand protection to safely handle the charger during charging.
  • Page 29 Maintenance *Process will time out and profile will remain Selecting a Charge Profile unchanged if there is 15 seconds of inactivity, a profile 1. Disconnect AC input from the charger, or from the number is allowed to display three times, or if AC power wall outlet.
  • Page 30 Maintenance Configuring the IC650 Charger Using a USB Flash Drive Only qualified maintenance personnel are to perform the following repairs. Seul le personnel d'entretien qualifié peut effectuer des réparations Using the Delta Q software, USB storage drives can be pre-programmed to certain charger configuration. To use the USB port, follow these steps: 1.
  • Page 31: Charge Tracking Data

    Maintenance Confirming a Software Update After using a USB flash drive to update the charger firmware, the update can be confirmed by reviewing the .txt file written to the flash drive by the charger. It will be located in the folder labelled ‘syslog’ (e.g. F:\CHARGER\RESP\serialno\syslog\00000000.txt).
  • Page 32: Suggested Spare Parts

    Suggested Spare Parts 8.640-361.0 HOSE ASSEMBLY 8.640-204.0 WAND 8.600-351.0 MOTOR FILTER 8.632-698.0 BRUSH SET 24/36V 8.634-487.0 DUST BRUSH 6.907-410.0 FLOOR 6.903-403.0 ATTACHMENT CREVICE NOZZLE 8.600-166.0 SHAFT HUBCAP 8.630-979.0 8.619-885.0 WHEEL REPLACEMENT PAPER BAGS 8.630-007.0 (PKG. OF 10) HUBCAP NOT SHOWN 8.640-211.0 CLOTH VACUUM NOT SHOWN...
  • Page 33 Notes 86405760 ECO! T11 Bp LINER...

This manual is also suitable for:

1.013-101.01.013-103.0
