Page 1: User Manual

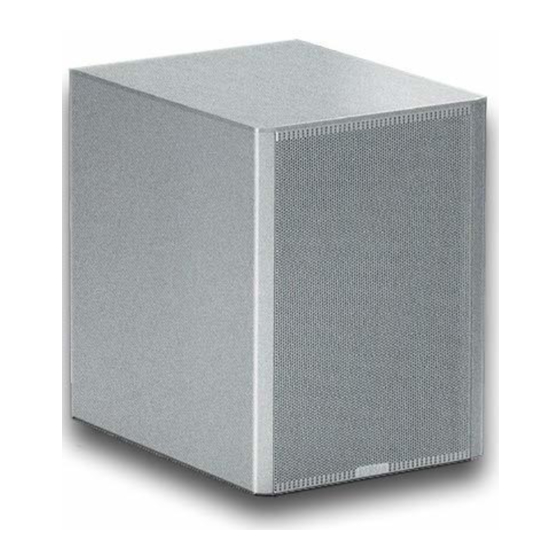

User Manual PIEGA P SUB 4 Active-Subwoofer Version 1.0... - Page 2 You will now be able to hear for yourself how far we have succeeded. By purchasing a loudspeaker from PIEGA you have expressed your trust in our company, for which we thank you very much. At the same time we assure you that you have purchased a product that is based on twenty years of R &...
-
Page 3: Table Of Contents
PIEGA P SUB 4 This user manual describes how to connect the PIEGA P SUB 4 active subwoofer to different loudspeaker configurations and the appropriate setting options for optimum operation in stereo and home cinema mode. It also contains instructions for unpacking and setting up the P SUB 4. -
Page 4: Precautions
Please read this user manual carefully and pay special attention to the following precautions and warnings. In your own interest, we advise you to strictly observe the following procedure when installing your new PIEGA P SUB 4. WARNING: TO REDUCE THE RISK OF FIRE... -
Page 5: Unpacking The P Sub 4
PIEGA P SUB 4 Special care was taken in the packaging of your P SUB 4 in order to ensure that this new PIEGA quality product reaches your living room safely and undamaged. In order to avoid any damage when unpacking the loudspeaker, follow closely the instructions below. -
Page 6: Installation Instructions
PIEGA P SUB 4 The P SUB 4 can be installed flexibly and easily. Due to its relatively small size, it can be integrated in any unit and can be positioned as required virtually anywhere in the room. However, to ensure the most natural sound, the P SUB 4 should be placed on the floor near the two front loudspeakers. -
Page 7: Connection Options
PIEGA P SUB 4 Its large range of connection options offers the P SUB 4 a large number of configurations both for stereo and for surround mode. Refer to the appropriate user manual supplied for specific information on the loudspeakers used and components of your stereo or surround system. -
Page 8: Connecting The System
Note that in this case, the LOW PASS setting of the P SUB 4 has no effect (see page 13). Refer to the user manual of your AV receiver for information on the individual setup controls. -
Page 9: Speaker Connection
LINE INPUT Configuration example for stereo and surround mode Connection: >Connect the P SUB 4 cable to the AV receiver terminal marked PRE OUT (or similar) >Connect the P SUB 4 cable to the subwoofer terminal marked INPUT >For this use connection cables with cinch plugs (not supplied) >Connect the loudspeakers using the loudspeaker terminals... - Page 10 INPUT Configuration example for stereo mode Connection: >Connect the P SUB 4 cable to the amplifier terminal marked PRE OUT (or similar) and to the subwoofer terminal marked INPUT >Connect the P SUB 4 cable to the amplifier terminal marked MAIN IN (or similar) and to the subwoofer terminal marked OUTPUT >For this use two connection cables with cinch plugs...
- Page 11 Amplifier HI LEVEL INPUT Configuration example for stereo mode Connection: >Connect the P SUB 4 MKII cable to the amplifier terminal marked SPEAKER (or similar) >Likewise connect up the loudspeakers (parallel) to the terminal marked SPEAKER (or similar) >For this use two similar connection cables (not supplied)
- Page 12 Speaker L Configuration example for stereo mode Connection: >Connect the P SUB 4 subwoofer cable to your stereo amplifier at the terminal marked SPEAKER (or similar) >Connect up the loudspeakers parallel to the subwoofer >For this use suitable loudspeaker cables, if necessary with...
-
Page 13: Setting The Sound Characteristics
PIEGA P SUB 4 Thanks to the use of the most advanced active electronics, your new P SUB 4 is a cutting edge product in the field of subwoofers. The connection and setting options provided on the P SUB 4 allow the best possible connection to your stereo or surround sound system and can be adapted to your individual audio requirements. -
Page 14: Daily Use
From development to production, right down to quality testing, PIEGA only uses materials and components of the highest quality. Your new P SUB 4 has a polished aluminum surface. As this material is very sensitive, it should be treated with due care. -
Page 15: Warranty Conditions
Piega. If it is necessary for a device or part of it to be sent to Piega or an approved Piega workshop, the sender is responsible for paying all transport costs in advance. The original packaging must be used for sending the complete device. - Page 16 PIEGA SA Bahnhofstrasse 29 CH-8810 Horgen, Switzerland CONFORMS TO UL STD. 6500 CERTIFIED TO CAN/CSA STD. E60065 Tel.: +41 44 725 90 42 Subject to modification, in particular technical modifications Fax: +41 44 725 91 92 www.piega.ch mail@piega.ch All specifications without guarantee...
