Summary of Contents for Photogenic Professional Lighting AKC160

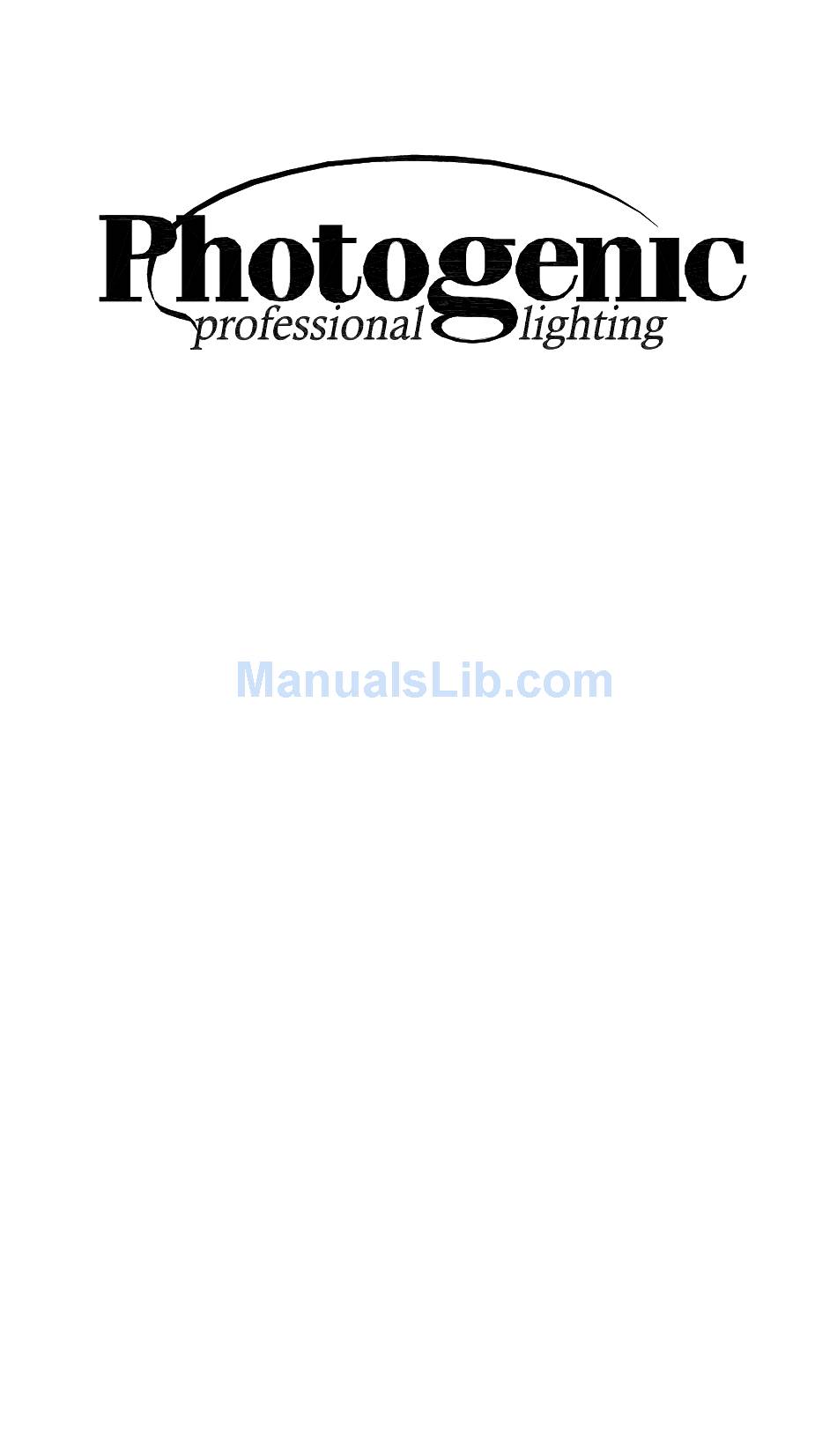

- Page 1 Daylight Corrected, Constant Color StudioMax Operator’s Manual Studio Max Studio Max Studio Max Studio Max ® ® III AKC320 ® III AKC320B ® III AKC160 ® III AKC160B...
- Page 2 (AKC160B & AKC320B) require the separate purchase of a battery pack to operate in DC mode. III AKC320 ® III AKC320B ® III AKC160 ® III AKC160B ® The StudioMax IIII series With this new StudioMax III series The StudioMax...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Despite the measures that have been taken to make electronic flash equipment safe, it must be recognized that high voltages and high temperatures do exist within the power supply / lighting unit. precautions must be observed in handling the unit. Contact with internal high voltage may result in severe injury or death. - Page 4 PREPARATION AND BASICS Unpacking and Setup: Unpack all units carefully to remove all parts from the carton(s). Do not discard or destroy the packing material until the equipment has been inspected, assembled, and all parts accounted for. After unpacking, all parts should be examined for any damage, which may have been caused by rough handling during shipment.
- Page 5 Flashtube. Modeling lamp. AC line cord jack. CONTROL PANEL AND BASIC OPERATION: Power Input: The power required to operate the StudioMax III is 105 to 125 volts AC, 50/60 Hz, 4 Amp, and/or, for a B (battery) model, an approved DC battery power pack (not included).
- Page 6 Circuit Protection: Circuit protection (fuse) automatically protects this appliance from excessive damage due to circuit or component failure. Operation exceeding the rated cycle of the appliance may cause the fuse to open. [Always replace fuse with same rating of fuse.] To replace a blown fuse (power cord must be disconnected), simply unscrew the fuse holder cap (side front of unit) and replace the exposed fuse with a new fuse.
- Page 7 This is for safety and reliability. Synchronization and Triggering: Triggering is accomplished by using a camera flash or a trigger cable from one StudioMax III to the camera shutter contacts of ”X” or “zero” delay.
- Page 8 The built-in photoslave is operational when the unit is ON. If you wish to disable the photoslave, plug in your SYNC cord. AKC160 and AKC320 Accessories: A large assortment of Photogenic standard “Quick-Change” reflectors, umbrellas, grids, softboxes, snoots, barndoors and cases are available.
-
Page 9: Operation
StudioMax III All Models Flashing Rate: The unit recharges quickly, as indicated by the READY light on the control panel. A quick series of flashes can be obtained within the limits of the recharge time. Continuous rapid flashing, however, can overheat and damage the flashtube and internal parts. -
Page 10: Specifications
General: Flash Power...10 to 320 watt-seconds. Flash Duration...1/120 second at Full Recycling time...0.02 to 3 seconds Power Control...Full to 1/32 range. Flash Color...5400±200° Kelvin Modeling Light Power ...100 Watt, 120 VAC, ESR. Modeling Light Control ...ON or OFF. Triggering ...Built in Photoslave. Main Supply ...105-125 VAC, 50/60 Hz, 3 amp. - Page 11 Flashtubes and Modeling Lamps: Flashtube ...Plug-in style, use only Modeling Lamp ...100-Watt, 120 VAC, ESR. Fuse ...3AG type, 8 Amp, SLO-BLO SPECIFICATIONS AKC160 & AKC160B 1/700 second at ½ 1/1300 second at ¼ 1/2400 second at 1/8 1/4100 second at 1/16...
- Page 12 Color Temperature Consistent and Constant The problem: With the rare exception of units costing many thousands of dollars, flash lighting packs, up to now, do not control the color temperature of the light. The color temperature typically decreases by over 100 degrees Kelvin for every f-stop of power reduction.
- Page 13 film. The reciprocity law applies to commonly available black-and- white and color films at exposure times from approximately 1/10 second to 1/1,000 second. This means that no adjustments are necessary for exposure or color in this shutter range. Most modern films however have increased this range to the point that no adjustments are necessary from approximately 1 second to 1/10,000 second.
- Page 14 SERVICE The photographer should not attempt to make repairs. Consult a dealer for an authorized Photogenic Professional Lighting service agent. This will provide you safety, insure proper operational functions and provide continuation of your warranty. Before removing the old tubes or installing new tubes, always unplug your StudioMax and discharge the stored energy by switching the POWER switch to OFF.
-
Page 15: General Troubleshooting
General Trouble Shooting COMMON PROBLEMS AND CAUSES Unit does not charge. Probable causes: Fuse blown. (Unplug and discharge the unit-Replace fuse.) No line power to unit. (Check line cord and outlet.) Defective unit. (Return for repair.) Modeling light does not turn on. Probable causes: Lamp turned off. - Page 16 Photogenic Professional Lighting 1268 Humbracht Circle Bartlett, Illinois 60103-1631 USA Phone: (630)830-2500 Fax: (630)830-2525 Manual: # 016338-00 Revision: 01, 6-2005...
