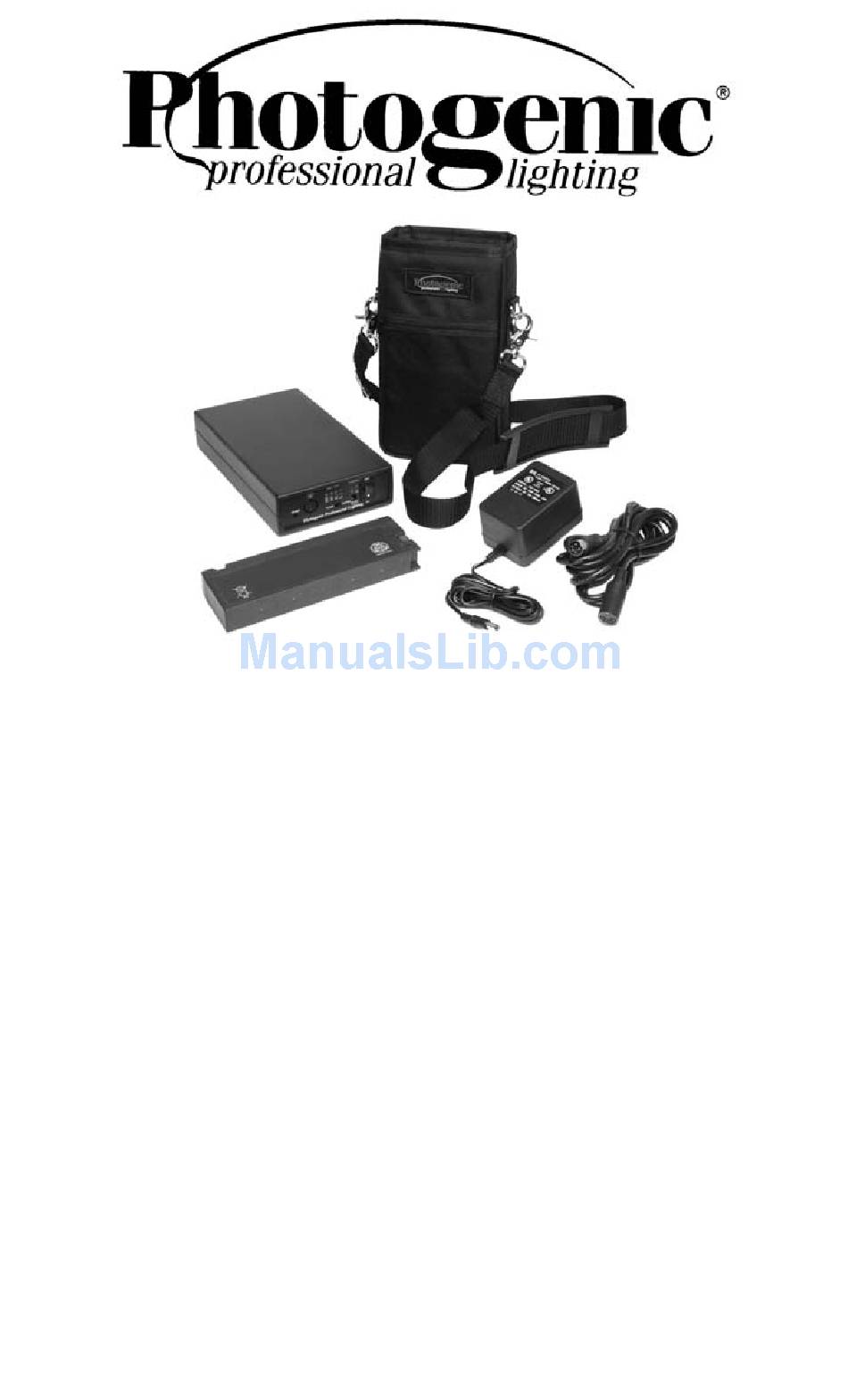

AKB-1 Battery Pack
Operational manual for use with Photogenic AC/DC
StudioMax II & III & PerforMax monolights.
This DC power supply is primarily designed for use with
AC/DC monolights from Photogenic Professional Lighting.
AKC320B & AK320B
320 watt second model.
AKC160B & AK160B
160 watt second model.
AK4001MLB
150 watt second model.
Photogenic Professional Lighting
1268 Humbracht Circle
Bartlett, Illinois 60103-1631
www.photogenicpro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKB-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Photogenic Professional Lighting AKB-1

  • Page 1 Operational manual for use with Photogenic AC/DC StudioMax II & III & PerforMax monolights. This DC power supply is primarily designed for use with AC/DC monolights from Photogenic Professional Lighting. AKC320B & AK320B 320 watt second model. AKC160B & AK160B 160 watt second model.

  • Page 2: Basic Features

    Included in the AKB-1 package: 1 - DC 12V, 2.3Ah lead-acid battery with output of 305VDC, 500mA. 1 - Battery case/charger housing. 1 - Soft case with belt clip for protection of the unit. 1 - Soft case shoulder strap.
  • Page 3 Installation of the battery. The battery may not be installed in the unit when it arrives. To install the battery, remove the protective padded case around the unit. There is a Velcro strip between the padded case and the unit housing. Separate the Velcro strips and the housing can be removed.

  • Page 4: Charging The Battery

    Control Panel Layout. Charging the battery. The battery pack becomes the charger when you connect the AC/DC wall adapter included in the package. Before using the battery for the first time, it must be charged Charging Procedures. 1. Turn the main On/Off switch to the ON position. 2.
  • Page 5 Your new fully charged power pack will provide between 100 to 200 full charge flashes depending on the model you have. This is an approximation for full power flashes and dialing down power can increase the number of charges you will have for your light. Carry a backup battery when you are in the field for extended periods of time, or do not have access to power.

  • Page 6: Specifications

    Do not leave the unit in a hot humid environment or in direct  sunlight for extended periods. Use only charger/adapters with the specified limits.  Do not drop the unit.  Do not use in the water, submerged, mist or rain water. ...
