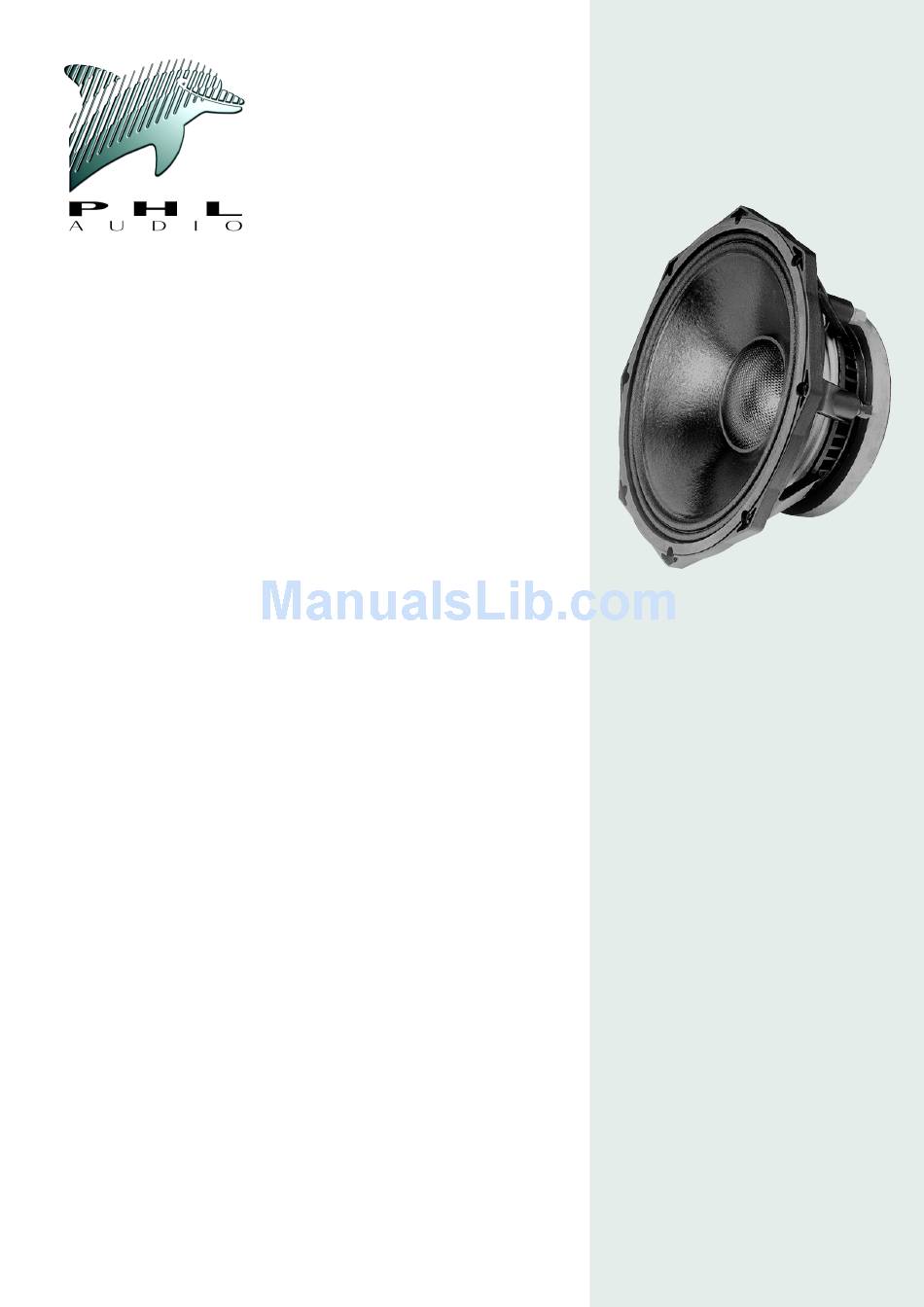

PHL Audio E30 Specifications

12" Low Midrange Drivers
High Sound Pressure Level
High Sounding Quality
APPLICATIONS
Chosen preferably to types SP4550/4560 when higher AES Power
handling capacity is requested, these high SPL high sounding
quality low-midrange drivers are ideal for sound reinforcement
applications within the 60Hz to 2.0kHz frequency band , where
a pair can be used by paralleling two SP4060 for long throw
systems of exceptional sound accuracy. Maximum X-over
frequency is 1.5Khz in this case.
Optimum Bass-Reflex enclosure is 25L to maximum 40L tuned
from 53Hz to 60Hz.
DESIGN CONCEPT
DEFLECTION CONTROLLED DIAPHRAGM optimized for dynamic
damping.
DEFLECTION CONTROLLED DIAPHRAGM
in optimizing the shape and material of the diaphragm so that it
works as a mechanical transmission line, to avoid breaking modes
as well as mechanical threshold which destroy sound quality.
This leading edge technology offers substantial sonic advantages.
Among them: sound coherency, fast transients, stable sound
imaging, high sensitivity, wide frequency range and reduced
directivity pattern.
VENTED COMPACT MAGNET SYSTEM. It has been carefully
optimized to obtain maximum transducing efficiency while
avoiding unlinear behavior such as coil inductance variation with
position, flux modulation, harmonic distortion, rest position offset,
air compression and off-axis voice-coil pushing.
Its design incorporates a T-shaped and vented pole piece,
and a flux stabilization ring. It also takes into consideration
demagnetization at cold temperatures.
INTERCOOLER SYSTEM (patented). Entirely integrated into the
loudspeaker itself, the
INTERCOOLER SYSTEM
produced by Joule effect in the voice-coil by the means of an air
flow directed through the heatsink rims of the basket by the
motion of the dust-cap and the spider.
The gain brought about by this technology is over 20 % of extra
power, so for example, a 3"coil according to this design has
the same power handling capacity as a classical 4"one.
4050
8 Ω
4060
16 Ω
technology consists
extracts the heat
PROFESSIONAL SERIES
FEATURES
Power handling capacity
Reference efficiency
(1W @ 1m)
SPL max
(continuous)
Usable frequency range
Environmental withstanding
ARCHITECTURAL SPECIFICATIONS
: 300 mm.
NOMINAL DIAMETER
: High tensile alloy pressure
FRAME
die-cast basket with patented
.
INTERCOOLER SYSTEM
: 3"highly energized,
MAGNET SYSTEM
heat extracting design with vented
pole piece and flux stabilizing ring.
: High-temperature
VOICE COIL
stabilized copper-clad aluminum
ribbon wound on high-strength glass
polyimide former.
: High-strength
CONE ASSEMBLY
cellulose fiber cone impregnated and
front-coated with damped resins,
fitted with central carbon-fiber dome,
and high-compliance treated
double-roll fabric surround
: 8.70 kg.
SPEAKER MASS
E30
350 W AES
99 dB SPL
120 dB SPL
60-3000 Hz
Outdoor
