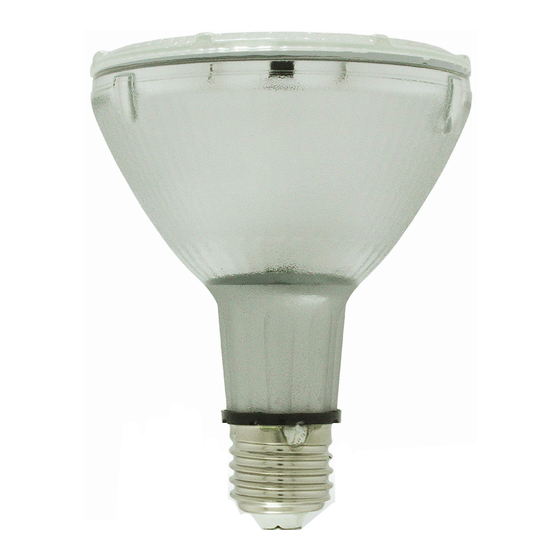

MasterColor
®
39 Watt PAR30L Spot 3K Lamp
with FadeBlock
™
3
4
/
"
4
MasterColor® Spectral Power Distribution—3K Types
350
300
250
200
150
100
50
0
400
450
500
WAVELENGTH (Nanometers)
CDM35/PAR30L/M/SP
50
40
30
20
10
0
0
5
Degrees from Beam Axis
Ceramic Metal Halide
550
600
650
700
10
15
Ordering Information
Ordering Code
ANSI Designation
Product Number
Description
Package Quantity
Physical Characteristics
Bulb Size
Bulb Finish
Base
Max. Overall Length (MOL)
Light Center Length (LCL)
Arc Length
Arc Tube Material
Max. Permissible Bulb Temp.
Max. Permissible Base Temp.
Max. Lens-to-Reflector Rim Temp.
Max. Bulb to Base Eccentricity
Max. Arc Tube to Base Eccentricity
Operating Characteristics (Photometric)
Rated Initial Lumens
(1)
Mean Lumens, Approx.
(2)
MBCP (Max. Beam Candlepower)
Beam Angle (at 50% of MBCP)
Rated Average Life, Hours
Correlated Color Temp. (CCT)
CIE Chromaticity Approx.
(2)
Color Rendering Index (CRI)
Efficacy (lpw)
Operating Position
Universal-Open or Enclosed PAR Style Luminaires
Note: Electronic ballasts are preferred for optimum performance,
energy efficiency and circuit loading.
Operate only on thermally protected ballasts.
CDM35/PAR30L/M/SP/3K
M130/O
223297
MasterColor
Ceramic Metal Halide
6
PAR-30L
Clear
Medium Screw
4 3/4" (121mm)
N/A
N/A
Polycrystalline Alumina
300º C (572º F)
190º C (374º F)
160º C (320º F)
3º
3º
2000
1600
44,000
10º
9000
(2)
3000K
x-.435, y-.400
81
51
