Seiko G510 Technical Manual

Epd watch

PARTS CATALOGUE / TECHNICAL GUIDE

= Precautions

For G510 caliber watches, as they incorporate a microcapsule-type

electrophoresis display module and employ a special case structure, all repair,

adjustment, and replacement must be carried out in Japan, with the exception

of replacement of "Urethane Safety Catcher" or batteries.

Battery replacement can be done only at Seiko Service Centres where the

Water-Resistance Tester S-451A is equipped.

As soon as you receive a request from a customer, immediately contact the CS

Department.

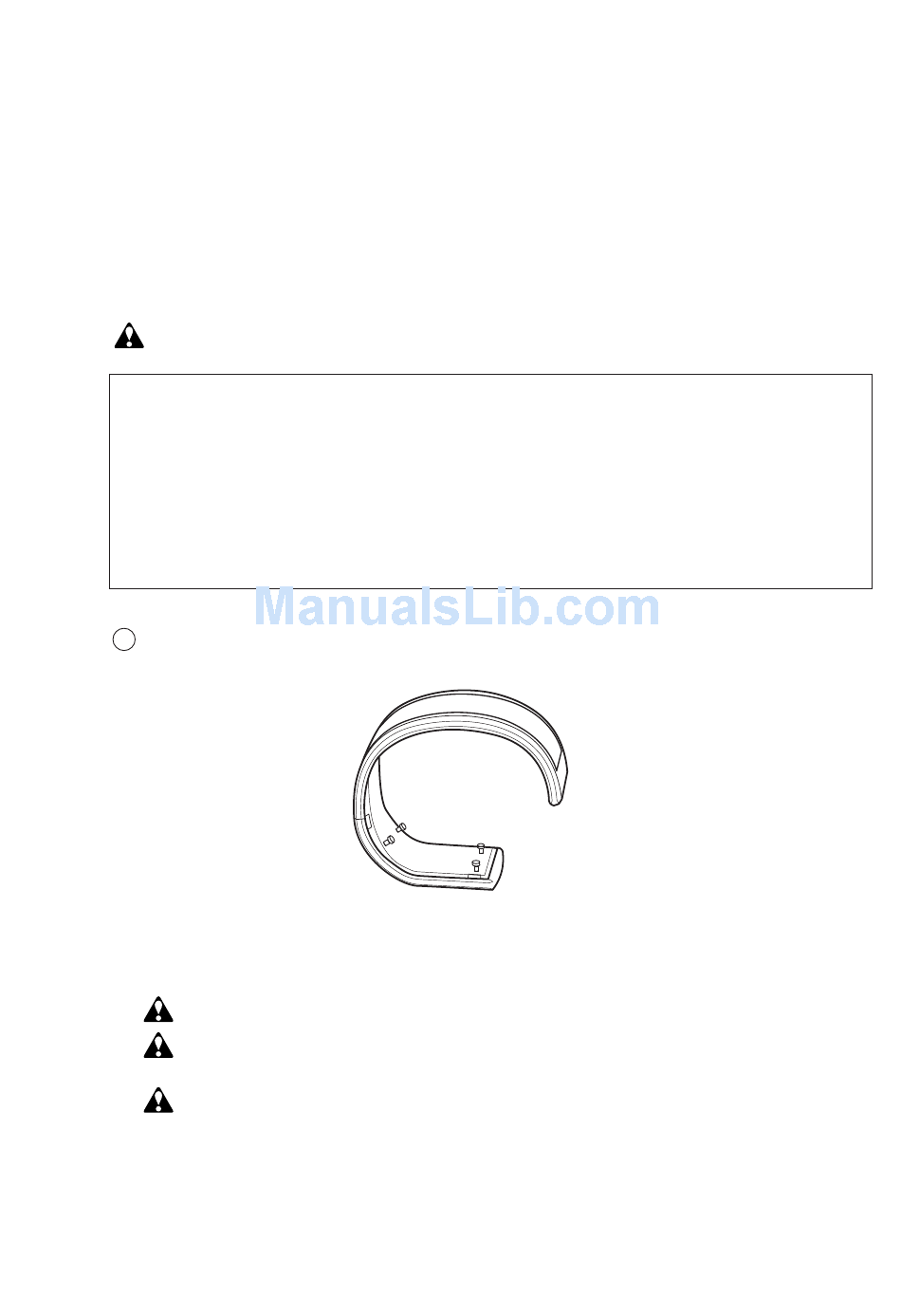

1) Loosen and remove the four "battery cover screws" (#7500920).

* Use sufficient force as adhesive is used for preventing the screws from

loosening.

The other 6 screws should not be touched.

Pay attention not to damage or scratch the case and battery cover.

Use a short screwdriver because the case shape is unusual.

Avoid diagonally inserting a long screwdriver because this will cause

damage to the screw head.

SEIKO EPD WATCH

Cal. G510

(for Battery Replacement)

1/4

Table of Contents

Do you have a question about the G510 and is the answer not in the manual?

Page 1 Japan, with the exception of replacement of “Urethane Safety Catcher” or batteries. Battery replacement can be done only at Seiko Service Centres where the Water-Resistance Tester S-451A is equipped. As soon as you receive a request from a customer, immediately contact the CS Department.
Page 2 TECHNICAL GUIDE Cal. G510 2 Remove the “battery cover.” Remove the “battery clamp” (#4225544) using tweezers. 4 Replace the battery (CR2025) When setting the battery, insert it diagonally from the side so as not to bend the terminal spring. Set the “battery clamp” correctly.
Page 3 TECHNICAL GUIDE Cal. G510 Apply a small amount of adhesive “LOCTITE 241” to the four screw holes on the battery cover. *First, remove any remaining adhesive before applying the new adhesive. *Dry the adhesive with the battery cover down under a temperature of not more than 50°C.
Page 4 * Set the detector to the glass part in a similar manner as a normal watch. * In the case where water resistance cannot be determined, remove the battery cover to reset the gasket and try again. Parts for G510 CASE BACK SCREW 81506329 BATTERY HATCH GASKET...
