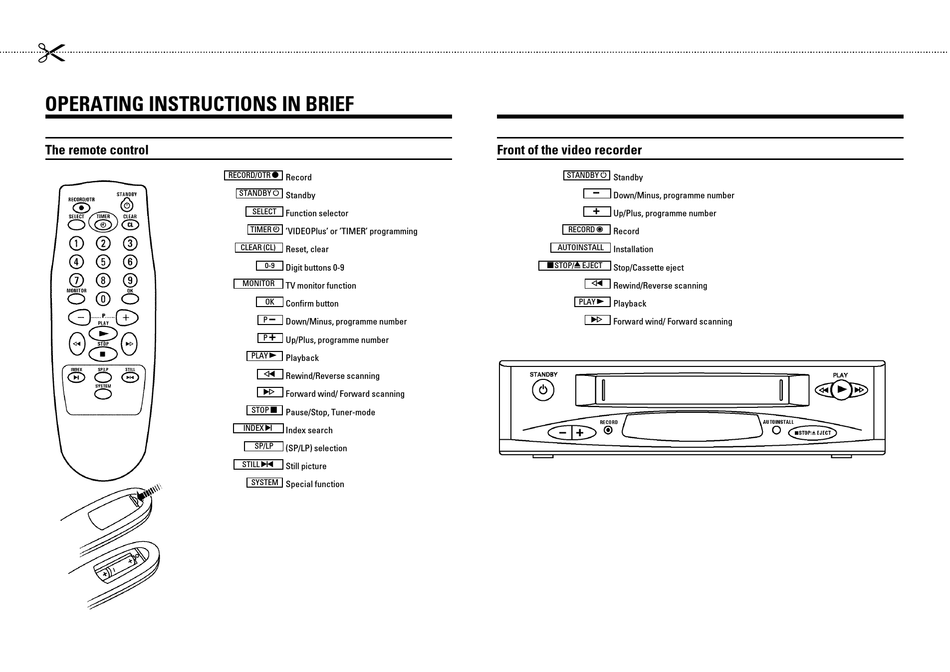

OPERATING INSTRUCTIONS IN BRIEF
The remote control
RECORD/OTR n
Record
STANDBY m
Standby
SELECT
Function selector
TIMER k
'VIDEOPlus' or 'TIMER' programming
CLEAR (CL)
Reset, clear
0-9
Digit buttons 0-9
MONITOR
TV monitor function
OK
Confirm button
P r
Down/Minus, programme number
P q
Up/Plus, programme number
PLAY G
Playback
H
Rewind/Reverse scanning
I
Forward wind/ Forward scanning
STOP h
Pause/Stop, Tuner-mode
INDEX E
Index search
SP/LP
(SP/LP) selection
STILL R
Still picture
SYSTEM
Special function

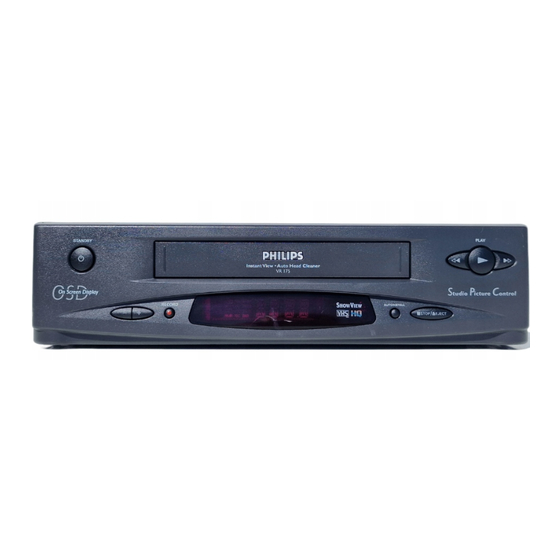

Front of the video recorder
STANDBY m
Standby
r
Down/Minus, programme number
q
Up/Plus, programme number
RECORD 5
Record
AUTOINSTALL
Installation
hSTOP/JEJECT
Stop/Cassette eject
H
Rewind/Reverse scanning
PLAY G
Playback
I
Forward wind/ Forward scanning

Advertisement

Table of Contents
loading

Related Manuals for Philips TYPE VR 175

Summary of Contents for Philips TYPE VR 175

  • Page 1 & OPERATING INSTRUCTIONS IN BRIEF The remote control RECORD/OTR n Record STANDBY m Standby SELECT Function selector TIMER k ’VIDEOPlus’ or ’TIMER’ programming CLEAR (CL) Reset, clear Digit buttons 0-9 MONITOR TV monitor function Confirm button Down/Minus, programme number Up/Plus, programme number PLAY G Playback Rewind/Reverse scanning...
  • Page 2 & Programming with ’VIDEOPlus+’ All the information required for a programming is contained encoded in the VIDEOPlus+ code. Switch on the TV set. TIMER k Press the button on the remote control. Please enter the VIDEOPlus+ -code (up to 9 digits) printed in your TV guide next to the start time of a TV programme.

  • Page 3: Table Of Contents

    OPERATING INSTRUCTIONS PHILIPS VR 175 Congratulations on the purchase of one of the most sophisti- cated and simple-to-use video recorders (VCR) on the market. With this VCR you can record and play VHS-standard cassettes. Please take the time to read this operating manual before using your video recorder.

  • Page 4: Installation

    INSTALLATION Important for the United Kingdom This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows: • Remove fuse cover and fuse. • Fix new fuse which should be a BS1362 3A, A.S.T.A. or BSI approved type.

  • Page 5: Connecting Additional Equipment

    Connecting additional equipment You can also connect additional equipment to the EXT.1 socket, for instance, satellite receiver, decoder or camcorder. Note: You can find information about how to connect your TV set in chapter 4, ’SPECIAL FEATURES’ in the section ’Playback via the aerial cable’. Emergency interrupt Both the video recorder and the remote control have an ’Emergency interrupt’...

  • Page 6: Automatic Channel Search

    Automatic Channel Search Switch on the TV set. Press the the video recorder. If TV channels have already been stored, select and confirm the ’AUTOINSTALL’ line. The ’Automatic Channel Search’ starts. AUTOINSTALL Wait until all the TV channels have been found. This may take several minutes.

  • Page 7: Playback

    PLAYBACK Insert the cassette into the cassette slot. PLAY G Press the playback button Picture scanning: Press the (forward) button once or several times. STOP h Interrupt: Press the button. Wind and rewind: Interrupt the playback function and press the (rewind) or 0:20 If, during wind/rewind, you want to have a quick access...

  • Page 8: Eliminating Picture Interference

    Eliminating picture interference/ Cleaning function During playback, hold the (tracking) appears in the display. Hold the button until the playback quality is at its best. Wait a few seconds, until ’TRAC’ disappears from the display. This setting will remain until you remove the cassette.

  • Page 9: Recording

    RECORDING Insert a cassette or switch the video recorder on with the button. Use the button or the select the programme number from which you wish to record, e.g. ’P 01’ . P 01 RECORD 5 Press the button. 0:00 STOP h To stop recording, press the Long play function...

  • Page 10: Programming With 'Videoplus

    Programming with ’VIDEOPlus+’ All the information required for a programming is contained encoded in the VIDEOPlus+ code. Switch on the TV set. TIMER k Press the button on the remote control. Please enter the VIDEOPlus+ code (up to 9 digits) printed in your TV guide next to the start time of a TV pro- gramme.

  • Page 11: Important Programming Notes

    Important programming notes • When recordings have been programmed, the display. • The programmed recording will always be made at the recording speed (SP/LP) that at the time has been selected on the video recorder. • You cannot operate the video recorder manually while a programmed recording is being made.

  • Page 12: Special Features

    SPECIAL FEATURES Tuner mode You can also use your video recorder as a TV receiver (tuner). STOP h Hold the button, until display. Choose the required programme number with the button or with the Switch the video recorder to standby by pressing the STANDBY m button when you no longer want to watch television.

  • Page 13: Manual Channel Search

    Manual channel search In certain cases the Automatic Channel Search may not be able to find all of the TV channels (e.g. coded TV channels). You can then use this manual method to set the channels. AUTOINSTALL Switch on the TV set. Press the the video recorder.

  • Page 14: Playback Via The Aerial Cable

    Playback via the aerial cable If you do not wish to use a scart cable, the aerial cable which is already connected will act as the connection between your TV set and the video recorder. Ensure that the video recorder is connected to the mains supply. Switch on your TV set and select the programme number that you have earmarked for video playback.

  • Page 15: Before You Call An Engineer

    Before you call an engineer If, contrary to expectation, you experience any difficulty in operating this video recorder, it may be caused by one of the reasons mentioned below. You can also call the customer service in your country. You will find the telephone numbers in the enclosed guar- antee leaflet.
  • Page 16 ( W w n n N N N w w n w N N n w N w w n N N w N w n N n w w N ) 3103 166 19501 VR 175 7443/001...
