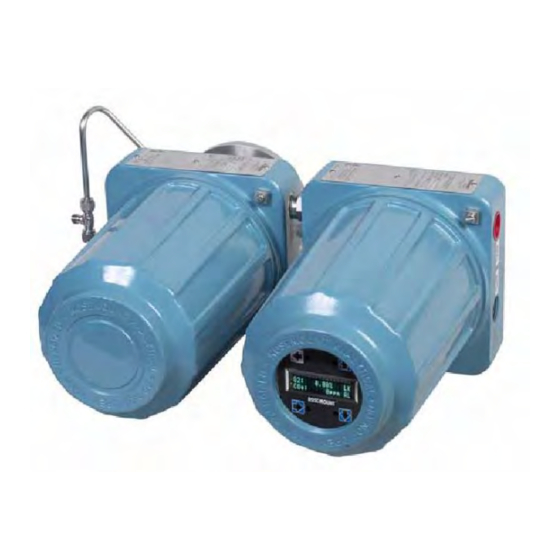

Rosemount OCX 8800 Instruction Manual

Oxygen and combustibles transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
IM-106-880, Rev 2.1
April 2017
TM
Rosemount
OCX 8800
Oxygen and Combustibles Transmitter
General Purpose Probe with Integral Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCX 8800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosemount OCX 8800

Summary of Contents for Rosemount OCX 8800

  • Page 1 Instruction Manual IM-106-880, Rev 2.1 April 2017 Rosemount OCX 8800 Oxygen and Combustibles Transmitter General Purpose Probe with Integral Electronics...
  • Page 3 HIGHLIGHTS OF CHANGES Effective September 2009, Rev 2.0 Page/Section Summary Throughout IM Included coverage of all General Purpose OCX 8800 configurations/options into this single Instruction Manual. Added F Fieldbus communications option. OUNDATION Added coverage of optional COe Purge/Zero function equipment illustrations with related installation and operating procedures.

  • Page 5: Table Of Contents

    Calibration Solenoids ................3-6 Blowback Feature ................. 3-7 Calibration Verify Feature ..............3-9 Calibration Tolerance Feature ............3-11 COe Purge / Zero Feature ..............3-12 OCX 8800 Reset Procedure ............... 3-14 SECTION 4 Overview ....................4-1 Display Orientation ................4-1 Using the LOI LOI Controls ..................
  • Page 6 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SECTION 6 Overview ....................6-1 Field Communicator Field Communicator Connections ............6-1 Off-Line and On-Line Operations ............6-4 Hart Menu Tree ..................6-5 Fieldbus Menu Tree ................6-9 SECTION 7 Foundation Fieldbus Technology ............7-1 Foundation Fieldbus Overview ..................
  • Page 7 Fault Isolation ..................8-3 Alarm Relay Events................8-11 SECTION 9 Overview ....................9-1 OCX 8800 Removal and Installation ............. 9-1 Maintenance and Service OCX with Integral Electronics ............9-2 OCX with Remote Electronics ............9-5 Repair Sensor Housing ............... 9-10 Sensor Housing Disassembly ............
  • Page 8 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 APPENDIX A Safety Instructions ........A-2 Safety Data Safety Data Sheet for Ceramic Fiber Products .

  • Page 9: Essential Instructions

    The following instructions MUST be adhered to and integrated into your safety program when installing, using, and maintaining Emerson’s Rosemount products. Failure to follow the proper instructions may cause any one of the following situations to occur: Loss of life;...
  • Page 10 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017...

  • Page 11: Section I

    Symbols ........page iv PREFACE The purpose of this manual is to provide a comprehensive understanding of the OCX 8800 components, functions, installation, and maintenance. We recommend that you thoroughly familiarize yourself with the Introduction and Installation sections before installing your transmitter.

  • Page 12: Symbols

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SYMBOLS NOTE TO USERS The number in the lower right corner of each illustration in this publication is a manual illustration number. It is not a part number, and is not related to the illustration in any technical manner.

  • Page 13: Component Checklist

    Specifications ........page 1-12 Product Matrix - OCX 8800 ......page 1-14...
  • Page 14 Figure 1-1. Typical System Package 1. Instruction Manual 2. Field Communicator Package (optional) 3. Adapter Plate with Mounting Hardware and Gasket 4. Reference Air and Calibration Set (optional) 5. Blowback Hardware (optional) 6. OCX 8800 with Remote Electronics 7. OCX 8800 with Integral Electronics...

  • Page 15: System Overview

    SYSTEM OVERVIEW Scope This Instruction Manual supplies details needed to install, startup, operate, and maintain the OCX 8800. Signal conditioning electronics outputs a digital signal representing oxygen (O ) and combustibles (COe) values. This information, plus additional details, can be accessed with the 375 Field communicator or Emerson AMS software.
  • Page 16 IM-106-880, Rev 2.1 OCX 8800 April 2017 The OCX 8800 measures net oxygen concentration in the presence of all the products of combustion, including water vapor. Therefore, it may be considered an analysis on a "wet" basis. In comparison with older methods, such as the portable apparatus, which provides an analysis on a "dry"...

  • Page 17: Im-106-880, Rev

    Model 375 Field Communicator - The handheld field communicator requires Device Description (DD) software specific to the OCX 8800. The DD software will be supplied with many Model 375 units, but can also be programmed into existing units at most Emerson service offices. Refer to Section 6, Field Communicator, for additional information.
  • Page 18 April 2017 System Operation Figure 1-2 shows the relationship between the components of the OCX 8800. The sensors and the electronics are contained in separate housings. The sensor housing and probe mounts to a duct or process wall so that the probe protrudes into the flue gas stream.
  • Page 19 It is important that printed circuit boards and integrated circuits are handled only when adequate antistatic precautions have been taken to prevent possible equipment damage. The OCX 8800 is designed for industrial application. Treat each component of the system with care to avoid physical damage. The probe may contain components made from ceramics, which are susceptible to shock when mishandled.
  • Page 20 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 1-3. Communication Connections and AMS Application - OCX 8800 with Integral Electronics Model 375 OCX 8800 with Field Integral Electronics Communicator Signal Output (Twisted Pairs) Customer’s Laptop with AMS Termination in...
  • Page 21 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 1-5. Typical System Installation - Integral Electronics Adapter OCX 8800 with Gases Plate INTEGRAL ELECTRONICS Duct Stack Signal Outputs (Twisted Pairs) Test Gas Flow Meter Line Voltage Instrument Air Pressure...
  • Page 22 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 1-7. Optional Sample Tube Support 1-10...
  • Page 23 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 1-8. Optional InSitu Filters 1/4-18 NPT (33) (186) InSitu Stainless Steel or Hastolloy Filter 1/4-18 NPT (50) (46) (102) InSitu High Surface Area Stainless Steel Filter Figure 1-9. Optional Panel Mounted Blowback and Calibration/Reference Air Set (19” Rack or Wall Mount) 5.00...
  • Page 24 Local Operator -40° to 158°F (-40° to 70°C), ambient Interface [At temperatures above 158°F (70°C) inside instrument housing, the infrared keypad will cease to function, but the OCX 8800 will continue to operate properly.] Nominal and Approximate Shipping Weights 18 in. (457 mm)
  • Page 25 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Specifications ), regulated to ≥ 60 psi Blowback Air (optional) Clean, dry, instrument-quality air (20.95% O (413 kPa) or greater and ambient temperature of ≥ 0 °F (-18 °C) Sensors Housing...
  • Page 26 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 1-1. Product Matrix - OCX 8800 OCX88A /Combustibles Transmitter Code Probe Length and Material No Probe or Exhaust Tube 18 in. (457 mm) 316 SST up to 1300°F (704°C) 3 ft (0.91 m) 316 SST up to 1300°F (704°C)
  • Page 27 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Cont’d Code In-Situ Filter None Stainless Steel High Surface Area Stainless Steel Hastelloy Code Accessories None Cal. Gas/Flow Rotometers & Ref. Gas Set Cal. Gas/Flow Rotometers & Ref. Gas Set w/ Blowback Cal.
  • Page 28 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 1-2. Accessories PART NUMBER DESCRIPTION 1A99119H01 Oxygen test gas bottle; 0.4% O , balance N 1A99119H02 Oxygen test gas bottle; 8.0% O , balance N 1A 99119H07 CO test gas bottle; 1000 ppm CO, balance air...

  • Page 29: Mechanical Installation

    Selecting Location INSTALLATION 1. The location of the OCX 8800 in the stack or flue is most important for maximum accuracy in the oxygen analyzing process. The probe must be positioned so the gas it measures is representative of the process.
  • Page 30 Whenever a positive stack pressure exists at the installation site, be sure to connect all pneumatic lines prior to installing the OCX 8800 in the stack or ductwork. Failure to connect the pneumatic lines can allow the flow of contaminants into the OCX 8800 ports.
  • Page 31 April 2017 Enclosures The OCX 8800 enclosures are designed to meet ingress conditions of Type 4X and IP66 (when reference air vents are routed to a dry area). Each enclosure cover is threaded to its base and sealed with an o-ring that isolates the threads from external contaminants.
  • Page 32 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-2. Installation, OCX 8800 with Remote Electronics...
  • Page 33 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-3. Adapter Plate Installation...
  • Page 34 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-4. Wall or Pipe Mounting of Electronics Housing...
  • Page 35 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-5. Installation with Drip Loops Duct Wall Conduit Drip Loops Conduit Drip Loop Conduit Drip Loop Duct Wall...
  • Page 36 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 ELECTRICAL All wiring must conform to local and national codes. For reference, factory wired solenoid power connections are shown in Figure 2-6. INSTALLATION Disconnect and lock out power before connecting the unit to the power supply. Failure to lock out power could result in serious injury or death.
  • Page 37 April 2017 Connect Line Voltage The OCX 8800 operates on 100 to 240 VAC line voltage at 50 to 60 Hz. The power supply requires no setup. Connect the line (L wire) to the L terminal, and the neutral (N wire) to the N terminal on the AC power input terminal block in the electronics housing.
  • Page 38 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-6. Line Voltage, Earth, and 4-20 mA Connections Alarm Output Relay Terminal Block OUNDATION Signal Output Fieldbus HART Terminal Block AOUT2+ Not used COe Signal AOUT2 - O Signal/ AOUT1 -...
  • Page 39 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-7. Electrical Connections Between Remote Electronics and Sensor Housing 2HTR CO 1HTR CO 2HTR O 1HTR O 2HTR SB ground 1HTR SB screw Heater Power Connector (J3) T/C CO+ T/C CO-...
  • Page 40 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-8. Customer-Furnished Interconnect Wiring or Cables SIGNAL WIRING OR CABLE PROBE END NOTE: For RFI/CE compliance, the connector 12.5 ±0.10 must provide 360 degrees of electrical contact to the cable shield.

  • Page 41: Pneumatic Installation

    Failure to use proper gases will result in erroneous readings. 4. One CO gas and two O gases are used to calibrate the OCX 8800: CO - 1000 ppm or up to 4%, Balance air low gas - 0.4% , Balance N...
  • Page 42 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-9. Pneumatic Installation, OCX with Reference Sensor Air Set without Autocalibration Housing CAL Gas In CAL Gas Reference Air In Eductor Flow Meter 7 scfh, 20-30 psig Air In Recommended...
  • Page 43 Reference Air Set and Solenoids Option without COe Zero Function When the reference air set and test gas solenoids are included with your OCX 8800, use the following procedure to install the pneumatic system components. 1. Install the reference air set according to the instructions in Reference Air Set Option, steps 1 through 3.
  • Page 44 CAL GAS inlet fitting on the sensor housing. Reference Air Set and Solenoids Option with COe Zero Function Figure 2-11 shows the piping arrangement for the OCX 8800 with autocalibration when the COe Zero Function is used. The arrangement is similar to Figure 2-10 except instrument air is used as the Hi O test gas.
  • Page 45 Reference Air Set, Solenoids, and Blowback Option without COe Zero Function Installing an OCX 8800 with the blowback option requires the addition of air operated blowback valve, regulator and gage, and check valve. Figure 2-12 shows the piping arrangement for the OCX 8800 with the blowback and autocalibration options.
  • Page 46 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-12. Pneumatic Installation, OCX with Reference Air Set, Solenoids, Blowback and Autocalibration, without COe Zero Function 2-18...
  • Page 47 Reference Air Set, Solenoids, and Blowback Option with COe Zero Function Figure 2-13 shows the piping arrangement for the OCX 8800 with the blowback and autocalibration options when COe Zero Function is used. The arrangement is similar to Figure 2-12 except instrument air is used as the Hi test gas.
  • Page 48 Pressure regulator with 1/8” inlet port is factory set for 35 psig. Regulator with 1/4” inlet port is Check Valve factory set for 55 psig. If regulators are not installed in correct locations, the OCX 8800 will not work. Sensor Housing...
  • Page 49 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Reference Air Set and Blowback Panels An optional blowback panel is shown in Figure 1-9. Piping arrangement for blowback panel without autocalibration without COe Zero Function is shown in Figure 2-15. Piping arangement for blowback panel with autocalibration without COe Zero Function is shown in Figure 2-16.
  • Page 50 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-16. Pneumatic Installation, Blowback Panel with Autocalibration without COe Zero Function Check Valve Sensor Housing Eductor Air In CAL Gas In Reference Air In Instrument Air Dilution Air In CAL Gas...
  • Page 51 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 2-17. Pneumatic Installation, Blowback Panel with Autocalibration with COe Zero Function 2-23...

  • Page 52: Initial Startup

    Damage can result from having a cold OCX 8800 exposed to the process gases. If ducts will be washed down during outages, make sure to power down the OCX 8800 units and remove them from the wash area.

  • Page 53: Verify Installation

    COe PURGE / ZERO FEATURE ..... page 3-10 OCX 8800 Reset Procedure ......page 3-12 Install all protective equipment covers and safety ground leads after installation.
  • Page 54 All switches are accessible through holes in the electronics box. Remove power from the OCX 8800 before changing defaults. If defaults are changed under power, damage to the electronics may occur. Figure 3-1. OCX 8800 Defaults - HART Electronics...
  • Page 55 This switch is accessible through holes in the electronics box. Remove power from the OCX 8800 before changing defaults. If defaults are changed under power, damage to the electronics may occur. Verify that the following switch settings are correct for your OCX 8800...

  • Page 56: Initial Power Up

    Fieldbus Electronics INITIAL POWER UP Allow adequate time (approximately 60 minutes) for the heaters to begin operation and for the OCX 8800 to reach normal operating temperature on power up. Normal operating temperature for the O cell is 736°C. Normal operating temperature for the combustibles cell is 300°C.

  • Page 57: Calibration Solenoids

    5. Select the down arrow several times to display COe Test Gas. Enter the CO concentration (ppm) used for COe test gas. CALIBRATION The OCX 8800 can be provided with optional calibration solenoids for the purpose of performing autocalibration. The solenoids are controlled by the SOLENOIDS OCX 8800 software and automatically switch in the proper calibration gas during the calibration cycle.

  • Page 58: Blowback Feature

    The blowback feature requires the optional blowback hardware to be properly installed external to the OCX 8800. See Section 2, Pneumatic Installation, for details. An OCX 8800 shipped from the factory must be configured before blowback can be implemented.

  • Page 59: Calibration Verify Feature

    This function uses the same gas flow and purge times from the basic calibration setup. The calibration verify feature is only valid if the OCX 8800 is supplied with calibration solenoids and the solenoids have been activated.
  • Page 60 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Purge Gas - Initiates a delay for the specified purge time before oxygen/combustibles readings are considered valid. NOTE: A Purge will automatically follow a gas flow. Performing a Calibration Verify with the Field Communicator - Fieldbus 1.

  • Page 61: Calibration Tolerance Feature

    TOLERANCE FEATURE test gas value. The tolerance is preset within the OCX 8800 software and is not user adjustable. The tolerance is different between the oxygen and combustibles test gases. For oxygen, the calibration will fail if the measured value differs by more than ±10% of the configured value.

  • Page 62: Coe Purge / Zero Feature

    When the COe zero feature is used, special pneumatic connections are required. See Section 2, Pneumatic Installation, for details. The COe zero feature is only valid if the OCX 8800 is supplied with calibration solenoids and the solenoids have been activated.
  • Page 63 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Zero Flow - Length of time COe zero gas flows. Range is 120 to 600 seconds. Default is 120 seconds. Zero Purge - Length of time after COe zero is complete before oxygen/combustibles readings are considered valid.

  • Page 64: Ocx 8800 Reset Procedure

    Valid choices are Yes and No. A Yes choice will cause the COe calibration constant to update. OCX 8800 RESET Whenever you correct an equipment alarm or fault condition, the OCX 8800 will either revert to normal operation or continue to indicate an alarm status PROCEDURE condition.

  • Page 65: Overview

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Section 4 Using the LOI Overview ........page 4-1 Display Orientation .

  • Page 66: Loi Controls

    There is no need to open the instrument in bad weather or in hazardous areas in order to access the electronics. It should be noted that the OCX 8800 also uses HART or F OUNDATION Fieldbus communications, permitting access to all instrument functionality...

  • Page 67: Loi Status Codes

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Lockout The LOI has a lockout feature that prevents nuisance actuation by someone brushing against the glass window, raindrops, dirt, insects, etc. This lockout mode is automatically established when no buttons are pushed for 30 seconds (default).

  • Page 68: Loi Menu Tree

    IM-106-880, Rev 2.1 OCX 8800 April 2017 LOI MENU TREE This section consists of a menu tree for the LOI on the OCX 8800, Figure 4-4. This menu is specific to the OCX 8800. First Column Submenus From the operating display (O % and COe ppm), the left-pointing Enter key is the only option to move into the first column submenus of the LOI menu tree.
  • Page 69 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 4-4. LOI Menu Tree (Sheet 2 of 4) (CONTINUED FROM Apply Lo O2 Gas Abort Cal SHEET 1) Hit E when ready Flow O2 Lo _____s ______% _____mV Start Cal...
  • Page 70 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 4-4. LOI Menu Tree (Sheet 3 of 4)
  • Page 71 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 4-4. LOI Menu Tree (Sheet 4 of 4) (CONTINUED FROM SHEET 3) O2 Slope ___ mV/D O2 Constant ___ mV O2 T90 Time ___ seconds Parameters SYSTEM COe Slope ___ ppm/ohm...
  • Page 72 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017...

  • Page 73: Overview

    During a calibration, two calibration gases with known O concentrations and one calibration gas with a known COe concentration are applied to the OCX 8800. Slope and constant values are calculated to determine if the OCX 8800 is correctly measuring net concentrations of O and combustibles in the industrial process.
  • Page 74 Use the following procedure to specify a time interval (in hours) at which the OCX 8800 will automatically calibrate. 1. From the DEVICE SETUP screen, select DETAILED SETUP. 2. From the DETAILED SETUP screen, select CAL SETUP, then select O2 CAL PARAMS or COE CAL PARAMS.

  • Page 75: Operator - Initiated Autocalibration

    Use the following procedure to specify a time interval (in hours) at which the OCX 8800 will automatically calibrate. 1. From the Transducer screen select O2 Cal or COe Cal. 2. From the O2 Cal or COe Cal screen, select O2 Cal Setup or COe Setup.

  • Page 76: Manual Calibration

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Autocalibration using the Field Communicator - Fieldbus To initiate an automatic calibration using 375 Field Communicator, perform the following steps. Refer to Section 6, Field Communicator, for the FOUNDATION Fieldbus menu tree.
  • Page 77 5. From the CAL METHODS menu, select the type of calibration desired: O2 Calibration 6. In the first Calibration screen, a Loop should be removed from automatic control warning appears. Remove the OCX 8800 from any automatic control loops to avoid a potentially dangerous operating condition and press OK.
  • Page 78 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 10. Select START CAL/STEP CAL to start applying the O Low Gas. The time to apply the test gas is specified by the Gas Time. 11. The Calibration Status should be automatically changed to FlowO2Low and then ReadO2Low for a period of time.
  • Page 79 5. From the CAL METHODS menu, select the type of calibration desired: COe Calibration, or 6. In the first Calibration screen, a loop should be removed from automatic control warning appears. Remove the OCX 8800 from any automatic control loops to avoid a potantially dangerous operating condition and press OK.
  • Page 80 5. From the CAL METHODS menu, select the type of calibration desired: O2 and COe Calibration. 6. In the first Calibration screen, a Loop should be removed from automatic control warning appears. Remove the OCX 8800 from any automatic control loops to avoid a potentially dangerous operating condition and press OK.
  • Page 81 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 8. From the SELECT ACTION screen, select START CAL/STEP CAL to continue calibration, select ABORT CAL to abort calibration or EXIT CAL to exit calibration method. Select one from the list and press ENTER.
  • Page 82 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Manual O /COe Calibration using the Field Communicator - Fieldbus To perform a manual O /COe calibration using the 375 Field Communicator, use the following procedure. If necessary, refer to Section 6, Field Communicator, for the Fieldbus menu tree.
  • Page 83 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 9. When the calibration status is at the Apply O2 Low Gas/ Apply Comb Low Gas step, switch on O2 Low Gas/COe Low Gas. Verify the O2 concentration measured matches the O2 Low Gas parameter in the setup.

  • Page 84: D/A Trim Procedures - Loi

    D/A trim procedure at the LOI. Refer to the LOI menu tree in Figure 4-4. To avoid a potentially dangerous operating condition, the OCX 8800 must be removed from the automatic combustion control loop before you start the D/A trim procedure.
  • Page 85 Use the following procedure to perform the COe D/A trim procedure at the LOI. Refer to the LOI menu tree in Figure 4-4. To avoid a potentially dangerous operating condition, the OCX 8800 must be removed from the automatic combustion control loop before you start the D/A trim procedure.

  • Page 86: D/A Trim Procedures - Hart

    2. Press the right arrow key to start the procedure. (If you wish to exit D/A Trim with no changes, select ABORT.) 3. The Field Communicator displays WARNING: Loop should be removed from automatic control. Remove the OCX 8800 from any automatic control loops to avoid a potentially dangerous operating condition and press OK.
  • Page 87 2. Press the right arrow key to start the procedure. (If you wish to exit D/A Trim with no changes, select ABORT.) 3. The Field Communicator displays WARNING: Loop should be removed from automatic control. Remove the OCX 8800 from any automatic control loops to avoid a potentially dangerous operating condition and press OK.
  • Page 88 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 5-16...

  • Page 89: Overview

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Section 6 Field Communicator Overview ........page 6-1 Field Communicator Connections .
  • Page 90 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-1. 375 Communicator Connections - HART 4-20 mA Terminal Block in Electronics Housing  250 4-20 mA Signal Line A OUT 1 + A OUT 1 - Analog Output Device...
  • Page 91 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-2. 375 Communicator Conections - Fieldbus OCX 8800 Electronics OUT1 - Fieldbus Signal OUT1+ NOTE: Devices shown are not to scale. Fieldbus Digital Signal Fieldbus Digital Signal Fieldbus Computer Terminal (PC)

  • Page 92: Off-Line And On-Line Operations

    OPERATIONS Off-line operations are those in which the communicator is not connected to the OCX 8800. Off-line operations can include interfacing the Field Communi- cator with a PC (refer to applicable Field Communicator documentation regarding Model 375/PC applications). In the on-line mode the communicator is connected to a fieldbus terminal block.

  • Page 93: Hart Menu Tree

    OCX 8800 April 2017 HART MENU TREE This section provides a menu tree for the Field Communicator. This menu is specific to the OCX 8800 applications. Figure 6-3. HART Menu Tree (Sheet 1 of 4) O2 Temp Process Variables Sensor Values...
  • Page 94 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-4. HART Menu Tree (Sheet 2 of 4) (CONTINUED FROM SHEET 1 ) Diag/Service Status Operate Mode Status Group 1 Status Group 2 Status Group 3 Status Group 4 Status Group 5...
  • Page 95 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-5. HART Menu Tree (Sheet 3 of 4) (CONTINUED FROM (CONTINUED FROM SHEET 2 ) SHEET 2 ) Diag/Service Heater PID O2 PID O2 Prop (continued) O2 Int O2 Duty Cycle...
  • Page 96 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-6. HART Menu Tree (Sheet 4 of 4) (CONTINUED FROM SHEET 3 ) Detailed Setup Device Params O2 Slope (continued) O2 Const O2 T90 COe Slope COe Const COe T90...

  • Page 97: Fieldbus Menu Tree

    FIELDBUS MENU TREE This section consists of a menu for the Field Communicator. This menu is specific for the OCX 8800 Applications. Refer to the Fieldbus Parameter Descriptions for the applicable range, units, and description for the fieldbus menu parameters.
  • Page 98 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-8. Fieldbus Menu Tree (Sheet 2 of 3) Block Mode: Actual Block Mode: Target Process Block Mode: Permitted Strategy Alert Key Characteristics Tag Description O2 Primary Value O2 Secondary Value...
  • Page 99 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 6-9. Fieldbus Menu Tree (Sheet 3 of 3 continued from Raw Inputs Sheet 2 Cal Status O2 Primary Value O2 Cal COe Primary Value Cal State Cal Time Remain Calibration Results...
  • Page 100 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 6-12...

  • Page 101: Foundation Fieldbus Technology

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Section 7 Foundation Fieldbus Foundation Fieldbus Technology ....page 7-1 Resource Block ........page 7-6 Transducer Block .

  • Page 102: Introduction

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 NOTE: The following descriptions and definitions are not intended as a training guide for F Fieldbus technology but are presented as an overview for OUNDATION those not familiar with Fieldbus and to define device specific attributes for the Fieldbus system engineer.
  • Page 103 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Once the inputs are snapped, the algorithm operates on them, generating outputs as itprogresses. Algorithm executions are controlled through the setting of containedparameters. Contained parameters are internal to function blocks and do not appear asnormal input and output parameters. However, they may be accessed and modified remtely, as specified by the fundtion block.

  • Page 104: Instrument-Specific Function Blocks

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 such as operator consoles and computers, do not have to be programmed specifically for each type of device on the bus. Instead their displays and interactions with devices are driven from the device descriptions.
  • Page 105 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-2. Single Link Fieldbus Network Fieldbus Link (Link Active Scheduler) Link Master Basic Devices and/or LinkMaster Devices Link Active Scheduler (LAS) All links have one and only one Link Active Scheduler (LAS). The LAS operates as the us arbiter for the link.

  • Page 106: Ocx Function Blocks

    1) Failed, 2) Maintenance, and 3) Advisory. Each PWA can be configured for one or more of the three alarm groups. The PWA alarms and their severity level default settings are listed in Table 7-2. Table 7-2. OCX 8800 PWA PlantWeb Alert Severity Level Default...

  • Page 107: Mapping Of Pwa

    IM-106-880, Rev 2.1 OCX 8800 April 2017 Mapping of PWA Description of the PlantWeb Alerts that are supported by the OCX 8800 Fieldbus Output Board are listed in Table 7-3. Figure 7-3. Description of PlantWeb Alerts What does the Recommended...
  • Page 108 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 What does the Recommended Alerts Alarms alert indicate? Action Description Sensor Heater Transducer Block T/C Heater This alert Check heater circuit Mechanical or thermal stress may eventually Malfunction Alerts indicates that no for lose or broken cause the sensor heater to fail.
  • Page 109 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 What does the Recommended Alerts Alarms alert indicate? Action Description NV Memory Transducer The non-volatile At startup, wait 2 This alarm will generally occur during a startup Failure Block: Device parameter minutes with power condition.

  • Page 110: Pwa Simulate

    Simulating” means that these parameters get write permission and the host’s written value is the only one which is used for parameter’s read back value. The data which comes from the OCX 8800 is not used in this case. Fieldbus/PWA Simulate Fieldbus simulation and PWA simulation can be enabled and disabled using the DD method.
  • Page 111 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 1. Run "Transmitter Options" method. 2. In the "Transmitter Options" menu, select either "Simulate Switch" or "PWA Simulate". 3. Select "Enable" to enable the simulation feature or "Disable" to disable the simulation feature.

  • Page 112: Configure Simulation With The Model 375 Field Communicator

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Configure Simulation Use the following procedure to configure PWA simulation using the Model 375 Field Communicator. with the Model 375 Field Communicator 1. Run "Transmitter Options" method in the Resource Block (Resource | Methods).

  • Page 113: Transducer Block

    Set whenever XD_ERROR is non-zero. TRANSDUCER BLOCK The Transducer Block was designed to provide the information necessary to interface OCX 8800 to the Fieldbus. Transducer Block Table 7-3 gives a description of all parameters, or gives the location of the Fieldbus specifications the description can be found.
  • Page 114 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Parameter Mnemonic Valid Range Units Description COMB See FF-903 section 3.3. _SENSOR_CAL_WHO COMB_AUTOCAL_ 0-9999 Hours The time between automatic calibrations of the combustibles sensor. INTERVAL COMB_CAL_POINT 0-55000 The value of the combustibles test gas.
  • Page 115 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Parameter Mnemonic Valid Range Units Description COZERO_PURGE_TIME 60-180 Seconds The duration of the Combustibles sensor zero purge. COZERO_STATE 0, 1, 2 The current step of the Combustibles sensor zero cycle. (0=Idle, 1=Flowing, 2=Purging) 0: Off –...
  • Page 116 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Parameter Mnemonic Valid Range Units Description O2_SETPOINT °C heater temperature set point. O2_SLOPE 34.5-57.5 mV/Decade The O calibration slope. O2_T90 0-300 Seconds The amount of time that the O2 process variable will take to reach 90% of the actual process variable.

  • Page 117: Transducer Block Enumerations

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Transducer Block Calibration States Enumerations During a running calibration procedure, the states below reflect the current step that the calibration is running in. Refer to Table 7-4. Table 7-4. Calibration State-...
  • Page 118 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Blowback States Table 7-6. Blowback State Enumerations BLOWBACK_STATE Description Idle Blow Purge Alarm Events Table 7-7. Alarm Event Enumerations ALARM_RELAY_EVENT Description In Calibration O2 Cell Temp Error O2 Heater Open O2 Cell Bad...
  • Page 119 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Sensor Housing Type Table 7-9. Sensor Housing Enumerations SENSOR_HOUSING_TYPE Description TYPE 1 TYPE 2 TYPE 3 Cal Results Table 7-10. Cal Results Bit Enumerations CAL_RESULTS Description O2 Slope Error O2 Constant Error...
  • Page 120 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 COe Zero States Table 7-13. COe Zero State Enumerations COZERO_STATE Description Idle Flowing Purging COe Out Tracks Table 7-14. COe Out Tracks Enumerations COZERO_OUTTRAK Description None Both Detailed Status Table 7-15. Detailed Status...

  • Page 121: Transducer Block Channel Assignments For Ai Blocks

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Alarm Value of XD_ERROR Number Description (see FF-903) O2 Calibration Failed Calibration Error Combustible Calibration Failed Calibration Error Combustible Calibration Warning Calibration Error O2 Calibration Recommended Calibration Error EEPROM Corrupt Data Integrity Error...

  • Page 122: Transducer Block Channel Status

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Transducer Block The status of channel 1 to 4 are affected by the state of unit alarm. In all cases, the channel will read what it believes the correct sensor values.

  • Page 123: Analog Input (Ai) Function Block

    ANALOG INPUT (AI) FUNCTION BLOCK Introduction The OCX 8800 has four transducer block Input/Output channels (Table 7-20) for the AI function blocks. The status of channel values are defined in Table 7-22. The Analog Input (AI) function block (Figure 7-5) processes field device measurements and makes them available to other function blocks.
  • Page 124 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 7-19. Definitions of Analog Input Function Block System Parameters Index Parameter Number Units Description ACK_OPTION None Used to set auto acknowledgment of alarms. ALARM_HYS Percent The amount the alarm value must return within the alarm limit before the as- sociated active alarm condition clears.

  • Page 125: Simulation

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index Parameter Number Units Description MODE_BLK None The actual, target, permitted, and normal modes of the block. Target: The mode to “go to” Actual: The mode the “block is currently in”...

  • Page 126: Filtering

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-6. Analog Input Function Block Schematic Analog Measurement ALARM_TYPE Access HI_HI_LIM Analog HI_LIM Meas. Alarm LO_LO_LIM Detection LO_LIM OUT_D CHANN ALARM_HYS LOW_CUT Status Cutoff Filter Convert Calc. SIMULATE L_TYPE PV_FTIME...
  • Page 127 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 100 x (Channel Value – EU*@0%) FIELD_VAL= (EU*@100% – EU*@0%) * XD_SCALE values You can choose from direct, indirect, or indirect square root signal conversion with the L_TYPE parameter. Direct Direct signal conversion allows the signal to pass through the accessed channel input value (or the simulated value when simulation is enabled).

  • Page 128: Modes

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 7-20. BLOCK_ERR Conditions Condition Number Condition Name and Description Other Block Configuration Error: the selected channel carries a measurement that is incompatible with the engineering units selected in XD_SCALE, the L_TYPE parameter is not configured, or CHANNEL = zero.

  • Page 129: Status Handling

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Alarms are grouped into five levels of priority: Priority Number Priority Description The priority of an alarm condition changes to 0 after the condition that caused the alarm is corrected. An alarm condition with a priority of 1 is recognized by the system, but is not reported to the operator.

  • Page 130: Advanced Features

    OCX 8800 April 2017 Advanced Features The AI function block provided with Fisher-Rosemount fieldbus devices provides added capability through the addition of the following parameters: ALARM_TYPE – Allows one or more of the process alarm conditions detected by the AI function block to be used in setting its OUT_D parameter.
  • Page 131 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-8. Analog Input Function Block Configuration for Temperature a Typical Temperature Measurement Transmitter OUT_D To Another AI Function Block Function Block Pressure Transmitter used to Measure Level in an Open Tank...
  • Page 132 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-10. Function Block Diagram for a Pressure Analog Transmitter used in Level Measurement Measurement OUT_D Function Block BKCAL_IN BKCAL_OUT Function Function Block CAS_IN Block CAS_IN Situation #2 The transmitter in situation #1 is installed below the tank in a position where the liquid column in the impulse line, when the tank is empty, is equivalent to 2.0 psi (Figure 7-11).
  • Page 133 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Differential Pressure Transmitter to Measure Flow Situation The liquid flow in a line is to be measured using the differential pressure across an orifice plate in the line, and the flow measurement will be used in a flow control loop.

  • Page 134: Troubleshooting

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Troubleshooting Refer to Table 7-25 to troubleshoot any problems that you encounter. Table 7-25. Troubleshooting Symptom Possible Cause Corrective Action Mode will not 1. Target mode not set 1. Set target mode to something other than OOS.

  • Page 135: Proportional/Integral/Derivative (Pid) Function Block

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 PROPORTIONAL/ INTEGRAL/DERIVATIVE (PID) FUNCTION BLOCK BKCAL_IN BKCAL_OUT CAS_IN FF_VAL TRK_IN_D TRK_VAL BKCAL_IN = The analog input value and status from another TRK_IN_D = Initiates the external tracking function. block’s BKCAL_OUT output that is used for...
  • Page 136 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 7-26. PID Function Block System Parameters Index Parameter Number Units Description ACK_OPTION None Used to set auto acknowledgment of alarms. ALARM_HYS Percent The amount the alarm value must return to within the alarm limit before the associated active alarm condition clears.
  • Page 137 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index Parameter Number Units Description FF_GAIN None The feedforward gain value. FF_VAL is multiplied by FF_GAIN before it is added to the calculated control output. FF_SCALE None The high and low scale values, engineering units code, and number of digits to the right of the decimal point associated with the feedforward value (FF_VAL).
  • Page 138 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index Parameter Number Units Description ROUT_OUT EU of OUT_SCALE Block output that is provided to a supervisory host for a back calculation to al- low action to be taken under limiting conditions or mode change. Used when mode is RCAS.

  • Page 139: Setpoint Selection And Limiting

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-13. PID Function Block Schematic FF_GAIN FF_SCALE Feedforward FF_VAL Calculation BKCAL_IN MODE TRK_IN_D BKCAL_OUT RCAS_OUT ROUT_OUT ROUT_IN RCAS_IN Setpoint Limiting Filtering Equation Output CAS_IN Limiting Operator Setpoint SP_HI_LIM GAIN SP_LO_LIM...

  • Page 140: Filtering

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-14. PID Function Block Setpoint Selection Operator Setpoint SP_RATE_UP SP_HI_LIM SP_LO_LIM SP_RATE_DN Auto Auto Setpoint Rate Limiting Limiting Filtering The filtering feature changes the response time of the device to smooth variations in output readings caused by rapid changes in input.

  • Page 141: Pid Equation Structures

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 You can select the value that a master controller uses for tracking by configuring the Use PV for BKCAL_OUT control option. The BKCAL_OUT value tracks the PV value. BKCAL_IN on a master controller connected to...

  • Page 142: Modes

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 7-27. BLOCK _ERR Conditions Condition Number Condition Name and Description Other Block Configuration Error: The BY_PASS parameter is not configured and is set to 0, the SP_HI_LIM is less than the SP_LO_LIM, or the OUT_HI_LIM is less than the OUT_LO_LIM.

  • Page 143: Alarm Detection

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Alarm Detection A block alarm will be generated whenever the BLOCK_ERR has an error bit set. The types of block error for the AI block are defined above. Process alarm detection is based on the PV value. You can configure the alarm limits of the following standard alarms: •...
  • Page 144 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Application Information The PID function block is a powerful, flexible control algorithm that is designed to work in a variety of control strategies. The PID block is configured differently for different applications. The following examples describe the use...

  • Page 145: Application Examples

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 • Local Override is a non-target mode that instructs the block to revert to Local Override when the tracking or fail-safe control options are activated. • Out of Service mode disables the block for maintenance.
  • Page 146 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-16. PID Function Block Diagram for Steam Heater Control Example Outlet Temperature Input BKCAL_IN BKCAL_OUT Function Function Function CAS_IN Block Block Block TT101 TC101 TCV101 Feedforward Control Situation In the previous example, control problems can arise because of a time delay caused by thermal inertia between the two flow streams (TT100 and TT101).
  • Page 147 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-18. PID Function Block Diagram for Feedfoward Control Outlet Temperature Input BKCAL_IN BKCAL_OUT OUTOUT CAS_IN Function Function Function Block FF_VAL Block Block TT101 TC101 TCV101 Inlet Temperature Input Function Block...
  • Page 148 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Solution If the flow is controlled, steam pressure variations will be compensated before they significantly affect the heat exchanger temperature. The output from the master temperature loop is used as the setpoint for the slave steam flow loop.
  • Page 149 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 If the instrument connected to the AI block fails, you can place the AI block in Manual mode and set the output to some nominal value for use in the Integrator function block. In this case, IN at the slave PID block is constant and prevents the integral term from increasing or decreasing.

  • Page 150: Troubleshooting

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Troubleshooting Refer to Table 7-28 to troubleshoot any problems that you encounter. Table 7-28. Troubleshooting Symptom Possible Causes Corrective Action Mode will not 1. Target mode not set 1. Set target mode to something other than OOS.

  • Page 151: Arithmetic (Arthm) Function Block

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Symptom Possible Causes Corrective Action Mode sheds 1. Remote Cascade Value 1. Host system is not writing RCAS_IN with a quality and status of “good cascade” within shed from RCAS to AUTO time (see 2 below).
  • Page 152 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 7-29. Arithmetic (ARTHM) Block Index Parameter Units Description Number The identification number of the plant unit. This information may be used in thehost ALERT_KEY None fro sorting alarms, etc. ARITH_TYPE...

  • Page 153: Block Errors

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index Parameter Units Description Number PV_SCALE None The high and low scale values, engineering units code, and number of digits to the right of the decimal point associated with OUT. RANGE_HI None The high limit for IN.

  • Page 154: Modes

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Condition Condition Name and Description Number Memory Failure Lost Static Data Lost NV Data Readback Check Failed Device Needs Maintenance Now Power Up: The device was just powered-up. Out of Service: The actual mode is out of service.

  • Page 155: Status Handling

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Compensation Input Calculations For each of the inputs IN_1, IN_3, IN_4 there is a gain and bias. The compensation terms (t) are calculated as follows: • When IN_(k) is usable: t(k) = GAIN_IN(k) * (BIAS_IN(k) + IN_(k)) •...

  • Page 156: Advanced Topics

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 This allows a ratio to be set up that increases the level indication at block output for an increase in the tank temperature relative to ambient temperature. Figure 7-25. Arithmetric Function Block Diagram...

  • Page 157: Troubleshooting

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Troubleshooting Refer to Table 7-32 to troubleshoot any problems that you encounter. Table 7-32. Troubleshooting Symptom Possible Causes Corrective Action Model will not leave OOS Target model not set Set target mode to something other than OOS.
  • Page 158 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Table 7-33. Input Selector Function Block System Parameters Index Number Units Description ALERT_KEY None The identification number of the plant unit. This information may be used in the host for sorting alarms, etc.
  • Page 159 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 7-27. Input Selector Function Block Schematic IN_1 Selection IN_2 Algorithm IN_3 IN_4 DISABLE_1 DISABLE_2 SELECTOR DISABLE_3 DISABLE_4 SEL_TYPE MIN_GOOD OP_SELECT Block Errors Table 7-34 lists the conditions reported in the BLOCK_ERR parameter.

  • Page 160: Modes

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Alarms are grouped into five levels of priority, Table 7-35. Table 7-35. Alarm Priorities Priority Priority Description Number The priority of an alarm condition changes to 0 after the condition that caused the alarm is corrected.

  • Page 161: Input Selector (Isel) Function Block

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 The instrument must be in Manual or Out of Service mode to set the status option. Application Information The ISEL function block can be used to select the maximum temperature input from four inputs and send it to a PID function block to control a process water chiller (Table 7-28) or it can use the block to calculate the average temperature of the four inputs (Table 7-29).

  • Page 162: Troubleshooting

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Troubleshooting Table 7-37. Troubleshooting ISEL Block Symptom Possible Causes Corrective Action Mode w= ill not leave 1. Target mode not set 1. Set target mode to something other than OOS. 2. BLOCK_ERR will show the configuration error bit set. SELECT_TYPE must be 2.
  • Page 163 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 • From the list, select “Add Device Definition”... This should give you a “Browse for folder” selection box. Browse to the directory that contains the 7 files needed to “register” a new device with DeltaV. These file will consist of 3 *.dll files, *.sym, *.ffo, *.fhx and *.reg file.
  • Page 164 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 7-64...

  • Page 165: Overview

    100% effective grounding and total elimination of ground loops. Electrical Noise The OCX 8800 has been designed to operate in the type of environment normally found in a boiler room or control room. Noise suppression circuits are employed on all field terminations and main inputs. When fault finding, evaluate the electrical noise being generated in the immediate circuitry of a faulty system.

  • Page 166: Total Power Loss

    April 2017 Total Power Loss In the event that the OCX 8800 will not power up at all, check the incoming power supply to make sure power is being delivered to the OCX 8800. If the incoming power supply is good, then check fuses F1 and F6 in the electronics housing.

  • Page 167: Fault Isolation

    OCX 8800 April 2017 FAULT ISOLATION Faults in the OCX 8800 Transmitter are indicated by messages displayed on the 375 Field Communicator or LOI. Fault indications that can appear are listed in Table 8-1, Troubleshooting. If a fault is indicated on the Field Communicator or LOI, locate the fault indication in Table 8-1.
  • Page 168 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SB Temp Hi (Sample block heater temperature high, > 190ºC) Probable Cause Recommended Corrective Action High noise in OCX power supply Check power supply for line noise or voltage fluctuations. Install power line filter kit (PN 6A00171G01) or high quality line filter for input power.
  • Page 169 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SB TC Open (Sample block heater thermocouple open) Probable Cause Recommended Corrective Action Sample block thermocouple or thermocouple Check sample block thermocouple and circuit wires for breaks or loose connections per circuit open Figure 8-3 and Figure 9-8.
  • Page 170 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 ADC Failure (Voltage to digital conversion could not complete) ADC Ref Error (Voltage to digital conversion not accurate) Probable Cause Recommended Corrective Action Incorrect wiring between electronics and sensor Check all wiring between the electronics and sensor housings per Figure 8-3. Correct housings wiring faults.
  • Page 171 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Cal Warning (Calibration warning) Cal Failed (Calibration failed) Probable Cause Recommended Corrective Action COe sensor degraded Replace COe sensor or increase warning level (SYSTEM, CALIB SETUP, COe Slope Warn via HART.)
  • Page 172 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Board Temp Hi (Electronics temperature maximum exceeded, > 85ºC) Probable Cause Recommended Corrective Action Electronics housing exposed to high ambient Insulate housing from source of high temperature and/or install cooling fan to remove temperature heat from housing.
  • Page 173 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Line Voltage High (AC power line voltage above maximum, > 278 VAC) Probable Cause Recommended Corrective Action High noise or voltage fluctuations in power Check power supply for line noise or voltage fluctuations. Install power line filter kit supply (PN 6A00171G01) or high quality line filter for input power.
  • Page 174 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 8-3. Electrical Connections Between Electronics and Sensor Housing 2HTR CO 1HTR CO 2HTR O 1HTR O 2HTR ground 1HTR SB screw Heater Power Connector (J3) T/C CO+ T/C CO- T/C SB+...

  • Page 175: Alarm Relay Events

    April 2017 ALARM RELAY EVENTS The OCX 8800 contains an alarm relay that can be configured to activate on one of twelve different groups of events. These event groups, and the conditions that trigger them, are listed in Table 8-2, Alarm Relay Event Groups.
  • Page 176 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 8-12...

  • Page 177: Overview

    Overview ........page 9-1 OCX 8800 Removal and Installation ....page 9-1 Repair Sensor Housing .

  • Page 178: Ocx With Integral Electronics

    9. Remove insulation to access the sensor housing mounting bolts. Unbolt the OCX 8800 from the stack and take it to a clean work area. 10. Allow the unit to cool to a comfortable working temperature.
  • Page 179 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-2. Electronics Housing Terminal Blocks Alarm Output Relay Terminal Block OUNDATION Signal Output Fieldbus HART Terminal Block AOUT2+ COe Signal Not used AOUT2 - O Signal/ AOUT1 - OUNDATION Fieldbus...
  • Page 180 Whenever a positive stack pressure exists at the installation site, be sure to connect all pneumatic lines prior to installing the OCX 8800 in the stack or ductwork. Failure to connect the pneumatic lines can allow the flow of contaminants into the OCX 8800 ports.

  • Page 181: Ocx With Remote Electronics

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 OCX with Remove Sensor Housing Remote Electronics 1. Turn off power to the system. 2. Shut off the test gasses at the cylinders and close the instrument air valve. 3. Disconnect the calibration gas, reference air, eductor air, and dilution air lines from the sensor housing, Figure 9-3.
  • Page 182 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 4. Remove the cover from the sensor housing to expose the sensor housing terminal blocks, Figure 9-4. 5. Disconnect the signal cable from the O and T/C terminal blocks, and from the CO and CJC terminal blocks.
  • Page 183 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install Sensor Housing 1. Insert and bolt the sensor housing in the stack and install insulation. 2. Connect the test gas, reference air, eductor air, and dilution air lines to the sensor housing.
  • Page 184 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-5. Electronics Housing Terminal Blocks Alarm Output Relay Terminal Block Signal Output OUNDATION Fieldbus HART Terminal Block AOUT2+ COe Signal Not used AOUT2 - OUNDATION O Signal/ AOUT1 - Fieldbus...
  • Page 185 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-6. Remote Electronics Housing Cable Connections...

  • Page 186: Repair Sensor Housing

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install Remote Electronics Housing 1. Mount remote electronics housing on wall or pipe within distance of signal and heater cables in use. 2. Remove the electronics housing cover. 3. If removed, install the power and signal cables and the customer power and signal conduits and wiring at the electronics housing.
  • Page 187 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-7. Removal of O Cell and Heater Strut Assembly 1. Screw 2. Locking Clip 3. Cover 4. O-ring 5. Marking Plate 6. Terminal Insulator 7. Reference Air Tube 8. Sensor Housing 9.
  • Page 188 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Remove Sample Block Heater Rods 1. Disconnect sample block heater rod wires from terminal block. Refer to Figure 9-8. 2. Loosen screws (11, Figure 9-7) and rotate heater clamps (12) to release heater rods (13).
  • Page 189 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Remove COe Sensor Assembly 1. Disconnect COe heater, thermocouple, and sensor wires from terminal blocks. Refer to Figure 9-9. 2. Remove insulator (1, Figure 9-10). NOTE For easier access, you may remove two screws from base of terminal block mounting (13) and move terminal block assembly out of the way.
  • Page 190 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-10. Removal of COe Sensor Assembly 1. Insulator 2. Dilution Air Tube 3. COe Extractive Tube 4. Eductor Air Tube 5. COe Sensor Assembly 6. Eductor 7. Sensor Housing 8. COe Thermocouple 9.
  • Page 191 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 6. See Figure 9-11. Using straightedge on the sensor holder flat, as shown, matchmark upper flange of sensor housing to show correct alignment of sensor holder. 7. With one wrench holding eductor elbow (12, Figure 9-10), and one wrench on flats of sensor holder (11), unthread and remove COe sensor assembly (5).
  • Page 192 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-12. Eductor Alignment Matchmarks Eductor Flat Straightedge Matchmark Remove Eductor The O cell and heater strut assembly (9, Figure 9-7) and the COe sensor assembly (5, Figure 9-10) must be removed before you start this procedure.
  • Page 193 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-13. Removal of Sample Remove Sample and Exhaust Tubes and Exhaust Tubes Use heat resistant gloves when removing the probe tube or exhaust tube. The tubes are bonded with a thread sealing compound. The compound softens at 450°F (232°C). The heated parts can cause severe burns.
  • Page 194 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-14. O Cell, Heater, and Thermocouple, Exploded View Do not remove the O cell unless you are certain it needs to be replaced. Removal may damage the cell and platinum pad. Remove the O cell for cell replacement only.
  • Page 195 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Disassemble COe Sensor Assembly 1. Carefully remove screws (1, Figure 9-15), lockwashers (2), and COe sensor (3) from sensor holder (4). Remove and discard gasket (5). 2. If damaged, use the following procedure to remove thermocouple adaptor (6) from sensor holder (4): a.

  • Page 196: Sensor Housing Assembly

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Always remove the stainless steel balls (approximately 200) from sensor holder before removing or installing pre-heater. Turning pre-heater in the sensor holder with the stainless steel balls in place will cause permanent damage to the pre-heater.
  • Page 197 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-16. COe Sensor and Pre-Heater Alignment SENSOR ASSEMBLY THERMOCOUPLE TOP VIEW COe Sensor Flat Sensor Holder Pre-Heater Sensor Flat Holder Flat Sensor Holder Flat 2 to 2-1/4 in. (51 to 57 mm) 7.
  • Page 198 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install Eductor If installed, the O cell and heater strut assembly (9, Figure 9-7) must be removed from sensor housing (8), before you install the eductor. 1. Apply pipe thread sealant (Loctite #567) to the external pipe threads of eductor (6, Figure 9-17).
  • Page 199 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 2. Install and tighten eductor (6) in eductor holder (14). 3. Install and tighten elbow (12) on eductor (6). Male port of elbow must point up and be in line with long axis of eductor.
  • Page 200 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install COe Sensor Assembly Figure 9-19. Band Heater Height 1. Apply pipe thread sealant (Loctite #567) to the exposed pipe threads of eductor elbow (12, Figure 9-17). Do not apply sealant to the first turn of the pipe threads.
  • Page 201 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 8. Install and fasten thermocouple (8, Figure 9-17). 9. Position band heater as shown in Figure 9-19 and Figure 9-20 and tighten band heater clamp screw. The heater insulator (9) end joint must line up with the band gap of the COe band heater (10).
  • Page 202 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-22. Installation of O Cell and Heater Strut Assembly 1. Screw 2. Locking Clip 3. Cover 4. O-ring 5. Marking Plate 6. Terminal Insulator 7. Reference Air Tube 8. Sensor Housing 9.
  • Page 203 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install Sample Block Heater Rods 1. Before installing sample block heater rods (13, Figure 9-22), evenly coat the heater rods with Watlube heater release agent. 2. Install the heater rods (13), heater clamps (12), and screws (11).
  • Page 204 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install O Cell and Heater Strut Assembly 1. Rub a small amount of anti-seize compound on both sides of new gasket (10, Figure 9-22). 2. Apply anti-seize compound to threads of O cell and heater strut assembly (9) and sensor housing (8).

  • Page 205: Repair Electronics Housing

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 REPAIR ELECTRONICS Use the following procedures to remove damaged components from the OCX 8800 electronics housing and to install new replacement parts. Disassemble HOUSING the unit only as needed to replace damaged components. Use the assembly procedures that apply to install replacement parts and reassemble the unit.
  • Page 206 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-24. Removal/Installation of Electronics Housing Components 1. Screw 2. Locking Clip 3. Cover 4. O-ring 5. Electronics Stack 6. Flash PROM 7. Screw 8. LOI Module 9. LOI Board 10. LOI Connector 11.

  • Page 207: Electronics Housing Assembly

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Remove Solenoid Valves 1. Disconnect solenoid leads from mating terminal connector. 2. Remove top nut of solenoid valve (15 or 16, Figure 9-24). 3. Remove the solenoid coil assembly and washer.
  • Page 208 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Install Solenoid Valves 1. Disassemble replacement solenoid valve (15 or 16, Figure 9-24). 2. Install new solenoid valve base. Be careful not to overtighten. 3. Install new washer and solenoid coil assembly and secure with nut.
  • Page 209 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-26. Electronics Housing Cable Connections 9-33...
  • Page 210 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-27. Solenoid Power Terminals SOL 4 CO Test Gas SOL 3 High O Test Gas TOP VIEW SOL 3 Low O Test Gas SOL 2 Instrument Air SOL 1 Install Cover 1.

  • Page 211: Replace Tube Fittings

    1/4 inch, stainless steel fittings. ‘E’ Type Fitting The ‘E’ type fitting is an eductor drive air fitting for the OCX 8800 general purpose sensor housing. It is a 1/8 inch tube fitting with a built-in 0.011 inch restrictor orifice.

  • Page 212: Install Tube Fittings

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 9-28. Removal of Tube Fittings 1. Sensor Housing 2. Electronics Housing 3. Tube Fitting 4. Tube Fitting (Type R) 5. Tube Fitting (Type E) Install Tube Fittings 1. Verify that the replacement tube fitting is identical to the item removed.
  • Page 214 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Section 10 Replacement Parts Sensor Housing ....... . . page 10-2 Electronics Housing .

  • Page 215: Sensor Housing

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SENSOR HOUSING Figure 10-1. Sensor Housing Components (Sheet 1 of 2) (Requires item 13 for assembly) 10-3...
  • Page 216 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index No. Part Number Description 5R10190G02 Cell and Heater Assembly, Standard Cell 5R10190G03 Cell and Heater Assembly, High Sulfur Cell 6P00177H01 Heater Insulator, Mica 4851B46G03 Combustibles Sensor Replacement Kit 1A99786H01 Heater Leads Insulator, 14.5 inches long...
  • Page 217 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 10-2. Sensor Housing Components (Sheet 2 of 2) 10-5...
  • Page 218 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index No. Part Number Description 1A99089H02 Cover Gasket (O-ring) 5R10246H06 Blowback Filter, 5 Micron, Stainless Steel 1A98448H02 O-ring 5R10247H01 Fitting 5R10183H02 Tube, Sample, 18 in. (457 mm) 316 Stainless steel 5R10183H06 Tube, Sample, 18 in.

  • Page 219: Electronics Housing

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 ELECTRONICS HOUSING Figure 10-3. Electronics Housing Components 10-7...
  • Page 220 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Index No. Part Number Description 1A97902H01 Hose 1A97905H02 Solenoid Valve, 3-Way 1A97905H01 Solenoid Valve, Test Gas 6A00132G01 Electronics Stack, HART 6A00387G01 Electronics Stack, Fieldbus 1A97913H06 Fuse (F1 and F6), 10 Amp, 250 VAC...
  • Page 221 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure 10-4. EMI Filter and Terminal Block Blue Brown Blue Brown Green Green Green Index No. Part Number Description 1A98467H01 Filter, EMI 5R10238G01 Ground Wire 1A99714H01 Terminal Block 10-9...

  • Page 222: O2 Cell And Heater Strut Assembly

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 CELL AND HEATER STRUT ASSEMBLY Figure 10-5. O Cell and Heater Strut Assembly Index No. Part Number Description 4851B44G01 Contact and Thermocouple Assembly 5R10211G02 Heater Strut Assembly Heater Tube Gasket (part of O...
  • Page 223 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017...

  • Page 224: Safety Instructions

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Appendix A Safety Data Safety Instructions ....... page A-2 Safety Data Sheet for Ceramic Fiber Products .
  • Page 226 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 IMPORTANT SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR THE WIRING AND INSTALLATION OF THIS APPARATUS The following safety instructions apply specifically to all EU member states. They should be strictly adhered to in order to assure compliance with the Low Voltage Directive.
  • Page 227 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 DŮLEŽITÉ Bezpečnostní pokyny pro zapojení a instalaci zařízení Následující bezpečnostní pokyny se speciálně vztahují na všechny členské státy EU. Pokyny by měly být přísně dodržovány, aby se zajistilo splnění Směrnice o nízkém napětí. Pokud nejsou pokyny nahrazeny místními či národními normami, měly by je dodržovat i...
  • Page 228 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 VIGTIGT Sikkerhedsinstruktion for tilslutning og installering af dette udstyr. Følgende sikkerhedsinstruktioner gælder specifikt i alle EU-medlemslande. Instruktionerne skal nøje følges for overholdelse af Lavsspændingsdirektivet og bør også følges i ikke EU-lande medmindre andet er specificeret af lokale eller nationale standarder.
  • Page 229 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 BELANGRIJK Veiligheidsvoorschriften voor de aansluiting en installatie van dit toestel. De hierna volgende veiligheidsvoorschriften zijn vooral bedoeld voor de EU lidstaten. Hier moet aan gehouden worden om de onderworpenheid aan de Laag Spannings Richtlijn (Low Voltage Directive) te verzekeren.
  • Page 230 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 BELANGRIJK Veiligheidsinstructies voor de bedrading en installatie van dit apparaat. Voor alle EU lidstaten zijn de volgende veiligheidsinstructies van toepassing. Om aan de geldende richtlijnen voor laagspanning te voldoen dient men zich hieraan strikt te houden. Ook niet EU lidstaten dienen zich aan het volgende te houden, tenzij de lokale wetgeving anders voorschrijft.
  • Page 231 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 WICHTIG Sicherheitshinweise für den Anschluß und die Installation dieser Geräte. Die folgenden Sicherheitshinweise sind in allen Mitgliederstaaten der europäischen Gemeinschaft gültig. Sie müssen strickt eingehalten werden, um der Niederspannungsrichtlinie zu genügen.
  • Page 232 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 ΣΗΜΑΝΤΙΚΟ Οδηγιεσ ασφαλειασ για την καλωδιωση και εγκατασταση τησ συσκευησ Οι ακόλουθες οδηγίες ασφαλείας εφαρµόζονται ειδικά για όλες τις χώρες µέλη της Ευρωπαϊκής Κοινότητας. Θα πρέπει να ακολουθούνται αυστηρά ώστε να εξασφαλιστεί η συµβατότητα µε τις οδηγίες για τη Χαµηλή Τάση.
  • Page 233 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 OLULINE TEAVE Juhtmestiku ja seadme paigaldamisega seotud ohutusjuhised Alljärgnevad ohutusjuhised rakenduvad eriti kõigi Euroopa Liidu liikmesriikide suhtes. Antud juhiseid tuleb täpselt järgida, et kindlustada vastavus madalpinge direktiiviga. Euroopa Liitu mittekuuluvad riigid peavad samuti alljärgnevaid juhiseid järgima, va juhul, kui on olemas...
  • Page 234 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 TÄRKEÄÄ Turvallisuusohje, jota on noudatettava tämän laitteen asentamisessa ja kaapeloinnissa. Seuraavat ohjeet pätevät erityisesti EU:n jäsenvaltioissa. Niitä täytyy ehdottomasti noudattaa jotta täytettäisiin EU:n matalajännitedirektiivin (Low Voltage Directive) yhteensopivuus. Myös EU:hun kuulumattomien valtioiden tulee nou-dattaa tätä...
  • Page 235 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 IMPORTANT Consignes de sécurité concernant le raccordement et l'installation de cet appareil. Les consignes de sécurité ci-dessous s'adressent particulièrement à tous les états membres de la communauté européenne. Elles doivent être strictement appliquées afin de satisfaire aux directives concernant la basse tension.
  • Page 236 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 FONTOS Biztonsági előírások a készülék vezetékeléséhez és üzembeállításához A következő biztonsági előírások kifejezetten vonatkoznak az összes EU-tagállamra. Ezeket szigorúan be kell tartani a Kisfeszültségű irányelvnek való megfelelés biztosításához. A nem EU-tagállamok szintén tartsák be a következőket, kivéve ha a helyi és nemzeti...
  • Page 237 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 IMPORTANTE Norme di sicurezza per il cablaggio e l'installazione dello strumento. Le seguenti norme di sicurezza si applicano specificatamente agli stati membri dell'Unione Europea, la cui stretta osservanza è richiesta per garantire conformità...
  • Page 238 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SVARBU š io prietaiso laidų prijungimo ir instaliacijos saugos instrukcijos Toliau išvardinti saugumo reikalavimai taikomi konkrečiai visoms ES šalims narėms. Jų turi būti griežtai paisoma, kad būtų užtikrintai laikomasi Žemos įtampos direktyvos. Ne ES narės taip pat turi laikytis toliau pateikiamų...
  • Page 239 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SVARĪGI Drošības norādījumi šīs iekārtas pievienošanai un uzstādīš anai Turpmākie drošības norādījumi attiecas uz visām ES dalībvalstīm. Tie ir stingri jāievēro, lai nodrošinātu atbilstību Zemsprieguma direktīvai. Turpmāk norādītais jāievēro arī valstīs, kas nav ES dalībvalstis, ja vien šos norādījumus neaizstāj vietējie vai valsts standarti.
  • Page 240 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 IMPORTANTI STRUZZJONIJIET TAS-SIGURTÀ GĦALL-WIRING U L-INSTALLAZZJONI TAT-TAGĦMIR L-istruzzjonijiet tas-sigurtà japplikaw speċifikament għall-Istati Membri ta' l-UE. Dawn għandhom jiġu osservati b'mod strett biex tkun żgurata l- konformità mad-Direttiva dwar il-Vultaġġ Baxx. Stati li mhumiex membri ta' l-UE għandhom ukoll ikunu konformi ma' dan li ġej ħlief jekk dawn ikunu...
  • Page 241 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 VIKTIG Sikkerhetsinstruks for tilkobling og installasjon av dette utstyret. Følgende sikkerhetsinstruksjoner gjelder spesifikt alle EU medlemsland og land med i EØS-avtalen. Instruksjonene skal følges nøye slik at installasjonen blir i henhold til lavspenningsdirektivet. Den bør også...
  • Page 242 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 WAŻNE! Zalecenia dotyczące bezpieczeństwa w zakresie podłączania i instalacji tego urządzenia Następujące zalecenia dotyczą zwłaszcza stosowania urządzenia we wszystkich krajach Unii Europejskiej. Należy się ściśle do nich stosować w celu zapewnienia zgodności z dyrektywą niskonapięciową.
  • Page 243 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 IMPORTANTE Instruções de segurança para ligação e instalação deste aparelho. As seguintes instruções de segurança aplicam-se especificamente a todos os estados membros da UE. Devem ser observadas rigidamente por forma a garantir o cumprimento da Directiva sobre Baixa Tensão.
  • Page 244 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 DÔLEŽITÉ Bezpečnostné pokyny pre zapojenie káblov a inštaláciu tohto prístroja Nasledovné bezpečnostné pokyny sa vzt’ahujú konkrétne na všetky členské štáty EÚ. Musia byt’ striktne dodržané, aby sa zaistila zhoda so Smernicou o nízkom napätí. Štáty, ktoré nie sú členskými štátmi EÚ by mali nasledovné...
  • Page 245 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 POMEMBNO Varnostna navodila za povezavo in vgradnjo naprave Naslednja varnostna navodila veljajo za vse države članice EU. Zaradi zagotovitve skladnosti z nizkonapetostno direktivo morate navodila strogo upoštevati. V državah, ki niso članice EU, je treba upoštevati tudi naslednje smernice, razen če jih ne zamenjujejo lokalni ali nacionalnimi...
  • Page 246 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 IMPORTANTE Instrucciones de seguridad para el montaje y cableado de este aparato. Las siguientes instrucciones de seguridad, son de aplicacion especifica a todos los miembros de la UE y se adjuntaran para cumplir la normativa europea de baja tension.
  • Page 247 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 VIKTIGT Säkerhetsföreskrifter för kablage och installation av denna apparat. Följande säkerhetsföreskrifter är tillämpliga för samtliga EU-medlemsländer. De skall följas i varje avseende för att överensstämma med Lågspännings direktivet. Icke EU medlemsländer skall också...
  • Page 248 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SAFETY DATA SHEET JULY 1, 1996 FOR CERAMIC FIBER SECTION I. IDENTIFICATION PRODUCTS PRODUCT NAME Ceramic Fiber Heaters, Molded Insulation Modules and Ceramic Fiber Radiant Heater Panels. CHEMICAL FAMILY Vitreous Aluminosilicate Fibers with Silicon Dioxide.
  • Page 249 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SECTION IV. FIRE AND EXPLOSION DATA FLASH POINT: None FLAMMABILITY LIMITS: N.A. EXTINGUISHING MEDIA Use extinguishing agent suitable for type of surrounding fire. UNUSUAL FIRE AND EXPLOSION HAZARDS / SPECIAL FIRE FIGHTING PROCEDURES N.A.
  • Page 250 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 3. A statistical "trend" was observed in the exposed population between the duration of exposure to RCF and a decrease in some measures of pulmonary function. These observations are clinically insignificant.
  • Page 251 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SECTION VI. REACTIVITY DATA STABILITY/CONDITIONS TO AVOID Stable under normal conditions of use. HAZARDOUS POLYMERIZATION/CONDITIONS TO AVOID N.A. INCOMPATIBILITY/MATERIALS TO AVOID Incompatible with hydrofluoric acid and concentrated alkali. HAZARDOUS DECOMPOSITION PRODUCTS N.A.
  • Page 252 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 SECTION IX. SPECIAL PRECAUTIONS PRECAUTIONS TO BE TAKEN IN HANDLING AND STORING General cleanliness should be followed. The Toxicology data indicate that ceramic fiber should be handled with caution. The handling practices described in this MSDS must be strictly followed.
  • Page 253 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 If airborne fiber or cristobalite concentrations are not known, as minimum protection, use NIOSH/MSHA approved half face, air purifying respirator with HEPA filter cartridges. Insulation surface should be lightly sprayed with water before removal to suppress airborne dust.

  • Page 254: High Pressure Gas Cylinders

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 HIGH PRESSURE GAS GENERAL PRECAUTIONS FOR HANDLING AND STORING HIGH PRESSURE GAS CYLINDERS CYLINDERS • Edited from selected paragraphs of the Compressed Gas Association's "Handbook of Compressed Gases" published in 1981...

  • Page 255: Overview

    Setup ......... . page B-2 OVERVIEW This section describes the SPA with HART Alarm option for the OCX 8800. DESCRIPTION The Moore Industries SPA with HART Alarm, Figure B-1, is a 4-wire (line or mains powered), site-programmable, digital process alarm.

  • Page 256: Installation

    SPA Interface Connections INSTALLATION Refer to Figure B-2 for the typical interface connections for the OCX 8800 and the SPA with HART alarm. Refer to the Moore Industries SPA user's manual for additional information concerning SPA installation, setup, and operation.
  • Page 257 Ground terminals. 3. If desired, you can connect the 4 to 20 mA O2 signal wires from the OCX 8800 analog output terminal block to the SPA Input terminals. (The OCX must be operational to transmit the O2 signal. Observe polarity.)
  • Page 258 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 NOTE The O signal connection is not required for SPA configuration or calibration. The OCX interface will allow you to observe the O signal level when the SPA configuration procedure is completed.
  • Page 259 OCX 8800 April 2017 5. Figure B-6 shows the SPA menu, submenus, and parameter values that must be selected to configure the SPA for use with the OCX 8800. Use the following instructions and selections shown to properly configure the SPA.
  • Page 260 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Figure B-6. SPA Configuration Menu for OCX 8800 Communication SCLE INPT  SET MSTR   P R I M  SET FUCT   N R M L HART  NUM VARS   02 ...

  • Page 261: Returning Material

    Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017 Appendix C Return of Materials RETURNING MATERIAL To expedite the return process outside of the United States, contact the nearest Rosemount representative. Within the United States, call the Emerson Instrument and Valves Response Center using the 1-800-654-RSMT (7768) toll-free number.
  • Page 262 Instruction Manual IM-106-880, Rev 2.1 OCX 8800 April 2017...
