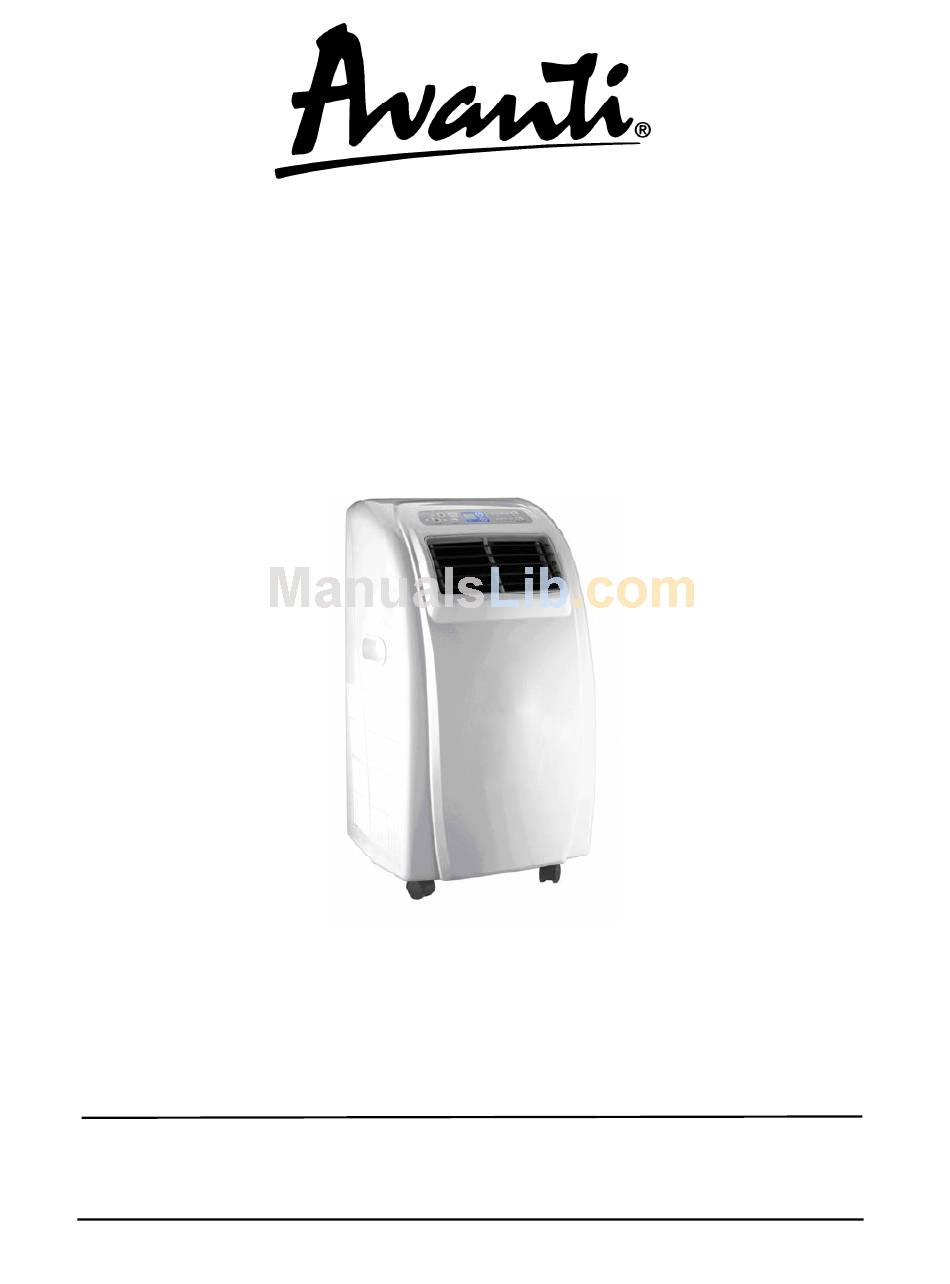

INSTRUCTION MANUAL / MANUAL DE INSTRUCCIONES
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 19.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
PORTABLE AIR CONDITIONER
AIRE ACONDICIONADO PORTATIL
Model Number / Nº de Modelo : PAC12000
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC12000 and is the answer not in the manual?

Questions and answers

Related Manuals for Avanti PAC12000

Summary of Contents for Avanti PAC12000

  • Page 1 INSTRUCTIONS. La sección en español empieza en la página 19. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products, A Division of the Mackle Co., Inc.

  • Page 2: Table Of Contents

    Draining Condensed Water Step by Step End of Season Care Problems with Your Air Conditioner Troubleshooting Guide Service for Your Air Conditioner Avanti Products Customer Services Your Avanti Products Warranty Wiring Diagram Instrucciones en Español Registration Information and Registration Form...

  • Page 3: Help Us Help You

    Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

  • Page 4: Parts And Features

    PARTS AND FEATURES Control Panel Cool Air Outlet Carry Handles (Both sides) Casters Air Filter Air inlet grille Exhaust Air Outlet Cord Hanger Drain Hole ℃/ ° ON/ OFF Inner Air Exhaust Adaptor for Air Exhaust Duct (11) Exhaust Air Duct Exhaust Air Duct Adapter Window Installation Adapter Window Installation Kit...

  • Page 5: Important Safety Instructions

    Read all instructions before using the air conditioner. • If the air conditioner has a serial plate rating of 115 Volts ~ AC, and up to 7.5 amps, the unit may be on a fuse or circuit breaker with other devices. However, the maximum amps of all devices on that fuse or circuit breaker cannot exceed the amps or the fuse of circuit breaker.

  • Page 6: Window Kit Installation

    WINDOW KIT INSTALLATION Installation Accessories (See Fig 1) Flexible exhaust hose with adapters - Window slider kit adapter - (Nº 13 on PARTS AND FEATURES) Adjustable window slider kit - (Nº 14 on PARTS AND FEATURES) Air exh au st du ct In ner air exh au st adaptor These Accessories MUST be installed at all times when the unit is operating under the cooling modes: AUTO or COOL.
  • Page 7 Window KIT Installation (See Fig 2 ) ? How to insert the window slider adaptor to the window slider kit? Hold the window slider adaptor close to the hole of the window slider.(Pic.1) Firmly insert the two clippers of the adaptor into the slider hole.( Pic.2) Press hard to insert the other two clippers inside the hole, make sure all four clippers are full inserted (Pic.3) Pic.

  • Page 8: Electrical Connection

    This air conditioner requires a standard 115/120 Volt~AC/60Hz electrical outlet with three-prong ground. Never unplug the air conditioner by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Do not use plug adapters or an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

  • Page 9: Operating Your Air Conditioner

    OPERATING YOUR AIR CONDITIONER CONTROL PANEL KEY PAD ON/OFF To turn power ON, press ON/OFF key once. The unit will run at AUTO mode (default). LCD window will display the AUTO icon. To turn power OFF, press it again. TEMPERATURE Press ( ) keys to select a suitable temperature setting.
  • Page 10 OPERATING YOUR AIR CONDITIONER AUTO Display When this sequence is selected, after pressing the MODE button, the corresponding signal indicator is lit. In this mode, your unit will logically choose a desired room temperature. If the temperature is not comfortable for you, the desired MODE can be selected manually.

  • Page 11: Remote Control Structure And Operation

    REMOTE CONTROL STRUCTURE AND OPERATION The remote control uses 2 alkaline dry batteries (AAA 1.5V). To install the batteries, slide back the cover and mount them according to the signs (+ and -) shown on the rear compartment. NOTE: If you plan not to use the control for several weeks, remove the batteries. When replacing the batteries, do not mix old and new.

  • Page 12: Battery Operation

    Battery Operation Please notice the (+) Positive and (-) Negative points while mounting the batteries. We suggest using alkaline batteries. If the batteries need to be replaced or thrown away, the batteries must be removed and disposed of in accordance with the current laws as it may present an environmental hazard.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE • When servicing the air conditioner, be sure to turn your appliance OFF and disconnect the power cord from the electrical outlet. • Do not use gasoline, benzine, thinner or other chemicals on the air conditioner as these substances may cause damage to the paint finish and deformation of plastic parts.

  • Page 14: Draining Condensed Water Step By Step

    6. Put back the Rubber Plug and the Drainage Knob to the Drainage Pipe. 7. Restart the unit End-of-Season Care • Operate the air conditioner, in FAN mode alone, for half a day to dry out the inside of the unit. • Turn off power and remove plug from wall socket. •...

  • Page 15: Problems With Your Air Conditioner

    PROBLEMS WITH YOUR AIR CONDITIONER? You can solve many common air conditioner problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service. TROUBLESHOOTING GUIDE...

  • Page 16: Service For Your Air Conditioner

    We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti air conditioner. With the purchase of your Avanti air conditioner, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you.

  • Page 17: Your Avanti Products Warranty

    In no event shall Avanti Products be liable for indirect, incidental, or consequential damages, even if advised in advance of the possibility of such damages, no warranties, express or implied, are made to any buyer upon resale.

  • Page 18: Wiring Diagram

    WIRING DIAGRAM...

  • Page 19: Instrucciones En Español

    INSTRUCCIONES EN ESPAÑOL PIEZAS Y CARACTERÍSTICAS Control de temperature Salida de aire frio Manijas (ambos lados) Ruedas Filtro de aire Parilla del ingreso de aire Escape de aire Colgador del cable elécrico Tube de drenaje ℃/ ° ON/ OFF Adaptador para el escape de aire Manguera para el escape de aire Adaptador terminal para la manguera del escape de aire...
  • Page 20 KIT PARA LA INSTALACIÓN DEL ADAPTADOR DE VENTANAS Accesorios de Instalación (vea la Fig 1) Manguera de Escape de Aire y Adaptadores - Kit Ajustable para Ventanas - (Nº 15 en PIEZAS Y CARACTERÍSTICAS) Adaptador del Kit Ajustable para Ventanas - Fig 1 Estos accesorios deberán estar instalados cuando la unidad esté...

  • Page 22: Conexión Eléctrica

    (con conexión a tierra) standard. De esta manera se reduce el riesgo de descarga eléctrica. Si tiene alguna pregunta respecto de la fuente eléctrica y/o la conexión a tierra, ésta deberá ser dirigida a un electricista certificado o a un centro de servicio autorizado de Avanti Products.
  • Page 23 secuencias de 30 min., el nuevo tiempo programado aparecerá en la pantalla LCD Para desactivar esta función, presione hasta que aparezca 12:00, entonces presiónelo una vez más. Ahora, la pantalla mostrará el tiempo que su equipo esta en funcionamiento. Esto aplica tanto para el apagado como para el encendido. Cuando su equipo este apagado, presione el botón TIMER para programar el encendido automático.
  • Page 24 CONTROL REMOTO: ESTRUCTURA Y OPERACIÓN El control remoto usa dos (2) baterías alcalinas secas (AAA 1.5V). Para instalar las baterías, deslice la tapa que se encuentra en la parte posterior del control remoto. Póngalas en su lugar guiándose por los signos (+ y -) que aparecen en el compartimiento interior. NOTA: Si no va usar el control remoto por algunas semanas, quite las baterías.

  • Page 25: Cuidado Y Mantenimiento

    CUIDADO Y MANTENIMIENTO • Cuando vaya a hacerle servicio a su aire condicionado, asegúrese de apagarlo y desconectarlo del enchufe de pared. • No use gasolina, bencina, tiner u otros químicos para limpiar su aire condicionado, estas substancias podrían causar daños al acabado de la pintura y deformar las partes plásticas. •...
  • Page 26 CUIDADO Y MANTENIMIENTO Drenando el agua condensada paso por paso 1. Apague la unidad. 2. Ponga la bandeja para el agua de drenado debajo del tubo de drenaje. 3. Quite la tapa de rosca y el tapón de jebe del tubo de drenaje. El agua de la bandeja interior circulará...

  • Page 27: Guía De Solución De Problemas

    ¿PROBLEMAS CON SU AIRE CONDICIONADO? Usted puede resolver fácilmente muchos problemas comunes de su aire condicionado ahorrándole el costo de una posible llamada de servicio. Pruebe con las sugerencias aquí indicadas para ver cómo puede resolver sus problemas antes de realizar una llamada de servicio. GUÍA DE SOLUCIÓN DE PROBLEMAS PROBLEMA El Aire Condicionado no...

  • Page 28: Servicio De Mantenimiento

    Estamos orgullosos de la organización de nuestro centro de servicio al cliente y de los técnicos profesionales que proveen servicio a su aire condicionado portátil Avanti. Cuando compra un producto Avanti, usted puede estar seguro que si alguna vez necesita información o asistencia, nuestro equipo de servicio al cliente de Avanti Products estará para ayudarlo.

  • Page 29: Registration Information And Registration Form

    REGISTRATION INFORMATION Thank you for purchasing this fine Avanti product. Please fill out this form and return it within 100 days of purchase to receive these important benefits to the following address: Avanti Products, A Division of The Mackle Co., Inc.
