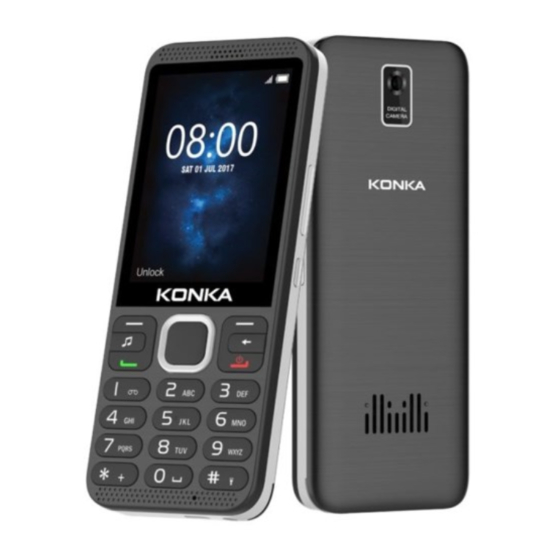

KONKA TELECOMMUNICATIONS U7 User Manual
  1. Manuals
  2. Brands
  3. KONKA TELECOMMUNICATIONS Manuals
  4. Cell Phone
  5. U7
  6. User manual

KONKA TELECOMMUNICATIONS U7 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

U7
User Manual
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KONKA TELECOMMUNICATIONS U7

Summary of Contents for KONKA TELECOMMUNICATIONS U7

  • Page 1 User Manual...
  • Page 2 OVERVIEW...

  • Page 3: Functions Description

    Functions Description 1. Earpiece 2. Screen 3. Menu key 4. Music key 5. Call key 6. Back key 7. "←" key 8. Power/End key 9. Direction key 10. Torch key 11. Torch 12. Lanyard hole 13. Shortcut keys 14. USB jack 15.
  • Page 4 Install SIM card and TF card Power on/off the Mobile Phone Press and hold the Power/End key for a few seconds to switch on the mobile phone. A power-on animation appears on the display screen. Connect to the Network After powering on the phone with a SIM card, the phone automatically searches for an available network and then enters the standby status.

  • Page 5: Charge The Battery

    the screen after the mobile phone being registered on the network. Then you can make or receive a call. Charge the battery  The lithium-ion battery delivered with the mobile phone can be put into use immediately. Battery charge level: ...
  • Page 6 Dialing Call In the standby status, enter the phone number including the area code, and press the Call key to make a call. To end the call, or to cancel the call, press the End key. Dialing call from a contact To make a call from a contact, press the back button and select the right contacts by pressing the up pr down direction keys.

  • Page 7: Software Upgrade

    Re-dialing Function In the standby status, press the Call key to show the dialed calls. Press the up or down direction keys to select a number you want to dial and then press the Call key. Optimize the system speed After the phone being used for a long time, to clean up the cache data please go to: Setting - Storage - Cached data Software upgrade...

  • Page 8: Power Saving Mode

    Power saving mode Settings - Power saving After turning on, it can reduce system power consumption. But if you want to receive data from applications like WhatsApp, you need to turn off power saving mode. Mouse mode In the browser/WhatsApp/Facebook/Zello/Maps, long press the Menu key to switch to the mouse mode.

  • Page 9: Table Of Contents

    1 General Information ......................13 Profile ............................ 13 Safety information ......................... 13 Safety warning and attentions ....................13 2 Get started ........................16 Install the SIM card and the battery ..................16 Installing SD card ........................19 Charging the battery ......................20 Powering On/Off the Mobile Phone ..................
  • Page 10 Input method......................... 25 Icons for Input Methods ......................25 Change Entry Methods ......................25 Numeric Input ........................26 English input and numeric input .................... 26 Insert a Symbol ........................28 3 APPS ..........................28 Camera ..........................28 Facebook ..........................28 Contacts ..........................
  • Page 11 Gallery ........................... 32 Browser ..........................33 FM radio ..........................33 Calendar ..........................34 Settings ..........................34 Calculator ..........................37 Clock ............................37 Sound recorder ........................37 Videos ........................... 38 File manager .......................... 38 Torch ............................38 Downloads ..........................38 -11-...
  • Page 12 Email ............................39 History ........................... 39 ToDo ............................40 WhatsApp ..........................40 Zello ............................40 -12-...

  • Page 13: General Information

    1 General Information Profile Please read this pamphlet carefully to keep your phone in perfect condition. Our company may change this mobile phone without prior written notice and reserve the final right to interpret the performance of this mobile phone. Due to different software and network operators, display on your phone may be different.
  • Page 14  Switch off in aircraft Wireless devices will cause interference in aircraft, please switched to Airplane mode or power off.  Switch off before entering risk areas Abide by the relevant laws, codes, and regulations strictly when using your mobile phones in risk areas.
  • Page 15 Only qualified KONKA personnel or approved agent may install or repair phone equipment. Installing or repairing the mobile phone yourself may be dangerous and may break the warranty.  Accessories and batteries Only use KONKA approved accessories and batteries.  Emergency calls Make sure the phone is switched on and in service, enter the emergency number, e.g.

  • Page 16: Get Started

    phone active parts.  Do not store the mobile phone in a high-temperature place. High temperature may shorten the life of electronic circuits and damage the battery and some plastic parts. Do not store the mobile phone in extreme cold places. This will form water inside the mobile phone and may damage electronic circuits when the mobile phone is moved to a constant temperature place.
  • Page 17 Properly  keep  the  mobile  phone  and  its  fittings  such  as  the  SIM  card  out  of  small  children's  reach.   Installation    Press and hold the Power/End key for a few seconds to power off the mobile phone.  Lift the back cover from the bottom and remove it. ...
  • Page 18 need to type in the phone lock code when power on the mobile phone.  PIN The PIN (Personal Identification Number, 4 to 8 digits) code prevents your SIM card from being used by unauthorized people. In general, the PIN is supplied with SIM card by the network operator.

  • Page 19: Installing Sd Card

     PUK The PUK (Personal Unlocking Key) code is required to change a blocked PIN. It is supplied with the SIM card. If not, contact your network operator. If you enter the wrong PUK code for 10 times, SIM card will be invalid. Please contact the network operator to replace the SIM card.

  • Page 20: Charging The Battery

    identify the micro SD card.  ‐The SD card is a miniature object. Keep it out of the reach of small children for fear that they  may swallow it.    Charging the battery  The lithium-ion battery delivered with the mobile phone can be put into use immediately.  Battery charge level:  Your mobile phone can monitor and display the battery status.  The battery status is indicated by the battery level icon at the top right of the display screen.
  • Page 21 Ensure that the adapter is fully inserted.  Insert the plug of the travel charger to an appropriate power outlet.  During the charging, the battery level grids in the battery icon keep flickering until the battery charging finished.  The battery icon will no longer flicker when the charging process is completed. Note:Ensure ...
  • Page 22  The charging process lasts a long time for a new battery or a long time no use battery. If the battery voltage is too low to power on the mobile phone, charge the battery for a longer time. In this case, the battery icon does not flicker until a long time after the battery enters the charge status.

  • Page 23: Powering On/Off The Mobile Phone

    Powering On/Off the Mobile Phone  Power On the Mobile Phone Press and hold the Power Key for a few seconds to switch on the mobile phone. A power-on animation appears on the display screen. -Enter the phone lock code and press the ok key when required. The original code is 0000. -Enter the PIN and press the ok key when required.
  • Page 24 to make a call. To end the call, or to cancel the call, press the End key.  Dialing an international call Long Press the * key can input "+". Then input the country code, the area code and the telephone number.

  • Page 25: Use The Headset

    Use the Headset It will show the headset icon when you insert headset. Make sure you insert the headset to the bottom of the headphone jack so you can listen to audio files clearly. Input method This mobile phone provides multiple input methods, including English input and numeric input. You can use these input methods when editing the phonebook, short messages, files and so on.

  • Page 26: Numeric Input

    Numeric Input You can input numbers with the numeric input method. Press a number key to input the corresponding number. English input and numeric input The keyboards for English input and numeric input are defined in the following table: Character or Function Number key 1 .
  • Page 27 Number key 8 TUVtuv8 Number key 9 WXYZwxyz9 Number key 0 * key Press it to input a symbol # key Press it to switch input methods Menu key Equivalent to OK or Options Back key Equivalent to Back or Clear etc. ...

  • Page 28: Insert A Symbol

    Insert a Symbol Press the * key to enter the Select symbol interface, use direction keys to select a symbol you want. 3 APPS Camera The camera supports the photography function, align the camera to the picture and then press OK key to capture photos.

  • Page 29: Contacts

    data, select OK to clear the cache. Contacts  You can store the contact to Phone memory or SIM card. After selecting a telephone number in the contacts, press the menu key to perform the following operations:  Add Contact: Add a new contact to phonebook. ...
  • Page 30 Select it to create a message, set the telephone number of the recipients or select the Contact, and synchronously edit the content of SMS. Select “+” icon Options to select add picture, add sound, or add video. You can then send the message as an MMS. ...
  • Page 31  Select to delete Mark the current message or mark all, then delete them.  Settings  Text message(SMS) Request delivery report: Request a delivery report for each message you send. Manage SIM card messages: Display message status in SIM card, and you can delete messages.

  • Page 32: Music

    Creation Mode: Can choose the mode as follows: Restricted mode/warning mode/free mode Size Limit: Can choose the size limit as follows：100K/200K/300K Priority: Can choose as follows：High/Normal/Low  Notifications：Can set the prompt message notifications when receiving message. Including the ringtone, vibration and popup notification. ...

  • Page 33: Browser

    Browser  This function enables you to view the internet. Input the website to be searched and press Enter key to access to the network directly.  Refresh: Refresh the current page  Forward: Next page  Back: Previous page ...

  • Page 34: Calendar

    Calendar Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments, etc. Days with events will be marked. Settings  Power saving mode After turning on, it can reduce system power consumption. If you want to receive data from applications like WhatsApp, you need to turn off power saving mode.
  • Page 35 Can open or off the Data connection. Set the data roaming，preferred networks, network mode，access point names and network operators.  Audio profiles The mobile phone provides multiple User Profiles, so that you can customize some settings (ring tones, ring volume, notification sound etc) to adapt to specific events and environments.
  • Page 36  SD Card: Select the SD card, all documents, pictures, music SD card.  Battery  Battery use: User can view the display and usage.  Battery indicator style: User selectable Graphical / Percentage.  Apps：Application Lists  Location：Switch location ...

  • Page 37: Calculator

     About phone You can see some information about phone, such as: wireless update/status/model number/build number and so on. Calculator Press direction key can add, subtract, multiply and divide. Press ok key to calculate. Clock Alarm clocks are set but deactivated by default. You can activate one, multiple or all of them in needs.

  • Page 38: Videos

    Videos Use this function to play video files. By pressing the direction key can you control the playing process of video player: play/pause (OK key), fast forward (press and hold right direction key) or rewind (press and hold left direction key). In video player interface, you can press (volume up) or (volume down) key to tune volume.

  • Page 39: Email

    Email Mobile phone provides the function of Email, you can register and login email to receive or reply with contacts. History  In the standby interface, press the Call key to enter call history.  All Calls：You can view all the calls. ...

  • Page 40: Todo

    ToDo Mobile phone offers a notepad recording the to-do list details. WhatsApp  Open WhatsApp menu, choose agree and continue. Select city and enter the telephone number, when you received a code and type this code on WhatsApp screen and login. ...
  • Page 41  Recent: You can look over history voice intercom records with recent contacts  Contracts Activate the mouse mode, move the cursor to the option - .To add contacts or add a friend through the QR code scanner. If the other has registered Zello account and he or she is online, then you can start Real-time voice intercom with him or her.
  • Page 42  Channel Activate the mouse mode, move the cursor to the option - - Customize to add multiple channels. -42-...
  • Page 43  For those who already have Zello account Connect to Internet: Open Zello -Select Zello Account -Login -Start the operation or Real-time voice intercom (ibid). -43-...
  • Page 44 U7 user manual To get U7 user manual go to www.konkamobile.com.au This guide is for reference only. The actual product, including but not limited to the color, size, and screen layout, may vary. All statements, information, and recommendations in this guide do not constitute a warranty of any kind, express or implied.
