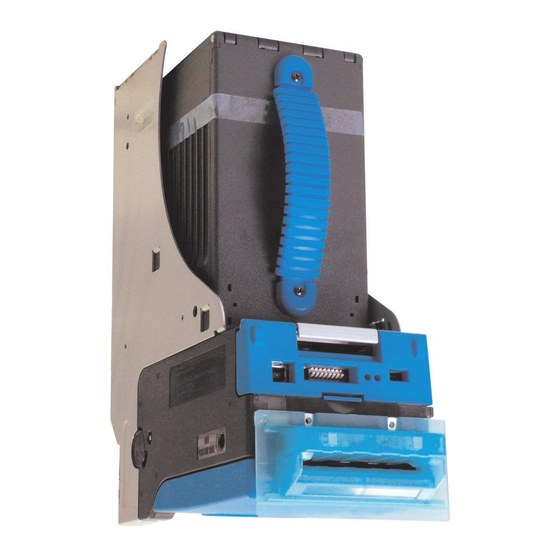

Atronic JCM UBA-10-SS User Manual

Bill acceptor for use atronic e-motion and harmony gaming machines
Hide thumbs

Advertisement

Table of Contents

Bill Acceptor
JCM
UBA-10-SS
®
for use in Atronic e-motion™
and Harmony™ gaming machines
Rev. 1.0
www.atronic.com
March 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JCM UBA-10-SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atronic JCM UBA-10-SS

Summary of Contents for Atronic JCM UBA-10-SS

  • Page 1 Bill Acceptor UBA-10-SS ® for use in Atronic e-motion™ and Harmony™ gaming machines Rev. 1.0 www.atronic.com March 2006...
  • Page 2 ELEASE Bill Acceptor JCM UBA-10-SS Rev. 1.0 Rel. March 2006 © 2006 Atronic. All rights reserved. March 2006...

  • Page 3: Bill Acceptor - Jcm Uba-10-Ss

    Introduction This manual aims to provide information for operating and maintaining a JCM UBA-10-SS bill acceptor that ® is installed in an Atronic e-motion™ or Atronic Harmony™ gaming machine. Components 1 Acceptor Unit 2 Upper Guide Access Lever 3 Front Bezel...
  • Page 4 ECHNICAL Technical Data Key Features • Automatic Bill Centering • Proven Anti-pullback Technology • USB Connector • Durable Plastic Cash Box (with window to check last bill) • Excellent Acceptance Rate Power Requirements: DC 12V (+/- 5%), Standby 220mA, Operating 1.6A Cash Box Capacity: 500 notes or more.

  • Page 5: Retrieving Bills

    PERATING Retrieving Bills 1. Unlock the hopper drawer and slide it to the left. 2. Pull the handle to release the cashbox from the frame. There is no release lever. 3. Unlock both locks at the cashbox (if installed). 4. Retrieve bills. 5.

  • Page 6: Clearing Bill Jam

    PERATING Clearing Bill Jam Procedure for Transfer Unit 1. Press down the transport unit release lever and pull out the transport unit. 2. Open the transport unit by pulling on the upper guide access lever. 3. Remove the jammed bill. 4.

  • Page 7: Inspecting And Cleaning

    PERATING Inspecting and Cleaning When to Inspect and Clean Inspecting and cleaning the UBA unit are tasks you should perform during routine preventive maintenance. Procedure to Inspect • Press down the transport unit release lever and dirty lenses dirty roller pull out the transport unit.

  • Page 8: Software Download

    UBA unit. The acceptor can remain connected to the host machine serving as a power supply. Make sure to download only UBA files *Note: approved by Atronic. Download of a file with If the host machine detects different currency than previously installed that the currency version of will require a host machine RAM reset.*...

  • Page 9: Troubleshooting

    ROUBLESHOOTING LED Diagnostic Codes / Malfunction In case of a malfunction the two diagnostic LEDs at front of the acceptor show an error code. Each LED (green and red) can be ON, OFF or blinking. Malfunction Codes Red LED Green LED Error Causes and Solutions Boot ROM error.

  • Page 10: Led Diagnostic Codes / Reject

    ROUBLESHOOTING LED Diagnostic Codes / Reject In case of a bill rejection the two diagnostic LEDs at front of the acceptor show an error code. Each LED (green and red) can be ON, OFF or blinking. Reject Codes Red LED Green LED Error Causes and Solutions...

  • Page 11: Troubleshooting For Uba Units

    UBA unit (see original JCM manual for details). Wrong or old software. Make sure the programmed software is the latest version approved by Atronic, and it supports all bills being used. Check software specifications for supported bill denomination, bill issuing year, etc.
  • Page 12 ROUBLESHOOTING Troubleshooting for UBA Units (continued) Description Possible Fault Causes Corrective Action Required Upper guide can Centering guides are not in their - Turn power OFF and ON again to reset the unit. not be opened. home position. - If power can not be applied, use a hexagonal nut driver and turn the centering guide release ports (12).

  • Page 13: Bill Acceptor Tests

    ROUBLESHOOTING Bill Acceptor Tests Description Note: The host machine provides test routines for bill Depending on game software acceptor diagnostics. version the layout of the menus may vary. Bills enabled Use this menu to check which bills are enabled / disabled by the host machine.

  • Page 14: Pin Assignments

    PPENDIX Pin Assignments This is the pin assignment of the UBA-10 acceptor for use in Atronic gaming machines. Interface type is ID-003 with photo-coupler isolation activated. ® Interface Connector Signal Name Function +12V Power Positive power supply (12V DC) GND Power...
