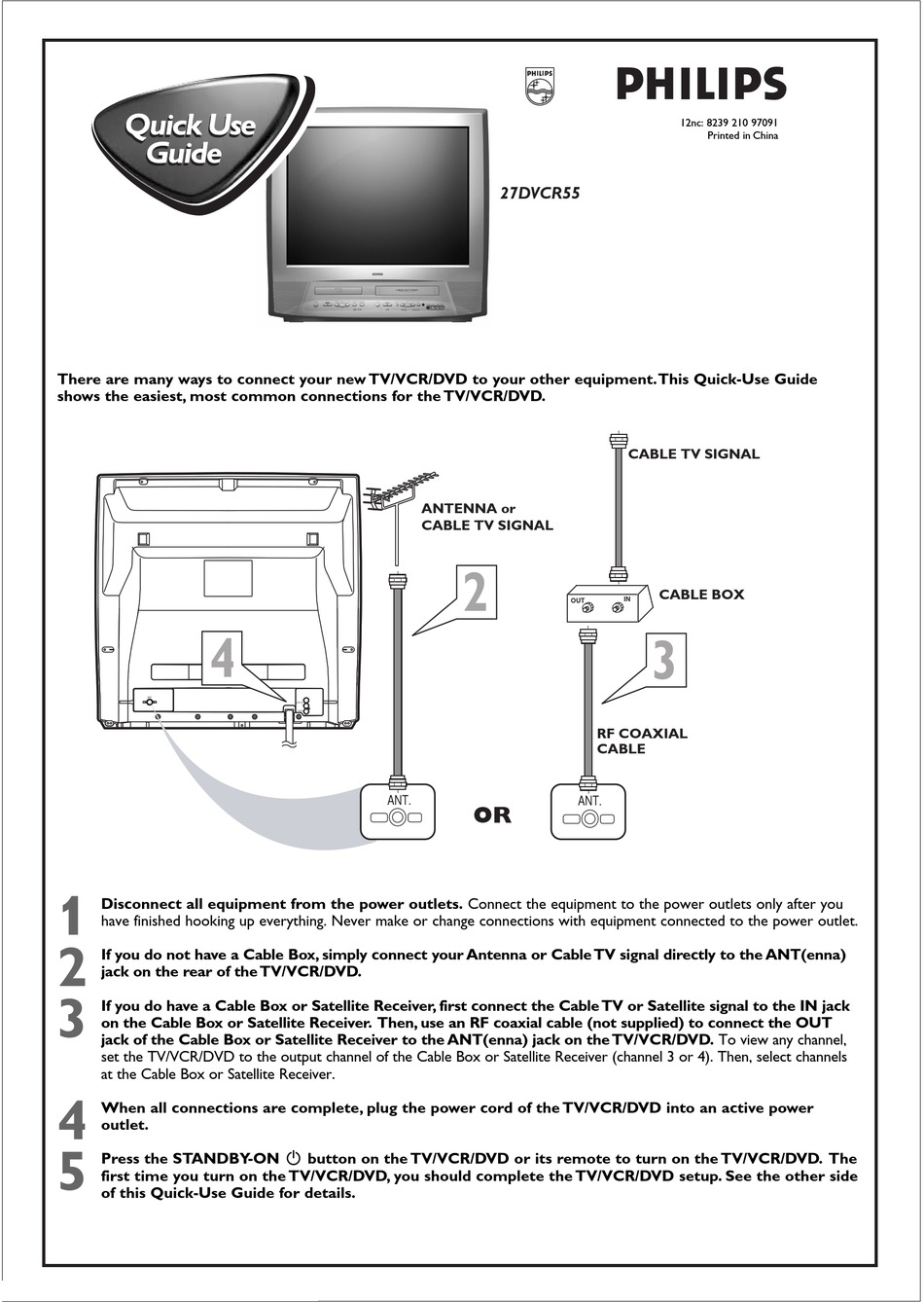

Philips 27DVCR55 Quick Use Manual

There are many ways to connect your new TV/VCR/DVD to your other equipment.This Quick-Use Guide
shows the easiest, most common connections for the TV/VCR/DVD.
4
ANT.
1
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2
If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the ANT(enna)
jack on the rear of the TV/VCR/DVD.
3
If you do have a Cable Box or Satellite Receiver, first connect the Cable TV or Satellite signal to the IN jack
on the Cable Box or Satellite Receiver. Then, use an RF coaxial cable (not supplied) to connect the OUT
jack of the Cable Box or Satellite Receiver to the ANT(enna) jack on the TV/VCR/DVD. To view any channel,
set the TV/VCR/DVD to the output channel of the Cable Box or Satellite Receiver (channel 3 or 4). Then, select channels
at the Cable Box or Satellite Receiver.
4
When all connections are complete, plug the power cord of the TV/VCR/DVD into an active power
outlet.
5 Press the STANDBY-ON 2 button on the TV/VCR/DVD or its remote to turn on the TV/VCR/DVD. The
first time you turn on the TV/VCR/DVD, you should complete the TV/VCR/DVD setup. See the other side
of this Quick-Use Guide for details.
ANTENNA or
CABLE TV SIGNAL
2
L
AUDIO OUT
R
COAXIAL
ANT.
27DVCR55
CABLE TV SIGNAL
IN
OUT
RF COAXIAL
CABLE
ANT.
OR
12nc: 8239 210 97091
Printed in China
CABLE BOX
3
