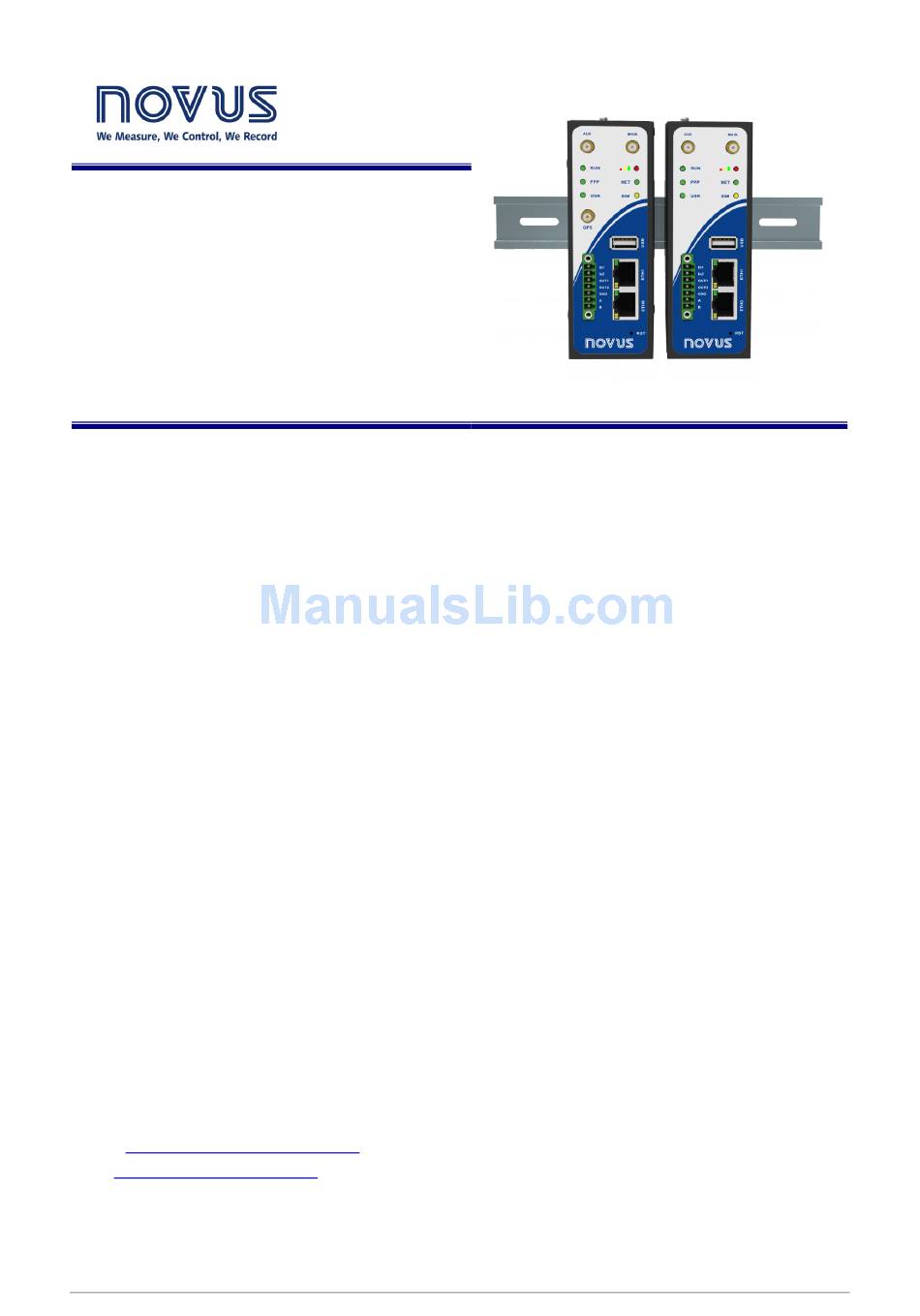

NOVUS AirGate-3G
Dual SIM Industrial Cellular VPN Router
For GPRS/UMTS/HSPA Networks

User Manual

V1.0x D
About This Document
This document describes hardware and software of NOVUS AIRGATE-3G, Dual SIM Industrial 2G/3G Router.
Copyright© NOVUS PRODUTOS ELETRONICOS LTDA
All Rights Reserved.
Trademarks and Permissions
NOVUS are trademark of NOVUS Produtos Eletrônicos LTDA.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Disclaimer
No part of this document may be reproduced in any form without the written permission of the copyright
owner.
The contents of this document are subject to revision without notice due to continued progress in
methodology, design and manufacturing. NOVUS shall have no liability for any error or damage of any kind
resulting from the use of this document.
Technical Support Contact Information
Tel: +55 51 3323-3600
Fax: +55 51 3323-3644
E-mail:
support@novusautomation.com
Web:
www.novusautomation.com
NOVUS AUTOMATION
1/119
