User's Manual for
Four-Line Intercom/
Speakerphone 954
Part 2
Please read Part 1 — Important Product
Information, included in your package.
Lucent 0954 cover.L1
3
5/9/98, 12:17 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 954 and is the answer not in the manual?

Questions and answers

Related Manuals for Lucent Technologies 954

Summary of Contents for Lucent Technologies 954

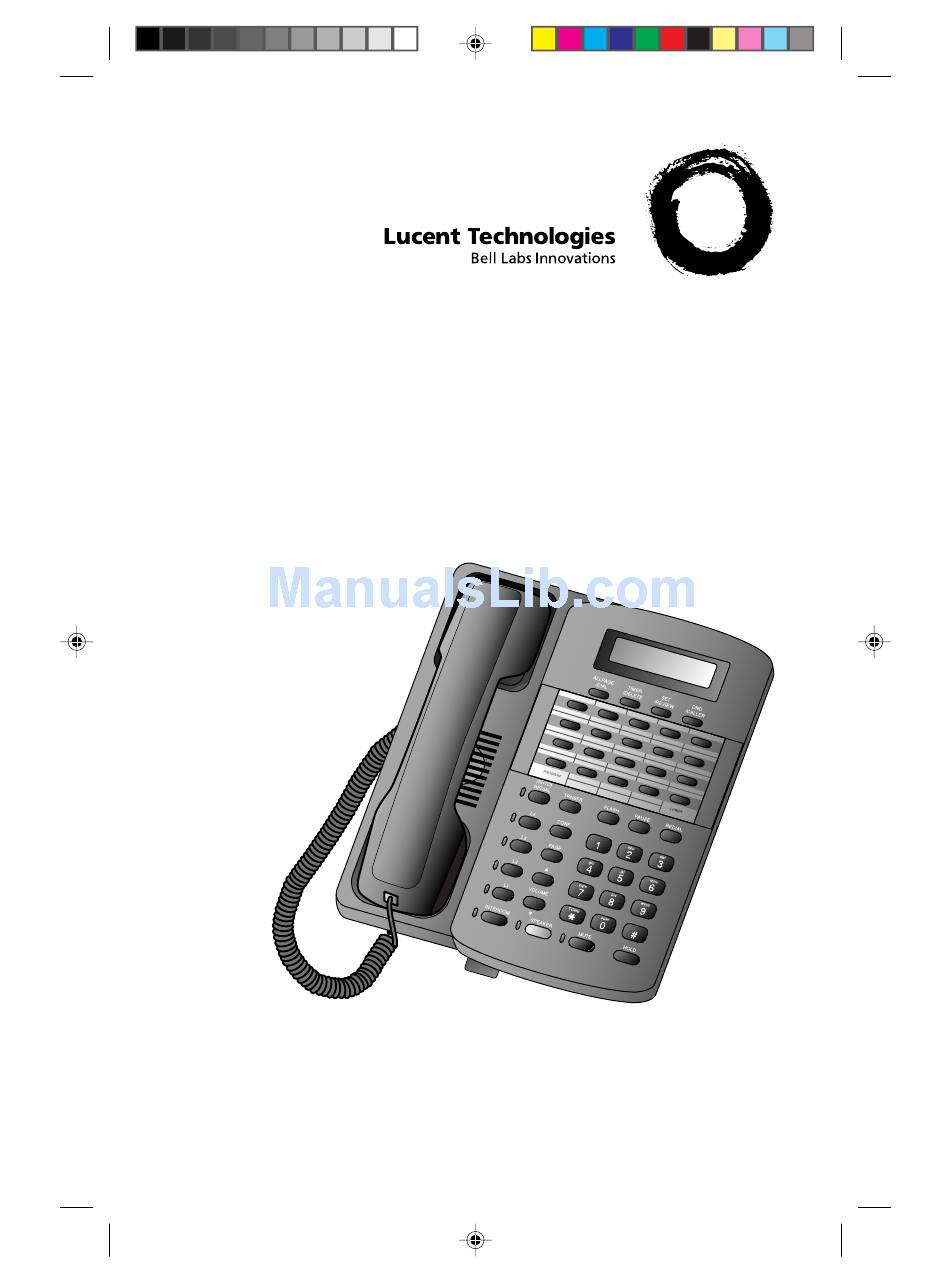

  • Page 1 User’s Manual for Four-Line Intercom/ Speakerphone 954 Part 2 Please read Part 1 — Important Product Information, included in your package. Lucent 0954 cover.L1 5/9/98, 12:17 PM...
  • Page 2 © 1998 Philips Consumer Communications L.P. All rights reserved. Printed in Mexico. Issue L1 Lucent 0954 cover.L1 5/9/98, 12:17 PM...

  • Page 3: Table Of Contents

    Conference Call ... 23 Room Monitor ... 23 Checking Your Station Number ... 23 IN CASE OF DIFFICULTY ... 24 EXPANDING THE 954 SYSTEM ... 26 CENTREX OPERATION ... 27 Setup Checklist ... 27 Setting Up a Fourth Line for Each Station ... 27 Enabling/Disabling Attendant Station ..
  • Page 4 Lucent 0954 book.L1 5/7/98, 10:34 AM...

  • Page 5: Before You Begin

    Intercom and Paging to work. • Assign a different Intercom Extension Number (11 through 22) to each 954 telephone. You’ll need to do this individually at each telephone. • Decide if you want a private line. A private line does not appear on all connected phones.

  • Page 6: Installation

    Insert 3 AAA batteries, and replace the battery door. • Replace the telephone base. NOTE: Batteries retain telephone memory in the event of a power failure. If power fails, this phone will not work. Connect the telephone line cords to the telephone.
  • Page 7 • Two Two-Line Jacks Modular Telephone Jack Lines 3 and 4 Telephone Line Cords Connect the power adapter. Use only the power adapter provided with this product. To obtain a replacement, call 1 800 PCC–9125. Plug one end of the power adapter into the jack labeled ADAPTER on the back of the phone.

  • Page 8: Wall Installation

    Hold down the switchhook, then pull the tab out and rotate it 180 degrees. Release the tab so it settles into position. Install 3 AAA batteries. • Press in on the tabs and remove the telephone base. • Press in on the tabs on the battery door, and remove it. •...
  • Page 9 Connect the telephone line cords to the telephone. • Four One-Line Jacks Modular Telephone Jacks Lines 3 and 4 Telephone Line Cords • Two Two-Line Jacks Modular Telephone Jack Lines 3 and 4 Telephone Line Cords Connect the power adapter to the telephone.
  • Page 10 3 and 4 Telephone Line Cord NOTE: If you have three modular telephone jacks, mount the phone onto a jack without a wall-mounting adapter. If you have four modular telephone jacks, mount the phone onto a jack without a wall-mounting adapter.
  • Page 11 Plug the power adapter into a standard electrical outlet. Convenience Port: If you want to connect another device (such as an answering machine or fax machine) to the wall jack, you can use the jack on the phone labeled AUX. This convenience port will always use Line 2;...

  • Page 12: Telephone Feature Setup

    TELEPHONE FEATURE SETUP Assign Intercom Number Do not lift the handset. Press G, *, #. Enter two digits (11–22). Press I. You will hear a confirmation ring. NOTE: If you duplicate an intercom number, you’ll hear a warning tone. Repeat Steps 1–4 and assign a different number.

  • Page 13: Set For Two Or Three Phone Lines

    This feature works only if you have three phone lines connected. Line 4 may vary from phone to phone, so you can consider this a private line that other 954 phones cannot access. NOTE: The phone number for Line 1 must be the same on all phones for the intercom and paging features to work.

  • Page 14: Operation

    Automatically redials a number when the line you’re calling is busy Redirect an incoming call to any other 954 phone Line-in-use lights Lucent 0954 book.L1 Put a caller on hold Mute the microphone Activate speakerphone...

  • Page 15: Making A Call

    OPERATION NOTE: When you make a call, the phone selects the first available line. When you answer a call, the phone automatically selects the ringing line. If you have a private line, the phone automatically selects that line. Making a Call Handset To make a call, lift the handset.

  • Page 16: Volume

    OPERATION Volume Handset/Speakerphone Volume Control When you are on a call, press + to increase handset or speakerphone volume. Press - to decrease volume. Ringer Volume You can adjust the ringer volume while the phone is ringing. While the line is ringing, press + or - to reach the desired level.

  • Page 17: Redial

    Redial The last number dialed on this phone is stored in redial memory until you dial another number. To dial the same number again, lift the handset or press K, listen for the dial tone, then press R. Auto Redial Select a line and press A.

  • Page 18: Mute

    OPERATION Mute This feature lets you mute the telephone so that you can hear the other party, but the other party can’t hear you. To activate this feature, press and release M. The MUTE light goes on. To return to the conversation, press and release M again.

  • Page 19: Do Not Disturb

    You can transfer a call you answer to any other 954 phone. Once you transfer a call, it can be picked up at any other 954 phone, not just at the intercom number you called. Transfer calls fall into two categories: announced and unannounced.

  • Page 20: Timer

    OPERATION Timer The screen displays the elapsed time in minutes and seconds for the first hour (up to 59 minutes, 59 seconds), then begins at zero again. The timer automatically stops when you hang up. The screen displays the recorded time for about six seconds.

  • Page 21: Telephone Memory

    This telephone has 18 one-touch memory locations, and 18 two-touch memory locations. Each location can store up to 16 digits. Dial numbers stored in one-touch locations by lifting the handset (or pressing speaker) and pressing the button for the location. Dial numbers stored in two-touch locations by pressing l and the button for the location.

  • Page 22: Directory Card

    Storing Numbers in Memory Press and release G. Enter the telephone number you want to store (up to 16 digits) — OR — Press and release R to store the last number dialed. Press the memory button where you want to store the number —...

  • Page 23: Intercom Operation

    Announces to all 954 phones at same time Automatically redials a number when the line you’re calling is busy Redirect an incoming call to any other 954 phone Line-in-use lights Ring another 954 phone connected to Line 1 Lucent 0954 book.L1...

  • Page 24: Basic Intercom Operations

    Lets you “announce” over the speaker of the phone you’re PAGE calling. The person you’ve called can respond just by talking. Lets you “announce” to all 954 phones in the system at the ALLPAGE same time. Lets you connect another intercom call with an outside line.

  • Page 25: Paging All Phones

    You can activate the speaker of another phone to monitor sounds in that room. Press and release p. Enter the station number of the telephone to be monitored. Press and release M if you don’t want sounds on your end to be heard.

  • Page 26: In Case Of Difficulty

    Check the telephone jack by disconnecting the 954 and connecting another non-system telephone. • Check that all line assignments are correct, and that all 954 phones are on the line designated as Line 1. Difficulty Storing Numbers in Memory •...
  • Page 27 If the line lights remain on even if no line is connected, make sure the system is programmed for that line to be absent. See “Set for Two or Three Phone Lines” in the TELEPHONE FEATURE SETUP section of this manual. Tone Signals Do Not Activate a Remote Device •...

  • Page 28: Expanding The 954 System

    EXPANDING THE 954 SYSTEM When you combine two or more 954 phones you create an interacting system. You can have up to twelve 954 phones and up to eight telephone lines. The 954 can also be used with Centrex service.

  • Page 29: Centrex Operation

    Setup Checklist Before expanding your system or installing for Centrex, review the installation checklist. If you have Centrex, contact your local telephone company for further information about Centrex service. • The phone number for Line 1 must be the same on all phones in order for the Intercom and Paging features to work.

  • Page 30: Attendant Operation

    Attendant Operation Once another 954 phone has enabled its delayed ring, the attendant phone will receive those calls. All the 954 features work in the same manner as described in the beginning of this manual. The attendant phone can pick up other Centrex lines through Centrex switching.

  • Page 31: Picking Up Another Station's Line

    Picking Up Another Station’s Line Choose a free Centrex line. Enter the Centrex pickup code. Enter the seven-digit phone number of the line you want — OR — Press the corresponding memory locations for the Centrex pickup code and the seven-digit phone number for the station sending the delayed ring.
