Description of Instrument Functions
Prosonic S FMU95
Transmitter for 5 or 10 ultrasonic sensors
8
BA345F/00/en/04.07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prosonic S FMU95 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Prosonic S FMU95

Summary of Contents for Endress+Hauser Prosonic S FMU95

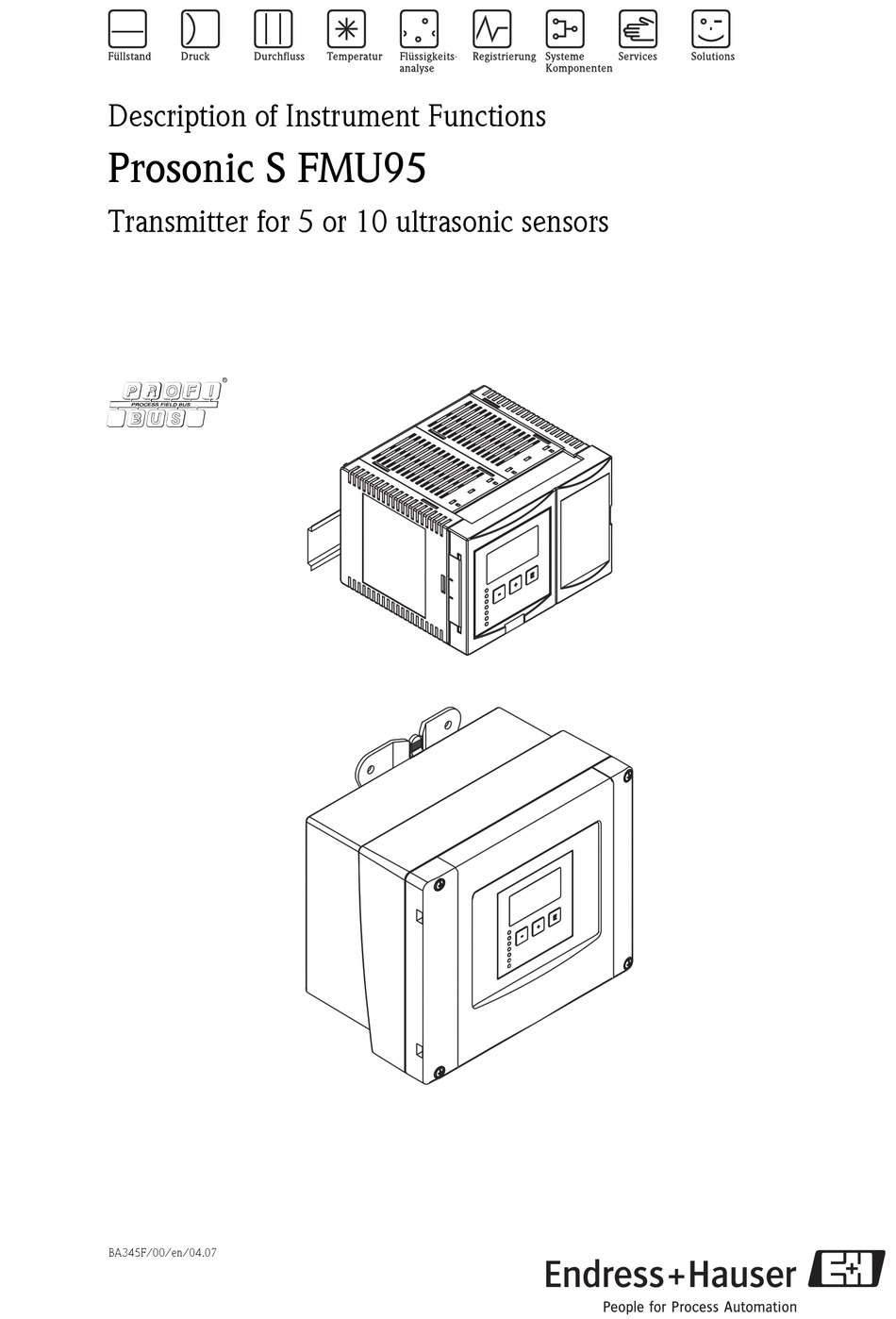

  • Page 1 Description of Instrument Functions Prosonic S FMU95 Transmitter for 5 or 10 ultrasonic sensors BA345F/00/en/04.07...

  • Page 3: Table Of Contents

    Prosonic S FMU95 - Description of Instrument Functions Table of Contents Table of Contents Notes on use ....4 "sensor management" ..... . . 66 Theory of operation .

  • Page 4: Notes On Use

    Notes on use Prosonic S FMU95 - Description of Instrument Functions Notes on use Theory of operation 1.1.1 Display and operating elements FMU95 L00-FMU95xxx-07-00-00-xx-001 (a): name of the parameter; (b): value of the parameter, including unit; (c): display symbols; (d): softkey symbol; (e): LED indicating the operating state;...

  • Page 5: Display Symbols

    Prosonic S FMU95 - Description of Instrument Functions Notes on use Display symbols Symbol Meaning Operating mode of the instrument User User parameters can be edited. Service parameters are locked. Diagnosis The service interface is connected. Service User and service parameters can be edited.
  • Page 6 Notes on use Prosonic S FMU95 - Description of Instrument Functions Keys (softkey operation) The function of the keys depends on the current position within the operating menu (softkey func- tionality). The key functions are indicated by softkey symbols in the bottom line of the display.

  • Page 7: The Operating Menu

    Prosonic S FMU95 - Description of Instrument Functions Notes on use Key combination Meaning Locking Locks the instrument against parameter changes. The instrument can only be unlocked again by the keys. 1.1.2 The operating menu Structure of the menu The parameters of the Prosonic S are organized in an operating menu (consisting of a main menu and several submenus).
  • Page 8 Notes on use Prosonic S FMU95 - Description of Instrument Functions Parameter types Display parameters Parameters for which the symbol is dis- played in the left bottom corner of the display module, are either locked or display-only para- meters. L00-FMU90xxx-07-00-00-en-041...
  • Page 9 Prosonic S FMU95 - Description of Instrument Functions Notes on use Navigation within the menu (Example) L00-FMU90xxx-19-00-00-en-050 Endress+Hauser...
  • Page 10 Notes on use Prosonic S FMU95 - Description of Instrument Functions Entering the menu The navigation always starts from the main screen (measured value display ). From there, the fol- lowing menus can be opened by the keys: FMU95 shortcut menu...
  • Page 11 Prosonic S FMU95 - Description of Instrument Functions Notes on use Selecting a submenu In the main menu press W or V until the main menu required submenu is marked by the bar. Note! The symbols indicate that the selection list contains more items than can be displayed on the module.
  • Page 12 Notes on use Prosonic S FMU95 - Description of Instrument Functions Selecting a parameter By pressing U or T you can switch between the parameter sets of the current submenu. For each parameter set the values of all its parameters are displayed. In order to change one of the values,...
  • Page 13 Prosonic S FMU95 - Description of Instrument Functions Notes on use Editing a parameter with selection list Press W or V, until the required option is marked by the bar (in the example: "turb. surface"). Note! The symbols indicate that the selection list contains more items than can be displayed on the module.
  • Page 14 Notes on use Prosonic S FMU95 - Description of Instrument Functions Entering numbers and characters When you select a numeric parameter ("empty calibration", "full calibration" etc.) or an alpha- numeric parameter ("device marking" etc.), the editor for numbers and text strings appears.
  • Page 15 Prosonic S FMU95 - Description of Instrument Functions Notes on use Special editing functions Within the editor for alphanumeric characters, pressing S or O does not only lead to numbers and characters but also to the following symbols for special editing functions. They simplify the editing procedure.
  • Page 16 Notes on use Prosonic S FMU95 - Description of Instrument Functions L00-FMU90xxx-19-00-00-yy-047 Delete: The current digit and all digits to its right are deleted. Return to the measured value display By pressing the left and middle keys FMU95 simultaneously you can return •...

  • Page 17: First Setup

    Prosonic S FMU95 - Description of Instrument Functions Notes on use First setup Note! This chapter describes the commissioning of the Prosonic S via the display and operating module. Commissioning via ToF Tool, FieldCare or the HART handheld terminal DXR375 is similar. For further instructions refer to the ToF Tool Operating Instructions, the FieldCare Online Help or the Operating Instructions supplied with the DXR375.

  • Page 18: The "Level" Menu

    The "level" menu Prosonic S FMU95 - Description of Instrument Functions The "level" menu level LX001 "level" selection list ⇒ level (LVL) 1 Use this list to select the level channel you are going to configure. level (LVL) 2 level (LVL) 3 level (LVL) 4 The "basic setup"...
  • Page 19 Prosonic S FMU95 - Description of Instrument Functions The "level" menu 2.1.2 "LVL N application parameters" (N = 1 - 10) LVL1 appl. para. L1004 ⇒ tank shape: medium property: process cond.: "tank shape" Use this parameter to specify the tank shape of your application.
  • Page 20 The "level" menu Prosonic S FMU95 - Description of Instrument Functions "process conditions" Use this parameter to specify the process conditions of your application. The filters of the signal evaluation are automatically adjusted to the selected conditions. "process conditions" for the following situations...
  • Page 21 Prosonic S FMU95 - Description of Instrument Functions The "level" menu 2.1.3 "LVL N empty calibration" (N = 1 - 10) LVL1 empty cal. L1005 ⇒ empty E: 0,00 m "empty E" Use this parameter to specify the empty distance E, i.e. the distance between the sensor membrane and the minimum level (zero point).
  • Page 22 The "level" menu Prosonic S FMU95 - Description of Instrument Functions 2.1.4 "LVL N full calibration" (N = 1 - 10) LVL1 full calib. L1006 ⇒ full F: 0,00 m block.dist. BD: "full F" Use this parameter to specify the span F, i.e. the distance from the minimum level to the maximum level.
  • Page 23 Prosonic S FMU95 - Description of Instrument Functions The "level" menu 2.1.5 "LVL N unit" (N = 1 to 10) LVL 1 unit level L1007 ⇒ unit level: level 1: sensor: "unit level" Use this parameter to select the distance unit.
  • Page 24 The "level" menu Prosonic S FMU95 - Description of Instrument Functions 2.1.6 "LVL N linearisation" (N = 1 - 10) LVL 1 linearisat. L1008 Note! ⇒ type: Number and type of the parameters in this set depend on the mode: selected linearization type.
  • Page 25 Prosonic S FMU95 - Description of Instrument Functions The "level" menu • horizontal cylinder • sphere In these linearization types the measured level is convertet to the volume in a horizontal cylinder or a spherical tank. 100% kg, m 3 , ft 3 , …...
  • Page 26 The "level" menu Prosonic S FMU95 - Description of Instrument Functions • table In this linearization mode the measured value is calculated from a linearization table. The table may consist of up to 32 pairs of values (level - volume). The table must be monotonically increasing or decreasing.
  • Page 27 Prosonic S FMU95 - Description of Instrument Functions The "level" menu "customer unit" Use this parameter to select the desired unit for the linearized values (e.g. kg, m , ft , ...). This unit is only indicated on the display. It does not cause a conversion of the measured value.
  • Page 28 The "level" menu Prosonic S FMU95 - Description of Instrument Functions "edit" Use this parameter to enter, change or read a linearization table. There are the following options: • read: The table editor is opened. The existing table can be read but not changed.
  • Page 29 Prosonic S FMU95 - Description of Instrument Functions The "level" menu 2.1.7 Interference echo suppression: Basic principles The "check value" and "distance mapping" parameters are used to configure the interference echo suppression of the Prosonic S. The following picture shows the operating principle of the interference echo suppression:...
  • Page 30 The "level" menu Prosonic S FMU95 - Description of Instrument Functions 2.1.8 "LVL N check value" (N = 1 - 10) LVL1 check value L100B ⇒ act. distance 1: check distance: L100B LVL1 dist. corr. act. distance: D display display >...
  • Page 31 Prosonic S FMU95 - Description of Instrument Functions The "level" menu The Prosonic S changes to the "distance mapping" parameter set, where you can define the required range of mapping. 2.1.9 "LVL N distance mapping" (N = 1 to 10) LVL 1 dist.
  • Page 32 The "level" menu Prosonic S FMU95 - Description of Instrument Functions 2.1.10 "LVL N state" (N = 1 - 10) LVL1 state L100C ⇒ level 1: act. distance 1: status: "level N" (N = 1 - 10) Displays the currently measured level.

  • Page 33: The "Extended Calibration" Submenu

    Prosonic S FMU95 - Description of Instrument Functions The "level" menu The "extended calibration" submenu 2.2.1 "LVL N distance mapping" (N = 1 to 10) Is identical to the "LVL N distance mapping" parameter set in the "basic setup" submenu, see above.
  • Page 34 The "level" menu Prosonic S FMU95 - Description of Instrument Functions 2.2.5 "LVL N limitation" (N = 1 to 10) LVL1 limitation L1019 ⇒ limitation: upper limit: lower limit: "limitation" Use this parameter to specify if the measured value has a lower and/or upper limit.

  • Page 35: The "Simulation" Submenu

    Prosonic S FMU95 - Description of Instrument Functions The "level" menu The "simulation" submenu 2.3.1 "LVL N simulation" (N = 1 to 10) LVL1 Simulation L1022 The parameters of this set are used to simulate a level or a measured ⇒...

  • Page 36: The "Safety Settings" Menu

    The "safety settings" menu Prosonic S FMU95 - Description of Instrument Functions The "safety settings" menu main menu CX001 ⇒ safety settings system informat. output/calculat device properties "output echo loss" outp. echo loss AX102 ⇒ level 1: level 2: level 3: level 4: 3.1.1...

  • Page 37: Delay Echo Loss

    Prosonic S FMU95 - Description of Instrument Functions The "safety settings" menu 3.1.2 "ramp level N" (N = 1 to 10) (only available for the option "ramp %/min") Use this parameter to specify the ramp (percentage of the measuring range per minute).

  • Page 38: In Safety Distance

    The "safety settings" menu Prosonic S FMU95 - Description of Instrument Functions "in safety distance" in safety dist. AX105 ⇒ in saf. dist. s 1: in saf. dist. s 2: in saf. dist. s 3: in saf. dist. s 4: 3.4.1...

  • Page 39: Reaction High Temperature

    Prosonic S FMU95 - Description of Instrument Functions The "safety settings" menu "reaction high temperature" react. high temp AX107 ⇒ overtemp sen 1: max. temp. Sen. 1: overtemp sen 2: max. temp. Sen. 2: 3.5.1 "overtemperature sensor N" (N = 1 to 10) Defines how the instrument reacts if the maximum temperature of the sensor is exceeded.

  • Page 40: The "Output/Calculations" Menu

    The "output/calculations" menu Prosonic S FMU95 - Description of Instrument Functions The "output/calculations" menu main menu CX001 ⇒ output calculat. device properties system information display The "output/calculations" menu is used to configure the Analog Input blocks (AI) and the general properties of the Profibs DP interface.

  • Page 41: Profibus Dp

    Prosonic S FMU95 - Description of Instrument Functions The "output/calculations" menu Note! If "sum N" or "average N" are selected, the Prosonic S returns to the "analog input N" parameter set, which now contains the parameters "level 1" to "level 10". Select "yes" for each parameter which is to be included in the sum or average.

  • Page 42: The "Device Properties" Menu

    The "device properties" menu Prosonic S FMU95 - Description of Instrument Functions The "device properties" menu The "operating parameters" submenu 5.1.1 "distance unit" distance unit D1101 ⇒ distance unit: Defines the distance unit. Selection: • m (default) • ft • mm •...

  • Page 43: The "Language" Submenu

    Prosonic S FMU95 - Description of Instrument Functions The "device properties" menu The "language" submenu 5.3.1 "language" language D1103 ⇒ langauge: Defines the language for the display module. The feature "language" of the product structure deter- mines which languages are available: "language"...

  • Page 44: The "Password/Reset" Submenu

    The "device properties" menu Prosonic S FMU95 - Description of Instrument Functions The "password/reset" submenu" 5.4.1 "password/reset" password/reset D1104 ⇒ reset: code: status: "reset" Enter the reset code into this parameter in order to reset all parameters to their default values.

  • Page 45: The "System Information" Menu

    Prosonic S FMU95 - Description of Instrument Functions The "system information" menu The "system information" menu The "device information" submenu 6.1.1 "device family" device family IX101 ⇒ device family: "device family" Displays the device family. 6.1.2 "device name" device IX102 ⇒...
  • Page 46 The "system information" menu Prosonic S FMU95 - Description of Instrument Functions 6.1.4 "serial number" serial no. IX105 ⇒ serial no.: "serial no." Displays the serial number of the instrument. 6.1.5 "software version" software version IX106 ⇒ software version: "software version"...

  • Page 47: The "In/Output Info" Submenu

    Prosonic S FMU95 - Description of Instrument Functions The "system information" menu The "in/output info" submenu 6.2.1 "level (LVL) N" (N = 1 to 10) level (LVL) 1 IX107 ⇒ input: sensor selection: detected: "input" Indicates, which sensor input is connected to the level channel.

  • Page 48: The "Min/Max Values" Submenu

    The "system information" menu Prosonic S FMU95 - Description of Instrument Functions The "min/max values" submenu Use this submenu to display the minimum and maximum values a certain parameter has reached during the measurement (drag indicator functionality). L00-FMU90xxx-19-00-00-yy-074 (1): max value; (2): min value; (3): measured value; (4): reset 6.3.1...
  • Page 49 Prosonic S FMU95 - Description of Instrument Functions The "system information" menu "min. value" Displays the minimum value which has been reached by the selected parameter. "reset" Use this parameter to reset the min and max drag indicators. Selection: • keep (default) The drag indicators are not reset.

  • Page 50: The "Envelope Curve" Submenu

    The "system information" menu Prosonic S FMU95 - Description of Instrument Functions The "envelope curve" submenu This submenu can be used to display the envelope curve of the connected sensor on the display module. 6.4.1 "envelope curve" envelope curve IX126 In this list, select a sensor for the envelope curve display.

  • Page 51: The "Error List" Submenu

    Prosonic S FMU95 - Description of Instrument Functions The "system information" menu 6.4.4 "envelope curve" envelope curve IX128 The envelope curve is displayed in this screen. ⇒ In order to exit the display, press the left and middle key simultaneously (ESC).

  • Page 52: The "Diagnsotics" Submenu

    The "system information" menu Prosonic S FMU95 - Description of Instrument Functions The "diagnsotics" submenu 6.6.1 "operating hours" operating hours E1403 ⇒ operating hours: "operating hours" Indicates, how long the instrument has been in operation. 6.6.2 "actual distance" actual distance E1404 ⇒...
  • Page 53 Prosonic S FMU95 - Description of Instrument Functions The "system information" menu 6.6.4 "application parameter" appl. parameter E1405 ⇒ sensor 1: sensor 2: sensor 3: sensor 4: "sensor N" (N = 1 to 10) Indicates if a setting which depends on the application parameters ("tank shape", "medium property", "process condition") has been changed after the setting of the application parameters in...

  • Page 54: The "Display" Menu

    The "display" menu Prosonic S FMU95 - Description of Instrument Functions The "display" menu "display" display DX202 ⇒ type: time: value 1: cust. text 1: "type" Use this parameter to select the format of the measured value display. Selection: • 1x value+bargraph •...
  • Page 55 Prosonic S FMU95 - Description of Instrument Functions The "display" menu • bargraph profile (default) Bargraphs are displayed for up to 10 measuring values. "time" This parameter is used for the options "value max. size" and "alter 53x2 values". It specifies the time after which the next page appears.

  • Page 56: Display Format

    The "display" menu Prosonic S FMU95 - Description of Instrument Functions "display format" display format DX201 ⇒ format: no. of decimals: sep. character: customized text: "format" Use this parameter to select the display format for numbers. Selection: • decimal (Default) •...

  • Page 57: The "Sensor Management" Menu

    Prosonic S FMU95 - Description of Instrument Functions The "sensor management" menu The "sensor management" menu input DX019 ⇒ US sensor 1: US sensor 2: US sensor 4: US sensor 5: Upon entering this menu, a selection list appears, from which you can select a sensor for parametrization.
  • Page 58 The "sensor management" menu Prosonic S FMU95 - Description of Instrument Functions 8.1.2 "sensor priority" This parameter is used to define the sensor priority. A sensor with high prioority sends pulses more often than a sensor with low priority. Example for 2 sensors...
  • Page 59 Prosonic S FMU95 - Description of Instrument Functions The "sensor management" menu Endress+Hauser...

  • Page 60: Operating Menu

    Operating menu Prosonic S FMU95 - Description of Instrument Functions Operating menu "level" main menu LX001 level… level L1002 level (LVL) 1 level (LVL) 1 L1003 L1006 L1004 L1005 basic setup LVL1 sensor sel. LVL1 appl. para. LVL1 empty cal.
  • Page 61 Prosonic S FMU95 - Description of Instrument Functions Operating menu L1007 L1008 L100B LVL 1 unit LVL1 linearisation LVL 1 check value customer unit: act distance: unit level: type: check distance: % (Default) - dist unknown none - dist. too big …...

  • Page 62: Safety Settings

    Operating menu Prosonic S FMU95 - Description of Instrument Functions "safety settings" main menu AX102 AX103 AX104 safety settings outp. echo loss delay echo loss safety distance … level 1: delay sensor 1 saf. dist. sen 1 default: 60s default: 0,0 m...

  • Page 63: Device Properties

    Prosonic S FMU95 - Description of Instrument Functions Operating menu AX105 AX107 AX108 in safety dist. react. high temp def. temp. sensor in saf. dist. s 1 overtemp. sen 1 def.temp. sensor 1 warning warning warning alarm alarm alarm self holding max.temp.

  • Page 64: System Information

    Operating menu Prosonic S FMU95 - Description of Instrument Functions "system information" main menu IX001 system informat. system informat. … IX101 IX102 IX103 IX105 device information device family device order code serial no. device family: device name: order code: serial no.:...
  • Page 65 Prosonic S FMU95 - Description of Instrument Functions Operating menu IX106 IX107 IX108 software version dev. Version DD version software version: dev. rev: DD version: IX11A IX11A analog input 1 analog input 20 measured value 1: measured value 20: L00-FMU95xxx-19-15-02-en-001...

  • Page 66: Sensor Management

    Operating menu Prosonic S FMU95 - Description of Instrument Functions "display" main menu DX201 DX202 DX200 display display display format back to home … type: format: back to home: bargr. profil decimal default: 900 s ft-in-1/16" … no. of decimals:...

  • Page 67: Appendix

    Prosonic S FMU95 - Description of Instrument Functions Appendix Appendix 10.1 System error messages 10.1.1 Error signal Errors occuring during commissioning or operation are signalled in the following way: • Error symbol, error code and error description on the display and operating module •...

  • Page 68: Error Codes

    Appendix Prosonic S FMU95 - Description of Instrument Functions 10.1.4 Error codes The error code consists of 6 digits with the following meaning: • Digit 1: Type of error – A: alarm – W: warning – E: error (the user can define if the error behaves like an alarm or a warning.) •...
  • Page 69 Prosonic S FMU95 - Description of Instrument Functions Appendix Code Description of error Remedy W 01 501 no sensor selected for channel 01 - 10 allocate sensor (s. "level" or "flow" menu) W 10 501 A 01 502 Sensor 01 - 10 not recognized Enter type of sensor manually ("level"...
  • Page 70 Appendix Prosonic S FMU95 - Description of Instrument Functions 10.1.5 Influence of the errors on the status byte of the output signal The following table specifies the status, which the block output values assume if an error is present. There are three possible status values: GOOD, UNCERTAIN and BAD.
  • Page 71 Prosonic S FMU95 - Description of Instrument Functions Appendix Errors in the sensor block (US1 to US10) Code Output Status A 01 231 distance temperature GOOD A 10 231 A 01 281 distance temperature A 10 281 W 01 281...
  • Page 72 Appendix Prosonic S FMU95 - Description of Instrument Functions Code Output Status W 0N 801 level UNCERTAIN W 10 801 Errors in the averaging and sum blocks (SL1 to SL5 and AL1 to AL5) Code Output Status A 00 820 •...

  • Page 73: Default Block Configuration

    Prosonic S FMU95 - Description of Instrument Functions Appendix 10.2 Default Block Configuration The Prosonic S contains the following function blocks. During commissioning they are linked to each other according to the required measuring task. Signal inputs • 10 Ultrasonic Sensor Blocks (US1 bis US10) Measured value calculation •...

  • Page 74: Index

    Prosonic S FMU95 - Description of Instrument Functions Index Index Symbols "back to home"....... . . 56 horizontal cylinder .
  • Page 75 Prosonic S FMU95 - Description of Instrument Functions Index password/reset (parameter set) ..... 44 plot settings (parameter) ......50 process conditions (parameter).
  • Page 76 www.endress.com/worldwide BA345F/00/en/04.07 71034226 71034226 FM+SGML 6.0 ProMoDo...
