WHIRLPOOL CONSUMER SERVICES
Models 6ED22DQXFW00 6ED22DQXFB01 6ED22DQXFW01

SERVICING THE ICE AND WATER DISPENSER

The dispenser housing is "foamed in place" and cannot be removed as an assembly. Components of the dispenser
assembly are serviceable.
ELECTRICAL SHOCK HAZARD
Unplug the refrigerator from the electrical power supply before servicing
any electrical components.
Failure to do so can result in serious injury or death.
1. Unplug the refrigerator power cord.
2. Remove the overflow grille from its housing.
3. Unsnap the front cover at the bottom of the housing
(See Figure 1).
4. Disconnect the front cover switch harness connector and set the cover aside.

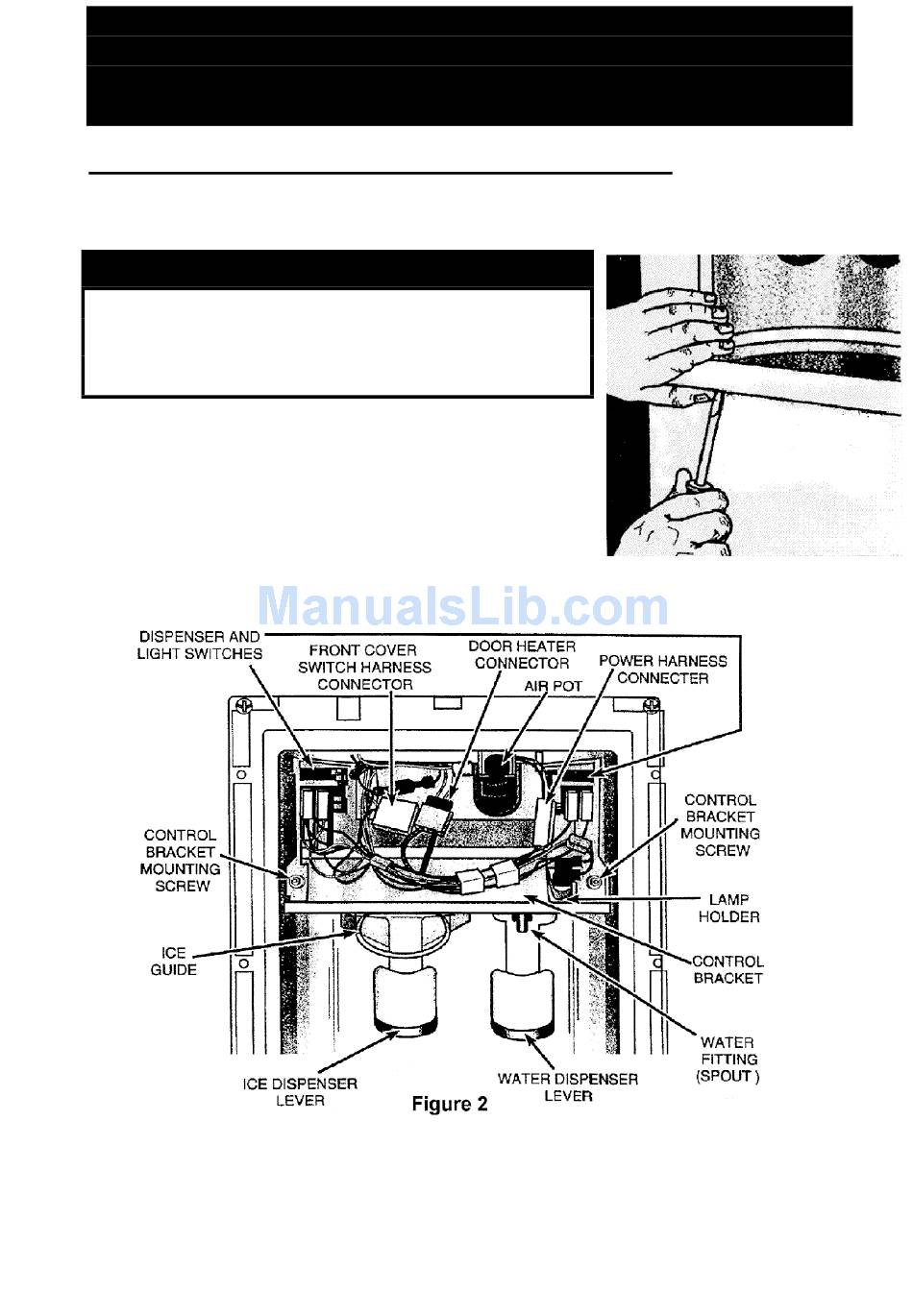

Refer to Figure 2 for the following steps :
6ED22DQXFB02 6ED22DQXFW02
6ED22DQXFB03 6ED22DQXFW03
WARNING
Page 3 of 36
Figure 1
