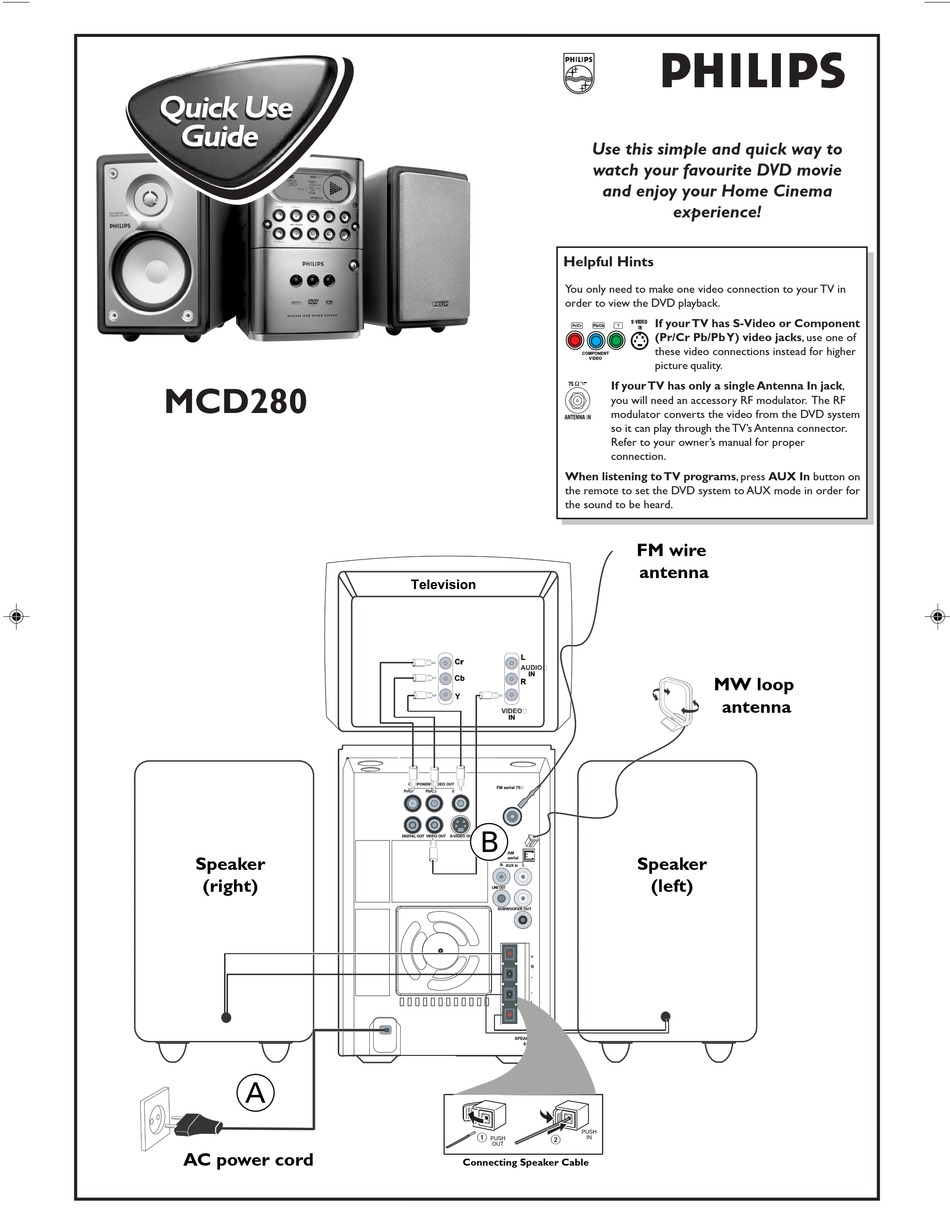

Philips MCD280/30 Quick Use Manual

MCD280
Speaker
(right)
A
AC power cord
Television
L
Cr
IN
Cb
R
Y
IN
COMPONENT VIDEO OUT
FM aerial 75
Pr/Cr Pb/Cb Y
B
DIGITAL OUT VIDEO OUT S-VIDEO OUT
AM
aerial
R L
AUX in
LINE OUT
SUBWOOFER OUT
+
R
-
-
L
+
SPEAKER
8
1
2
PUSH
OUT
Connecting Speaker Cable
Use this simple and quick way to
watch your favourite DVD movie
and enjoy your Home Cinema
experience!

Helpful Hints

You only need to make one video connection to your TV in
order to view the DVD playback.
If your TV has S-Video or Component
(Pr/Cr Pb/Pb Y) video jacks, use one of
these video connections instead for higher
picture quality.
If your TV has only a single Antenna In jack,
you will need an accessory RF modulator. The RF
modulator converts the video from the DVD system
so it can play through the TV's Antenna connector.
Refer to your owner's manual for proper
connection.
When listening to TV programs, press AUX In button on
the remote to set the DVD system to AUX mode in order for
the sound to be heard.
FM wire
antenna
MW loop
Speaker
(left)
PUSH
IN
antenna
