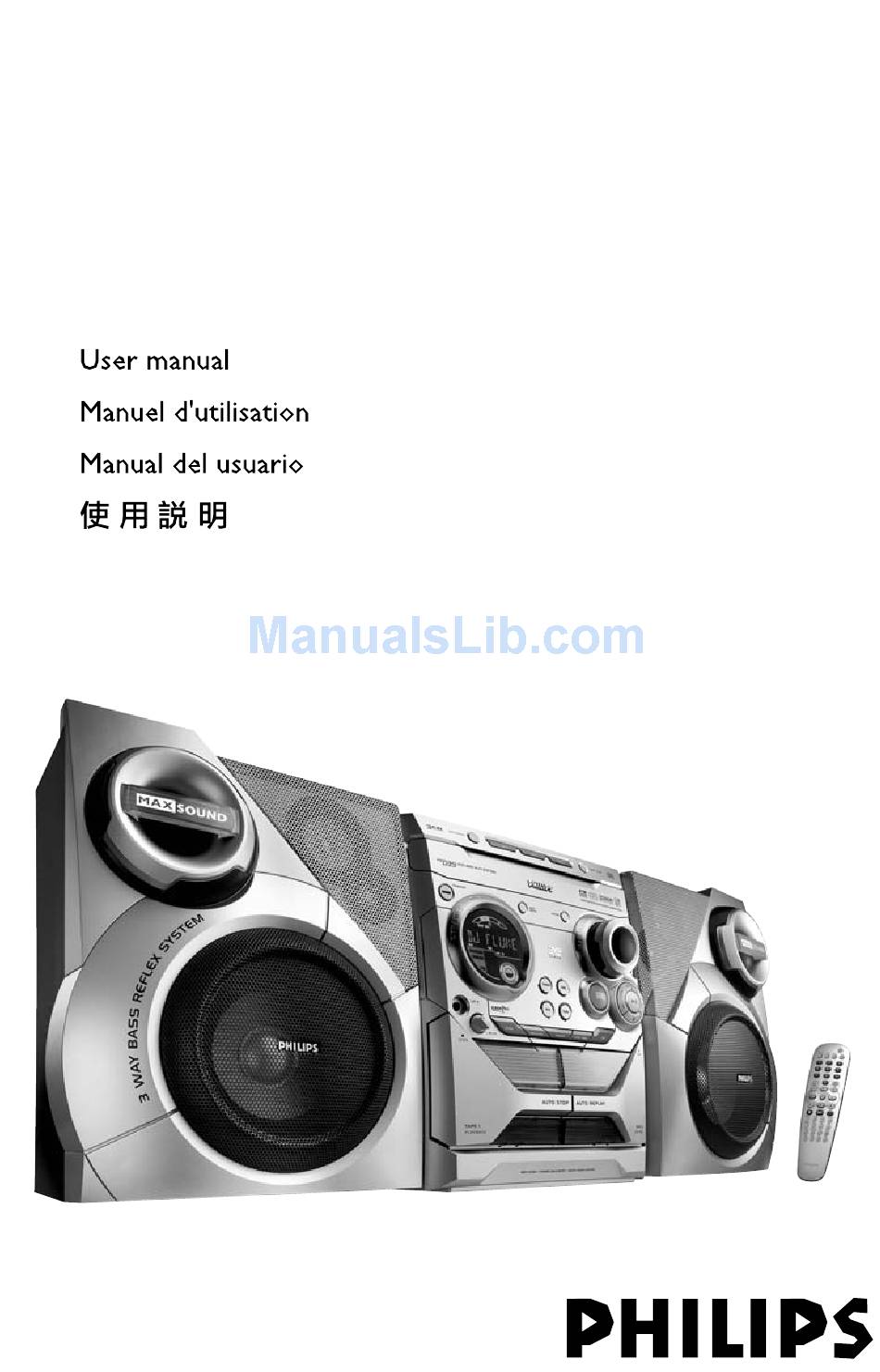

  • Page 1 FWD39 DVD Mini-HiFi System...

  • Page 2: Aviso Importante

    País de Origen: China Nº de Serie: LEA CUIDADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
  • Page 3 ≤ ∞ § £ ™ ¡ &...

  • Page 4: Plug And Play

    PLUG & PLAY -for tuner installation...
  • Page 5 Manufactured under license from Dolby Laboratories. “Dolby”, “Pro-logic” and the double-D symbol are trade- marks of Dolby Laboratories. MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS, INC . US PAT. NO 5,451,94; 5,956,674; 5,974,380; 5,978,762; 6,226,616;6,487,535 AND OTHER U.S. AND WORLDWIDE PATENTS ISSUED AND PENDING.

  • Page 6: Table Of Contents

    Contents General Information/ Maintenance Features ... 8 Discs for playback ... 8 Region codes Supplied accessories ... 8 Environmental information ... 9 Care and safety information ... 9 Connections Step 1: Placing speakers ... 10 Step 2: Connecting speakers ... 10 Step 3: Connecting TV set ...
  • Page 7 Tuner Operations Tuning to radio stations ... 35 Presetting radio stations ... 35~36 Automatic preset programming Manual preset programming Selecting a preset radio station ... 36 Deleting a preset radio station Changing tuning grid ... 36 Tape Operation/Recording Tape playback ... 37 General information on recording ...

  • Page 8: General Information/Maintenance

    General Information/Maintenance Features Your DVD Mini Hi-Fi System with 2-channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology. Other features include: Built-in DTS and Dolby Digital decoder, supporting virtual surround and stereo.

  • Page 9: Environmental Information

    Cleaning the disc lens After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

  • Page 10: Connections

    Connections Step 1: Placing speakers Place the front left and right speakers at equal distances from the TV set and at an angle of approximately 45 degrees from the listening position. Notes: – To avoid magnetic interference, do not position the front speakers too close to your TV set.

  • Page 11: Step 3: Connecting Tv Set

    Step 3: Connecting TV set SPEAKER 6 SPEAKER 6 SPEAKER 6 IMPORTANT! – You only need to make one video connection from the following options, according to the capabilities of your TV system. – S-Video or Component Video connection provides higher picture quality.

  • Page 12: Using S-Video In Jack

    RF In), you will need a RF modulator in order to view the DVD playback via TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. Using an accessory RF modulator Use the composite cable (yellow) to connect the system’s VIDEO jack to the video input jack on...

  • Page 13: Step 4: Connecting Fm/Mw Antennas

    Step 4: Connecting FM/MW antennas antenna fix the claw into the slot Connect the supplied MW loop antenna to the MW jack. Place the MW loop antenna on a shelf or attach it to a stand or wall. Connect the supplied FM antenna to the FM jack.

  • Page 14: Step 6: Connecting A Vcr Or Cable/Satellite Box

    Connections Step 6: Connecting a VCR or cable/satellite box S-VIDEO AUDIO VIDEO IN Viewing and listening to playback Connect the VCR or Cable/Satellite Box to the TV system as shown. Connect the system’s AUX IN jacks to the AUDIO OUT jacks on the VCR or Cable/ Satellite box.

  • Page 15: Functional Overview

    Controls on the system STANDBY ON – to switch the system on, to Eco Power or Standby mode. DISPLAY SCREEN – to view the current status of the system. SOURCE – to select the following: DISC (DISC 1•2•3) – to select disc tray 1, 2 or 3 TUNER (BAND) –...

  • Page 16: Remote Control

    Functional Overview Remote control • ≥ § ∞ Notes: – First, select the source you wish to control by pressing one of the source select keys on the remote control (DISC or TUNER, for example). – Then select the desired function (¡, O or P for example).
  • Page 17 ECHO – to adjust the echo level in karaoke mode. – to change the tone level to suit your vocal range. ¡ DISPLAY (OSD) – to view the time, title or chapter information. ™ MUTE – to interrupt or resume sound reproduction. £...

  • Page 18: Basic Functions

    Basic Functions Plug and Play (for tuner installation) Plug and play allows you to store all available radio stations automatically. If plug and play has not been installed When you turn on the system, “AUTO INSTALL- PRESS PLAY” will be displayed. Press 38 on the system to start installation.

  • Page 19: Preparations

    IMPORTANT! – Make sure to complete the preparation procedures before operating the system. Step 1: Inserting batteries into the remote control Open the battery compartment. Place two batteries (Type R06 or AA) in the compartment with the correct polarity as indicated by “+”...

  • Page 20: Step 3: Setting The Tv Set

    (or press DISC 1/2/3 on the remote control). Turn on the TV set and set to the correct Video- In channel. You should see the blue Philips DVD background screen on the TV set. You may go to channel 1 on your TV set, then press the channel down button repeatedly until you see the Video In channel.

  • Page 21: Step 4: Setting Language Preference

    Step 4: Setting language preference You can select your preferred language settings so that this DVD Mini Hi-Fi System will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the language set by default will be used instead.

  • Page 22: Disc Operations

    Power on the TV system and set to the correct Video In channel (See Setting the TV set). You should see the blue Philips DVD background screen on the TV set. Press OPEN/CLOSE to open the disc tray and load a disc respectively in the first two disc trays..

  • Page 23: Basic Playback Controls

    Basic playback controls To play discs in all the disc trays Press 38. All the available discs will play once, then stop. During playback, the selected disc tray, elapsed playing time of the current track will appear on the display. To start playback from a selected disc tray Press DISC 1, DISC 2 or DISC 3.

  • Page 24: Shuffle Play Mode

    Disc Operations MENU OFF: Press REPEAT repeatedly to select the following: REPEAT TRACK REPEAT DISC REPEAT OFF Notes: – When you open the disc tray, the Repeat function will be cancelled automatically. – For CVD, SVCD and VCD 2.0 discs, the Repeat function is not available unless the PBC function is set to OFF.

  • Page 25: Changing Discs During Playback

    Changing discs during playback Press DISC CHANGE. The disc tray will open without interrupting playback. To change the inner disc, press DISC CHANGE again. The active disc will stop playing and the disc tray will close to retrieve the inner disc, then reopen with the inner disc accessible.

  • Page 26: Playing From A Selected Point

    Disc Operations Playing from a selected point This function allows you to start playback at any chosen time on the disc. For DVD Press GOTO twice to activate time menu. Enter hours, minutes and seconds from left to right in the time edit box using the numeric keys (0-9).

  • Page 27: Viewing From Another Angle

    Select from the menu bar and press 4 repeatedly to change the following zooming scale: ZOOM X1.5 pZOOM X2 pZOOM X4 pZOOM OFF To pan through the enlarged image, press SYSTEM MENU to exit and press 1 / ¡ / 5 / 4 buttons to move the zoomed picture left, right, up or down.

  • Page 28: Mp3/ Wma/ Picture Disc Operations

    MP3/ WMA/ Picture Disc Operations Playing MP3/ WMA/ Picture disc (Kodak, JPEG) IMPORTANT! – You have to turn on your TV set and set to the correct Video In channel. (See Setting the TV set.) MP3/ WMA/ JPEG Picture disc Load an MP3/WMA/ Picture (JPEG) disc.

  • Page 29: Dvd Menu Operations

    Using the menu bar You can continue some operations directly via the menu bar on the TV screen without interrupting the disc playback. But when you enter (SETUP MENU), the playback will pause. 2, 3 In disc mode, press SYSTEM MENU. The menu bar will appear across the top of the TV set screen.

  • Page 30: Using The Setup Menu

    DVD Menu Operations Using the setup menu (user preference settings) This DVD setup is carried out via your TV set, enabling you to customize the DVD Mini Hi-Fi System to suit your particular requirements. 2, 3 In disc mode, press SYSTEM MENU. The menu bar will appear across the top of the TV screen.

  • Page 31: Using Progressive Scan To Improve Image Quality

    In stop mode, press OPEN/CLOSE on the front panel to switch open the disc tray. Press numeric key “1”. The blue Philips DVD background appears on the TV screen. Setting the screen saver If set to ON, the screen saver will be activated when you leave the system in stop or pause mode for 3 minutes.

  • Page 32: Setting The Digital Output

    DVD Menu Operations Setting the digital output Set Digital Output according to your optional audio equipment connections. Select this to deactivate the digital output. Select this if you have connected the digital output to a piece of optional audio equipment that has a multichannel decoder.

  • Page 33: Changing The Password

    Changing the password You can change the four-digit code used as Password. In disc mode, press SYSTEM MENU. Select icon and press 4. Press 1 / ¡ / 5 / 4 on the remote control to navigate in the menu. icon and press ¡.

  • Page 34: Restricting Playback By Setting Parental Level

    DVD Menu Operations Restricting playback by setting parental level Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country specific.

  • Page 35: Tuner Operations

    IMPORTANT! – Make sure FM and MW antennas are connected. Tuning to radio stations Press TUNER to select “FM XX” or “MW XX”. Press and hold 1 / ¡ on the system or on the remote control until the frequency indication starts to change, then release.

  • Page 36: Manual Preset Programming

    Tuner Operations Manual preset programming Press TUNER (BAND) repeatedly to select the desired tuner band: FM or MW. Press and hold 1 / ¡ on the system or on the remote control to search a radio frequency. Press PROGRAM. “PROG” and “01” will display. Press O / P or numeric keys (0-9) to select the desired preset number.

  • Page 37: Tape Operation/Recording

    IMPORTANT! – Before playing a tape, check and tighten slack tape with a pencil. Slack tape may get jammed or may burst in the mechanism. – Store tapes at room temperature and do not put them too close to a magnetic field (for example, a transformer, TV set or speaker).

  • Page 38: Preparation For Recording

    Tape Operation/Recording IMPORTANT! – Recording is permissible if copyright or other rights of third parties are not infringed upon. – Recording is possible only in tape deck Preparation for recording Load a recordable tape into tape deck 2 with the full spool to the left. Prepare the source to the recorded.

  • Page 39: Clock/Timer Operations

    Viewing the clock The clock (if it is set) will be shown in Standby mode. Press CLOCK/TIMER to view clock in any source mode. Press DISPLAY on the system to select 12- hour or 24-hour mode. If the clock has not been set, “--:--“ will blink until you set the clock.

  • Page 40: Timer Operations

    Timer Operations To deactivate the timer Press and hold CLOCK/TIMER until “SELECT CLOCK OR TIMER” is displayed. Press O or P to change the display to “TIMER”. Press CLOCK/TIMER again to confirm. “TIMER OFF” will be displayed and TIMER will disappear. Notes: –...

  • Page 41: Sound And Volume Controls

    Sound control MAX Sound MAX sound provides the best mixture of various sound features. Press MAX SOUND on the system or MAX button on the remote control to achieve optimal sound. When MAX sound is activated, and “MAX ON” will appear on the display for 3 seconds.

  • Page 42: Other Functions

    Other Functions Switching on/off Switching the system ON In ECO Power/ Standby/ Demonstration mode Press STANDBY ON The system will go back to its previous status. Press DISC, TUNER, TAPE, AUX The system will switch to the selected source. Switching the system to STANDBY mode In demonstration mode Press and hold STOP 7 on the system.

  • Page 43: Key Control

    Key control This feature allows you to change the key tone when you play a DVD or VCD disc. Press KEY. “KEY CONTROL ON” will be display on the TV screen for 5 seconds. The Key Control indicator will flash when you press VOL +/- to change the key tone level.

  • Page 44: Specifications

    Frequency Response ... 4 Hz - 20 kHz (44.1kHz) ... 4 Hz - 22 kHz (48kHz) ... 4 Hz - 44 kHz (96kHz) Digital Output ..SPDIF (Sony Philips digital interface) Coaxial PCM ... IEC 60958 Dolby Digital/DTS ... IEC 60958, IEC 61937 MAIN UNIT Power Supply Rating ...

  • Page 45: Troubleshooting

    Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power.
  • Page 46 Troubleshooting Problem The language for the sound or subtitle cannot be changed when playing a DVD. No image is output when a function is selected. Sound cannot be heard or is of poor quality Poor radio reception. Recording or playback cannot be made The tape deck door cannot open Left and right sound outputs are reversed.
  • Page 47 Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs.
