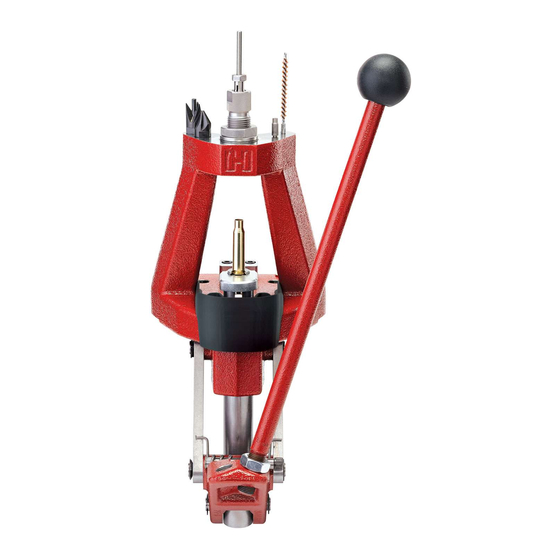

- Page 1 OWNER'S MANUAL LOCK-N-LOAD ® IRON PRESS Instructional and troubleshooting videos for this product are available on the Hornady website. Item No. 085520...
-
Page 2: Exploded View
EXPLODED VIEW - 2 -... -
Page 3: Parts List
NO-RISK LIFETIME WARRANTY All Hornady reloading tools and accessories are warranted against material defects and workmanship for the life of the product. Simply stated – if it breaks, we’ll repair it or replace it at no charge (at Hornady Manufacturing Company’s discretion). - Page 4 AUTO PRIMER FEEDER 21 22 23 12 13 EXPLODED VIEW Item No. Part No. Qty. Description Item No. Part No. Qty. Description 399609 SSPF Base 398358 (LG) Large Press Primer Tube 399610 SSPF Cap 390007 Primer Cup Spring 399611 SSPF Primer Shuttle 399665 SSPF Shuttle Spring 399612...
- Page 5 Bushing. ® STEP 1 Adjust the die to the proper position and lock your setting into place with Hornady’s unique Sure-Loc lock ring. ™ To change calibers, simply twist the die counter-clockwise, remove die and insert your next preset Lock-N-Load ®...
- Page 6 With a shell holder in the ram, the collar is installed over top of the shell holder, and its O-Ring should provide a snug fit. NOTE: Only Hornady, RCBS, and Lee shell holders are compatible with the shell assist collar. Shell Assist Collar Insert and adjust the sizing die.
- Page 7 B. If using the auto prime system: Figure 4 Refer to the exploded view on page 4 for visual reference and part names. If your Iron Press was purchased as a kit, the main body (base and cap) of the priming system should be installed and set correctly from the factory.
- Page 8 Primer Filler Tube Carefully transfer the primers out of their factory (Large or Small) package into a Hornady Primer Turning Plate and orientate them “shiny side up.” Then holding the Primer Primer Filler Tube Filler Tube (large or small) like a pencil bring the plastic...
- Page 9 Clean, inspect and lubricate all cases before resizing. Using a case lube pad or Hornady One Shot Case Lube, ® ® it is easy to lubricate the body portion of the bottle neck cases. A minimum of lubricant should be used on the neck portion since trapped lubricant may cause the shoulder to buckle.
- Page 10 Correct Primer Position - Anvil is Up Charge prepared cases with selected powder Weigh using either a scale, or powder measure in conjunction with a scale. Refer to the Hornady Handbook of Cartridge Reloading or any other reputable source for proper loads.
- Page 11 DIE BUSHINGS & PRESS BUSHINGS Lock-N-Load ® Lock-N-Load ® O – Ring Press Bushing Die Bushing Part #392303 Part #392301 Part #392302 Lock-N-Load Die Bushings ® Lock-N-Load die bushings are available in convenient packs ® of two, three, or ten. Put a Lock-N-Load die bushing on all ®...
- Page 12 P.O. Box 1848, Grand Island, Nebraska 68802-1848 308-382-1390 • 800-338-3220 • Fax: 308-382-5761 www.hornady.com • Hornady.com/contact_us 11/2016 688037-REV2...
