Use this simple and quick way to listen to
Hook Up
Hook Up
your favorite CD, cassette, or radio station.
Guide
Guide
T

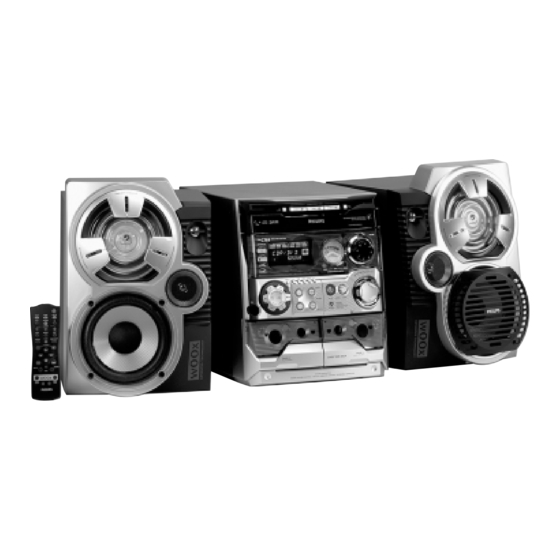

C788 M
FW
O CONNECT YOUR
SYSTEM FOLLOW THESE STEPS
1
ANTENNA CONNECTIONS
Connect the supplied AM loop antenna to the AM ANTEN-
A
NA jacks.
Connect the supplied FM antenna to the FM ANTENNA
B
jacks. For better reception connect an outdoor FM antenna (not
supplied).
Adjust the antennas for optimal reception.
C
2
SPEAKER CONNECTIONS
Connect the Right speaker wires to the "R" jacks .
A
Connect the colored wire to the "—" jack and the black wire to
the "+" jack.
Connect the Left speaker wires to the "L" jacks .
B
Connect the colored wire to the "—" jack and the black wire to
the "+" jack.
3
FINAL PREPARATION
Insert two (2) AA batteries into the remote control. Be
A
sure to line up the polarity, + to + and - to -.
Plug the AC power cord into an outlet.
B
1C
AM loop
antenna
H
-F
INI
I
I
:
speaker
1A
R
L
LINE
OUT
R
L
(right)
AUX/
CDR
IN
2A
DIGITAL OUT
-
R
+
-
L
+
SPEAKERS 8Ω
3A
FM wire antenna
AM ANTENNA FM ANTENNA
2B
AC
MAINS
AC power cord
1B
speaker
(left)
3B
H
H
ELPFUL
INTS
• Be sure to see the "Plug and Play"
section on the other side.
