Summary of Contents for StarTrac e-sm stairmill

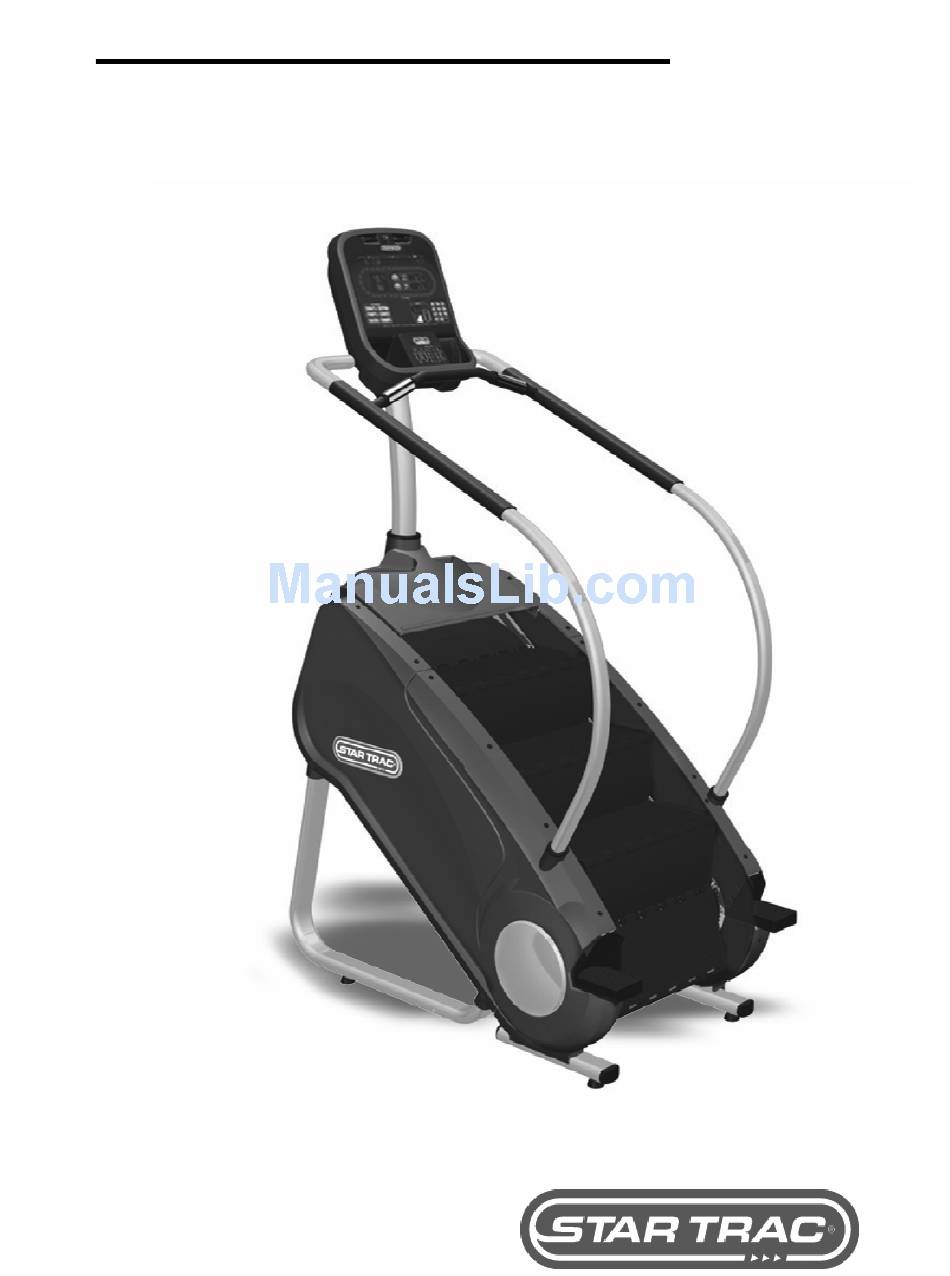

- Page 1 StarTrac E-SM StairMill Install Guide...
-
Page 2: Tools Required
SSEMBLY AND ETUP OOLS EQUIRED Most STAR TRAC E-SM StairMill can be assembled using the following tools (not included): • Metric Hex Key Wrenches • Metric Open-End Wrenches • Metric Ratchet Socket Wrench Set • Torque Wrench • Channel Lock Pliers •... - Page 3 Bracket Mast Mount Mast Assembly with Rubber Gasket Left Shroud Right Shroud Front Handrail Side Rails (Left and Right) STAR TRAC E- SM STAIRMILL Install Guide...
- Page 4 Main assembly Hardware #1 Screw 5/16‐18 X ¾” Button Screw M6 x 65mm Socket Head (4) Screw 3/8‐16 X 1” Button Head Black (4) Head (4) Washer 5/16 Flat Black (4) Screw 3/8‐16 X 3 5/8” Button Head (2) Screw 5/16‐18 X 1 ¾” Button Head (4) Washer M8.5 Flat (4) Washer M10 Flat (12) Clevis Pin (2) Cotter Pins (2) Main assembly Hardware #2 Leveler (4) Rivets (34) Washer, M6 Lack (4) Nut, 3/8” Nylon Hex (6) Nut, 5/16” Nylon Hex (4) Rivet Puller (1) STAR TRAC E- SM STAIRMILL Install Guide...
-
Page 5: Unpacking And Assembly
UNPACKING AND ASSEMBLY NOTE: Inspect the shipping carton for any parts that may be missing BEFORE discarding the carton. Items can shift during transportation, and may be accidentally discarded with the carton. If any parts are missing, please contact Star Trac Support at 800- 503-1221. - Page 6 2. Install the R a i l s 2a - Secure the bracket Mast Mount to the frame using 5/16-18 X ¾” button head screw and washer M8.5 Flat. Figure 2a 2b - Keep hold of the cables and rotate the display up. Now slide the neck over the two mount in the lower neck, take special care not to pinch the cables or your finger when the two pieces come together.
- Page 7 3. Install the Display Mast 3a - Feed the cables from the upper neck through the upper neck. Take care not to damage the display or handlebar on the ground. Make sure the gasket and top shroud are properly installed. Note: This step may require two people.
-
Page 8: Install Display
4b - Attach the side rail inserts to the main frame using rivets. Ensure the shroud mates with side rails. Fit for item rubber sleeves must be secure within perspective plastics. *Repeat the same process for the opposite side. Figure 4b 5. - Page 9 5c - Mount the rear cover to the handrails. Attach using the 4 M4 x 0.7 screws provided. Figure 5c 5d - Plug in the 12 pin display cable from the neck into the front display circuit board at J4. Next plug in the heart rate cable from the handlebars into the HR board, then plug the HR ground into the quick disconnect tab on the display frame.
- Page 10 Loosen the lock nuts on the adjusters. Rotate the adjusters until the unit is stabilized, then retighten the lock nuts. You have now completed the assembly of your STAR TRAC E-SM StairMill. Figure 8a STAR TRAC E- SM STAIRMILL Install Guide...
