Philips Semiconductors
Product specification
Low voltage mono/stereo power amplifier
TDA7050T
APPLICATION INFORMATION

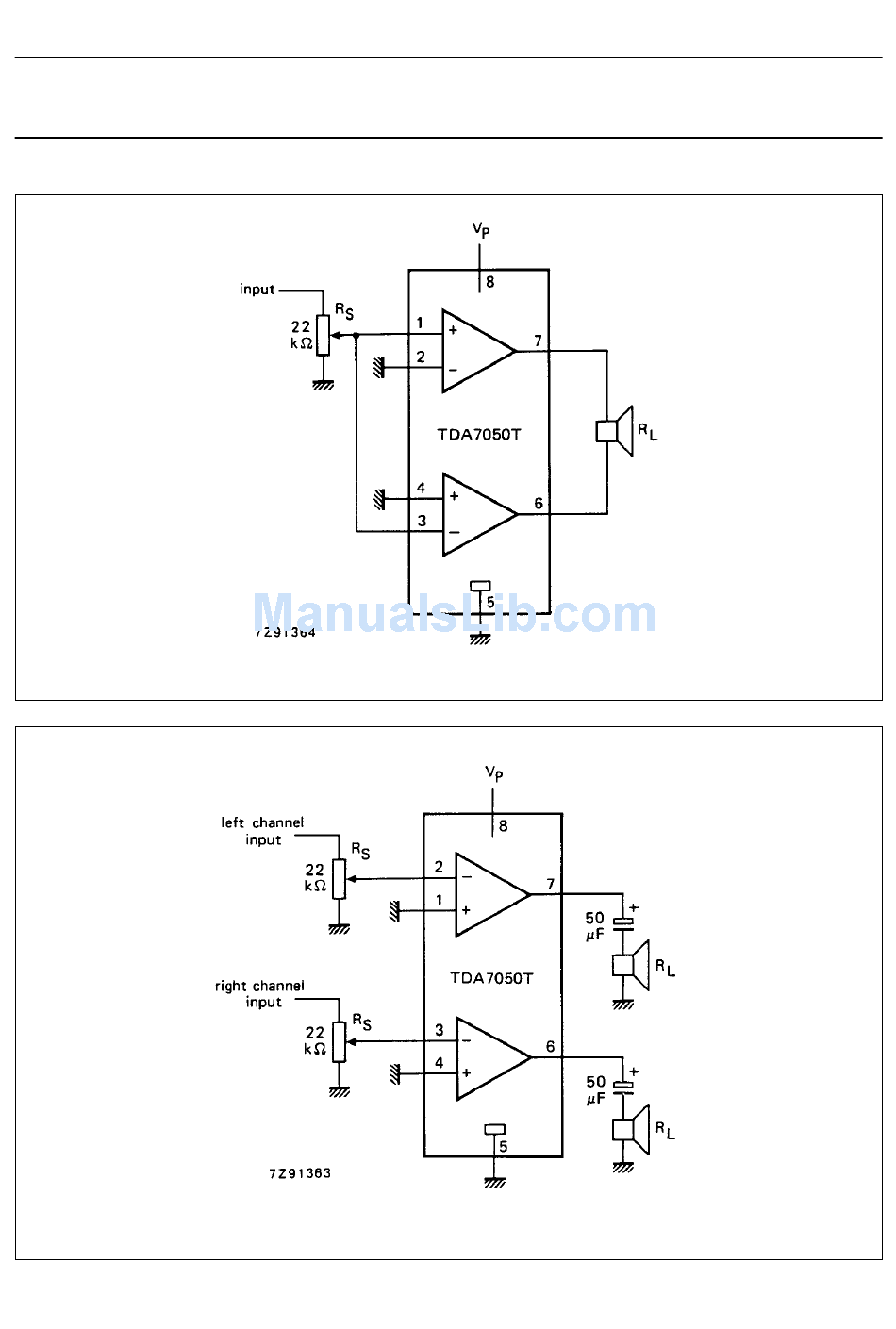

Fig.4 Application diagram (BTL); also used as test circuit.
Fig.5 Application diagram (stereo); also used as test circuit.
July 1994
6
