Philips Semiconductors
IF amplifier/demodulator for FM radio
receivers

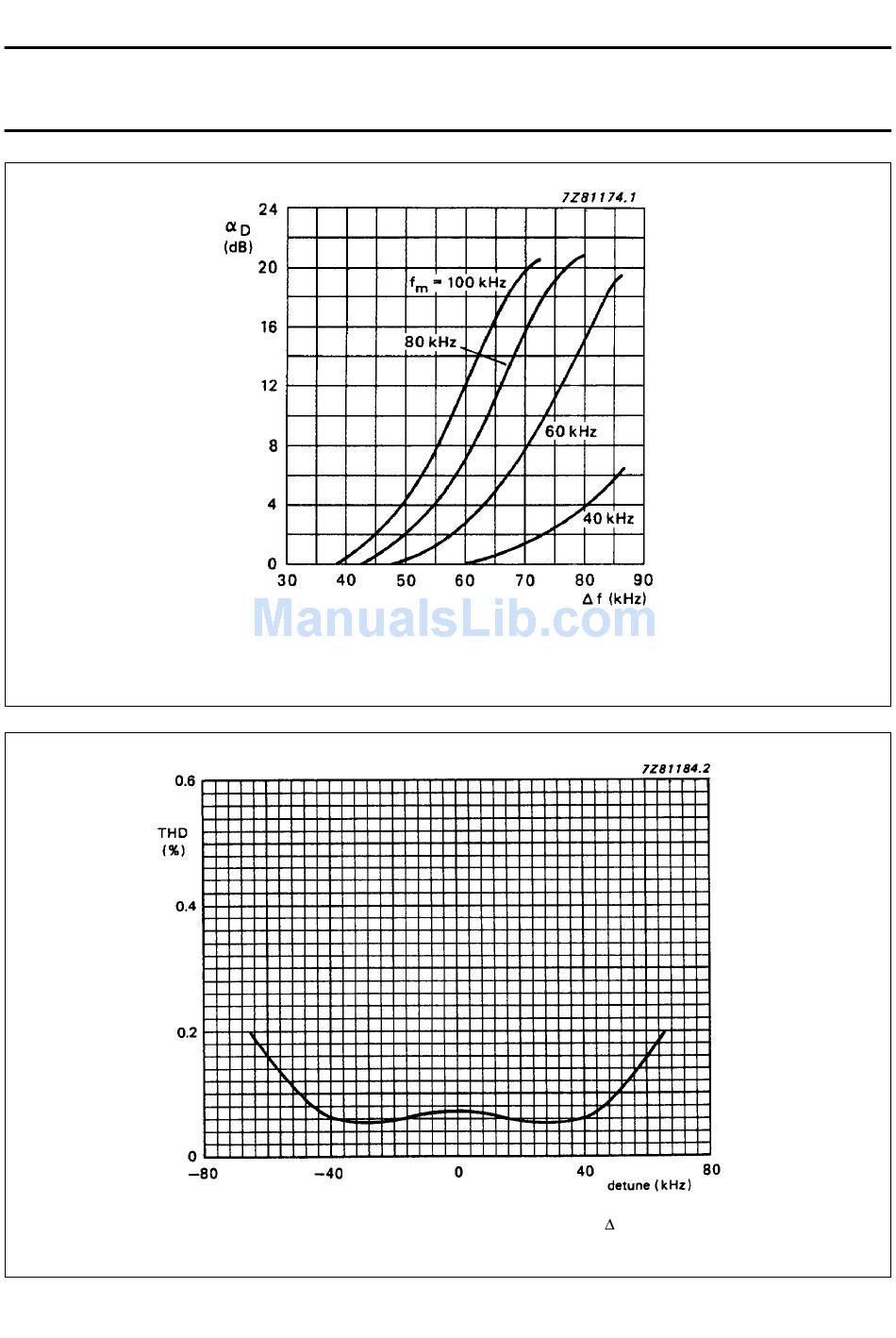

Fig.14 Dynamic mute attenuation as a function of frequency deviation for modulation frequencies of 40, 60, 80
and 100 kHz.
Fig.15 THD as a function of detuning, mode switch at FM, mute-on position; f = 75 kHz; f
V
= 10 mV.
20(rms)
April 1991
18
Product specification
TDA1596T
= 1 kHz;
