If amplifier/demodulator for fm radio receivers
Table of Contents
Philips Semiconductors
IF amplifier/demodulator for FM radio
receivers

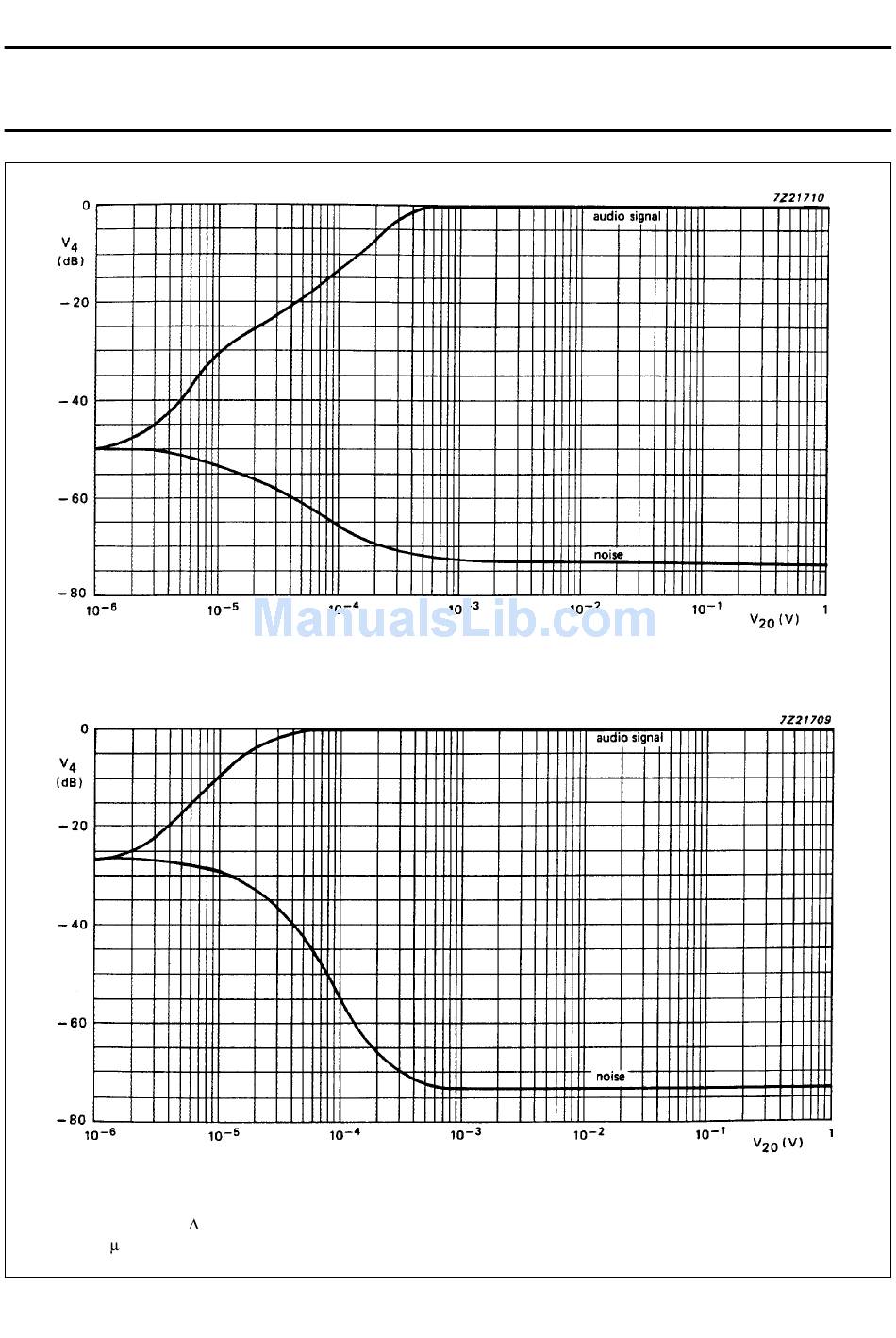

Fig.13 Audio signal ( f = 22.5 kHz; f
50 s de-emphasis.
April 1991
(a) mode switch at FM, mute-on
(b) mode switch at FM, mute-off
= 1 kHz) and noise as functions of input voltage at pin 20; measured with
m
17
Product specification
TDA1596T
