IF amplifier/demodulator for FM radio
receivers

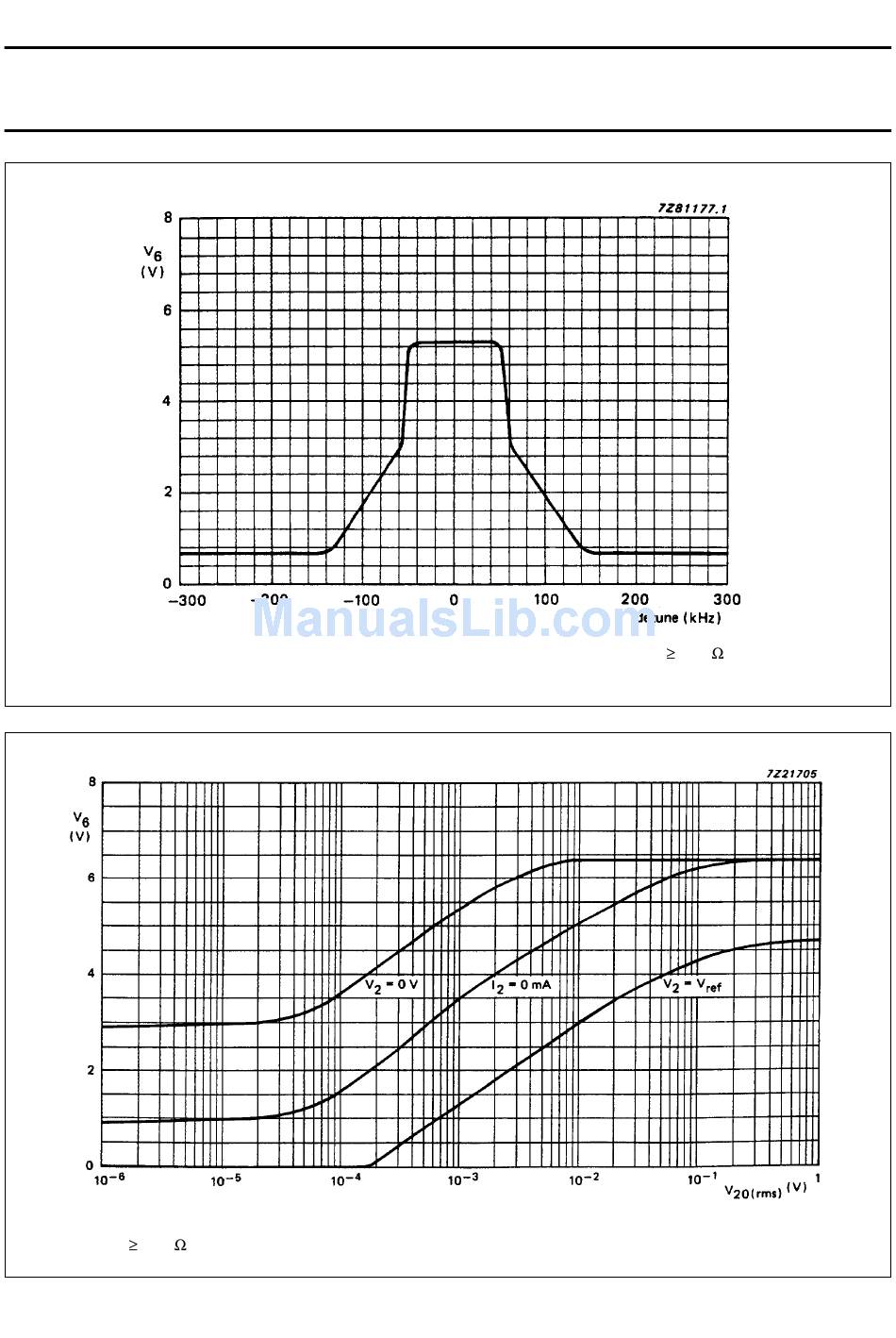

Fig.8
Weighted field strength output voltage (pin 6) as a function of detuning; R
V
= 10 mV.
20
Fig.9
Adjustment range of weighted field strength output voltage (pin 6) with level shift control (pin 2);
R
10 k ; I
6-17
April 1991
= 0 mA.
7
14
Product specification
TDA1596T
10 k ; I
= I
= 0 mA;
6-17
2
7
