Philips Semiconductors
IF amplifier/demodulator for FM radio
receivers
Fig.6

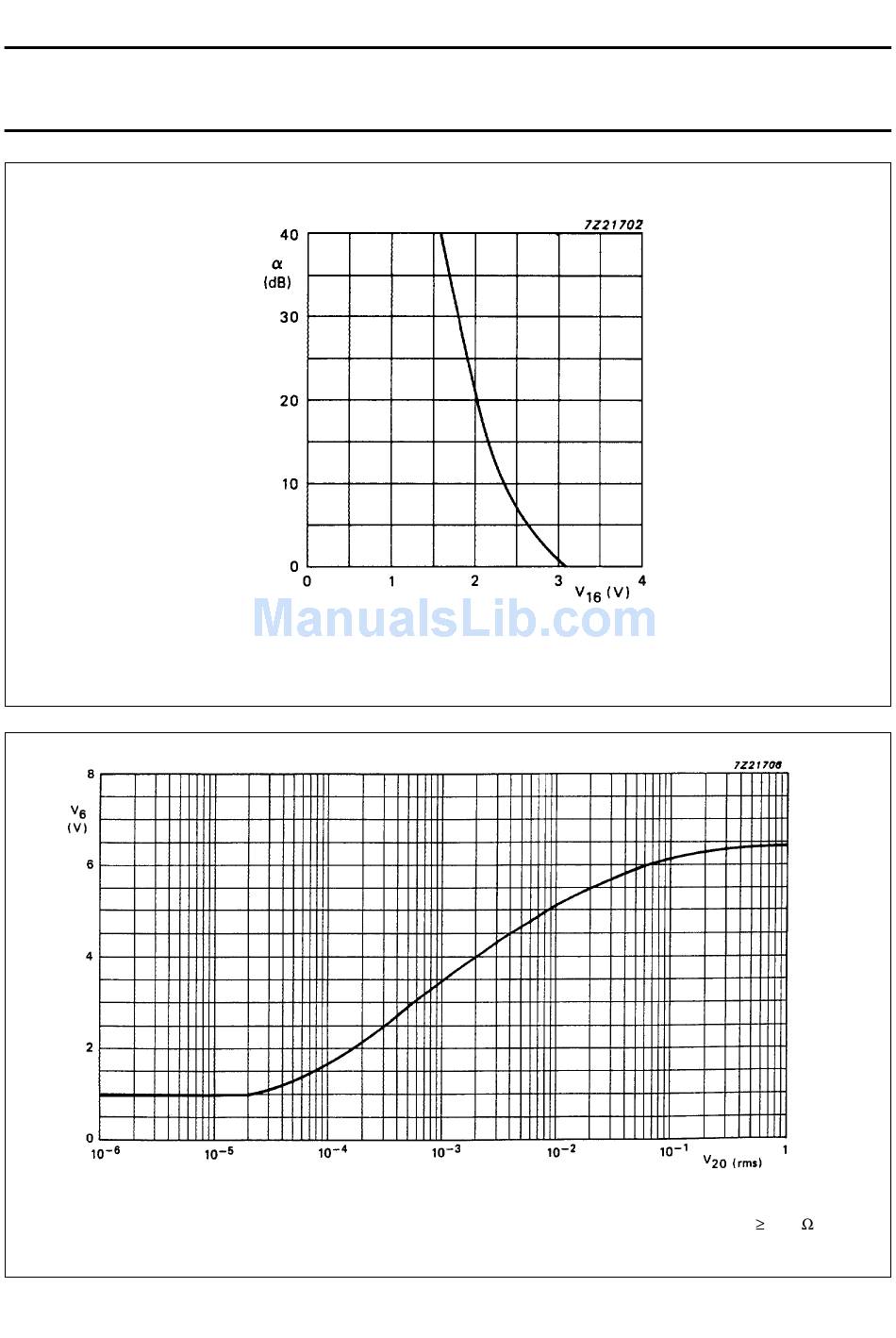

Typical curve of internal attenuation showing the relationship between the mute attenuator control voltage
(pin 16) and mute attenuation; I
Fig.7
Weighted field strength output voltage (pin 6) as a function of input voltage (pin 20); R
I
= I
= 0 mA.
2
7
April 1991
= I
= 0 mA
2
7
13
Product specification
TDA1596T
10 k ;
6-17
