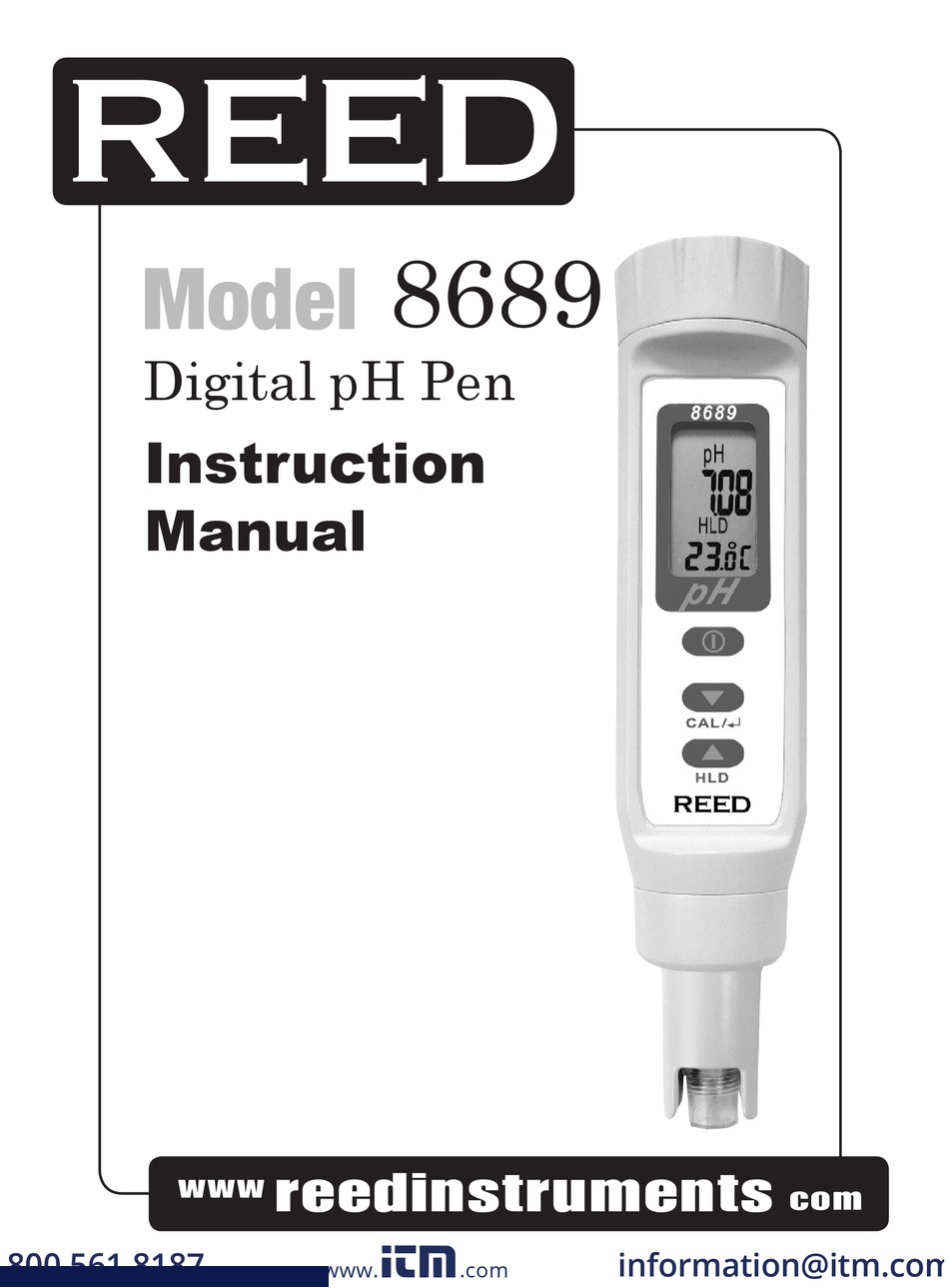

  • Page 1 Black 8689 Model Pantone 534 Blue - 100/80/30/5 Digital pH Pen Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments 1.800.561.8187 information@itm.com www. .com...

  • Page 2: Table Of Contents

    Maintenance ................8 Troubleshooting ..............8-10 Battery.Replacement..............9 Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For.service.on.this.or.any.other.REED.product.or.information.on.other. Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow REED.products,.contact.REED.Instruments.at.info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue...

  • Page 3: Features

    Features •.Dual.displays.of.temperature.and.pH •.°F.or.°C.temperature.measurement •.Automatic.temperature.compensation.assures.that.readings.are.cor- rected.for.temperature.offsets •.One.touch.calibration.for.up.to.3.points •.Calibration.values.are.adjustable •.Data.hold •.Electrode.status.indication •.Replaceable.pH.electrode.module •.Waterproof.housing.(IP65) •.Low.battery.indicator •.Auto.power.off.after.20.minutes.of.inactivity •.Protective.sensor.cap.keeps.sensor.moistened Specifications pH.Range:. 0.00.to.14.00.pH. Resolution:. 0.01.pH Accuracy:. ±0.05.pH Temp..Range:. 0.to.60.0°C. Resolution:. 0.1°C Accuracy:. ±0.5°C Power.Supply:. 4.LR44.button.cell.batteries Dimensions:. 176.x.39.x.39mm Weight:. 110g Includes:. Batteries Blue - 100/80/30/5 Pantone 534 Blue Optional.Accessories:.

  • Page 4: Instrument.description

    Instrument Description Display Description The.1st.display.shows.the.measured.pH.reading.. The.2nd.display.shows.the.temperature.reading.(C.or.F). Cal.-.Calibration.mode. HLD.-.Data.hold. Battery.icon.to.indicate.low.power. uS/ppt/ppm/mS/mV.are.invalid.units.in.this.pH.pen. Keypad Description -.Press.to.freeze.the.current.reading. -.Press.again.to.release.hold. -.Press.to.adjust.while.in.setting.or.calibration.mode. -.Press.to.enter.calibration.mode.. -.Press.to.save.and.enter.next.step.while.in.setting.mode. -.Press.to.adjust.while.in.calibration.mode -.Press.to.power.the.meter.on/off.. -.Press.for.2.seconds.to.enter.the.setting.mode..before.power.on. -.Press.with.“HOLD”.key.to.disable.auto.off.function.before..power.on Operating Instructions Soak.the.electrode.in.water.for.at.least.30.min.before.using.to.prevent.de- layed.readings.or.to.make.the.electrode.wet.if.the.pH.electrode.dries.out.. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Remove.the.probe.cover.from.meter.(see.Fig.1)..Rotate.the.transparent. Red - 10/100/100/5 Pantone 485 Red cap.to.expose.the.electrode.(see.Fig.2).

  • Page 5: Data Hold

    Dip.the.electrode.into.the.test.solution..Press.the.Power.button.to.power. on.the.meter. The.LCD.screen.will.flash.“pH”.when.the.meter.is.in.measurement.mode.. The.LCD.will.then.display.the.measured.pH.and.temperature..“pH”.stop. flashing.when.the.reading.is.stable.. Once.finished.taking.measurements,.press.the.SET.button,.clean.the.. electrode,.put.the.transparent.electrode.cap.and.meter.cover.back.on.. Data Hold Press.the.“HOLD”.button.to.freeze.the.current.reading..“HLD”.will.appear. on.the.LCD.screen..Press.the.“HOLD”.button.again.to.exit.Hold.Mode. Auto Power Off This.meter.will.shut.off.automatically.after.20.minutes.of.inactivity.. To.disable.the.auto.power.off: Before.turning.the.unit.on,.press.the.“SET”.button.and.“HOLD”.button. Blue - 100/80/30/5 Pantone 534 Blue simultaneously.until.an.“n”.appears.on.the.screen..Release.the.buttons.to. Yellow - 0/27/100/0 Pantone 123 Yellow return.to.normal.measuring.mode.. Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Note:.After.the.unit.is.turned.off.the.Auto.Power.Off.will.be.re-enabled.by.

  • Page 6: Parameter Setting

    Parameter Setting The.Parameters.Setting.function.could.help.you.to.check.or.program.your. meter..To.enter.the.Setting.function,.when.meter.is.off,.press.the.“SET”. button... Probe Slope and Offset Value. After.re-calibration,.checking.the.Probe.Slope.and.Offset.Value.could.help. to.confirm.if.it.is.necessary.to.replace.the.probe.. While.doing.3.points.of.calibration,.there.are.two.available.Slope.Values. and.one.Offset.Point. -.Range.1(.SL1):.0.00.to.2nd.point. -.Range.2.(SL2):.2nd.point..to.14.00pH.. -.Offset.Point.is.at.pH7 While.doing.1.or.2.points.of.calibration,.the.Slope.Value.SL1.equals.to. SL2..The.offset.point.is.still.at.pH7. You.will.need.to.change.the.probe.when.the.Slope.Value.is.<75.or.>115. (The.unit.is.%)..When.the.Offset.value.is.out.of.the.-60mV~.+60mV.range,. you.will.need.to.change.the.probe.as.well. When.the.meter.is.off,.press.the.“SET”.button.to.enter.setting.mode..SL1. value.will.appear.on.LCD.screen..Press.the.“CAL”.button.to.view.the.SL2. value..Press.the.“CAL”.button.again.to.view.the.Offset.Value.. Temp. Unit Setting To.change.the.temperature.unit.(C.or.F),.press.the.“SET”.button.to.enter. the.Parameter.Setting.function.and.press.the.“CAL”.button..The.default. unit.will.flash.on.the.LCD.screen..Press.the.“HOLD”.button.to.change.the. unit.and.press.the.“CAL”.button.to.confirm.. Parameter Reset To.reset.the.meter.to.its.default.settings,.press.the.“SET”.button.to.enter. the.Parameter.Setting.function.and.press.the.“CAL”.button..“No”.will. flash.on.the.LCD.screen..Press.the.“HOLD”.button.to.change.to.“Yes”. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow...

  • Page 7: Calibration

    Calibration Calibration.is.necessary.and.should.be.done.regularly..The.unique.calibra- tion.design.of.this.meter.features.automatic.buffer.recognition.to.avoid. errors 1.. Rinse.the.probe.thoroughly.with.de-ionized.water.or.rinse.solution.. Do.not.wipe.the.probe,.as.this.will.cause.a.build-up.of.electrostatic. charge.on.the.glass.surface 2.. Power.on.the.meter 3.. Dip.the.probe.into.the.standard.calibration.buffer..The.end.of.the. probe.must.be.completely.immersed.into.the.sample..Stir.the. probe.gently.to.create.a.homo¬geneous.sample..It.is.suggested.to. calibrate.pH7.first.and.then.4.or.10.pH.for.a.higher.accuracy.result 4.. Press.the.“CAL”.button.to.enter.calibration.mode..The.“CAL”.icon,. auto.recognized.buffer.value.(see.table),.and.“pH”.will.flash.on.the. LCD.screen.. 5.. If.the.probe.is.damaged.or.the.if.the.buffer.is.not.specified.as.fol- lowing,.the.primary.LCD.will.keep.flashing.unless.you.turn.off.the. meter..Acceptable.pH.buffer.range:.-pH3.00~5.00.-pH6.00~8.00. -pH8.50~10.50. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow 6.. If.the.probe.successfully.recognizes.the.buffer.range,.the.buffer.pH. Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 value.and.“CAL”.will.stop.flashing.

  • Page 8: Changing The Probe

    7.. If.your.calibration.buffer.is.not.NIST,.press.the.“HOLD”.or.“CAL”. button..Adjust.the.calibrating.point.to.the.corresponding.buffer. value.of.the.specific.temperature..The.adjustable.range:.3.00.to. 5.00,.6.00.to.8.00,.8.50.to.10.50 8.. Wait.30.seconds.for.the.meter.to.complete.the.calibration.auto- matically,.if.the.reading.is.stable.enough.. 9.. Rinse.the.probe.with.de-ionized.water.or.a.rinse.solution.after. calibration..Repeat.step.3.~.8.to.do.multiple.point.calibration.or.exit. by.turning.off.the.meter.. Changing the Probe Change.probe.when.experiencing:. . Slow.response.. . Unstable.reading.. . Slope.value.is.<75%.or.>115%.or.the.offset..value.is.out.of.-60mV~+60mV. Three.steps.to.change.the.probe:. 1..Loosen.the.washer. 2..Unplug.the.probe. 3..Reverse.steps.to.install.new.probe. Note:.Be.sure.to.calibrate.the.meter.after.changing.the.probe.. Maintenance •. Always.keep.the.pH.glass.bulb.wet.by.using.the.cap.to.protect.and. store.the.electrode •. Always.rinse.the.pH.electrode.in.de-ionized.water.or.rinse.solution. before.next.use •. Never.touch.or.rub.the.glass.bulb •. Make.sure.the.electrode.is.clean..Between.measurements,.rinse.the. Blue - 100/80/30/5 electrode.with.de-ionized.water..If.the.electrode.has.been.exposed.to.

  • Page 9: Troubleshooting

    Troubleshooting Power on but no display 1..Make.sure.the.time.of.pressing.the.power.button.is.more.than.0.3. sec.. 2..Check.the.batteries.are.in.place,.make.good.contact,.and.have.the. correct.polarity 3..Replace.the.batteries. 4..Remove.the.batteries.for.one.minute.and.then.put.back.in.the.unit. Slow response 1..Clean.probe.by.immersing.the.electrode.in.tap.water.for.10-15.min,. then.rinse.thoroughly.with.distilled.water.or.use.a.general.purpose. electrode.cleaner 2..Replace.the.probe Unstable reading. 1..Stir.the.solution.to.make.homogeneous. 2..Make.sure.the.electrode.is.completely.immersed.in.the.solution. 3..Clean.the.probe.and.re-calibrate. 4..Replace.the.probe. 5..Move.to.anther.room.and.try.again. The reading does not change. 1..Check.whether.Data.Hold.is.on Error Codes E02:. The.value.is.below.the.lowest.range E03:. The.value.is.above.the.highest.range E04:. Temperature.is.out.of.range Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow...

  • Page 10: Battery.replacement

    Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow For.service.on.this.or.any.other.REED.product.or.information.on.other. REED.products,.contact.REED.Instruments.at.info@reedinstruments.com. Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100 1.800.561.8187 information@itm.com...
  • Page 11 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
  • Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red ________________________________________________ Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
