Philips Semiconductors
CATV amplifier module

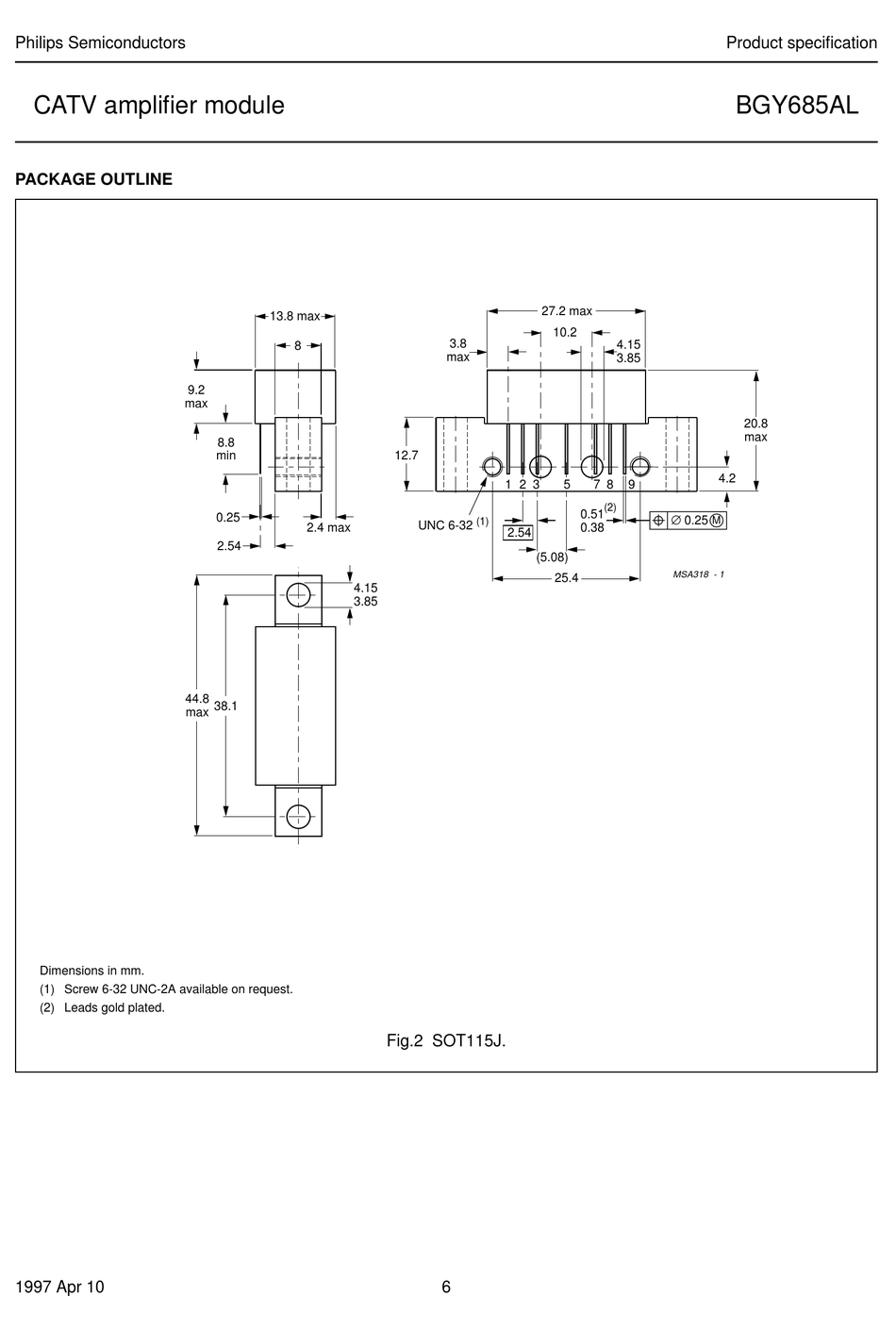

PACKAGE OUTLINE

handbook, full pagewidth
Dimensions in mm.
(1) Screw 6-32 UNC-2A available on request.
(2) Leads gold plated.
1997 Apr 10
13.8 max
8
9.2
max
8.8
min
0.25
2.4 max
2.54
44.8
max 38.1
3.8
max
12.7
1 2 3
(1)
UNC 6-32
2.54
4.15
3.85
Fig.2 SOT115J.
6
27.2 max
10.2
4.15
3.85
5 7 8 9
(2)
0.51
0.25
0.38
(5.08)
MSA318 - 1
25.4
Product specification
BGY685AL
20.8
max
4.2
M
