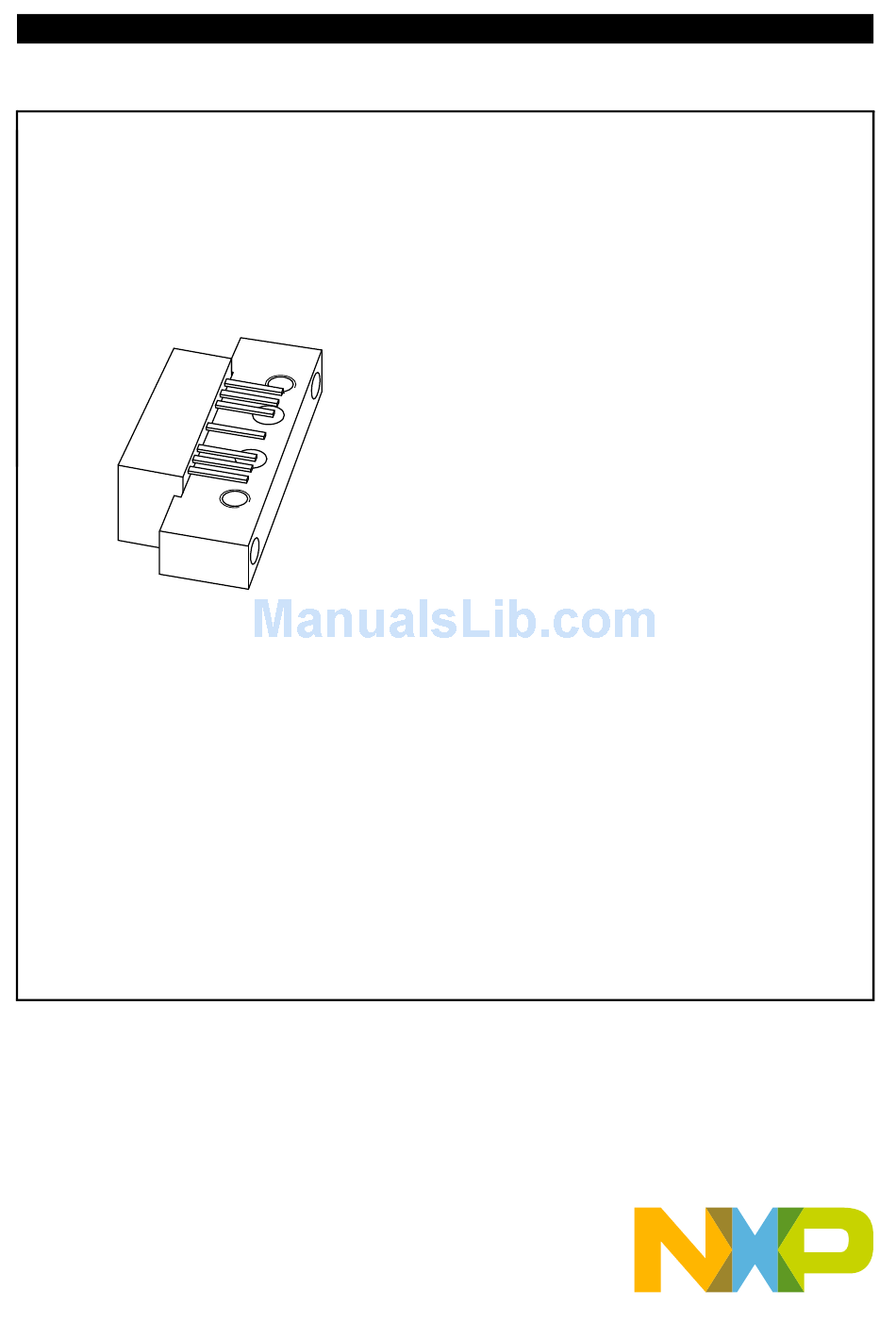

- Page 1 DATA SHEET dbook, halfpage BGY587B 550 MHz, 27 dB gain push-pull amplifier Product specification Supersedes data of 1997 Apr 10 DISCRETE SEMICONDUCTORS M3D252 2001 Oct 22...
- Page 2 DESCRIPTION input common common common common output CONDITIONS f = 50 MHz f = 550 MHz = +24 V PARAMETER Product specification BGY587B PIN CONFIGURATION alfpage Side view MSA319 Fig.1 Simplified outline. MIN. MAX. UNIT 26.2 27.8 27.5 ...
- Page 3 = 60 dB; note 2 f = 550 MHz DC value; V = +24 V; note 3 = +24 V, but is able to withstand supply transients up to +30 V. Product specification BGY587B MIN. MAX. 26.2 27.8 27.5 ...
- Page 4 2001 Oct 22 scale max. min. max. 2.04 4.15 2.4 38.1 25.4 10.2 4.2 44.75 13.75 2.54 5.08 12.7 8.8 2.54 3.85 REFERENCES JEDEC JEITA 10 mm 6-32 44.25 EUROPEAN PROJECTION Product specification BGY587B SOT115J max. 0.25 ISSUE DATE 04-02-04 10-06-18...
- Page 5 NXP Semiconductors products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). NXP does not accept any liability in this respect. Product specification BGY587B DEFINITION...
- Page 6 (c) customer fully indemnifies NXP Semiconductors for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond NXP Semiconductors’ standard warranty and NXP Semiconductors’ product specifications. Product specification BGY587B...
- Page 7 NXP Semiconductors provides High Performance Mixed Signal and Standard Product solutions that leverage its leading RF, Analog, Power Management, Interface, Security and Digital Processing expertise Customer notification This data sheet was changed to reflect the new company name NXP Semiconductors, including new legal definitions and disclaimers.
