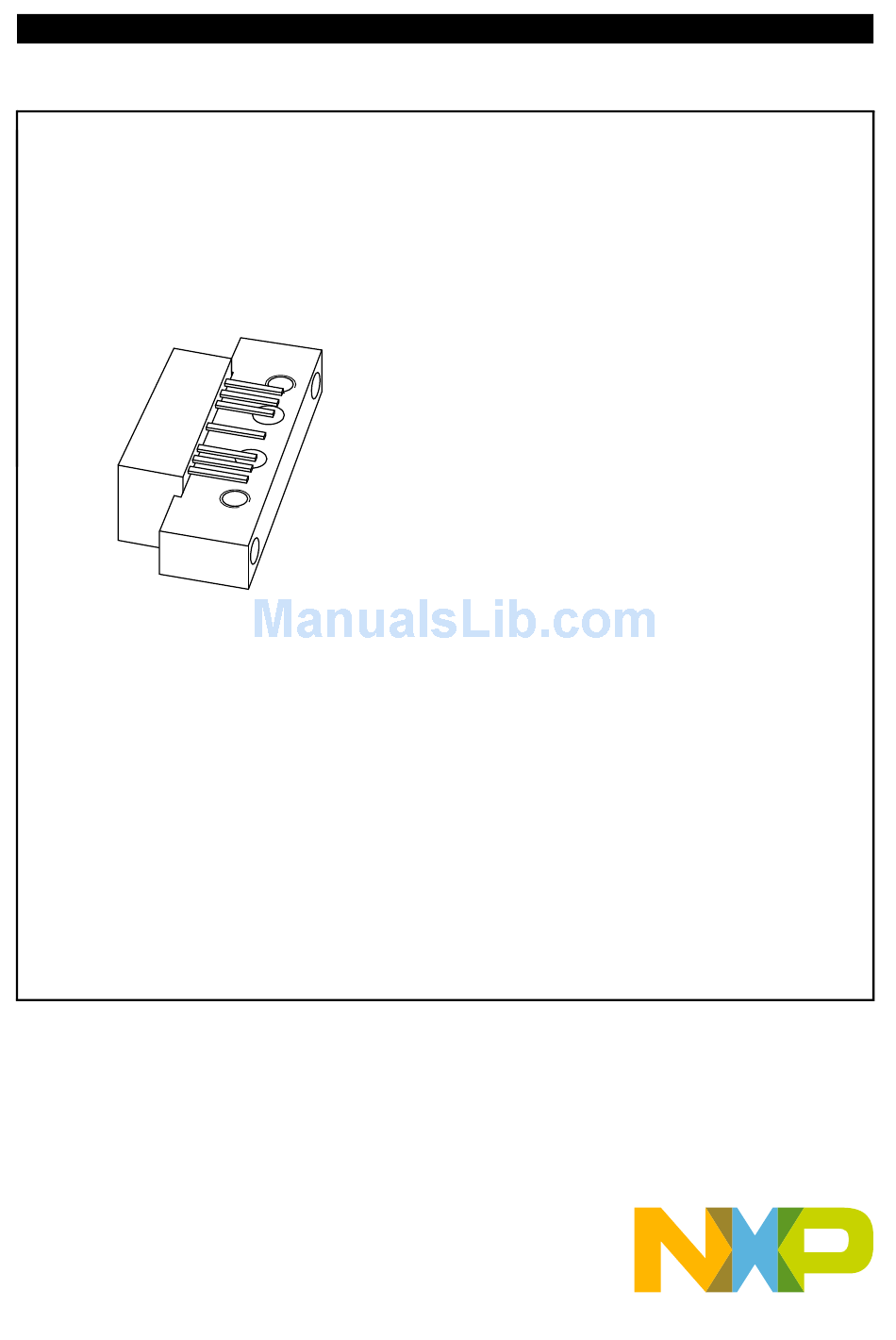

DATA SHEET
dbook, halfpage
BGD712
750 MHz, 18.5 dB gain power
doubler amplifier
Product specification
Supersedes data of 2001 Oct 29
DISCRETE SEMICONDUCTORS
M3D252
2001 Nov 02
