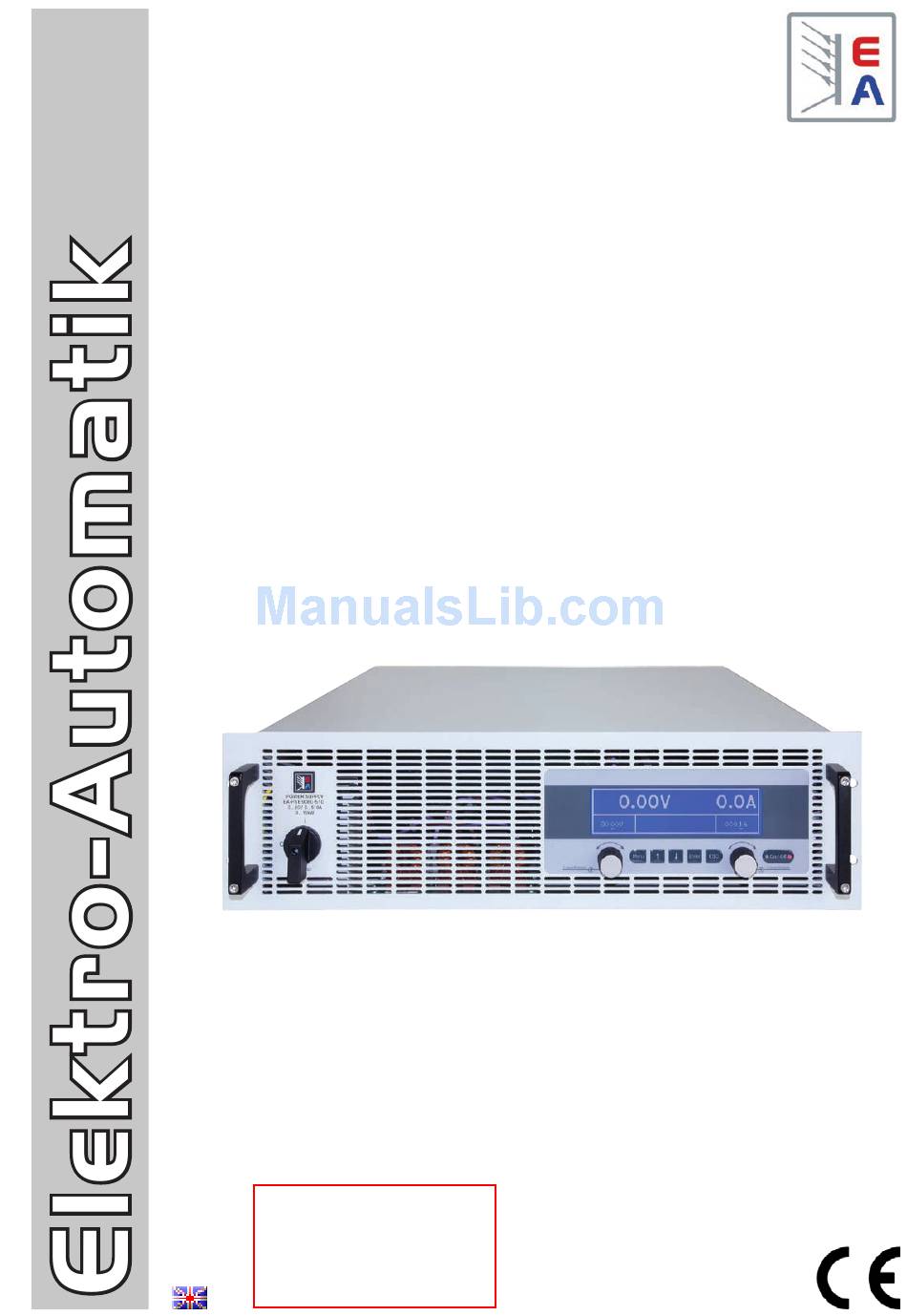

Operating Guide

PSE 9000 3U
DC High Efficiency Power Supply
Attention! This document is only
valid for devices with firmware
"KE: 2.01" and "HMI: 2.06" or
higher. For availability of up-
dates for your device check our
website or contact us.
Doc ID: PSE93UEN
Revision: 02
Date: 05/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSE 9000 U and is the answer not in the manual?

Questions and answers

Related Manuals for Elektro-Automatik PSE 9000 U

Summary of Contents for Elektro-Automatik PSE 9000 U

  • Page 1: Operating Guide

    Operating Guide PSE 9000 3U DC High Efficiency Power Supply Attention! This document is only valid for devices with firmware “KE: 2.01” and “HMI: 2.06” or Doc ID: PSE93UEN higher. For availability of up- dates for your device check our Revision: 02 website or contact us.

  • Page 3: Table Of Contents

    2.3.7 Grounding of the DC output ......43 2.3.8 Connecting the “Share” bus ......43 2.3.9 Connecting the analog interface ....43 EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 3 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...
  • Page 4 4.4.3 Calibration procedure ........75 ACCESSORIES AND OPTIONS Overview ............77 SERVICE & SUPPORT General ............77 Contact options ..........77 EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 4 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...

  • Page 5: General

    EA Elektro-Automatik guarantees the functional competence of the applied technology and the stated performance parameters. The warranty period begins with the delivery of free from defects equipment. Terms of guarantee are included in the general terms and conditions (TOS) of EA Elektro-Automatik. Limitation of liability All statements and instructions in this manual are based on current norms and regulations, up-to-date technology and our long term knowledge and experience.

  • Page 6: Disposal Of Equipment

    • Claims of any sort due to damage caused by non-intended usage will not be accepted. • All damage caused by non-intended usage is solely the responsibility of the operator. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 6 Helmholtzstr.

  • Page 7: Safety

    • must work to the defined responsibilities for operation, maintenance and cleaning of the equipment • before starting work must have read and understood the operating manual • must use the designated and recommended safety equipment. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 7 Helmholtzstr.

  • Page 8: Responsibility Of The Operator

    Qualified persons are those who are able through training, knowledge and experience as well as knowledge of the specific details to carry out all the required tasks, identify dangers and avoid personal and other risks. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 9: Alarm Signals

    Dot matrix, 240pt x 64pt Controls: 2 rotary knobs with button function, 5 pushbuttons The nominal values for the device determine the maximum adjustable ranges. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 9 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...

  • Page 10: Specific Technical Data (Eu Models)

    (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 10 Helmholtzstr.
  • Page 11 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard EU version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 12 (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 12 Helmholtzstr.
  • Page 13 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard EU version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 14 (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 14 Helmholtzstr.
  • Page 15 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard EU version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 16 (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 16 Helmholtzstr.
  • Page 17 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard EU version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 18: Specific Technical Data (Us Models)

    (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 18 Helmholtzstr.
  • Page 19 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard US version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 20 (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 20 Helmholtzstr.
  • Page 21 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard US version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 22 (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 22 Helmholtzstr.
  • Page 23 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard US version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 24 (2 RMS value: LF 0...300 kHz, PP value: HF 0...20MHz (3 Typical value at 100% output voltage and 100% power (4 The display error adds to the error of the related actual value on the DC output EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 24 Helmholtzstr.
  • Page 25 (1 For technical specifications of the analog interface see „3.5.4.4 Analog interface specification“ on page 60 (2 Article number of the standard US version, devices with options will have a different number EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 26: Views

    PSE 9000 3U Series 1.8.5 Views Figure 1 - Front side Figure 2 - Back side (showing EU version) EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 26 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...
  • Page 27 PSE 9000 3U Series EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 27 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...
  • Page 28 PSE 9000 3U Series Figure 5 - View from above EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 28 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...
  • Page 29 Used to toggle the DC output between on and off, also used to acknowledge alarms. The LEDs “On” and “Off” indicate the state of the DC output, no matter if the device is manually controlled or remotely. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 30: Construction And Function

    Power block 1...3 Controller (DR) ≈  Commu- nication HMI (BE) (KE) PSE 9000 Block diagram Anybus ВВ EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 30 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...

  • Page 31: Scope Of Delivery

    Increased output voltage dynamics by reduced filter capacity on the DC output. „High-Speed Ramping“ NOTE: other DC output related values, like the ripple, also increase. This is a permanent feature which cannot be switched off. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 31 Helmholtzstr.

  • Page 32: The Control Panel (Hmi)

    (see 3.4.7) will be displayed in the lower half of the display, giving you quick access to set values and some information, while the actual regulation mode indicator “jumps” to the middle between the actual values:  EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 32 Helmholtzstr.
  • Page 33 In manual operation every set value can be set in the increments given above. In this case the actual output values set by the device will lie within percentage tolerances as shown in the technical data sheets. These will influence the actual values. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 33 Helmholtzstr.

  • Page 34: Usb Port

    The input voltage range of the set values and the output voltage range of the monitor val- ues, as well as reference voltage level can be switched in the settings menu of the device between 0-5 V and 0-10 V, in each case for 0-100%. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 34 Helmholtzstr.

  • Page 35: Share Bus Connection

    500 V or higher, is ensured by using only the two outer pins of the 4-pole terminal. The inner two pins, marked with NC, must remain unconnected. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 36: Installation & Commissioning

    (see „1.8.3. Specific technical data (EU models)“) • Before connecting to the mains ensure that the supply voltage is as shown on the product label. Overvoltage on the AC supply can cause equipment damage. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 36 Helmholtzstr.

  • Page 37: Preparation

    The handles on the front are for sliding in and out of the cabinet. Slots on the front plate are provided for fixing the device (fixing screws not included). Acceptable and inacceptable installation positions: Standing surface EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 37 Helmholtzstr.

  • Page 38: Connection To Ac Supply

    6 mm². The longer the connection cable, the higher the voltage loss due to the cable resistance. Therefore the mains cables should be kept as short as possible or use bigger cross section. Figure 7 - Example for a mains cable (cable not included in delivery) EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 38 Helmholtzstr.
  • Page 39 Connection schemes: Figure 8 - L2+L3+PE connection scheme for 3.3/5 kW models Figure 9 - Full connection scheme for 6.6 kW or higher models EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 39 Helmholtzstr.
  • Page 40 Suggestions to assign phases: Single unit (3.3 kW / 5 kW) Multiple units (3.3 kW / 5 kW) Multiple units (6,6 kW / 10 kW) EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 40 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...

  • Page 41: Connection To Dc Loads

    19” cabinet or similar. For type 2 connectors only a horizontal lead can be used to allow for instal- lation of the cover. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 41 Helmholtzstr.

  • Page 42: Connection Of Remote Sensing

    • The sense cables must be connected + to + and - to - at the load, otherwise both systems may be damaged • In master-slave operation, the remote sensing should be connected to the master unit only Figure 10 - Example for remote sensing wiring EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 42 Helmholtzstr.

  • Page 43: Grounding Of The Dc Output

    In case the CDC drivers described above are not available on your system, or for some reason do not function correctly, commercial suppliers can help. Search the Internet for suppliers using the keywords “cdc driver windows“ or “cdc driver linux“ or “cdc driver macos“. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 43 Helmholtzstr.

  • Page 44: Installation Of An Anybus Interface Module

    • In case of remote control via the analog interface, read the section in this manual concerning analog interfaces and, where needed, other appropriate documentation especially concerning the use of such interfaces EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 45: Initial Network Setup

    In case of a firmware update, return of the equipment following repair or a location or configuration change, similar measures should be taken to those of initial start up. Refer to „2.3.12. Initial commission“. Only after successful checking of the device as listed may it be operated as usual. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 45 Helmholtzstr.

  • Page 46: Operation And Application

    = transient below the adjusted value for a short time. t = transient time to settle the output voltage. time to settle the output voltage. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 46 Helmholtzstr.

  • Page 47: Current Regulation / Constant Current / Current Limiting

    While the DC output is switched on and constant power mode is active, then the condition “CP mode active” will be shown on the display by the abbreviation CP, as well stored as status which can also be read as a status mes- sage via digital interface. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 47 Helmholtzstr.

  • Page 48: Alarm Conditions

    • the product of the output voltage and output current in the DC output reaches the adjusted OPP limit. This function serves to protect the connected load application so that this is not overloaded and possibly damaged due to an excessive power consumption. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 48 Helmholtzstr.

  • Page 49: Manual Operation

     The menu structure is shown schematically on the next page. Some setting parameters are self-explanatory, others are not. The latter will be explained on the pages following. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 49 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...
  • Page 50 PSE 9000 3U Series EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 50 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...
  • Page 51 3.4.3.4 Menu “Profiles” See „3.8 Loading and saving a user profile“ on page 65. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 51 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...
  • Page 52 Baud rate settings: 2400, 4800, 9600, 19200, 38400, 57600, 115200 IF Menu item Description Node Address Adjustment of the Profibus address (range 1...125) EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 52 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...
  • Page 53 Determines the DLC (data length) of all messages sent from the device. AUTO = length varies between 3 and 8 bytes, depending on object Always 8 Bytes = length is always 8, filled up with zeros EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 53 Helmholtzstr.
  • Page 54 Activates or deactivates the additional acoustic signal of an alarm. See also „3.6. Alarms and monitoring“. HMI Lock Activates the HMI lock. See „3.7. Control panel (HMI) lock“ for details EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 54 Helmholtzstr.

  • Page 55: Adjustment Limits

    I-max to 120 A while the currently adjusted current set value is 150 A, then the set value first would have to be reduced to 120 A or less. The same applies vice versa when adjusting I-min. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 55 Helmholtzstr.

  • Page 56: Display Modes For Actual And Set Values

    When adjusting the set values, upper or lower limits may come into effect. See section „3.4.4. Adjustment limits“. Once a limit is reached, the display will show a note like “Limit: U-max” etc. or “[i]” for 1.5 seconds. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 56 Helmholtzstr.

  • Page 57: The Quick Menu

    See the external documentation “Programming Guide ModBus & SCPI” if you are using custom software, or refer to the external documentation of LabView VIs or other software provided by the manufacturer. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 57 Helmholtzstr.

  • Page 58: Remote Control

    IF-AB-PNET2P CAN 2.0 A / 2.0 B Slave IF-AB-CAN * For technical details of the various modules see the extra documentation “Programming Guide Modbus & SCPI” EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 58 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...

  • Page 59: Remote Control Via The Analog Interface (Ai)

    VREF (solder bridge or different), so it gives 100% The analog interface is galvanically separated from DC output. Therefore do not connect any ground of the analog interface to the DC- or DC+ output! EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 59 Helmholtzstr.
  • Page 60 *** Mains blackout, mains undervoltage or PFC error **** Only during remote control ***** The error of a set value input adds to the general error of the related value on the DC output of the device EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 60 Helmholtzstr.
  • Page 61 If the pin is unconnected or the connected contact is open, the pin will be HIGH. With parameter “Analog interface REM-SB” being set to “normal”, it requests “DC output on”. So when activating remote control, the DC output will instantly switch on. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 61 Helmholtzstr.
  • Page 62 Reading actual values Via the AI the output values for current and voltage can be monitored. These can be read using a standard multimeter or similar. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 62 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...

  • Page 63: Alarms And Monitoring

    Triggers an alarm if the internal temperature reaches a certain limit. The Display, analog perature DC output will be switched off. IF, digital IF EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 63 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...

  • Page 64: Control Panel (Hmi) Lock

    “Locked” now being indicated. If an attempt is made to alter something whilst the HMI is locked, a requester appears in the display asking if the lock should be disabled. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 64 Helmholtzstr.

  • Page 65: Loading And Saving A User Profile

    In the screen you can now select “View Profile n” in order to check the stored settings and to decide, whether this profile is going to be loaded or not. Navigate to “Load Profile n” and confirm with to finally load the profile into the work profile. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 65 Helmholtzstr.

  • Page 66: Other Applications

    3U to PSE 9080-170 3U. • Units at the end of the bus must be terminated (see below) The master-slave bus (RS485) must not be wired using crossover cables! EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 66 Helmholtzstr.
  • Page 67 “Master-slave mode” and select setting “Master” by using the right-hand rotary knob. Accept the settings with or discard them with EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 67 Helmholtzstr. 31-33 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de...
  • Page 68 • All units, even the slaves, can be externally shut down on the DC outputs using the pin REM-SB of the analog interface. This can be used as some kind of emergency off, where usually a contact (maker or breaker) is wired to this pin on all units in parallel. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 68 Helmholtzstr.
  • Page 69 OCP alarm though the global OCP limit of the MS system was not reached. The same can occur with the OPP alarm. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 70: Series Connection

    It is thus recommended to leave the DC output switched on as long as the battery is connected (equals to trickle charge) and only switch if off for connecting/disconnecting a battery. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...

  • Page 71: Two Quadrants Operation (2Qo)

    The system is controlled by one of the power supplies, which has to be set to “Master” in the E.U.T setup menu (parameter “Master-slave mode”). EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 71 Helmholtzstr.
  • Page 72 When reaching 27 V, the power supply will deliver only the current needed to maintain battery voltage. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 72 Helmholtzstr.

  • Page 73: Service And Maintenance

    Repeat step 2 for all fuses. Once all fuses have been checked and replaced, and if no other defect is apparent, the device can be reassembled (step 1 in reverse order). EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 73 Helmholtzstr.

  • Page 74: Firmware Updates

    Restart the device by switching it on - the display shows some information during the startup process, amongst them the new device firmware version as for example “KE: 2.05”. The firmware update is finished after this. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 74 Helmholtzstr.

  • Page 75: Calibration (Readjustment)

    The calibration procedure, as explained below, is an example with model PSE 9080-170 3U. Other models are treated the same way, with values according to the particular PSE model and the required load. EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de...
  • Page 76 Assure yourself the value is correct and submit with Repeat step 5. for the next three steps (total of four steps). EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 76 Helmholtzstr.

  • Page 77: Accessories And Options

    Questions or problems with operation of the device, use of optional components, with the documentation or soft- ware, can be addressed to technical support either by telephone or e-Mail. Address e-Mail Telephone EA Elektro-Automatik GmbH All issues: Switchboard: +49 2162 / 37850 Helmholtzstr. 31-33 ea1974@elektroautomatik.de...
