Mounts by
A division of David Engineering & Mfg. Inc.
Model

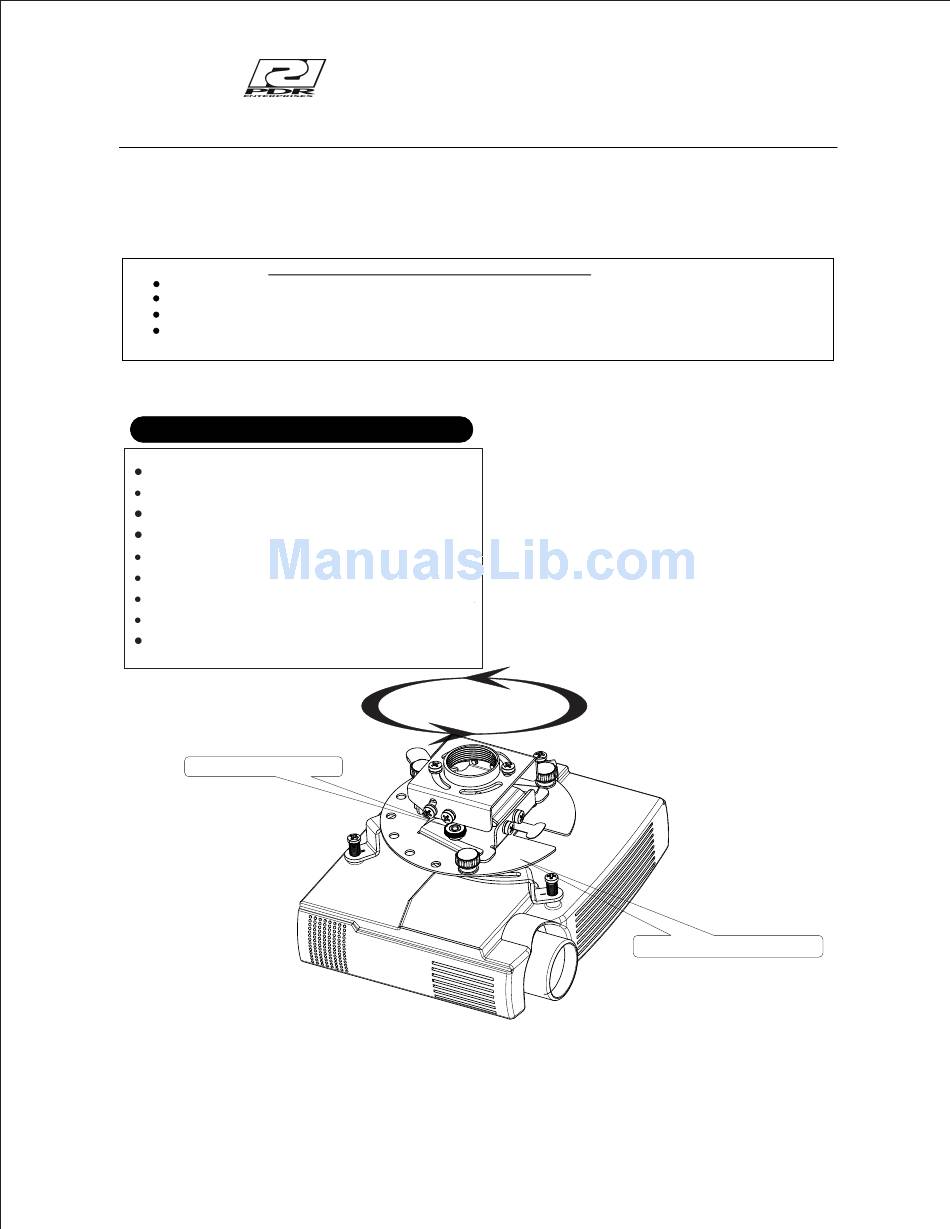

PMU50 PROJECTOR MOUNT
Thank you for purchasing the PDR Projector mount with the exclusive "Bayonet locking system".
To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference.
All PDR mounts and adapters carry a lifetime warranty against defects in material and workmanship. We are not liable for
improper installation that results in damage to mounts, adapters or presentation equipment.
Special techniques are necessary for installation of the mount.
Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the mount from the wall/ceiling later, you will find the screw holes and anchor bolts for the
mounting unit left on the wall.
To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the projector
and the mount.
Fully tighten all of the mounting screws as specified in the instructions.
Features
Simple to adjust no-tools required
3 1/4 "
Low profile
1 ½"NPT-ready or flush mount
+30° -5° Pitch
+ -5° yaw
360 ° rotation
55 lb load rating
Lateral shift capable
Quick projector removal with exclusive
"Bayonet locking system"
Locking thumb screw
Rotate 360 deg
1
Bayonet Locking System
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PDR PMU50
Summary of Contents for PDR PMU50
- Page 1 Please remember that if you remove the mount from the wall/ceiling later, you will find the screw holes and anchor bolts for the mounting unit left on the wall. To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the projector and the mount.
- Page 2 Do not install where there is direct sunlight or other strong Use the specified bolts and screws in the specified places and tighten firmly. Failure to do this could cause injury if the projector mount falls. Do not alter any of the parts. Do not use broken parts. This C a u t i o n : I n s t a l l a t i o n o f u n i t i s t o b e c a r r i e d o u t b y q u a l i f i e d t e c h n i c i a n s o n l y .
- Page 3 PRODUCT SPECIFICATIONS 2.13” 5° 3.26” 30° 5° 5° Ø 15.75” MAX REACH...
- Page 4 M6 x 25mm Pan Head Philips machine Screw 4 pcs M4 x 25mm Pan Head Philips machine Screw 4 pcs M 3 x 25mm Pan Head Philips machine Screw 4 pcs M2.6 x 25mm Cheese Head slotted machine Screw 4 pcs Note: must be used with washer “E”...
- Page 5 2: For flush mounting of the pmu50 remove the 1 ½” collar and the side screws. 3: Position the pmu50 mounting plate against the ceiling structure with the chamfer facing the rear of the viewing screen (a solid wood construction is required behind any ceiling structure). SEE FIG 3 4: Using the two lag bolts and washer supplied fasten to the ceiling.
- Page 6 1: Start by screwing the leveling barrels ( A ) into the Adjustable arms (K and L). A screwdriver slot is provided in the barrel (A). The barrels only need to be threaded approx. 1/8“ through the bottom of the arm (K and L). If the mounting plane of the projector is not flat, the barrels can be adjusted to make up the difference in height.
