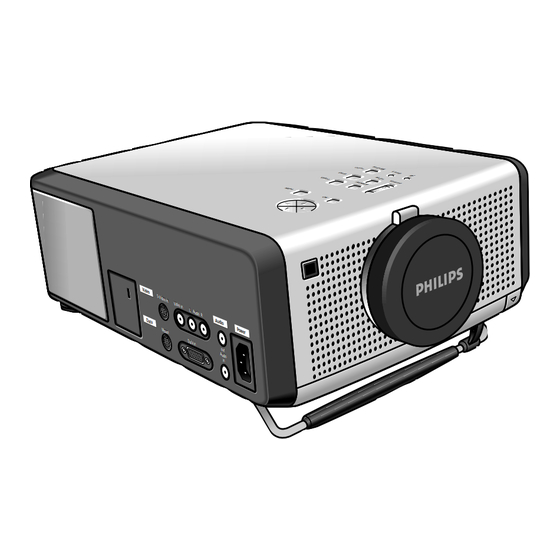

- Page 1 Philips Multimedia projector Hopper 20 series English...
- Page 2 IMPORTANT NOTE FOR USERS IN THE U.S.A. The responsible party of this multi media projector is the following: Philips Consumer Electronics Company One Philips Drive Knoxville, TN 37914 Telephone 1888 873 4672...
-
Page 3: Illustrations
Standby Standby Lamp Lamp Mute Mute Data Data AV Mute AV Mute Video Video Menu Menu Menu Menu Volume Volume Standby AV-Mute Standby AV-Mute On/Off On/off Data Video Video Data Mute Mute Volume Volume Video S-Video in S-Video in Video in Video in Data Mouse... -
Page 4: Table Of Contents
‘Important Safeguards’ section before use. PACKAGING CONTENTS Please confirm that the following items are packed in the projector box. They are provided to help you use or set up your projector. – Projector – 3 LR 6/AA/1,5 V Batteries –... -
Page 5: Important Safeguards
Electrical energy can perform many useful functions. This projector has been engineered and manufactured to meet applicable safety standards. IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated into this projector, observe the following basic rules for its installation, use and servicing. -
Page 6: Projector Features
Signals from PC and MAC compatible computers will be accepted without additional hardware. 2. High reliability and excellent brightness The Philips UHP lamp guarantees long life, excellent brightness over the lamp’s lifetime and excellent colour reproduction. Furthermore, the projector has an excellent uniformity of brightness over the whole screen. -
Page 7: Functional Overview
Notes: – The Cursor Control only functions when the Mouse socket of the projector is connected to the serial port of a PC or the ADB terminal of an Apple Macintosh computer. – Installation of dedicated RC mouse driver software on the computer used is necessary. -
Page 8: Set Up
6. SET UP POSITIONING THE PROJECTOR AND SCREEN • Place the projector on a stable, level surface, out of direct sunlight and away from sources of excessive dust, dirt, heat, water, moisture, vibration and strong magnetic fields. Face the projector towards the screen for the best picture results. -
Page 9: Moving The Projector
4. Put the lens cap back in place to prevent dust, dirt or other contamination from harming or damaging the front of the projector lens when moving the projector. Note: Never place the projector on the side where the connections are located. INSERTING THE BATTERIES IN THE REMOTE CONTROL P u s h 1. -
Page 10: Installation
7. INSTALLATION VIDEO/COMPUTER CABLES AND ADAPTOR These accessories are supplied for connecting the projector to computer/AV equipment. The numbers in the left-hand column correspond with the numbers in the connection diagrams on the following pages. CABLE/ADAPTOR VGA Cable Video/Audio Stereo RCA Cable... -
Page 11: Connecting To A Computer
– The data input is suitable for both Apple Macintosh computers (Power Book and Power Mac) as well as for IBM compatible PCs. – The data output of IBM compatible PCs can be connected directly to the projector using standard data cables. -
Page 12: Connecting To Video Equipment
– The figures in brackets (1) correspond to the figures in the diagram on page 10. The characters in brackets (a) correspond to characters in fig. 2 on page 3. – Caution: Always switch off the projector before making any connections. PAL, NTSC, SECAM... -
Page 13: Connecting To Audio Equipment
– The figures in brackets (1) correspond to the figures in the diagram on page 10. The characters in brackets (a) correspond to characters in fig. 2 on page 3. – Caution: Always switch off the projector before making any connections. Video S-Video in... -
Page 14: Operation
All video and data adjustments and settings (except A/V Mute) are done via On Screen Displays and with help of the following controls: MENU, OK (–/– –) and Cursor Control on the projector or the remote control. 1. Press MENU. -
Page 15: Picture Control
– horizontal size - adjusts the computer image in a horizontal direction to make the image completely fill the screen; – phase - when connecting the projector to your PC for the first time, be sure to adjust the phase control for optimal readability of the projected text;... -
Page 16: Audio Control
– volume – adjusts the sound level; – bass – adjusts the bass tones; – treble – adjusts the high tones; – mute – mutes the sound of the projector (or an externally connected loudspeaker); Picture control/Audio control/Personal Preferences 1. Select the required input (Video, S-Video or Data). -
Page 17: Other Settings
For instance: if you select Video as your default (Auto start) source, the projector will select Video as the source when the projector is switched on. Note: The factory set default for Auto start is Data. -
Page 18: Other Settings
7. If required, select another item you wish to adjust or press MENU to exit. Upside-down (ceiling) projection The projector is equipped with an upside-down scan function (vertical mirror), which allows the image to be flipped when the projector is mounted upside down to the ceiling. -
Page 19: Additional Information
• in case the projector is mounted in a position where direct control or control via the infrared remote control is difficult. Please contact your dealer or local Philips representative for details. Remote control & RS-232 PC software/Maintenance CLEANING CAUTION: Switch off and disconnect the projector before cleaning. -
Page 20: Maintenance
Notes: – We advise you to clean the filter every 100 hours. – Operating the projector with a torn or damaged filter may cause damage to the projector. – When the filter is damaged replace it with a filter of the same type (12 nc: 4822 480 10229). -
Page 21: Additional Information
11. Tighten the screws. 12. Replace the cover and tighten both the screws and the horizontal adjusters. 13. Plug the projector back in by inserting the mains lead in the POWER socket. 14. Press the STANDBY/ON/OFF button to switch on the projector. -
Page 22: Troubleshooting
If a fault occurs, first check the points listed below before taking the projector for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service organisation. Under no circumstances should you try to repair the projector yourself as this could invalidate the warranty. PROBLEM –...
