Secure Home SH-5525 Manual page 3

Bulb Installation and Replacement
CAUTION:When replacing the bulb,turn power
off and let the fixture cool.
Important: Use a clean glove or cloth when handling
the new bulb. Use isopropyl (rubbing) alcohol to clean
the bulb if it is touched with your bare hands.
NOTE:The bulb is included,but needs to be installed.
The bulb is located behind the glass cover of the
lamp head.

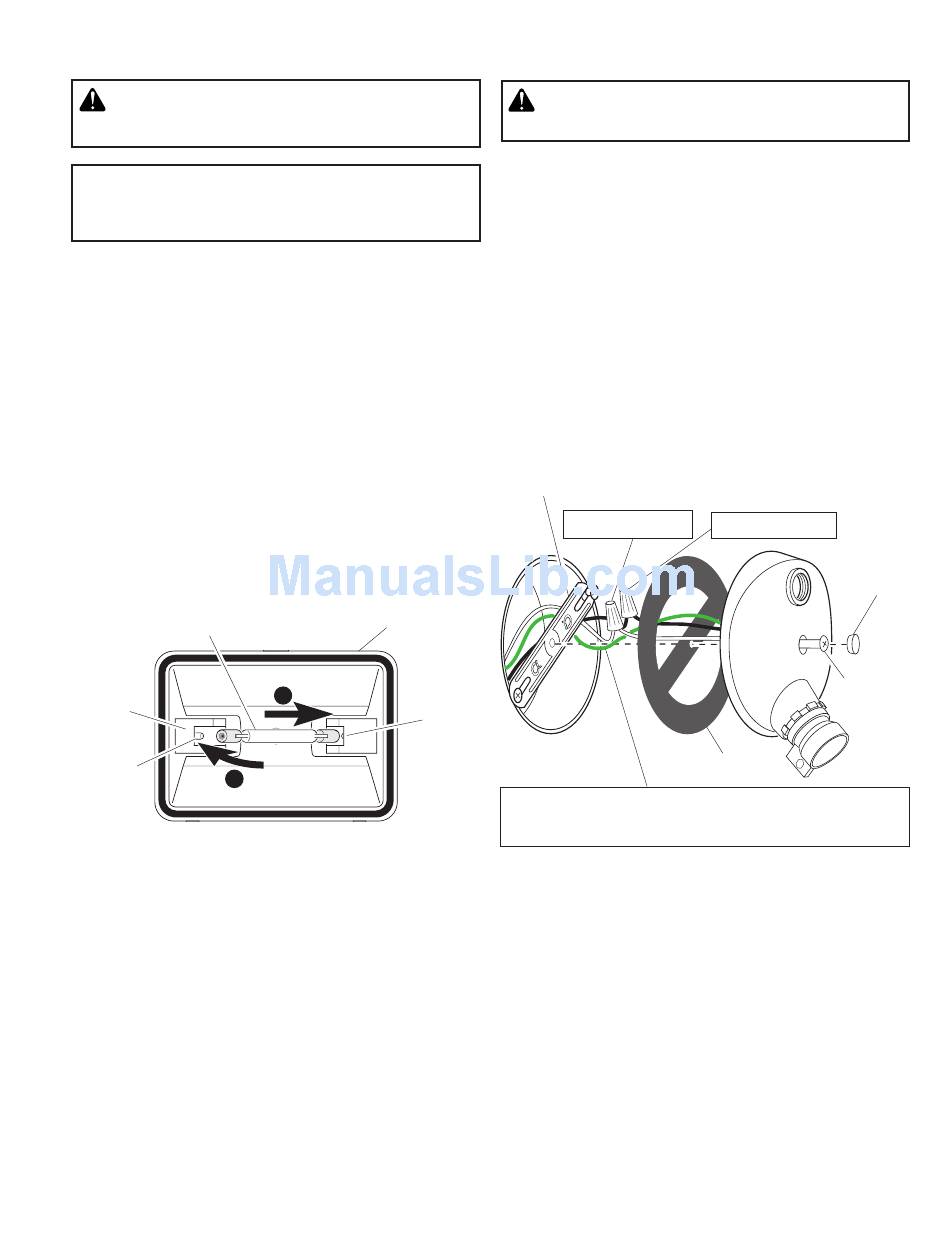

1. Remove glass cover and remove the old bulb by
pushing the bulb towards the right until the left side
of the bulb is clear of the left socket.
2. To install the bulb, place one end of the bulb on the
contact in the right socket. While pushing the bulb
against the right contact, lower the other end of the
bulb onto the contact in the left socket.
3. Spin the bulb to verify it is seated properly.
4. Re-install the glass cover.
For proper operation and safety,the light fixture must
be above the sensor and the sensor head must be
rotated so that the controls are on the bottom.
Bulb
Left
Socket
Contact
2
598-1161-04
Lamp Head
1
Right
Socket
Wire the Light Control
WARNING: Turn power off at circuit breaker
or fuse.
1. Remove the existing light fixture.
2. Install mounting strap to junction box using screws
appropriate for your junction box.
3. The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger
can be threaded through the hole in the center of
the cover plate. The small end then goes into one
of the slots on the mounting strap.
4. Thread all fixture wires through the large holes in
the gasket as shown.
5. Connect the junction box wires to the light fixture
wires as shown.Twist together and secure with wire
connectors.
Mounting Strap
White to White
Connectanyfixturegroundwire(s)andthecoverplate
ground screw to the junction box ground wire.
Mount the Light Control
1. Align the light control cover plate and cover plate
gasket. Secure with the mounting bolt.
2. Push the rubber plug firmly into place.
3. If a wet location junction box was not used, caulk
the wall plate mounting surface with silicone weather
sealant.
3
Black to Black
Rubber
Plug
Mounting
Bolt
Gasket
