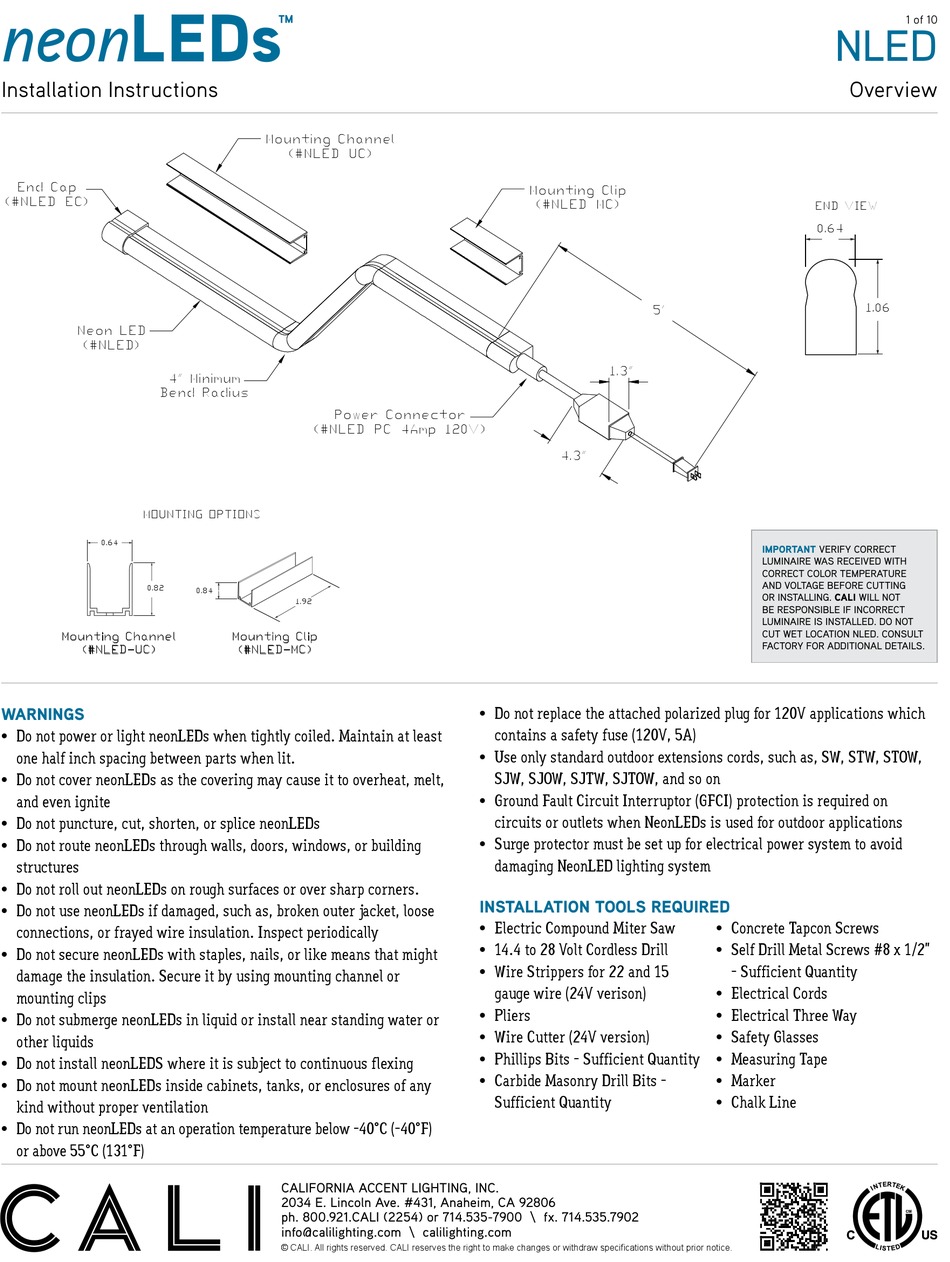

CALI neonLEDs NLED Installation Instructions Manual

neonLEDs

Installation Instructions

Mounting Channel
(#NLED-UC)
End Cap
(#NLED-EC)
Neon LED
(#NLED)
Bend Radius
MOUNTING OPTIONS
MOUNTING OPTIONS
0.64
0.82
Mounting Channel
(#NLED-UC)
WARNINGS
• Do not power or light neonLEDs when tightly coiled. Maintain at least
one half inch spacing between parts when lit.
• Do not cover neonLEDs as the covering may cause it to overheat, melt,
and even ignite
• Do not puncture, cut, shorten, or splice neonLEDs
• Do not route neonLEDs through walls, doors, windows, or building
structures
• Do not roll out neonLEDs on rough surfaces or over sharp corners.
• Do not use neonLEDs if damaged, such as, broken outer jacket, loose
connections, or frayed wire insulation. Inspect periodically
• Do not secure neonLEDs with staples, nails, or like means that might
damage the insulation. Secure it by using mounting channel or
mounting clips
• Do not submerge neonLEDs in liquid or install near standing water or
other liquids
• Do not install neonLEDS where it is subject to continuous flexing
• Do not mount neonLEDs inside cabinets, tanks, or enclosures of any
kind without proper ventilation
• Do not run neonLEDs at an operation temperature below -40°C (-40°F)
or above 55°C (131°F)
™
Mounting Channel
Mounting Clip
(#NLED-UC)
(#NLED-MC)
Connector Power Cord
(#NLED-PC-180D)
4" Minimum
Power Connector
(#NLED-PC-4Amp-120V)
0.84
1.92
Mounting Clip
(#NLED-MC)
LN
CALIFORNIA ACCENT LIGHTING, INC.
2034 E. Lincoln Ave. #431, Anaheim, CA 92806
ph. 800.921.CALI (2254) or 714.535-7900 \ fx. 714.535.7902
info@calilighting.com \ calilighting.com
© CALI. All rights reserved. CALI reserves the right to make changes or withdraw specifications without prior notice.
Mounting Clip
(#NLED-MC)
4.3"
NLED POWER CONNECTOR
1/17/17
• Do not replace the attached polarized plug for 120V applications which
contains a safety fuse (120V, 5A)
• Use only standard outdoor extensions cords, such as, SW, STW, STOW,
SJW, SJOW, SJTW, SJTOW, and so on
• Ground Fault Circuit Interruptor (GFCI) protection is required on
circuits or outlets when NeonLEDs is used for outdoor applications
• Surge protector must be set up for electrical power system to avoid
damaging NeonLED lighting system
INSTALLATION TOOLS REQUIRED
• Electric Compound Miter Saw
• 14.4 to 28 Volt Cordless Drill
• Wire Strippers for 22 and 15
gauge wire (24V verison)
• Pliers
• Wire Cutter (24V version)
• Phillips Bits - Sufficient Quantity
• Carbide Masonry Drill Bits -
Sufficient Quantity
END VIEW
5'
1.3"
IMPORTANT
LUMINAIRE WAS RECEIVED WITH
CORRECT COLOR TEMPERATURE
AND VOLTAGE BEFORE CUTTING
OR INSTALLING. CALI WILL NOT
BE RESPONSIBLE IF INCORRECT
LUMINAIRE IS INSTALLED. DO NOT
CUT WET LOCATION NLED. CONSULT
FACTORY FOR ADDITIONAL DETAILS.
• Concrete Tapcon Screws
• Self Drill Metal Screws #8 x 1/2"
- Sufficient Quantity
• Electrical Cords
• Electrical Three Way
• Safety Glasses
• Measuring Tape
• Marker
• Chalk Line
1 of 10
NLED
Neon LEDs
(#NLED)
Overview
END VIEW
0.64
1.06
VERIFY CORRECT
