Summary of Contents for Austdac ABMA4

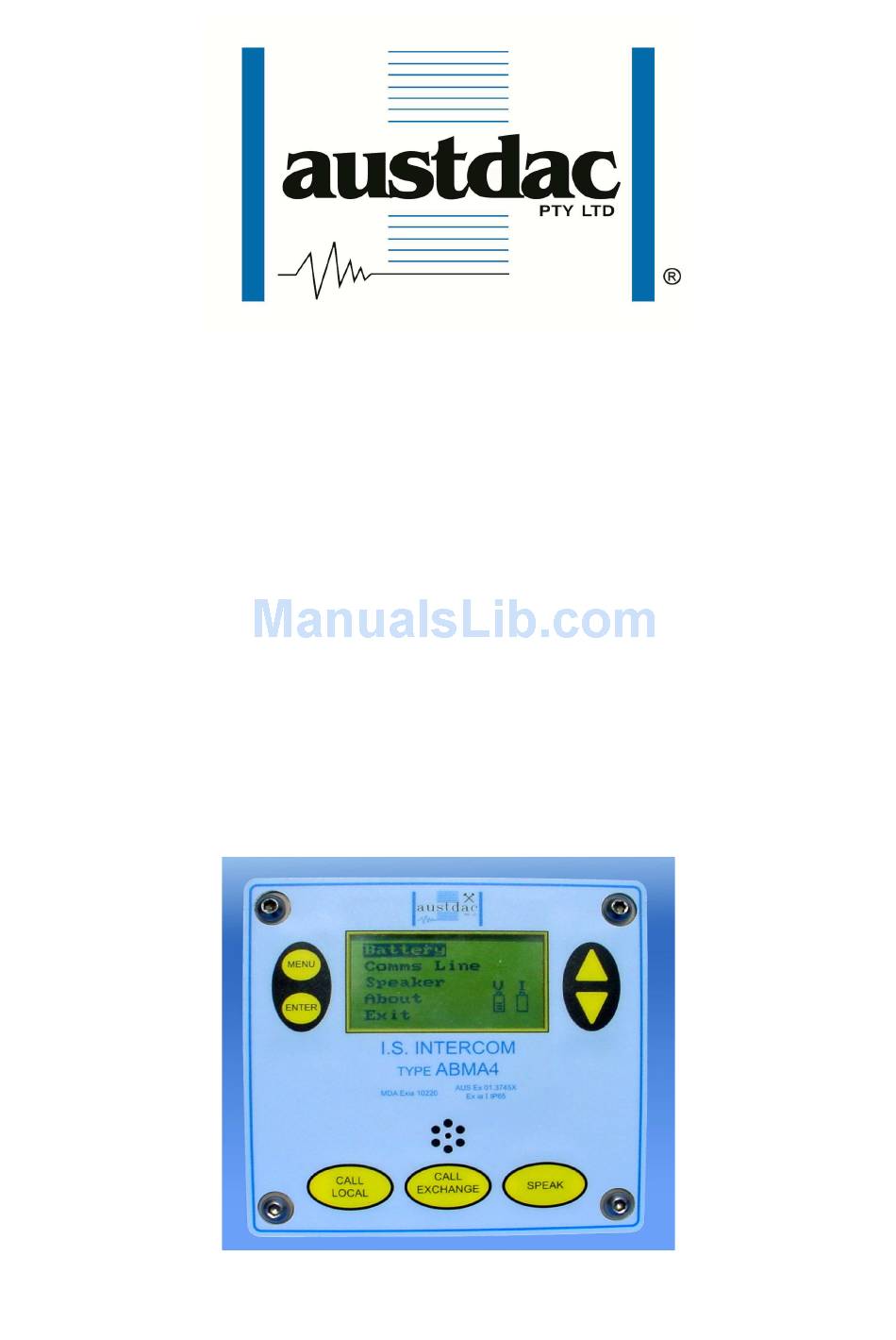

- Page 1 Title I.S. INTERCOM TYPE ABMA4 USER MANUAL Document Number 20-278-12 Issue...
-
Page 2: Table Of Contents
Copyright 2017 This document remains the property of Austdac Pty. Ltd. It is subject to its recall and must not be reproduced in part or whole or its contents divulged to third parties without prior written approval from Austdac Pty Ltd. -
Page 3: Photographs
HANDSET ............................. 21 CERTIFICATION ..........................21 PHOTOGRAPHS Photograph 1: Intercom type ABMA4 front view....................4 Photograph 2: Intercom type ABMA4 rear view ....................5 Photograph 3: Battery type 5/NH/1-N side view ....................5 Photograph 4: ABAM4 Menu Keys ........................6 FIGURES Figure 1: Confirmed PSA Loop .......................... -
Page 4: General Description
Photograph 4 below shows the front panel of a type ABMA4 intercom. Photograph 1: Intercom type ABMA4 front view. The intercom type ABMA4 has seven front panel mounted push buttons, a front panel microphone, an LCD display and two side-mounted speakers to provide the voice communications interface for staff working along the conveyor belt. -
Page 5: Photograph 2: Intercom Type Abma4 Rear View
Photograph 2: Intercom type ABMA4 rear view The above photograph shows the rear of the ABMA4 intercom with its battery removed. In the LO position the battery charge current is 11mA and 22mA in the HI position. Refer to the system drawing for the correct charge rate for your intercoms. -
Page 6: Operational Description
The intercom type ABMA4 has seven front panel mounted push buttons. The main visual difference between the ABMA4 and other I.S. Intercoms is that the ABMA4 has a LCD graphical display and addition of ‘Menu’, ‘Enter’, ‘Up’ and ‘Down’ keys or push buttons (‘keys’ will be used interchangeably with ‘push buttons’... -
Page 7: Detection Of Speech For Speaker Mute Control
Figure 1: Confirmed PSA Loop If the ABMA4 sees only an S-line return signal then the V-line will have a cross (X) in the PSA loop and tick (√) in the S-line (see table 2 for more explanation below). The flashing of the ticks (√) continue for a small period after the PSA tone has disappeared to ensure the user sees any PSA changes. -
Page 8: Watchdog Kicks
10 seconds, then it is kicked and the unit resets. 4. GENERIC DISPLAY DECRIPTION When the unit powers up after going through the Austdac logo and version information, the Generic (default) graphical mode is displayed on the LCD as seen below: Figure 2: LCD Generic View The LCD display is separated into three sections using bars. -
Page 9: Psa Health Interface Icons
Each Configuration menu option provides either more detailed status information or the ability to change settings in the ABMA4. To ‘Exit’ the menu display mode, press ‘Menu’. The ‘Menu’ key toggles you in and out of the Configuration and Generic display modes. To enter a menu option (eg. ‘Battery’) you press the ‘Enter’... -
Page 10: Battery Menu
The maximum number of hours recorded since last PSA confirm is 99hrs, which is 4 Days and 3 hours. To exit this menu press either ‘Menu’ or ‘Enter’ key. Setting This menu shows the current setting or configuration setting that can be made in the ABMA4: Figure 6: Setting menu I.S. INTERCOM 20-278-12... -
Page 11: Volume Option
This Configuration Menu function allows testing of Speakers and Output Amplifiers. This is a critical part of the operation of the ABMA4. Without working speakers, the PSA alerts will not be heard and the unit fail as working intercom. As soon as you enter this menu, the speakers are tested by generating a 1.2KHz tone into both stereo speakers. -
Page 12: Mute Level Menu
1.0 of the software is 4321 and is set using the up (⇑) or down (⇓) keys and the ‘Enter’ key. Below is shown the ‘Password Access’ screen and follow-on screen once a successful password has been entered: I.S. INTERCOM 20-278-12 TYPE ABMA4 USER MANUAL 12 OF 21 Issue: 05... -
Page 13: About Menu
Figure 12: Set Mute Level Low Figure 13: Set Mute Level Medium 4. About Menu The ‘About’ menu show Austdac Logo and information on the product model and software version. To exit, either press ‘Menu’ or ‘Enter keys. The following screen will be displayed:... -
Page 14: Installation And Connections
ABMA4 R-Line (Common line) terminated with a shield drain wire at each ABMA4 or not use a shield foil/drain wire at all, which is the Austdac default method. The shield is not passed through and is left floating as depicted in the electrically simplified figure 16 below:... -
Page 15: System Test And Fault Finding
Fault Analysis Fault Analysis of the system looks at the PSA Loop graphic of the ABMA4 to work out where on the line is a fault. Possible reasons that a PSA controller does not receive a confirmation are as follows: 1. -
Page 16: Figure 17: Teu Fault Example
5. There is a combination of the three above Analysis 1: Tail End Unit Is Not Connected Shown below is an example of how to interpret the graphical interface on a group of ABMA4’s when a TEU is faulty. Figure 17: TEU Fault Example The example above has a cut down view of four ABMA4s and an enlarged PSA Loop Icon for easier readability. -
Page 17: Figure 19: V-Line Break In The Middle
Note this is the most difficult to detect and analyse as the signal may not reach the end ABMA4 unit. The easiest analysis would involve just a walk down the system cable and a look at each generic display (i.e. wakeup each unit with a menu key press) to work out where the V-Line tick (√) changes to a cross (×). -
Page 18: Figure 21: S-Line Break At The Front
ABMA4 unit that has two ticks will have an old confirm time displayed. An alternative method to overcome the problem of the generic screen displaying two ticks is to reset all the ABMA4 along the system cable by turning off the PSA Controller for ten (10) minutes. This will reset all ABMA4s to show PSA Loop with blanks or un-initialized state. -
Page 19: Figure 22: S-Line Break In The Middle
(√) changes to a cross (×) on the S-Line. As shown in the figures above, a break occurs between a unit with a tick (√) and unit with a cross (×). Note the ABMA4 will be in sleep mode and will need waking up by pressing the ‘menu’... -
Page 20: Figure 24: R-Line Break At The Front
The examples below show an enlarged R-Line bar-graph Icon at varying states depending on where the R- line has been broken/cut. Figure 24: R-Line break at the front Figure 25: R-Line break in middle I.S. INTERCOM 20-278-12 TYPE ABMA4 USER MANUAL 20 OF 21 Issue: 05... -
Page 21: Type Abma4 User Manual 2 Of
ABMA or BMA you have on the system. The ABMA4 will go into deep sleep mode if the voltage is very low or zero. You can still take the R-Line voltage reading by waking the unit up by pressing and holding the ‘Menu’...
