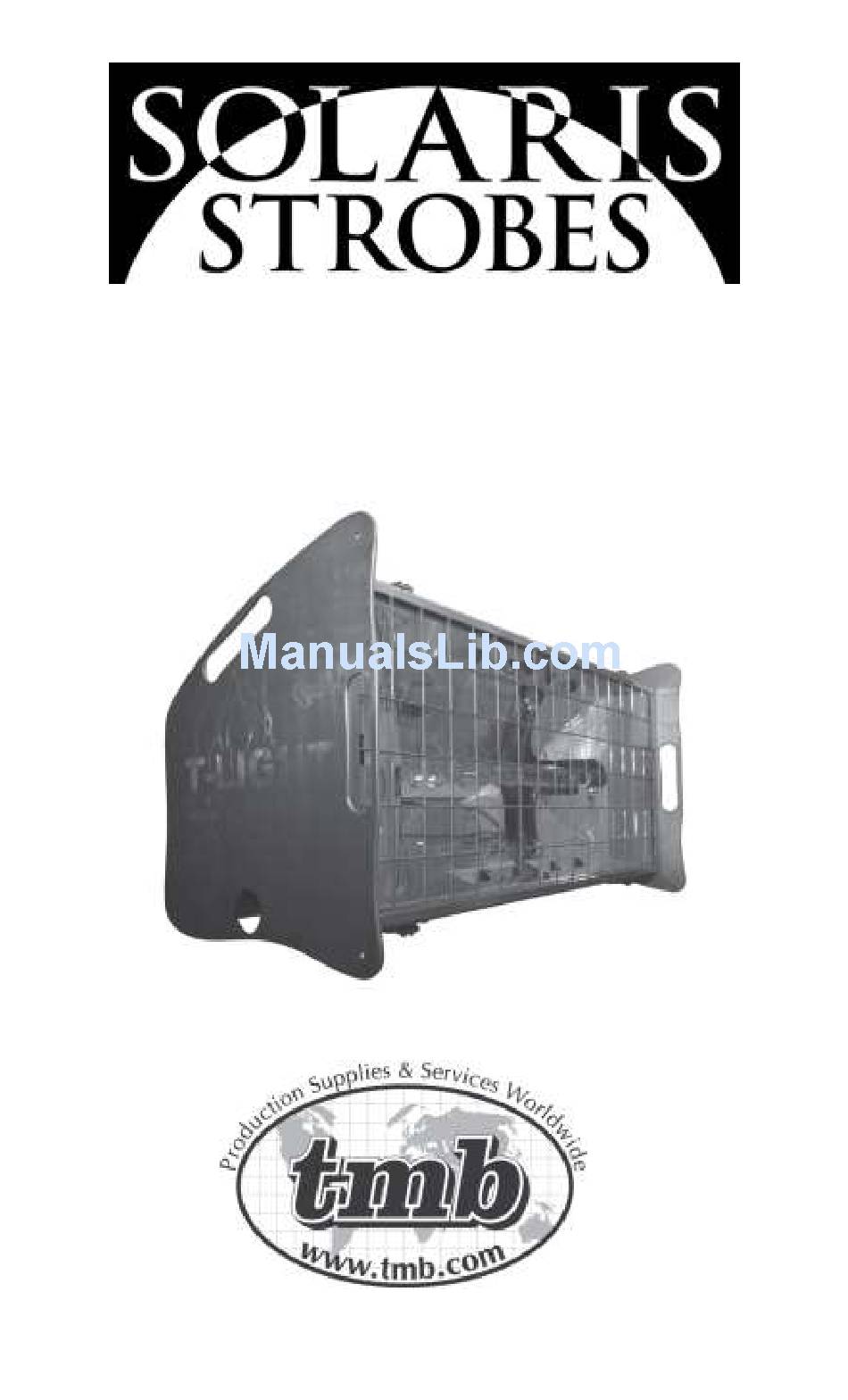

- Page 1 T-Light User Manual Revised 102814...
- Page 2 T-Light Operating Manual ABLE OF ONTENTS Safety Information..................3 Preparation for Use..................5 DMX Setup....................8 Controller Operation................... 11 Technical Specifications................12...
- Page 3 Important: This product is for professional use only! It is not for household use. The T-Light presents risks of injury due to fire, heat, electric shock, ultraviolet radiation, and falling. Flashing lights are known to trigger epileptic seizures in persons who are photosensitive. Read this...
- Page 4 T-Light Operating Manual • Keep all combustible materials (e.g., fabric, wood, paper) at least 1 meter (40 inches) away from the fixture. Keep flammable materials away from the fixture. • Do not illuminate surfaces within 1 meter (40 inches) of the fixture.
- Page 5 T-Light Operating Manual REPARATION FOR UNPACKING The T-Light comes with the following items: • Xenon lamp (packed separately) • Mounting Bracket (installed) • User manual Packing materials protect fixture and lamp during shipment. Retain all packing materials and always use it to transport fixture and lamp.
- Page 6 Please note the referenced voltage range must be maintained while light is under load. The current required by the T-Light varies according to power, mode, and usage. To avoid overload, allow one 100 amp, 220 Volt Single phase branch circuit per fixture, or two 100 amp, 120 volt branch circuits on two phases per fixture to operate at full power.
- Page 7 T-Light Operating Manual INSTALLING THE FIXTURE Warning: Always use a secure means of secondary attachment! The T-Light may be installed in any orientation. Before installing, verify that: • The attachment hardware is in good condition and designed to bear at least 10 times the fixture’s weight.
- Page 8 1 to 511 and is set on the Digital Control found inside clear door on rear of fixture. The T-Light uses 2 channels in DMX control mode. For independent control, each fixture must be assigned its own address and non- overlapping control channels.
- Page 9 T-Light Operating Manual SETTING MODES The T-Light has three modes of operation: DMX – Fixture responds to standard DMX protocol signals. Channel 1: Strobe Rate/Continuous DMX value of 1-90% controls increasing frequency of strobe rate from 1 Hz to 24 Hz. Above 90% activates...
- Page 10 T-Light Operating Manual SETTING TURBO MODE The T-Light has a Turbo function. When Turbo activated, the power output in Strobe Mode is doubled. Turbo has no effect on Continuous Mode. Pressing the Red button three times will show the current Turbo setting (display showing single digit in center column).
- Page 11 ONTROLLER PERATION CONNECTING DATA LINK 1) Connect the DMX data input from the controller to the T-Light 5-pin input (male) socket. 2) Connect additional fixtures output-to-input. 3) Insert a termination plug in the output of the last fixture on the link.
- Page 12 T-Light Operating Manual ECHNICAL PECIFICATIONS LAMP Type (proprietary): 85 KW long-arc xenon tube Frequency of continuous mode: 100/120 Hz Flash tube type: Special T-Light tube 6000˚ Kelvin Colour temperature: PERFORMANCE Intensity control: 0-100% Adjustable flash frequency: 0-20/24 Hz ELECTRONIC & SAFETY Electronic overdrive protection: max 3.5 seconds...
- Page 13 T-Light Operating Manual ONTACT NFORMATION TMB Worldwide TMB LA: +1 818.899.8818 TMB NY: +1 201.896.8600 TMB UK: +44 (0)20.8574.9700 TMB Canada: +1 519.538.0888 TMB Beijing: +86 10.8492.1587 e-mail: tmb-info@tmb.com web: www.tmb.com TMB 24/7 Technical Support US/Canada: 1 877.TMB.DUDE (1 877.862.3833) 0800.652.5418...
