Philips Wireless Router SNB5600 User Manual

Philips wireless router brochure
Hide thumbs

Advertisement

Register your product and get support at
www.philips.com/welcome
SNB5600
EN
Wireless Router

Advertisement

Table of Contents
loading

  Related Manuals for Philips Wireless Router SNB5600

  Summary of Contents for Philips Wireless Router SNB5600

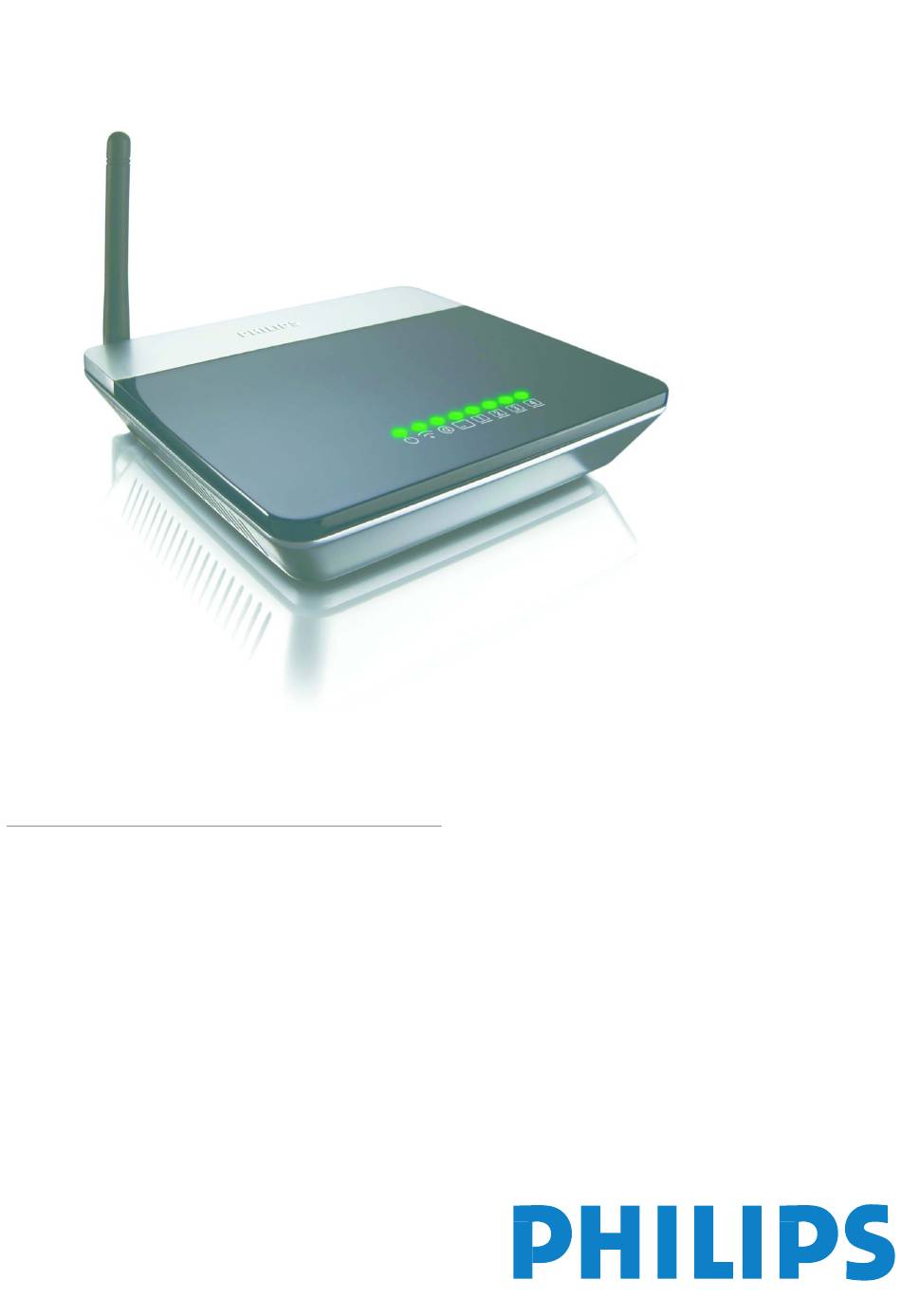

  • Page 1 Register your product and get support at www.philips.com/welcome SNB5600 Wireless Router...
  • Page 3: Table Of Contents

    Table of contents Important Safety information Network range & speed information Conformity Recycling and disposal FCC Radiation Exposure Statement Software licenses Disclaimer Your Wireless Router What’s in the box What else will you need Overview of the front side of the wireless router Overview of the rear side of the wireless router Getting started Install...
  • Page 4: Important

    1.7 Disclaimer This product is provided by "Philips" "as is" and without any express or implied warranty of any kind of warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed.
  • Page 5: Your Wireless Router

    Your Wireless Router Congratulations on your purchase and welcome to Philips ! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. 2.1 What’s in the box Wireless Router Installation CD ROM 2.2 What else will you need...
  • Page 6: Overview Of The Front Side Of The Wireless Router

    To reset without losing configuration settings, see 4.11.3. Using the wrong type of power adapter may damage the Wireless Router. For use only with power supply "Leader : 48090100-C5" and / or "DVE : DV-01AUP". " PHILIPS Model: SNB5600/00 Input: 0682 S/N: Made in China...
  • Page 7: Getting Started

    Getting started 3.1 Install Insert the installation CD into the PC’s CD ROM (or DVD ROM) drive • The installation program will start automatically Follow instructions on the screen Note If for some reason the installation does not start automatically : 1 Click on Windows START and then RUN 2 Type explorer and navigate to the CD ROM (or DVD ROM) drive...
  • Page 8: Connection Overview

    • Once the installation completed, the following screen will be displayed Note This screen is the Philips support site. It is a live Internet page, subject to change. The screen displayed may differ from the one shown. Click on Menu if you want to go back to the menu screen Your WiFi network is running but not secured.
  • Page 9: Install A Wifi Device

    3.4 Install a WiFi device If you want to install a WiFi device you have to retrieve your wireless security settings using your installation CD ROM on the computer where you installed your gateway and by clicking on the security icon of the menu page.
  • Page 10: Configuring The Wireless Router

    Configuring the Wireless Router Advanced users may want to change the configuration of their Wireless Router. This chapter explains how to access the configuration webpages, show you the struture of these webpages and it describes them. 4.1 Log on the webpages Open your Internet Browser Enter http://192.168.1.2 in the address field Click on GO...
  • Page 11: Password Settings

    4.3.2 Password Settings Use this page to change the password for accessing the management interface of the Wireless Router. Passwords can contain from 3-12 alphanumeric characters and are case sensitive. Note If you lost the password, or you cannot gain access to the user interface, press the reset button on the rear panel, holding it down for at least five seconds to restore the factory defaults.
  • Page 12: Static Ip Address

    4.4.5 DNS Domain Name Servers (DNS) are used to map a domain name (e.g., www.philips.com) with the IP address (e.g., 64.147.25.20). The DNS address is usually configured automatically. If this is not the case, one or more DNS address will be provided to you by your ISP.
  • Page 13: Access Control

    4.6.2 Access control Access Control allows users to define the outgoing traffic permitted or not-permitted through the WAN interface. The default is to permit all outgoing traffic. 4.6.3 Security The router can transmit your data securely over the wireless network. Matching security mechanisms must be setup on your router and wireless client devices.
  • Page 14: Address Mapping

    4.7.1 Address Mapping Allows one or more public IP addresses to be shared by multiple internal users. This also hides the internal network for increased privacy and security. Enter the Public IP address you wish to share into the Global IP field. Enter a range of internal IPs that will share the global IP into the "from"...
  • Page 15: Access Control

    Network attacks that deny access to a network device are called Denial-of-Service (DoS) attacks. DoS attacks are aimed at devices and networks with a connection to the Internet. Their goal is not to steal information, but to disable a device or network so users no longer have access to network resources.
  • Page 16: Dmz

    RIP Defect (Default : Disabled) - If an RIP request packet is not acknowledged to by the router, it will stay in the input queue and not be released. Accumulated packets could cause the input queue to fill, causing severe problems for all protocols. enabling this feature prevents the packets from accumulating.
  • Page 17: Tools

    Use the Firmware Upgrade screen to update the firmware or user interface to the latest versions. Download the upgrade file from www.philips.com/support (Model SNB5600), and save it to your hard drive. Then click "Browse..." to look for the downloaded file. Click "BEGIN UPGRADE".
  • Page 18: Set Up Wizard

    4.13 SET UP WIZARD 4.13.1 Getting started Make sure the router is connected correctly. For a detailed description, refer to the user manual. This can be found on the Installation CD provided. 4.13.2 Time zone This page allows you to configure the local time zone and automatic time maintenance.
  • Page 19: Technical Data

    Technical data Ports • Four 10/100Mbps Rj-45 Ports Management Features • Firmware upgrade via web based management • Web based management (configuration) • Power indicators • Event and history logging • Network ping Security Features • Password protected configuration access •...
  • Page 20: Frequently Asked Questions

    Frequently asked questions In this chapter you will find the most frequently asked questions and answers about your Wireless Router. Set-up I cannot connect using the Web browser • Check that you have a valid network connection to your Wireless Router •...
  • Page 22 Copyright © 2007 Koninklijke Philips Electronics N.V. All rights reserved. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Specifications are subject to change without notice. Document order number : 3111 285 43951...

This manual is also suitable for:

Snb5600/05
