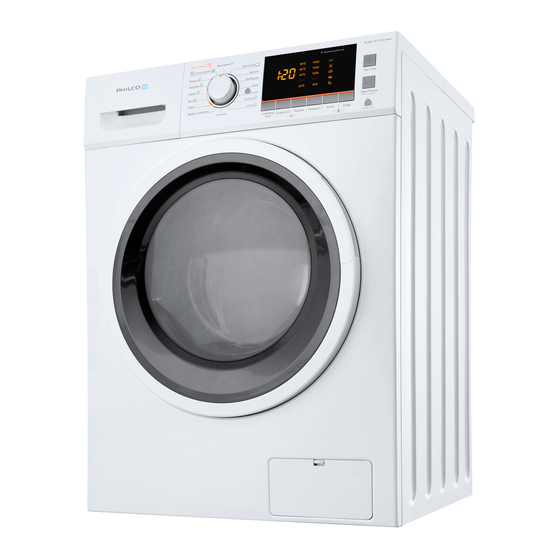

Philco PLWD 16170 Crown User Manual

With dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

AUTOMATIC WASHING

MACHINE WITH DRYER
USER'S MANUAL
PLWD 16170 Crown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLWD 16170 Crown and is the answer not in the manual?

Questions and answers

Related Manuals for Philco PLWD 16170 Crown

Summary of Contents for Philco PLWD 16170 Crown

  • Page 1: Automatic Washing

    AUTOMATIC WASHING MACHINE WITH DRYER USER'S MANUAL PLWD 16170 Crown...
  • Page 2 Troubleshooting and in this way you may perhaps troubleshoot a problem yourself without needing to contact a service centre. Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY PRECAUTIONS ........................2 PART 2: DESCRIPTION OF THE WASHING MACHINE ................... 7 PART 3: INSTALLATION OF THE WASHING MACHINE .................. 9  Unpacking the washing machine .............................9  Disposal of packaging materials ...............................9  Removal of the transportation screws ............................9 ...

  • Page 4: Part 1: Safety Precautions

    PART 1: SAFETY PRECAUTIONS WARNING: HOT SURFACE! WARNING: FIRE HAZARD Safety precautions  If the power cord is damaged, it must be repaired by the manufacturer, service technician or a similarly qualifi ed person in order to prevent injury.  Use only the new hose set supplied with the appliance; old, used or worn out hoses must not be used.
  • Page 5  Before opening the door, check that the water has been completely pumped out of the drum. Do not open the washing machine when there is water in the drum of the washing machine.  Prevent children or pets from climbing on to or otherwise hanging on the appliance.
  • Page 6  If the appliance has a single water supply connection, it must be connected to cold water. If the appliance has two water supply connections, it must be connected to cold and hot water.  The appliance is designed only for household use and only for washing laundry suitable for washing in a washing machine.
  • Page 7  In this type of dryer, it is forbidden to use chemical drying agents.  Laundry soiled with oil may ignite spontaneously when subjected to high temperature as may be the case in a dryer. Such a piece of laundry will heat up, thereby causing an oxidation reaction in the oil.
  • Page 8  Openings must not be blocked by carpet.  The air outlet must not be connected to a chimney fl ue that is used for extracting vapours from gas boilers or other gases, etc.  The appliance must not be installed behind lockable doors, sliding doors or doors that close directly opposite the door of the dryer.

  • Page 9: Part 2: Description Of The Washing Machine

    PART 2: DESCRIPTION OF THE WASHING MACHINE Components Laundry detergent drawer Door Servicing panel Control panel Power cord Drain hose Laundry detergent compartment EN - 7 Copyright © 2015, Fast ČR, a. s. 12/2015...
  • Page 10 Accessories Transportation Hole plug Water Water supply Drain hose hole plugs (optional) supply hose, hose, type H holder type C (optional) (optional) EN - 8 Copyright © 2015, Fast ČR, a. s. 12/2015...

  • Page 11: Part 3: Installation Of The Washing Machine

    PART 3: INSTALLATION OF THE WASHING MACHINE Unpacking the washing machine Unpack the washing machine and check that is has not been damage during transport. Likewise, check that the packaging contains all the parts listed in this user's manual. In the event that the washing machine was damaged during transport or if a component is missing, please immediately contact your vendor or the service centre.

  • Page 12: Connecting The Water Supply Hose

    Place a round container (e.g. tin can) on the individual sides (left, right, front, rear) of the top cover of the washing machine. It the tin can is stable, the washing machine is level. If it rolls away, then it is necessary to level the washing machine.

  • Page 13: Electrical Connection

    Connect it to a wash basin sink. Position the drain hose correctly so that the fl oor is not damaged by a potential water leak. NOTE: If the washing machine has a drain hose holder, install it according to the following picture. Spout Hose holder –...
  • Page 14 – If the power cord is damaged or showing signs of damage, it is necessary that it is replaced only by the manufacturer or in an authorised service centre. WARNING: 1. This appliance must be properly grounded. In the event of a  short circuit occurring, a  proper grounding reduces the risk of injury by electrical shock.

  • Page 15: Part 4: Operating The Washing Machine

    PART 4: OPERATING THE WASHING MACHINE Inspection and preparation before washing Carefully read these methods of use to prevent problems with using the washing machine or damaging laundry. Check whether the fi rst batch of laundry has lost colour. After using a white towel for washing invisible corners on laundry with a small amount of liquid laundry detergent, check whether the stains remained on the white towel from the original colour of the laundry.
  • Page 16 Removed all items from pockets. Check the pockets of clothing that is to be loaded into the washing machine, empty out the pocket contents, e.g. coins, otherwise the washing machine may be damaged or other problems may occur. Laundry needs to be sorted according to the following criteria: –...
  • Page 17 Ironing under the Dry after Warm dry Coat hanger Do not wash in fabric washing cleaning drying Do not spin dry washing machine Ironing Dry on clothes Not suitable with steam line in the for dryer shade Turning on washing –...
  • Page 18 Checking washing capacity: Do not load too much laundry as this may negatively aff ect the result or the wash. Using the following table, identify the maximum amount of laundry that can be loaded into the washing machine. Maximum laundry load Fabric type 8 kg 10 kg...

  • Page 20: Part 6: Washing Laundry

    PART 6: WASHING LAUNDRY First wash cycle Before the fi rst wash, it is necessary to run the appliance empty for one cycle according to the following procedure: Insert the power plug into a power socket and open the water inlet valve. Pour a small amount of laundry detergent into the compartment and close it.
  • Page 21 Finally, select the spinning speed. For standard textiles a spinning speed of 1000–1200 rpm and for delicate textiles a spinning speed of 600 – 800 rpm is recommended. The higher the speed, the drier the laundry will be after the spin drying, however the washing machine will be noisier. The surface of delicate fabrics may wrinkle up and the lifetime of the laundry may be reduced.
  • Page 22 Delicates Select this program for washing delicate laundry. Its washing intensity is gentler and the rotation speed slower compared to the "Synthetics" program. It is recommended for laundry that must be washed gently. Wool Select this program only for woollen laundry that is suitable for washing in a washing machine. Likewise, select the correct temperature according to the label on the laundry suitable for washing in a washing machine.

  • Page 23: Loading Additional Laundry

    Loading additional laundry This operation can be performed during the washing program. When the drum of the washing machine is still rotating and there is a large amount of very hot water in the drum. This situation is dangerous and therefore the door cannot be opened by force. Press the Start/Pause button for 3 seconds to load additional laundry and start adding clothing in the middle of the function.

  • Page 24: Program Chart

    Program Table EN - 22 Copyright © 2015, Fast ČR, a. s. 12/2015...

  • Page 25: Part 7: Cleaning And Maintenance

    PART 7: CLEANING AND MAINTENANCE Prior to commencing maintenance, disconnect the power plug from the power socket or disengage the electrical circuit to which the washing machine is connected and turn off the water supply taps. WARNING! It is forbidden to use solvents as they could damage the washing machine and, furthermore, toxic fumes are emitted that could explode.

  • Page 26: Cleaning The Laundry Detergent Drawer

    WARNING! To prevent burns, water should be drained after the water inside the washing machines cools down. Cleaning the laundry detergent drawer Press the safety stopper marked with an arrow in the fabric softener compartment. Lift the stopper and pull out the fabric softener cover and wash the individual compartments with water.

  • Page 27: Removing Foreign Objects

    WARNING: Before cleaning, disconnect the power plug from the power socket to prevent injury by electrical shock. After fi nishing using the washing machine, disconnect the plug from the power socket and close the washing machine door to prevent children from playing with the washing machine. Removing foreign objects Draining pump fi lter: The draining pump fi lter catches small and fi ne object from the wash.

  • Page 28: Part 8: Troubleshooting

    PART 8: TROUBLESHOOTING In the table below, you will fi nd the most common problems and their solutions before contacting the service department. If the problem is not listed in the table or if the problem persists, disconnect the power plug from the power socket, shut off the water supply and contact the service department.

  • Page 29: Troubleshooting

    Troubleshooting LED display Description Cause Solution The door is not properly shut. Close the door and restart. Door lock Contact the service department if the problem persists. Open the water inlet tap, The water inlet tap is not wait until the water supply open or the water is fl owing returns to normal.

  • Page 30: Part 9: Information Sheet

    INFORMATION SHEET: Philco Philco brand: Supplier's trade mark Philco Model identifi cation number PLWD 16170 Crown Power effi ciency class (A+++ ... highest effi ciency up to D... lowest effi ciency) 6.80 Power consumption (washing, spinning, drying) (kWh/cycle) 1.30 Power consumption (only spinning and washing) (kWh/cycle)
  • Page 31 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste.
  • Page 32 NOTES EN - 30 Copyright © 2015, Fast ČR, a. s. 12/2015...
