/ 16 Technical Information Installation Guide Digital Set-top Box (ABQ-1H57-SCV) - Option 1: Connection via AV cable (Recommended) / 17 - Option 2: Connection via RF cables – For TV units without AV inputs / 18 - Option 3: Connection via AV cables to VCR/DVD-R / 19... - Page 3 Trouble Shooting Tips for Improving TV reception / 29 Signal Leakage A Reminder / 30 General Information MACROVISION Product Notice / 30...
-
Page 4: Getting Started

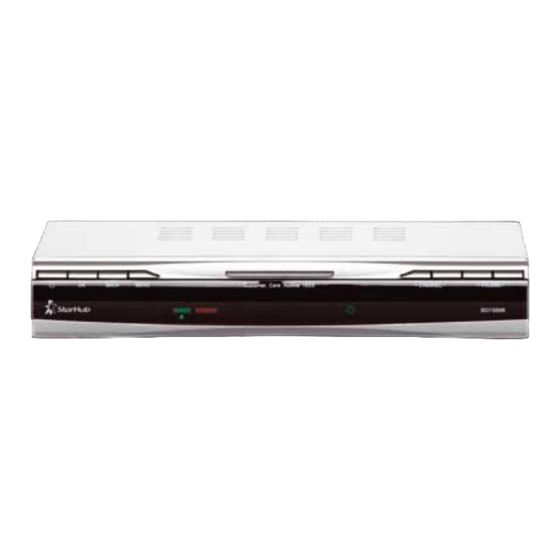

The digital set-top box provides you with a host of special features including the menu system, volume control and channel navigation. You can access these features via the control buttons on the front of the digital set-top box. Digital Set-top Box (ABQ-1H57-SCV) LED Indicators POWER On LED Indicator... - Page 5 Getting Started Digital Set-top Box (DCI15SHB) Front Panel Buttons Pressing button alternates between ON and STANDBY modes POWER ON/OFF VOLUME UP/DOWN Volume change or navigates when in MENU system Confirmation of selection BACK CHANNEL UP/DOWN Moves back one level in MENU system Channel change or navigates when in MENU system MENU Enters and exits MENU system...
-
Page 6: Remote Control
Getting Started Remote Control The remote control offers you the convenience of accessing the same features available from the digital set-top box remotely. Power On/Off TV Viewing or Last Channel Recall Alphanumeric keypad for programme selection and Mute On/Off selected application usage. Audio Track Selection Colour Function Keys Green... -
Page 7: Smart Card
The Smart Card is used to store data of your unique customer subscription package. It also allows StarHub to provide 'live' updates of programme rights and other application data directly to your digital set-top box. -
Page 8: Guide To Digital Cable Applications
Guide To Digital Cable Applications On-Screen TV Guide The On-Screen TV Guide gives you access to comprehensive information on current and upcoming programmes including schedules, synopses, cast and crew, available audio tracks and programme genre for the channel of your choice. (Note: Information may not be available for some programmes). -
Page 9: Genre Search
Guide to Digital Cable Features Genre Search To help you find your favourite programmes easily, you can sort the channels in the On-Screen TV Guide according to their genre. By default, the channels are arranged according to Channel Number. Use the YELLOW (SORT) button to sort the channels further. -
Page 10: Video Mosaic
Guide To Digital Cable Applications Video Mosaic Video Mosaic allows you easy access to your full selection of channels. To access Video Mosaic, press the MOSAIC button on the remote control. A multiplex of 16 windows per page will be displayed. Each window represents one channel. How To Use Functions Directions... -
Page 11: Info Bar
Guide To Digital Cable Applications Info Bar Info Bar gives you details of the programmes you are watching including the channel number, channel name, programme genre, programme title and programme start and end times. Details of programmes in the next 24 hours will also be available on the Info Bar. How To Use Functions Directions... -
Page 12: Programme Information In Chinese
Guide To Digital Cable Applications Programme Information In Chinese This mode allows for programme information to be in Chinese text for Chinese channels and in English text for all other channels. If you prefer, you may change the Preferred Language Setting to English to view all programme information in English only. -
Page 13: Favourite Channel Setting
Guide to Digital Cable Features Favourite Channel Setting You can switch within a pre-selected list of preferred channels by pressing the FAVOURITE button on your remote control. To begin, you must select the channels to be included in your list of favourite channels. How To Use Functions Directions... -
Page 14: Parental Lock Setting
Guide To Digital Cable Applications Parental Lock Setting You may choose to lock a number of channels, after which they will only be accessible via a 6-digit (numeric) Personal Identification Number (PIN). This feature allows parents to control what their children watch. How To Use Functions Directions... -
Page 15: Auto-Tune Setting
Guide To Digital Cable Applications Auto-Tune Setting You may prepare your digital set-top box to switch channels at pre-determined times and dates for recording purposes. How To Use Functions Directions 1. To access Auto-Tune. Press the MENU button on your remote control. Select TV Guide followed by Auto-Tune on the TV screen, to access the Auto-Tune event list. -
Page 16: Change Pin
Guide To Digital Cable Applications Change PIN This function allows you to replace the default or old PIN of your digital set-top box with a new number. The PIN should be kept confidential as it will enable you secured access to selected services or features. -
Page 17: Preference Settings
Guide To Digital Cable Applications Preference Settings This function personalises your viewing preferences including Info Bar Duration, Preferred Language, Preferred Audio, TV Aspect Ratio and Video Format. How To Use Directions Functions Press MENU button on your remote control. 1. To change Info Bar Duration. Select Settings followed by General, then select Info Bar Duration. -
Page 18: Interactive Tv
24 hours a day, 7 days a week. The suite of content available for a start includes, “Live” Financial Stock prices, Lottery results, Weather report, Movies Showtime’s, StarHub Promotions, Communities, etc. For the first time in Singapore, you can now purchase Golden Village movie tickets via Interactive TV. -
Page 19: Etv
Guide to Interactive Services eTV (Available only for eTV supported programmes) eTV provides you more interactivity with your favourite TV programme. You can get more information on the programme you are watching and even participate in votes and contests while watching TV. To access eTV, press the GREEN button on the remote control when the eTV icon appears Green... -
Page 20: Technical Information
Technical Information Installation Guide - Digital Set-top Box (ABQ-1H57-SCV) Option 1: Connection via AV cables (Recommended) Switch your TV to the AV Channel to watch your StarHub TV programmes. (Back) StarHub CableTV point (Back) Video HDMI/DVI HDMI/DVI White Yellow STEREO AUDIO... -
Page 21: Option 2: Connection Via Rf Cables - For Tv Units Without Av Inputs
Technical Information Installation Guide - Digital Set-top Box (ABQ-1H57-SCV) Option 2: Connection via RF cables – For TV units without AV inputs Tune TV unit to receive programmes from your digital set-top box. (Back) StarHub (Refer to Tuning Procedures). CableTV point... -
Page 22: Option 3: Connection Via Av Cables To Vcr/Dvd-R
Technical Information Installation Guide - Digital Set-top Box (ABQ-1H57-SCV) Option 3: Connection via AV cables to VCR/DVD-R Please refer to the steps in the following diagram to connect your digital set-top box, VCR/DVD-R and TV unit. This connection will allow three different recording scenarios as shown in the Recording section. -
Page 23: Option 1: Connection Via Av Cable (Recommended)
Green Blue RF IN RF IN To TV AV In Connect AV cable from digital set-top box AV Out to TV AV In. StarHub CableTV point Digital set-top box (Back) Do Not Open Do Not Open TV OUT CABLE IN... -
Page 24: Option 2: Connection Via Rf Cables - For Tv Units Without Av Inputs
Video Video TV (Back) RF IN RF IN Connect a second RF cable from the digital set-top box to the TV RF In. StarHub CableTV point Digital set-top box (Back) Do Not Open Do Not Open TV OUT CABLE IN... -
Page 25: Option 3: Connection Via Av Cables To Vcr/Dvd-R
VCR/DVD-R must be tuned to all free-to-air frequencies for the recording function to work. For VCR/DVD-R tuning procedures, refer to the VCR/DVD-R manual. TV must be tuned to all free-to-air frequencies so that you can watch free-to-air channels on your TV while recording a StarHub TV channel on your VCR/DVD-R. -
Page 26: Option 1: Connection Via Av Cable (Recommended)
Technical Information Installation Guide - Digital Set-top Box (DCI15SHB) Option 1: Connection via AV cables (Recommended) Switch your TV to the AV Channel to watch your StarHub TV programmes. StarHub CableTV point (Back) Video (Back) White Yellow STEREO AUDIO Video... -
Page 27: Option 2: Connection Via Rf Cables - For Tv Units Without Av Inputs
Installation Guide - Digital Set-top Box (DCI15SHB) Option 2: Connection via RF cables – For TV units without AV inputs Tune TV unit to receive programmes from your digital set-top box. (Refer to Tuning Procedures). StarHub CableTV point (Back) HDMI/DVI HDMI/DVI Video... -
Page 28: Option 3: Connection Via Av Cables To Vcr/Dvd-R
VCR/DVD-R must be tuned to all free-to-air frequencies for the recording function to work. For VCR/DVD-R tuning procedures, refer to the VCR/DVD-R manual. TV must be tuned to all free-to-air frequencies so that you can watch free-to-air channels on your TV while recording a StarHub TV channel on your VCR/DVD-R. -
Page 29: Tuning Procedures /26
3. The TV unit will automatically search and lock all available TV channels assigning each channels with a CHANNEL NUMBER (#). 4. Pay attention to the CHANNEL NUMBER (#) that is assigned to the StarHub TV channel. 5. Once the Auto Search is complete, press the CHANNEL NUMBER (#) that has been assigned to receive the StarHub TV channel. -
Page 30: Recording
Technical Information Recording Scenario A : Record and view the current StarHub TV channel 1. To view (Back) StarHub TV channel. (Back) Video HDMI/DVI HDMI/DVI White Yellow STEREO AUDIO Video Video White Yellow Component STEREO AUDIO STEREO AUDIO Video Video... -
Page 31: Recording
Technical Information Option 4: Recording Scenario C : Record StarHub TV channel and view free-to-air channel 1. To view free-to-air StarHub CableTV point channel. TV (Back) Digital set-top box (Back) TV: Select the pre-tuned RF IN CABLE IN TV OUT free-to-air channel. -
Page 32: Tips For Improving Tv
Trouble Shooting Tips For Improving TV Reception If you experience any disturbance in your TV reception, the problem may be due to a minor oversight. Here's an important checklist that may help you locate the source of the problem quickly: Always ensure that all devices (TV, digital set-top box, VCR and DVD-R) are plugged into your power outlet and the power is turned on. -
Page 33: Macrovision Product
Signal Leakage A Reminder It is very important that you do not tamper with the cable wiring in your home once StarHub's signals are connected to your TV points. This is because you could cause signal leakage. Signal leakage is the unwanted radiation of cable signals into the atmosphere from a component in the cable network which is faulty or improperly installed.
