- Page 1 Net 1Card IB 2/15/00 12:17 PM Professional Color Television ® T E L E V I S I O N ’ WNER ANUAL UIDE IndustryStandards Page 1 ™...
-
Page 2: Table Of Contents
Serial No. Net 1Card , SmartCard Television, SmartLink SmartPlug Series are all registered trademarks of the Philips Consumer Electronics Company. Page 2 YMBOLS Getting Started Warning/Precautions ....2 Introduction . -
Page 3: Introduction

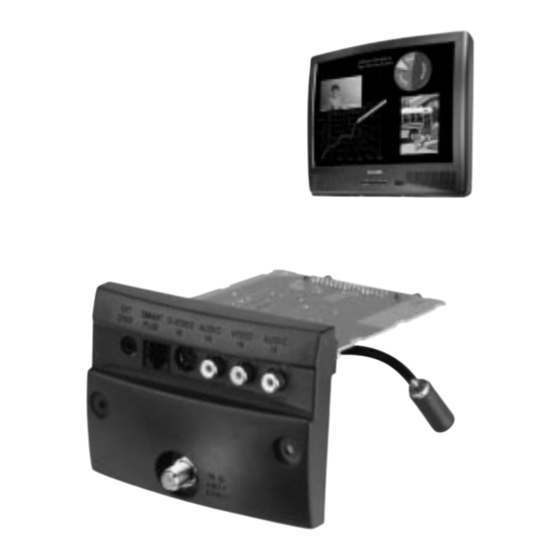

2/15/00 12:17 PM NTRODUCTION The Net1Card is a network television systems control SmartCard that is designed to work with Philips SmartCard televisions in a balanced RF distribution sys- tem. The Net1Card allows an individual with a unit set in the Transmitting mode to control all televisions, up to 8 zones of televisions, or a single television, all set in the Receive mode. - Page 4 Net 1Card IB 2/15/00 12:17 PM SSEMBLY hen unpacking the Net1Card components from the box, be careful pulling the items out. The box is packed with three separately packaged items: the Net1Card Assembly Cover, the Net1Card Circuit and Panel Board, and the RF Input Cable.
- Page 5 Net 1Card IB 2/15/00 12:17 PM SSEMBLY nstallation of Net1Card is easy. Remember to follow these instructions, be patient, and use the T374AH Set Up Remote Control (see T374AH Remote Control Instructions - part # IB7166E002 for complete details). BEGIN Disconnect the cable from the RF IN (anten- na) jack inside the TV.
- Page 6 Net 1Card IB 2/15/00 12:17 PM NTENNA OOKUPS combination antenna receives normal broadcast channels (VHF 2-13 and UHF 14-69). Your connection is easy since there is only one 75Ω (ohm) antenna plug on the back of your TV - and that’s where the antenna goes.
- Page 7 Net 1Card IB 2/15/00 12:17 PM TV H ABLE OOKUP our Cable TV input into your home may be a single (75 ohm) cable, or a Converter Box installation. In either case the connection to the TV is very easy. Just put the threaded end of the cable signal to the TV's antenna plug and screw it down tight.
- Page 8 Net 1Card IB 2/15/00 12:17 PM UDIO IDEO ou can view the playback of VCR tapes (Video Disc Players, Camcorders, etc.) by using the AUDIO and VIDEO INPUT jacks (on the Net1Card Cover assembly). For example: Use the following steps to view the playback of a pre-recorded VCR tape BEGIN Connect the VIDEO and AUDIO IN(put)
- Page 9 Net 1Card IB 2/15/00 12:17 PM IDEO NPUTS he S(uper)-Video connection on the rear of the TV can give you better picture detail and clarity, for the playback of S-VHS VCR tapes, rather than the normal antenna picture connections. Note: The VCR (or accessory device) must have a S-VIDEO OUT(put) jack in order for you to complete the steps and connections shown to the right.
-
Page 10: Commercial Settings
Net 1Card IB 2/15/00 12:17 PM OMMERCIAL nce the Net1Card is installed and the TV plugged back in, you can perform Net1Card setup opera- tions for the TV. You should start with the “COMMER- CIAL SETTINGS” menu. BEGIN To begin setup, press the POWER button to turn the TV on. -
Page 11: Receiver Control
Net 1Card IB 2/15/00 12:18 PM OMMERCIAL RONT KEYPAD allows you to enable or disable the buttons on the front of the TV. The default setting is “ON.” “CABLE” allows you to select between the cable “YES” or “NO.” The default is “YES.” BEGIN If not already in the “COMMERCIAL SET- TINGS”... -
Page 12: Transmitter Control
Net 1Card IB 2/15/00 12:18 PM ECEIVER ONTROL CVR SET ID allows you assign a specific number to a Net1Card Receiver TV. Each Receiver TV in the Net1Card network should have a Set ID. This allows the Transmitter TV to send a specific message this TV. It also allows the Transmitter TV to check to make sure the TV is hooked to the network (more later). - Page 13 Net 1Card IB 2/15/00 12:18 PM RANSMITTER CVR POWER allows you to turn the Receiver TVs “ON,” “OFF,” or leave them at their “CURRENT” setting. Selecting “CURRENT” allows the Receiver TVs to adjust the power, even if “LOCK” is selected under“RCVR LOCKOUT.”...
-
Page 14: Transmitter Control
Net 1Card IB 2/15/00 12:18 PM RANSMITTER CVR CHANNEL allows you to turn the Receiver TVs to the channel you select or leave them at their “CURRENT” setting. Leaving them at “CURRENT” allows the Receiver TV to change channels, even the sys- tem is “LOCKED.”... -
Page 15: Receiver Volume
Net 1Card IB 2/15/00 12:18 PM RANSMITTER f you select “LOCK” under “RCVR LOCKOUT,” you have a couple of options in regards to “RCVR POWER,” “RCVR VOLUME,” and “RCVR CHAN- NEL.” Discussed below are the options. 1: If you selected a setting (other than “CUR- PTION RENT”) for any of the three categories –... -
Page 16: Factory Test Menu
Net 1Card IB 2/15/00 12:18 PM ACTORY nce you have completed your general selections under the Commercial Settings menu, you must make specific selections. If you selected “FACTORY” (See page 19.), follow the directions below. BEGIN If not already in the “FACTORY TEST MENU,” press the D button on the remote control. -
Page 17: Tv Features
Net 1Card IB 2/15/00 12:18 PM CREEN ccess to Net1Card’s internal “COMMERCIAL SETTINGS,” “RECEIVER CONTROL,” “TRANS- MITTER CONTROL,”and “FACTORY TEST MENU” can only be gained with the optional T374AH remote. Net1Card has two different operation modes: Consumer and Commercial. In the Consumer mode, the TV's “SETUP MENU”... - Page 18 Net 1Card IB 2/15/00 12:18 PM Press the (+) or (-) to choose between MAX(imum) volume or the TURN ON volume. Press the VOLUME UP or VOL- UME DOWN button to set either the MAX(imum) volume level available, or the set TURN ON volume level. The range is made up of 63 steps from minimum to maximum.
-
Page 19: Closed Captioning
Net 1Card IB 2/15/00 12:18 PM LOSED APTIONING losed Captioning allows you to read the voice con- tent of television programs on the TV screen. Designed to help the hearing impaired this feature uses on-screen “text boxes” to show dialogue and conversa- tions while the TV program is in progress. -
Page 20: Glossary
Net 1Card IB 2/15/00 12:18 PM LOSSARY Audio/Video Inputs • Connectors (phono type plugs) on the rear of the TV for the input of audio and video signals. ClonePort • The ClonePort jack is given priority over all functions on the Net1Card. This port is used for cloning purposes only. -
Page 21: Warranty
If you require an exchange during the warranty period, you must take the product to the dealer from whom it was purchased, or ship it freight prepaid and insured with proof of purchase to the Philips Factory Service Center listed below. Philips Service Company, 907 Snapps Ferry Road...
