Related Manuals for Philips ShoqBox
Summary of Contents for Philips ShoqBox

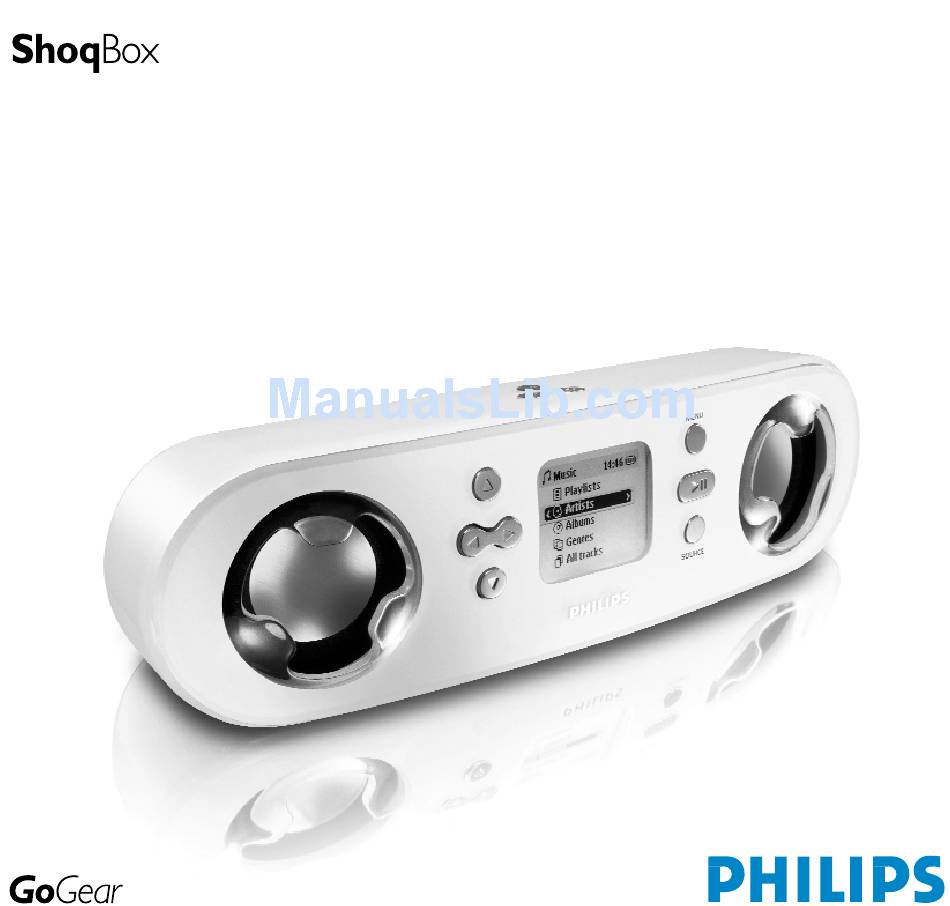

- Page 1 user manual manuel d’utilisation gebruikershandleiding | manuale per l'utente användar-handbok | benutzerhandbuch | manual del usuario | manual do usuário...
- Page 2 We hope you enjoy your Philips ShoqBox Please visit www.philips.com/support and enter your model number to view: · FAQ, Frequently Asked Questions · Latest user manuals · Latest computer software downloads · Firmware upgrade files Register Since it is possible for you to upgrade your product, we recommend that you register your product on www.philips.com/register...
-
Page 3: Quick Start
Insert the included CD into your PC's CD-ROM drive. Follow screen instructions to complete installation. ATTENTION! WINDOWS 98SE USERS: To avoid installation problems, DO NOT CONNECT ShoqBox to the PC until AFTER installation completes. Connect Connect your ShoqBox to your PC using the included USB cable, with ShoqBox powered by included adapter. - Page 4 Detailed information is given in selected music software’s Help. Unplug /Eject Exit your music software. Disconnect ShoqBox safely from your PC by clicking task bar to avoid file error. (WINDOWS 98SE users: there is no Simply disconnect ShoqBox after file transfer completes.)
- Page 5 RESET LINE IN 5V DC RESET LINE IN 5V DC MENU SOURCE...
-
Page 6: Overview Of Controls And Connections
Overview of controls and connections Navigation + / – Increases / decreases volume Enables or disables Dynamic Bass Boost to enhance bass tones MENU For menu options 2; y On / off ; plays / pauses music; plays / stores a radio station SOURCE Returns to root menu / displays playscreen or library options Connections cover... -
Page 7: Included Accessories
2 seconds or more. Indication of power level Low battery warning: appears when battery power is very low. Please use the 5V adapter to recharge/ operate your ShoqBox, otherwise ShoqBox enters the power shutdown mode within a minute. Battery one-third full... -
Page 8: Auto Power Down
Option available for selection Repeat 1 Shuffle - Your ShoqBox shows a brief animation when an activity takes more than 2 seconds to perform. - When you adjust volume, a brief volume adjustment screen is shown. Tuner mode Alarm clock... -
Page 9: Using Controls
Using ShoqBox controls Troubleshooting Reset ShoqBox Restore shoqbox Factory Settings Press MENU; scroll to Settings > Restore settings Basic Operation Switch ShoqBox on / off Select Music / Tuner / Line-in Enter/ exit the menu display Scrolling and browsing Go to different levels of menu... - Page 10 Music mode: playback Once you have downloaded MP3/ WMA tracks from your computer to the ShoqBox, you can access your music in 5 different ways on the ShoqBox. Press SOURCE and select MUSIC to enter the music mode. Press to scroll up or...
-
Page 11: Fm Radio Mode
FM Radio mode Insert the included pigtail antenna into the the built-in speakers. Extend and position the antenna to improve reception. Press SOURCE and select Radio to enter the radio mode. Any recorded music playback will stop as you enter the radio mode. Automatic tuning Press MENU... - Page 12 Line-in Mode: for playback of external sources You can use your ShoqBox to act as a powerful mini speaker. Connect the included audio cable between LINE OUT / p connection on your auxiliary equipment. On ShoqBox, press SOURCE Operate the controls on your auxiliary equipment to playback.
-
Page 13: Customizing Settings
Press MENU to exit the menu display. Options for each setting are shown on ShoqBox's display. Advanced settings and actions Shuffle/Repeat Plays music tracks randomly (Shuffle) and / or repeatedly (Repeat) in MUSIC mode... -
Page 14: Setting Day & Time
The time is displayed using the 12-hour and 24-hour clock. 12-hour clock is the default option During the alarm call, the current ShoqBox mode (e.g. music / radio / Line-in) will be interrupted. The alarm will sound for 10 minutes in your selected alarm source mode and then enter the "snooze"... -
Page 15: Setting The Alarm
Radio / Music: the volume has not been turned down too low! Artist / Album: the next artist / album stored is selected if it has been deleted from your ShoqBox. Buzzer option is the default alarm source if no artists and albums are available on your ShoqBox. -
Page 16: Stopping The Alarm
In the "snooze" mode, press any button again before the alarm call repeats. "Snooze” is disabled. The alarm will sound again only according to the Alarm Occurrence setting. If you do not press any buttons to stop the alarm, ShoqBox by default enters the "snooze" (repeat alarm) mode after 10 minutes. - Page 17 Using shoqbox as an external storage device ShoqBox can be used as an external storage device for storage and transfer of any data files. Note that music files transferred from the PC to ShoqBox via Windows Explorer will not be able to play on shoqbox. Please always use included music software for music transfer.
-
Page 18: Troubleshooting
Q. My ShoqBox does not respond. Should your ShoqBox "hang" or continues to display the busy icon indefinitely, use a pencil or similar object to press the reset pinhole at the back of the set . File contents e.g. your songs or downloaded files on your ShoqBox are not affected when resetting in this way. - Page 19 You have a file error: system files may be missing or there is a format error on ShoqBox.To remedy, please connect ShoqBox to your PC with the included USB cable and to the main power supply with the included adapter. Start Device Manager Q.
-
Page 20: Copyright Information
Copyright information Unauthorized duplication and distribution of Internet/CD recordings violate copyright law and international treaties. You should use ShoqBox and the included software for personal use only. In the U.K and certain countries, the copying of material protected by copyright may require the permission of the copyright holders. -
Page 21: Safety And Maintenance
Battery life of ShoqBox may shorten in low temperature conditions. Do not expose to excessive heat caused by heating equipment or direct sunlight. When you are using ShoqBox, connecting it to your PC or charging the battery, it is normal for ShoqBox to become warm. - Page 22 When connecting or disconnecting your power adapter, always hold the power adapter by its sides. Keep fingers away from the metal part of the plug. The power adapter for ShoqBox is a high-voltage component and should not be opened for any reason, even when ShoqBox is off.
-
Page 23: Technical Specifications
Replaceable (by Philips service) 1600mAh Li-Ion PSS120: 512MB NAND Flash memory * PSS110: 256MB NAND Flash memory * * Actual formatted capacity of ShoqBox will be less 8- 320 Kbps and VBR 32- 192 Kbps 8, 11.025, 16, 22.050, 32, 44.1, 48... - Page 24 27.3 (W) x 2.3 (L) x 2 1(H) inch Weight 350g (12.3oz) PHILIPS reserves the right to make design and specification changes for product improvement without prior notice. Modifications not authorized by the manufacturer may void users authority to operate this device.
-
Page 25: Notice For The Usa
Notice for the USA Philips PSS110 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency... - Page 26 About Musicmatch® Jukebox With this award-winning software you can easily convert your CDs to MP3s, manage your digital music collection and transfer music to your device. Note: Music that has not been transferred to your device using Musicmatch® Jukebox cannot be played on your device.
-
Page 27: The Main Screen
The mainscreen Pull down menus: to access various functions Player window: shows track information and provides basic controls Playlist window: shows playlist information Text area: type your search criteria here Resizing buttons: minimizes, maximizes / exit Library screen: shows library information Portable device: calls up Portable Device Manager *Actual display varies with use... - Page 28 Search and add tracks from all drives (to the Library) Musicmatch® Jukebox will find music files on your PC hard drive, or all hard drives available. Go to the menu Options > Music Library > Search and Add Tracks From All Drives. In the Look In field, choose All Drives (or any other preferred drives) to search for music files.
- Page 29 Add Tracks to a Playlist by Drag and Drop Click to highlight an item. Drag the selection to the playlist window. Your selection is now in the playlist. It will begin to play. ✔ Press and hold <Ctrl> on your keyboard and click to select more than one item. To select consecutive items, click the first item, press and hold <Shift>...
-
Page 30: Delete Tracks And Playlists
Delete Tracks and Playlists Click to highlight an item. Right click and select Remove tracks to delete. Alternatively, press <Delete> on your keyboard to delete your selection. ✔ Press and hold <Ctrl> on your keyboard and click to select more than one item. To select consecutive items, click the first item, press and hold <Shift>... -
Page 31: Edit Track Information
Edit Track Information Click on a track. Right click and select Edit Track Info... for the Edit Track Info window. Click on the text boxes to edit relevant information. Click on OK to save the information. Click Cancel to discard changes made. ✔... -
Page 32: Search For Tracks
Search for Tracks Type a search string in the Find field. Click on Go to start searching. You will see tracks that contain the search string. You can transfer, delete or drag and drop these tracks. *Actual display varies with use... - Page 33 Send tracks and playlists to your device Click on File > Send to portable device for the Portable Device Manager. Drag and drop tracks and playlists into the Portable Device Manager. (Philips PSSxxx. xxx=model number) Your selection is now transferred to your device.
-
Page 34: Firmware Upgrade
Connect your device to your computer (powered by the supplied AC/DC adapter if applicable). Launch Device Manager from Start ➔ Program ➔ Philips ➔ xxx ➔ xxx. (xxx = model number) In the main window, click Upgrade. - Page 35 Please charge your device fully before device restore. This will ensure steady power supply for completing the whole process. Connect your device to your computer (powered by the supplied AC/DC adapter if applicable). Launch Device Manager from Start ➔ Program ➔ Philips ➔ xxx ➔ xxx. (xxx = model number) WARNING ! All content and music will be erased! Please back up all your files before device restore.
- Page 36 Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. 2005 © Koninklijke Philips Electronics N.V. All rights reserved. www.philips.com 3104 205 33172 Printed in China...
