Page 1: Spare Parts

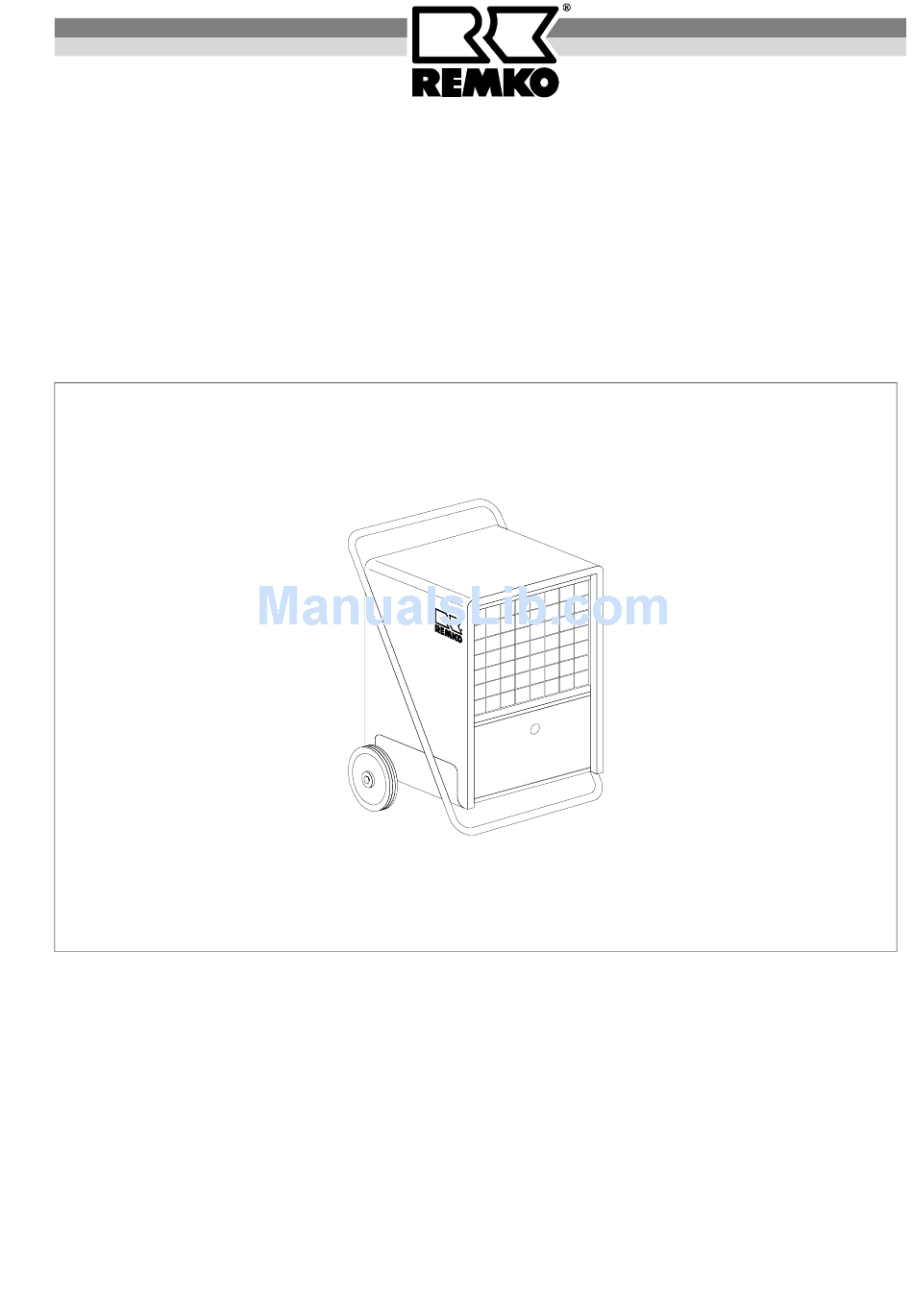

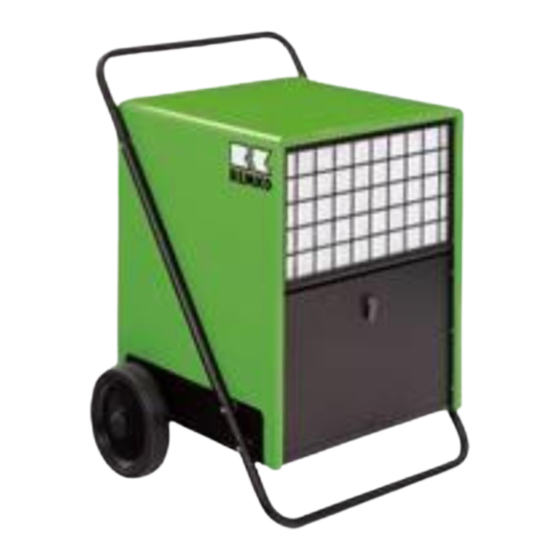

REMKO AMT 60-E - 90-E Mobile Dehumidifier Operation Technology Spare Parts REMKO – powerful like a bear. Edition GB – M02... -
Page 3: Table Of Contents
Our guarantee will become void when the unit supplied by us is used and installed for inadequate purposes, or maintained incorrectly, etc., or if it is changed without our prior consent. Subject to alterations! Mobile Dehumidifier REMKO AMT 60-E - AMT 90-E AMT 60-E AMT 90-E Contents Contents... -
Page 4: Air Dehumidification
The ambient air is heated to absorb humidity and to be carried off to the outside. However, the total gen- erated energy is lost with the carried off humid air. The Use of REMKO Air Dehumidifiers 2. By dehumidifying: The humid air in the closed room is continuously de- ◊... - Page 5 ◊ The air enriched with water vapour is continuously cir- thereby contributes to room heating. culating through the REMKO air dehumidifier. It is de- When materials or rooms are to be dried the heat en- humidified and leaves the apparatus in a slightly ergy flows in a circulation, i.e.
-
Page 6: Safety Instructions
Safety Instructions Unit Description REMKO dehumidifiers will provide you with high utility These unit have been designed for automatic, universal and long life thanks to our extensive material, function and problem-free air dehumidification. Thanks to their and quality controls. compact dimensions they can be easily transported and installed. -
Page 7: Working Range
The condensate is drained via a connecting branch into part. the water container (only in model AMT 60-E) or via a ◊ Make sure to observe a minimum distance of 50 cm hose into the discharge pipe installed at a lower level. -
Page 8: Starting
The filter of the unit is to be controlled and cleaned thor- oughly before every use. If the air suction grille is dirty, please cleaned it up like shown in chapter ”Maintenance Installation of the water container (only AMT 60-E) and Service”. We recommend cleaning of the container with a clean cloth after its removal. -
Page 9: Discard The Unit
(only model AMT 60-E) has been switched off by The complete cooling system is hermetically sealed and the floater in the water container. In such a case the yel- contains no user-serviceable parts. -
Page 10: In Case Of Troubles
10A resp. 16A. ◊ Check mains plugs. ◊ Check filling level of water container and/or check correct installation. Only AMT 60-E. ◊ Check micro switch function. Only AMT 60-E. ◊ Control hygrostat (accessory) setting. The set value must be lower than the relative air hu- midity in the room where the unit has been installed. -
Page 11: Technical Data
Any claims under guarantee regarding materials can be accepted only when the orderer or his customer has filled in completely the “guarantee certificate” which is enclosed with every REMKO-device and has returned it to REMKO GmbH & Co. KG in due time after the unit’s sale and commissioning. -
Page 12: Exploded View Amt 60-E
Exploded View AMT 60-E 9 10 We reserve the right to make modifications in dimensions and construction in the interests of technical progress. -
Page 13: Spare Part List Amt 60-E
Spare Part List AMT 60-E Designation Ref.-No. air suction grille 1105501 dust filter 1105551 filter fixture 1105503 housing 1105504 transport handle (upper part) 1105552 blow out grille 1105506 heat-exchanger-package, cpl. 1105553 fan blade 1105554 clutch plate 1101155 fan motor 1105555... -
Page 14: Exploded View Amt 90-E
Exploded View AMT 90-E We reserve the right to make modifications in dimensions and construction in the interests of technical progress. -
Page 15: Spare Part List Amt 90-E
Spare Part List AMT 90-E Designation Ref.-No. air suction grille 1105581 dust filter 1105568 filter fixture 1105569 housing 1105533 transport handle (upper part) 1105534 blow out grille 1105536 expansion valve 1105570 heat-exchanger-package, cpl. 1105571 solenoid valve 1105572 fan blade 1105573 clutch plate 1101155 fan motor... -
Page 16: Wiring Diagram Amt 60-E
Wiring Diagram AMT 60-E CONTROL BOARD MAINS COMPR. VALVE COND. EVAP. FAIL LAMP yellow blue 8,2 A green 230V/1~ 50Hz C1 = Capacitor OP = Overload protection, compressor = Main fuse P1 = Running hour meter H1 = Control lamp, yellow (tank full) -
Page 17: Wiring Diagram Amt 90-E
Wiring Diagram AMT 90-E CONTROL BOARD MAINS COMPR. VALVE COND. EVAP. FAIL LAMP 8,2 A blue green 230V/1~ 50Hz C1 = Capacitor OP = Overload protection, compressor = Main fuse P1 = Running hour meter H2 = Control lamp, green (operation) R1 = Temperature sensor (red) H3 = Control lamp, red (fault) R2 = Temperature sensor (blue) -
Page 18: Maintenance And Service Log
Maintenance and Service Log Model: ........ Model No.: ........9 10 11 12 13 14 15 16 17 18 19 20 Clean device -surface- Clean device -interior- Clean condenser Clean evaporator Clean fan blade Clean/replace dust filter Check protection guards Check device for damage Check all fixing screws Electric safety-inspections... - Page 20 REMKO GmbH & Co. KG Klima- und Wärmetechnik D-32791 Lage Im Seelenkamp 12 • D-32777 Lage PO Box 1827 • Phone +49 (5232) 606 - 0 +49 (5232) 606260...
